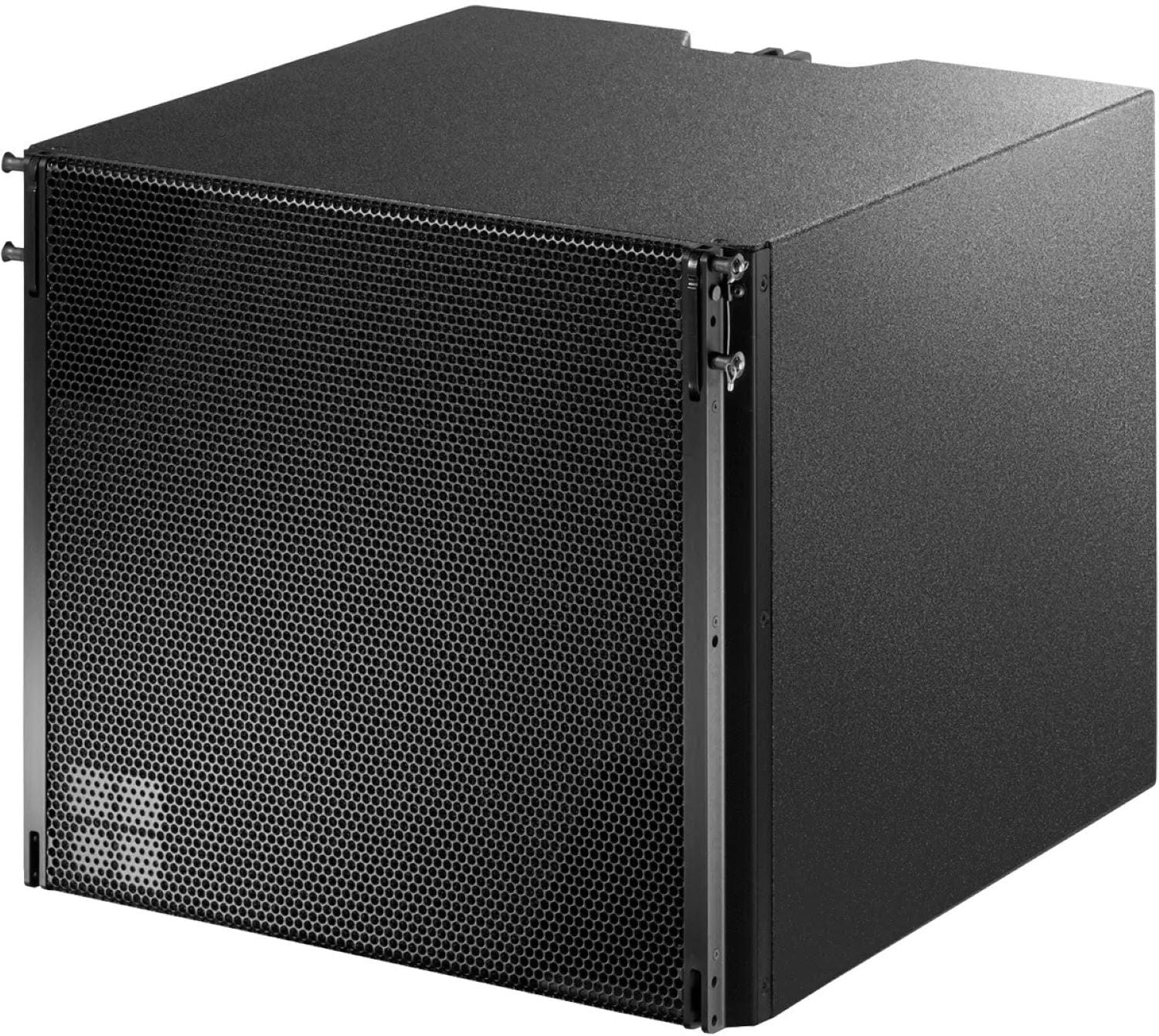

d&b audiotechnik Vi-SUB Installation Flyable Cardioid Subwoofer
The d&b audiotechnik Vi-SUB is an installation specific, actively driven high performance cardioid subwoofer powered by a single amplifier channel, with integrated rigging. It houses two long excursion neodymium drivers: an 18 inch driver in a bass reflex design facing front and a 12 inch driver in a two chamber bandpass design radiating to the rear. The cardioid pattern avoids unwanted energy behind the system for accurate low frequency reproduction. It supplements Vi8 and Vi12 loudspeakers, ground stacked or flown, on top of a Vi array or as a separate column. Trianze Tech supplies the Vi-SUB in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Cardioid subwoofer powered by a single amplifier channel
- 18 inch front driver and 12 inch rear driver
- 37 to 115 Hz frequency response
- Up to 137 dB SPLmax
- Integrated rigging with 0 and 2.5 degree splay settings
- Weather Resistant (IP55) and Special Color versions available
Technical Specifications:
| Spec | Value |
|---|---|
| Model | Vi-SUB |
| Type | Installation specific flyable cardioid subwoofer |
| Frequency Response | 37 to 115 Hz (standard), 37 to 95 Hz (100 Hz mode), -5 dB |
| Max SPL | 133 dB with D20/30D, 137 dB with D40/D80/40D |
| Cabinets per Amplifier Channel | 2 |
| Nominal Impedance | 8 ohms |
| Power Handling | 800 W RMS / 3200 W peak (10 ms) |
| Splay Angle Settings | 0 and 2.5 degrees |
| Components | 1 x 18 inch driver, 1 x 12 inch driver |
| Connections | 2 x NL4 M |
| Dimensions (H x W x D) | 606 x 700 x 728 mm |
| Weight | 62 kg (137 lb) |
Why Buy the d&b audiotechnik Vi-SUB from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the Vi-SUB with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik Vi-SUB uses an 18 inch bass reflex driver facing front and a 12 inch driver in a two chamber bandpass design radiating to the rear, powered by a single amplifier channel.

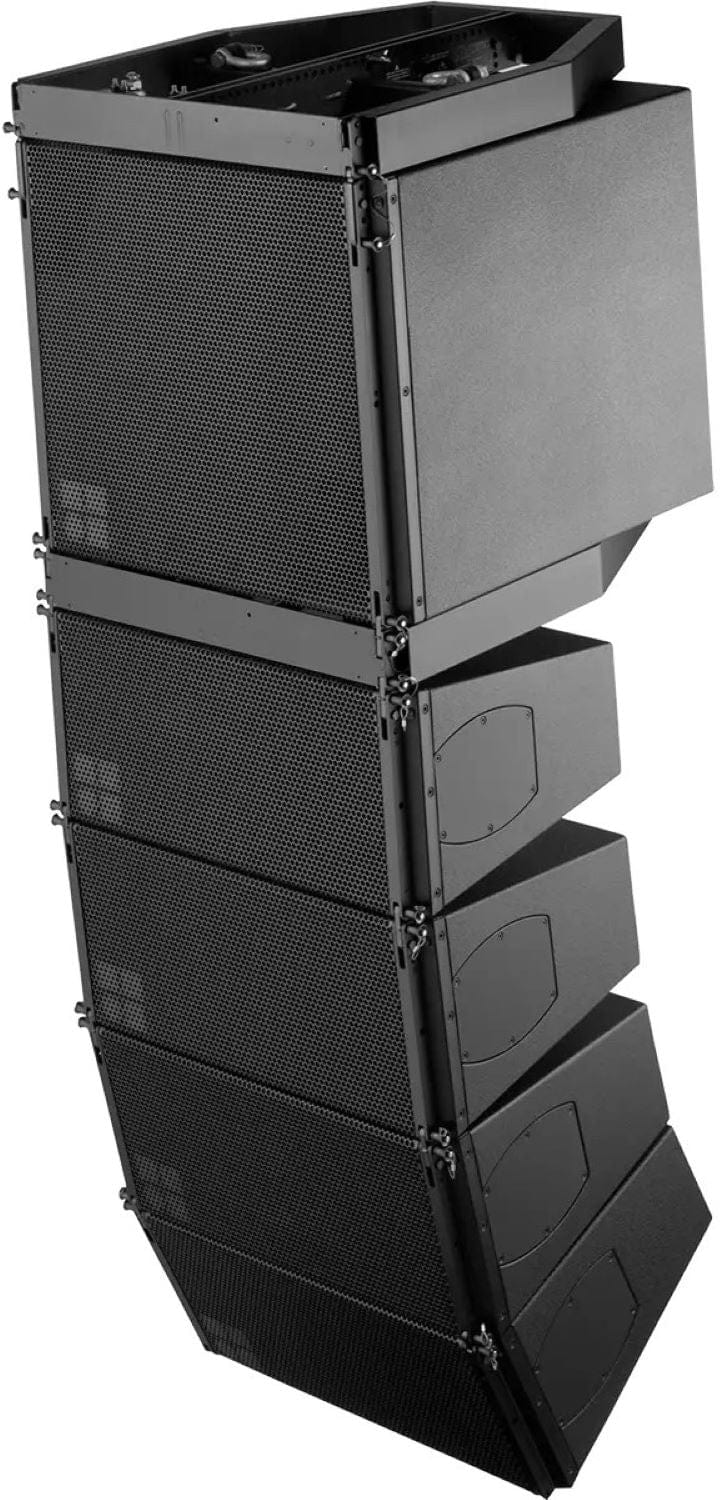

Yes. The d&b audiotechnik Vi-SUB has integrated rigging and can be flown on top of a Vi8 or Vi12 array or as a separate column, with 0 and 2.5 degree splay settings.
The d&b audiotechnik Vi-SUB covers 37 to 115 Hz in standard mode and 37 to 95 Hz in 100 Hz mode (-5 dB).
The d&b audiotechnik Vi-SUB reaches 133 dB with a D20 or 30D and 137 dB with a D40, D80 or 40D.
The d&b audiotechnik Vi-SUB weighs 62 kg (137 lb) and measures 606 x 700 x 728 mm (23.8 x 27.5 x 28.6 inches).
