d&b audiotechnik U5N Networked 2 Way Loudspeaker

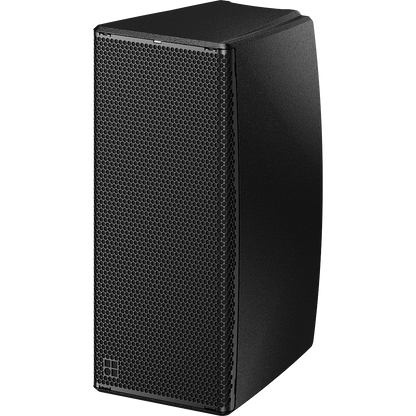

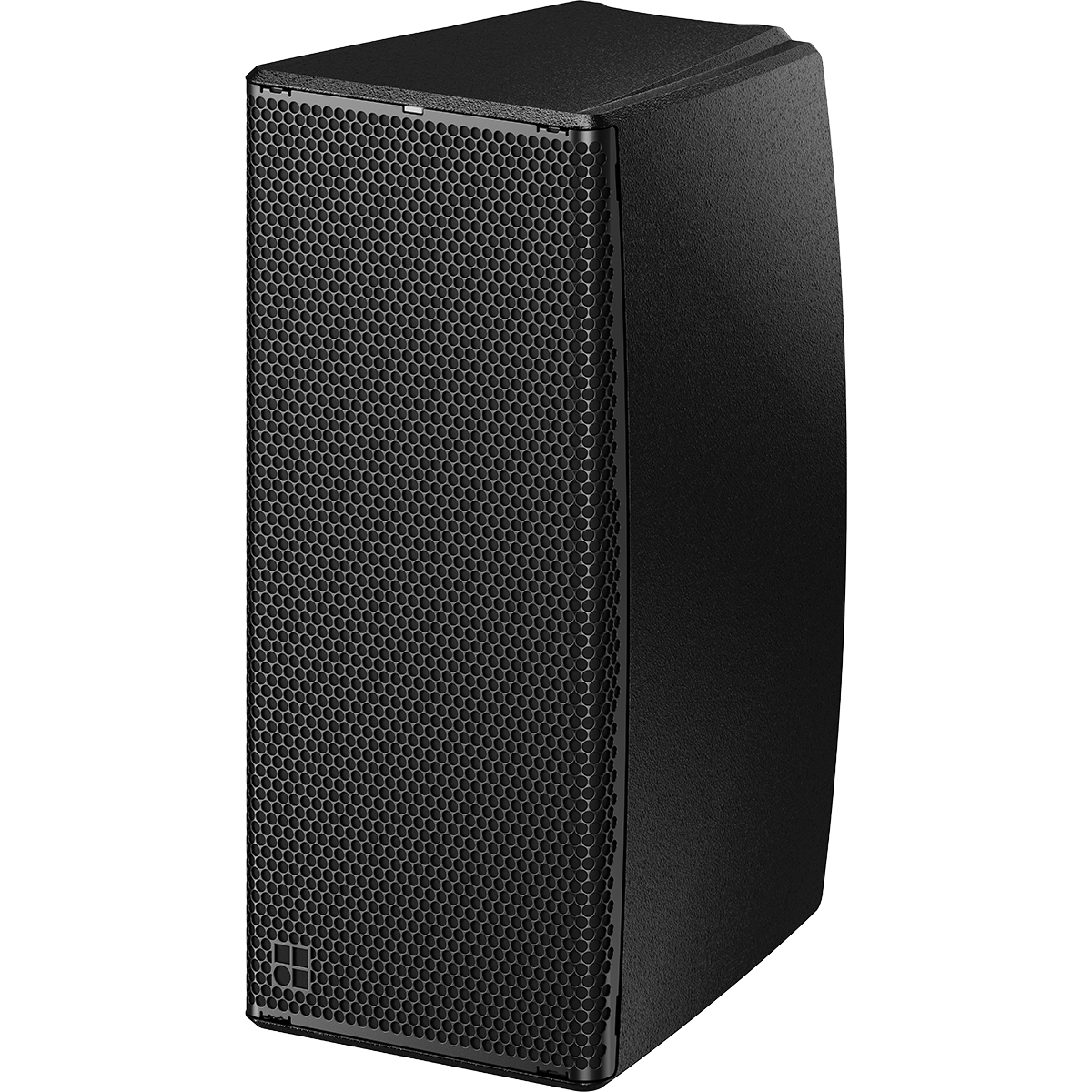

The d&b audiotechnik U5N is a networked 2 way loudspeaker with dual 6.5 inch bipole drivers and a 1 inch compression driver on a tool free, rotatable 90 x 60 degree horn. Bass reflex porting extends the low frequency response while 60 degree vertical directivity is maintained from 500 Hz with consistent 90 degree horizontal dispersion. A hybrid power topology runs on AC, PoE++ or both at once, and dual cable redundancy (2 x PoE++ and 2 x Milan) supports mission critical installations. Trianze Tech supplies the U5N in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 2 x 6.5 inch neodymium drivers with 1 inch compression driver
- 90 x 60 degree tool free rotatable horn
- 133 dB SPLmax
- Runs on AC, PoE++ or both simultaneously
- Milan input, 1 stream with up to 8 channels at 48/96 kHz
- Dual cable redundancy for mission critical installs
Technical Specifications:
| Spec | Value |
|---|---|
| Model | U5N |
| Type | Networked 2 way loudspeaker |
| Frequency Response | 58 Hz to 17 kHz (standard), 105 Hz to 17 kHz (CUT mode), -5 dB |
| Max SPL | 133 dB |
| Dispersion | 90 x 60 degrees, rotatable |
| Components | 2 x 6.5 inch neodymium drivers, 1 x 1 inch compression driver with 1.7 inch coil |
| DSP | 2 user definable 16 band equalizers, delay 1.1 ms to 1 s, analog input latency 1.1 ms |

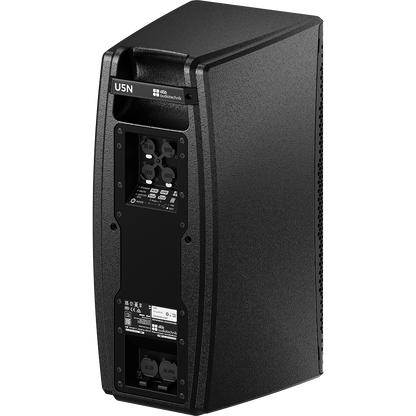

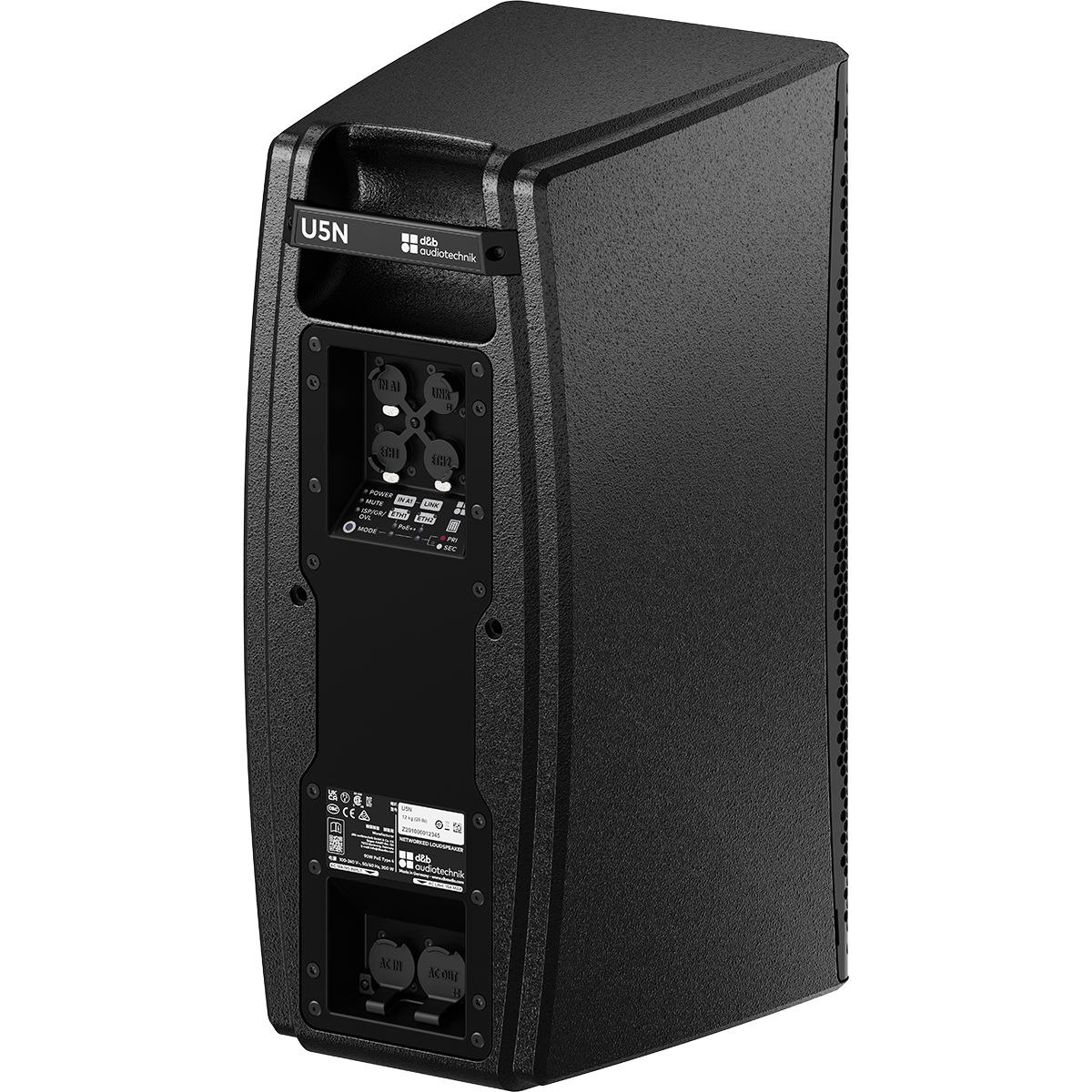

| Inputs | 3 pin XLR analog input and link, Milan (1 stream, up to 8 channels) |
| Network | 2 x RJ45 etherCON, integrated 2 port switch, 100 Mbit/1 Gbit |
| Mains | powerCON TRUE1 TOP In and Thru, 100 to 240 V, 50 to 60 Hz |
| Dimensions (H x W x D) | 509 x 223 x 295 mm |
| Weight | 12.0 kg (26.5 lb) |
Why Buy the d&b audiotechnik U5N from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the U5N with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik U5N runs on AC (100 to 240 V), PoE++, or both simultaneously, and single cable operation carries power, signal, control and monitoring.
The d&b audiotechnik U5N has a tool free, rotatable 90 x 60 degree horn, with 60 degree vertical directivity maintained from 500 Hz.
The d&b audiotechnik U5N reaches 133 dB maximum SPL with a frequency response of 58 Hz to 17 kHz (-5 dB standard).
The d&b audiotechnik U5N uses 2 x 6.5 inch neodymium drivers in a bipole arrangement and a 1 inch exit compression driver with a 1.7 inch coil.
The d&b audiotechnik U5N weighs 12.0 kg (26.5 lb) and measures 509 x 223 x 295 mm (20 x 8.8 x 11.6 inches).
Trianze Tech supplies the d&b audiotechnik U5N in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
