d&b audiotechnik U3N: Compact 2 Way Networked Loudspeaker with Milan, PoE++ and 100 x 65 Degree Rotatable Horn
Model
:
U3N
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

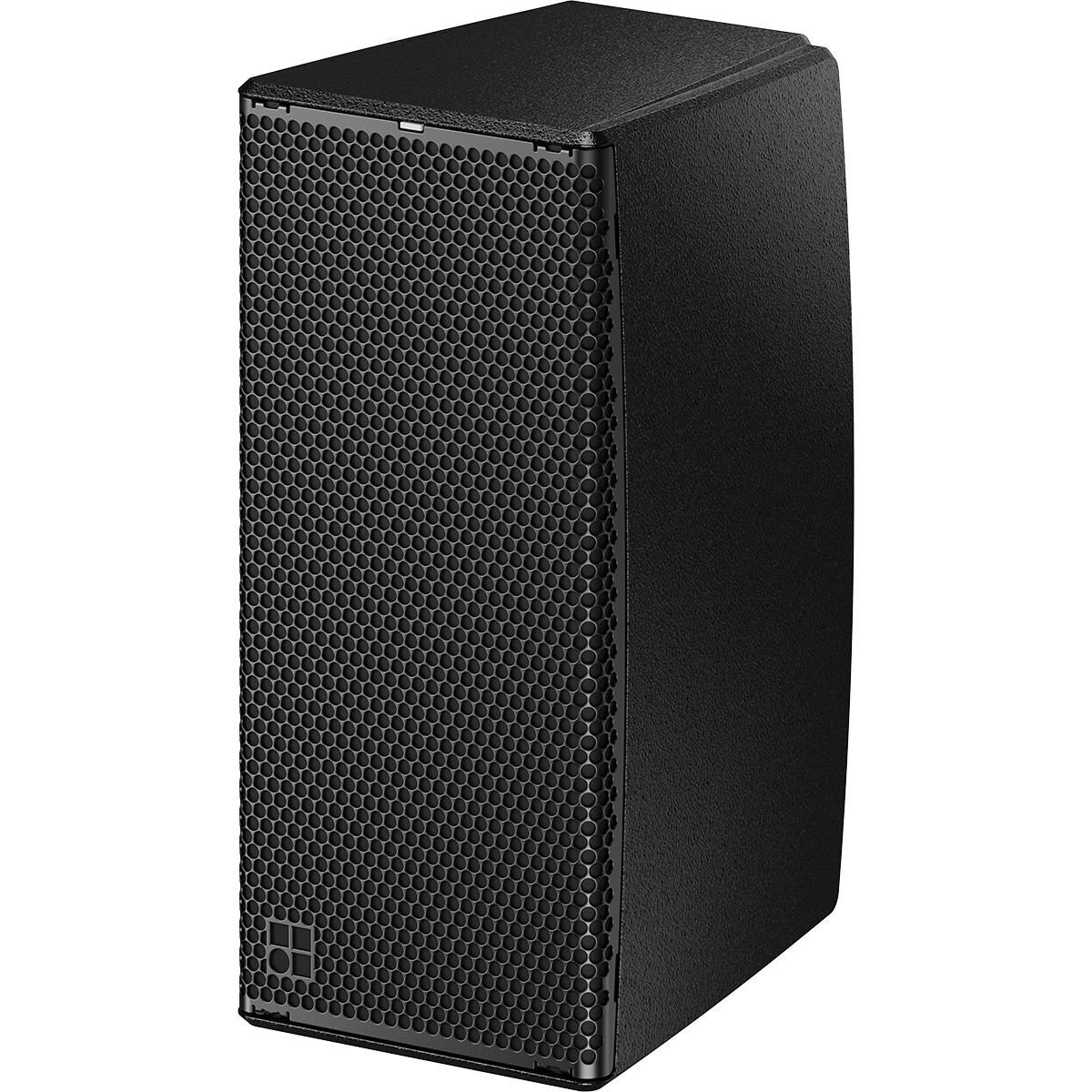

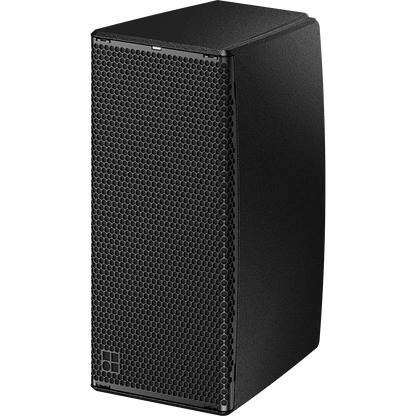

d&b audiotechnik U3N Compact 2 Way Networked Loudspeaker
The d&b audiotechnik U3N is a compact 2 way networked point source loudspeaker with dual 5 inch bipole drivers and a 0.75 inch compression driver on a rotatable 100 x 65 degree horn. A hybrid power topology runs on AC, PoE++ or both at once, single cable operation carries power, signal, control and monitoring, and dual cable redundancy (2 x PoE++ and 2 x Milan) supports mission critical installations with the DN2 Milan PoE++ switch or equivalent PoE++ hardware. The IP54 cabinet is built from partially recycled ABS. Trianze Tech supplies the U3N in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 2 x 5 inch neodymium drivers with 0.75 inch compression driver
- 100 x 65 degree rotatable CD horn
- 128 dB SPLmax
- Runs on AC, PoE++ or both simultaneously
- Milan input, 1 stream with up to 8 channels at 48/96 kHz
- IP54 partially recycled ABS cabinet with M8 rigging points
Technical Specifications:
| Spec | Value |
|---|---|
| Model | U3N |
| Type | Compact 2 way networked point source loudspeaker |
| Frequency Response | 61 Hz to 18 kHz (standard), 105 Hz to 18 kHz (CUT mode), -5 dB |
| Max SPL | 128 dB |
| Dispersion | 100 x 65 degrees, rotatable |
| Components | 2 x 5 inch neodymium drivers, 1 x 0.75 inch compression driver with 1.4 inch coil |
| DSP | 2 user definable 16 band equalizers, delay 1.1 ms to 1 s, analog input latency 1.1 ms |
| Inputs | 3 pin XLR analog input and link, Milan (1 stream, up to 8 channels) |
| Network | 2 x RJ45 etherCON, integrated 2 port switch, 100 Mbit/1 Gbit |
| Mains | powerCON TRUE1 TOP In and Thru, 100 to 240 V, 50 to 60 Hz |
| Dimensions (H x W x D) | 411 x 187 x 245 mm |
| Weight | 7.5 kg (16.5 lb) |
Why Buy the d&b audiotechnik U3N from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the U3N with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik U3N has a hybrid power topology and runs on AC (100 to 240 V), PoE++, or both simultaneously, so a single cable can carry power, signal, control and monitoring.
The d&b audiotechnik U3N has a 100 x 65 degree rotatable constant directivity horn.
The d&b audiotechnik U3N reaches 128 dB maximum SPL with a frequency response of 61 Hz to 18 kHz (-5 dB standard).
Yes. The d&b audiotechnik U3N accepts 1 Milan stream with up to 8 channels at 48/96 kHz over 2 x etherCON RJ45 ports, with ETH2 used for Milan redundancy.
The d&b audiotechnik U3N measures 411 x 187 x 245 mm (16.2 x 7.4 x 9.6 inches) and weighs 7.5 kg (16.5 lb).
Trianze Tech supplies the d&b audiotechnik U3N in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
