d&b audiotechnik KSL8 3 Way Line Array Loudspeaker with 80 Degree Constant Directivity

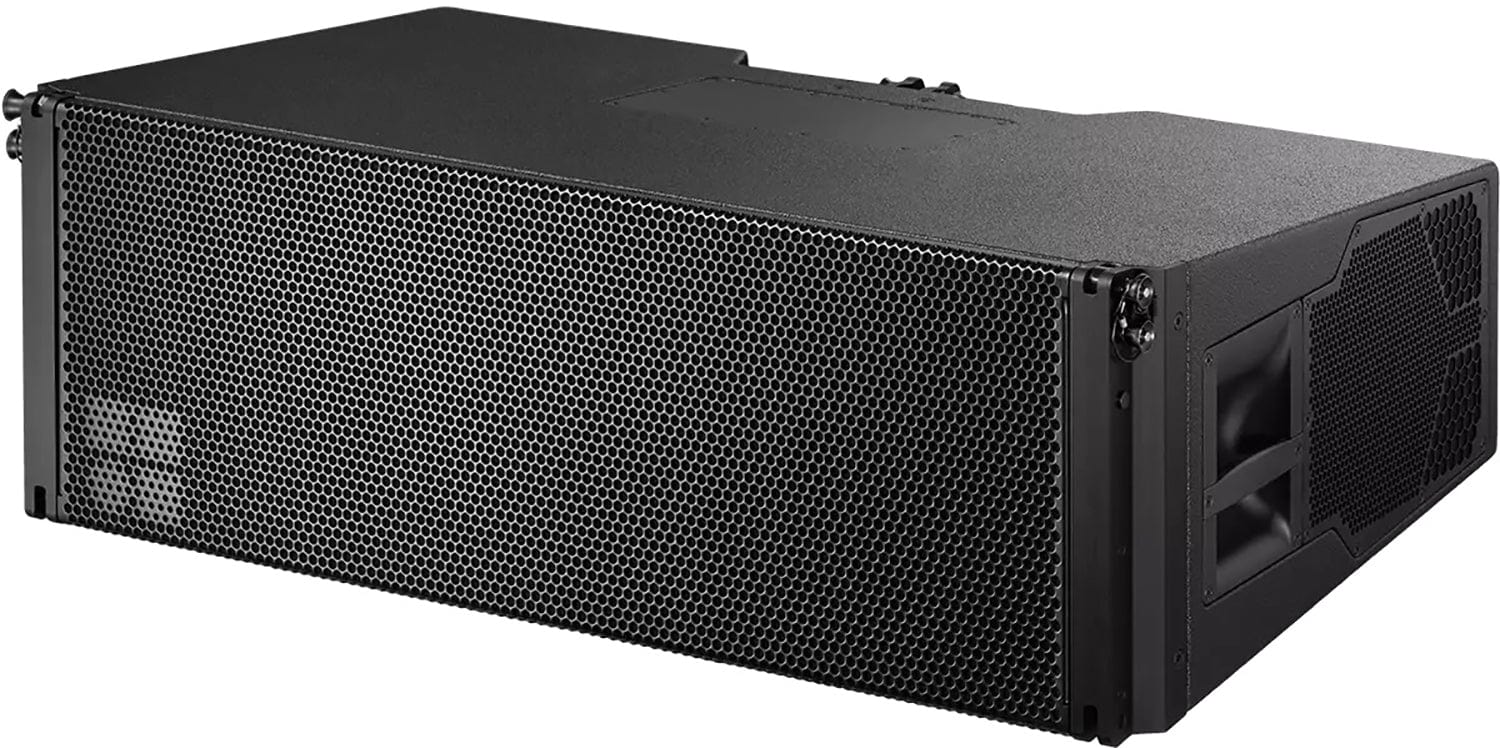

The d&b audiotechnik KSL8 is a medium to large format 3-way line array module with an 80 degree constant directivity pattern across its whole operating bandwidth. Front and side firing LF drivers give cardioid control in the low range, and SL-Series rigging deploys arrays straight from the touring cart. Trianze Tech supplies the KSL8 for touring, arena and festival systems in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 2 x 10 inch neodymium front LF and 2 x 8 inch neodymium side firing LF drivers
- Coaxial MF/HF section with an 8 inch MF driver and two 1.4 inch exit compression drivers
- 80 degree constant directivity using cardioid techniques in the low range

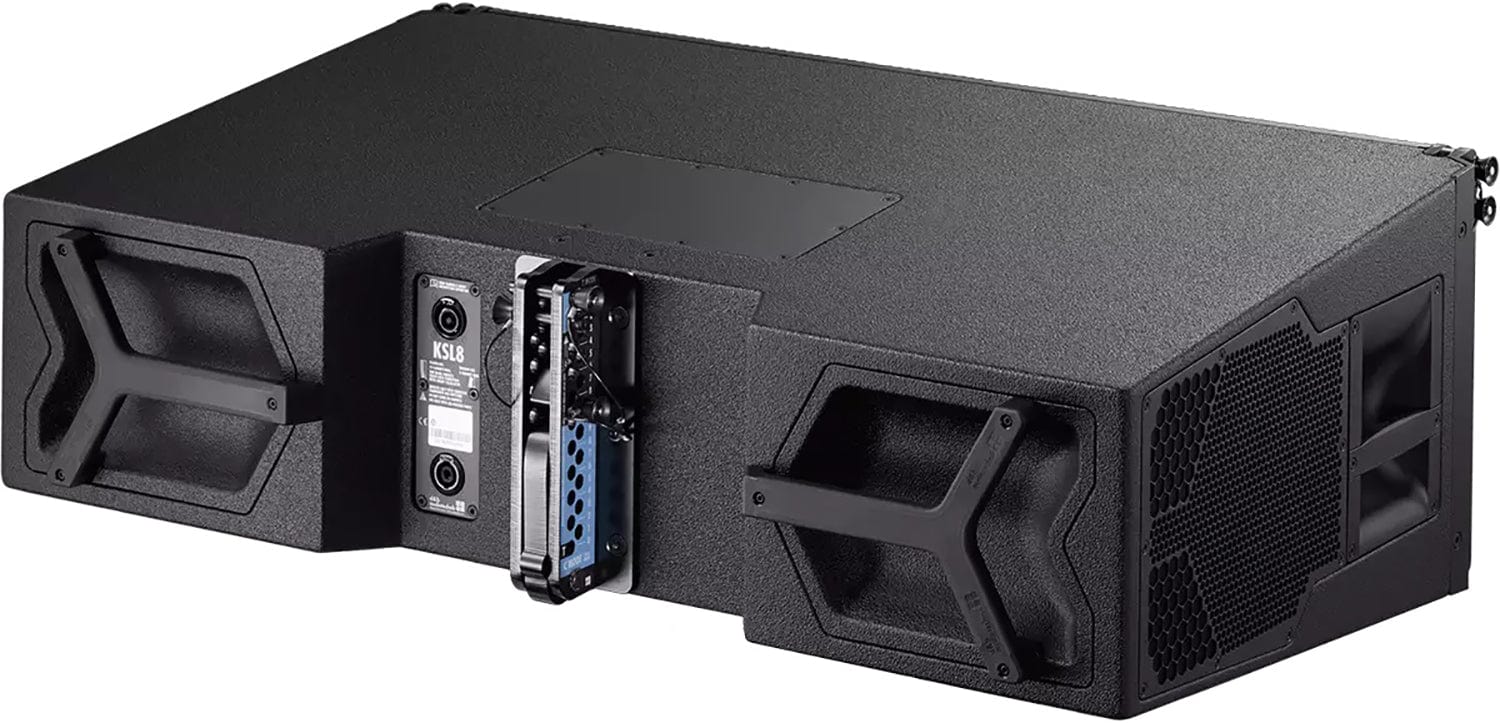

- Patented SL-Series rigging with tension and compression modes
- Driven by only two amplifier channels per cabinet
- Marine plywood cabinet with PCP impact and weather protected finish
Technical Specifications:
| Spec | Value |
|---|---|
| Model | KSL8 |
| Type | 3-way line array loudspeaker |
| Front LF | 2 x 10 inch neodymium |
| Side LF | 2 x 8 inch neodymium |
| MF | 1 x 8 inch |
| HF | 2 x 1.4 inch exit compression drivers, 3 inch voice coil |
| Horizontal Dispersion | 80 degrees |
| Frequency Response (-5 dB) | 54 Hz to 18 kHz standard, 75 Hz to 18 kHz CUT mode |
| Max SPL | 145 dB (D40/D80/40D) |
| Power Handling | Front LF 450/1800 W, side LF/MF/HF 250/1000 W (RMS/peak) |
| Impedance | 8 ohms per section |
| Splay Angles | 0 to 10 degrees, 1 degree steps |
| Connections | 2 x NLT4 F/M |
| Dimensions (H x W x D) | 330 x 1000 x 597 mm |
| Weight | 58 kg (128 lb) |
Why Buy the d&b audiotechnik KSL8 from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the KSL8 with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik KSL8 reaches 145 dB maximum SPL when driven by a D40, D80 or 40D amplifier.
The d&b audiotechnik KSL8 covers 54 Hz to 18 kHz (-5 dB) in standard mode, or 75 Hz to 18 kHz in CUT mode.
Each d&b audiotechnik KSL8 needs two amplifier channels: one for the front 10 inch LF drivers and one for the passively crossed side LF, MF and HF section.
The d&b audiotechnik KSL8 measures 330 x 1000 x 597 mm (H x W x D) and weighs 58 kg (128 lb).
Both share the same drivers, size and weight. The d&b audiotechnik KSL8 has an 80 degree horizontal dispersion and 145 dB max SPL, while the KSL12 has 120 degrees for wider coverage.
