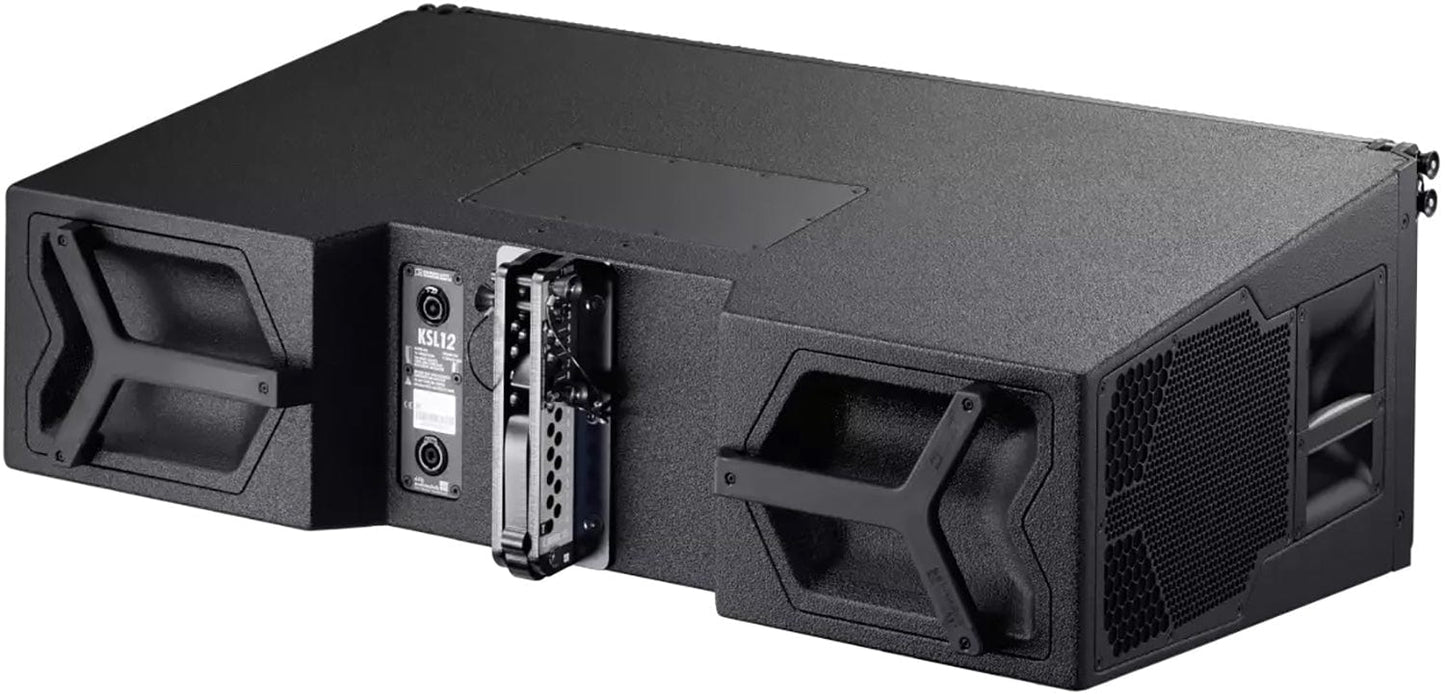

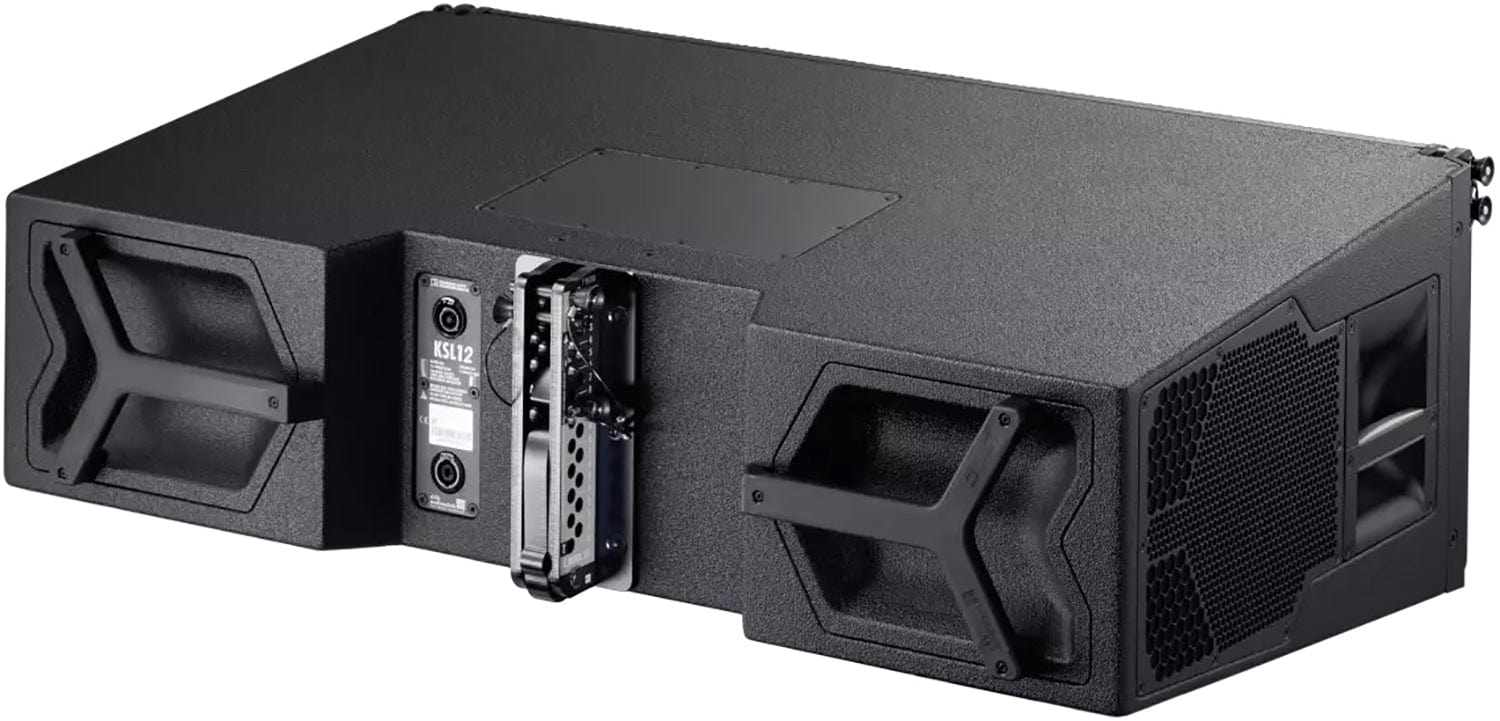

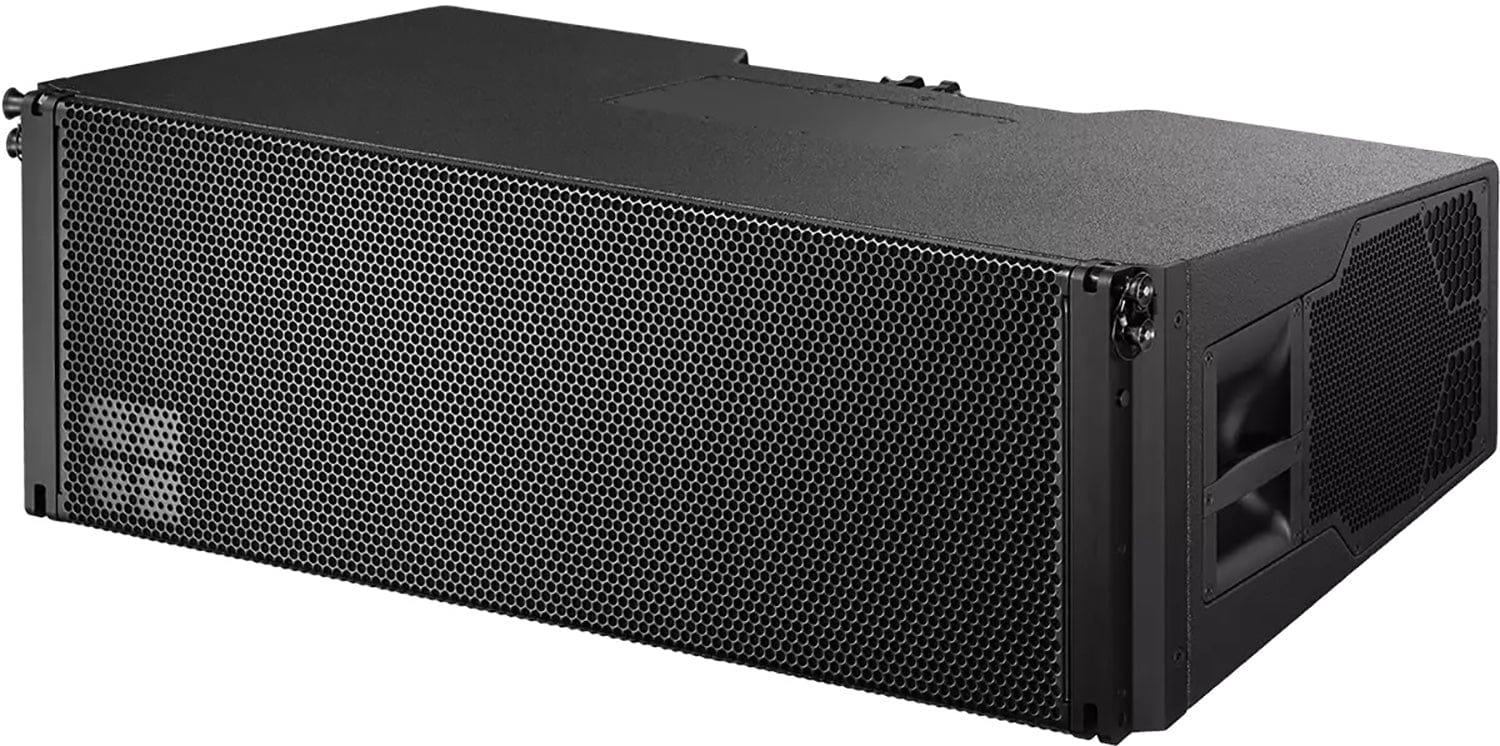

d&b audiotechnik KSL12: 3 Way Medium to Large Format Line Array Loudspeaker, 120 Degree
Model
:
KSL12
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
d&b audiotechnik KSL12 3 Way Line Array Loudspeaker with 120 Degree Constant Directivity
The d&b audiotechnik KSL12 is a medium to large format 3-way line array module with a wide 120 degree constant directivity pattern across its operating bandwidth. It shares the KSL8 driver layout, cardioid low frequency control and SL-Series rigging, and suits wide audience areas. Trianze Tech supplies the KSL12 for touring, arena and festival systems in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 2 x 10 inch neodymium front LF and 2 x 8 inch neodymium side firing LF drivers
- Coaxial MF/HF section with an 8 inch MF driver and two 1.4 inch exit compression drivers
- Wide 120 degree constant directivity across the operating range
- Patented SL-Series rigging with tension and compression modes
- Two cabinets can be linked in Line or Arc mode for short arrays
- Marine plywood cabinet with PCP impact and weather protected finish
Technical Specifications:
| Spec | Value |
|---|---|
| Model | KSL12 |
| Type | 3-way line array loudspeaker |
| Front LF | 2 x 10 inch neodymium |
| Side LF | 2 x 8 inch neodymium |
| MF | 1 x 8 inch |
| HF | 2 x 1.4 inch exit compression drivers, 3 inch voice coil |
| Horizontal Dispersion | 120 degrees |
| Frequency Response (-5 dB) | 54 Hz to 18 kHz standard, 75 Hz to 18 kHz CUT mode |
| Max SPL | 144 dB (D40/D80/40D) |
| Power Handling | Front LF 450/1800 W, side LF/MF/HF 250/1000 W (RMS/peak) |
| Impedance | 8 ohms per section |
| Splay Angles | 0 to 10 degrees, 1 degree steps |
| Connections | 2 x NLT4 F/M |
| Dimensions (H x W x D) | 330 x 1000 x 597 mm |
| Weight | 58 kg (128 lb) |
Why Buy the d&b audiotechnik KSL12 from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the KSL12 with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik KSL12 has a 120 degree constant directivity horizontal dispersion, compared with 80 degrees on the KSL8.
The d&b audiotechnik KSL12 reaches 144 dB maximum SPL with a D40, D80 or 40D amplifier.
One d&b D40, D80 or 40D amplifier drives two d&b audiotechnik KSL12 cabinets with ArrayProcessing, or four cabinets in Line or Arc mode.
The d&b audiotechnik KSL12 has 2 x 10 inch front LF, 2 x 8 inch side LF, an 8 inch MF driver and two 1.4 inch exit HF compression drivers with 3 inch voice coils.
The d&b audiotechnik KSL12 weighs 58 kg (128 lb) and measures 330 x 1000 x 597 mm (H x W x D).
Trianze Tech supplies the d&b audiotechnik KSL12 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
