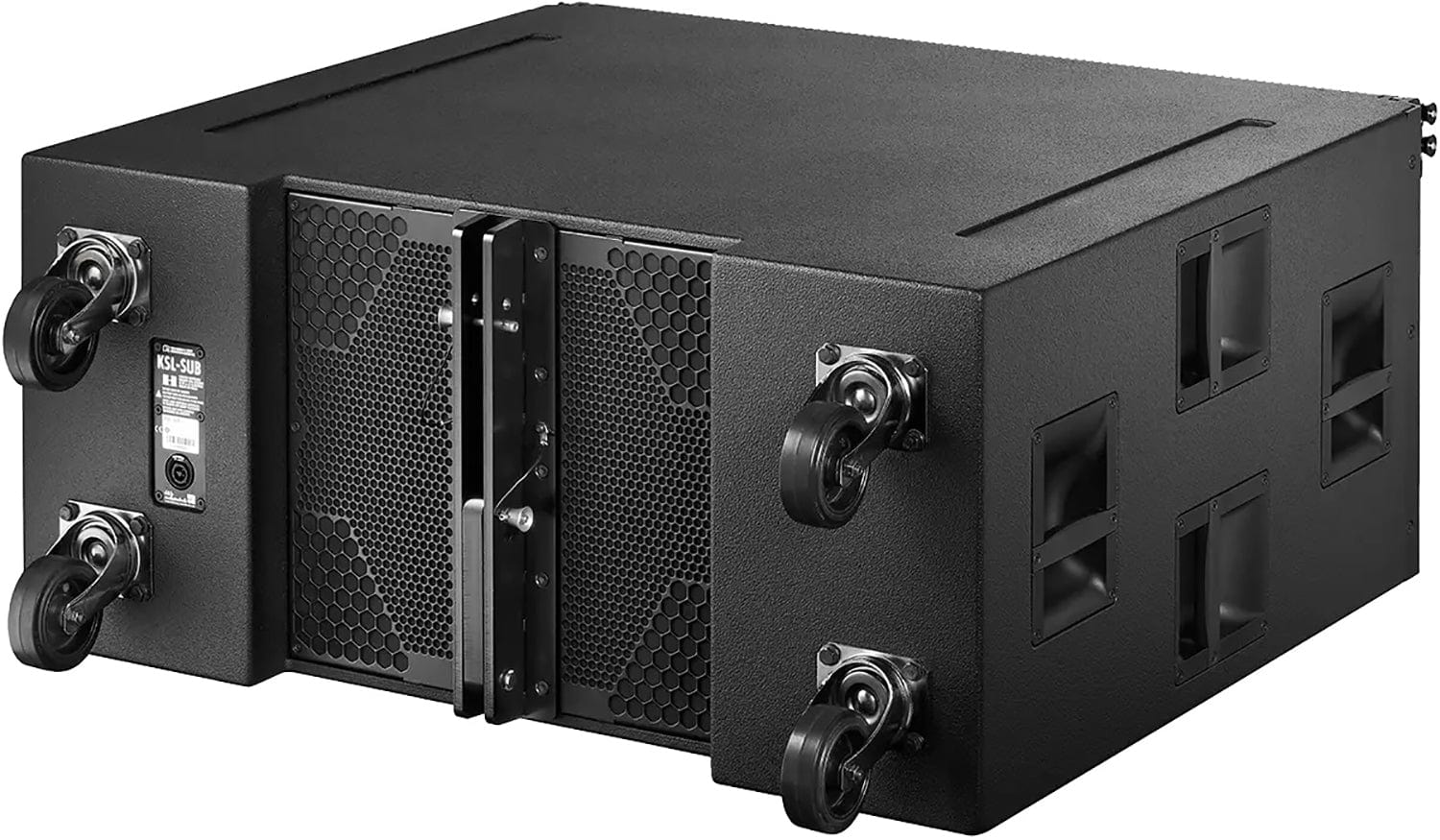

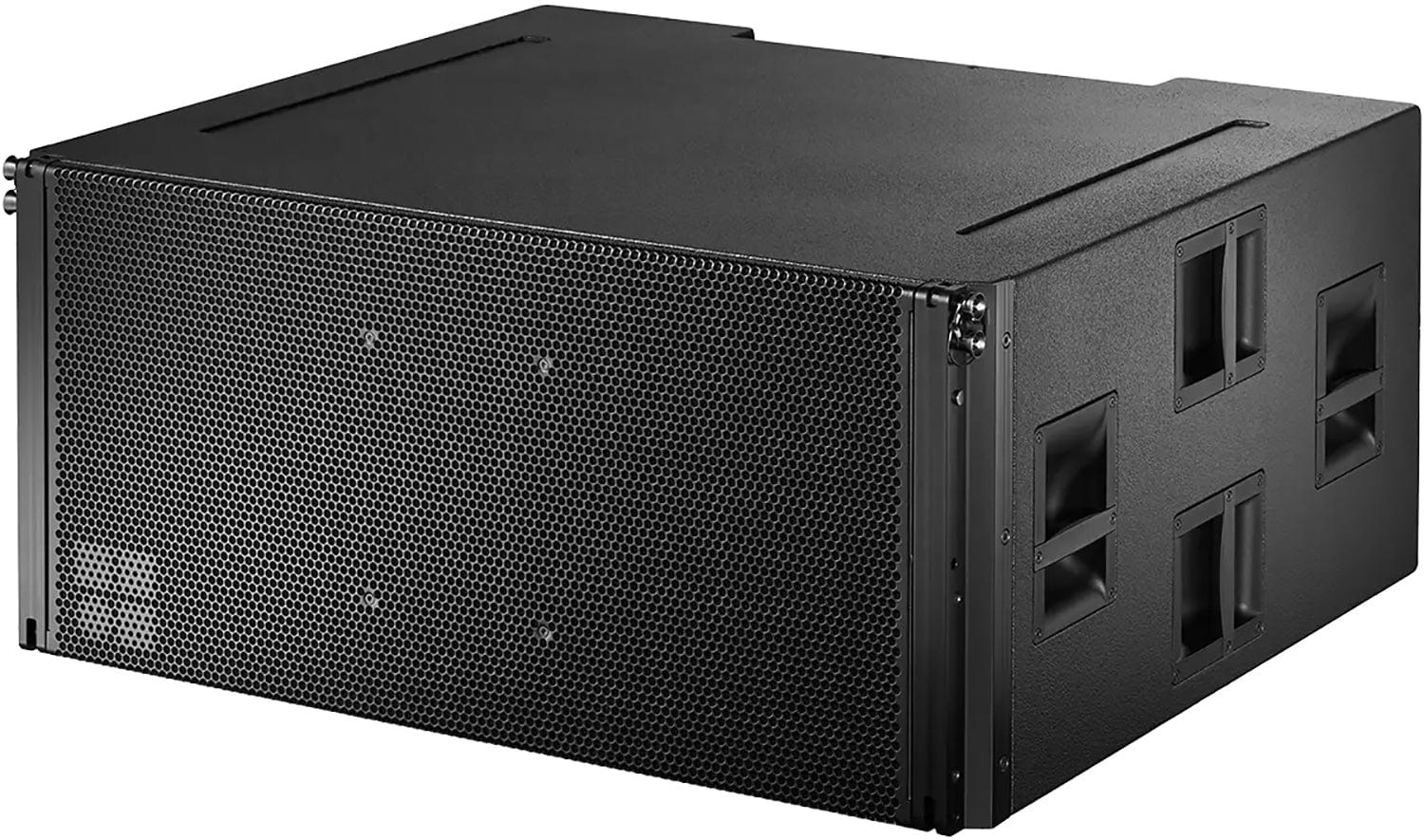

d&b audiotechnik KSL-SUB Flyable Cardioid Subwoofer
The d&b audiotechnik KSL-SUB is a flyable cardioid subwoofer for the KSL System, supplementing KSL8 and KSL12 cabinets. Its actively driven 2 way bass reflex design houses three long excursion neodymium 15 inch drivers, two facing front and one to the rear on separate amplifier channels, so the cardioid pattern reduces energy behind the system. With the KSL-SUB Adapter frame it can be flown in mixed arrays with KSL tops. Trianze Tech supplies the KSL-SUB in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Cardioid pattern rejects energy towards the rear
- 3 x 15 inch neodymium drivers, two front and one rear
- 36 to 105 Hz, INFRA mode 33 to 75 Hz
- Up to 139 dB SPLmax
- Up to sixteen KSL-SUB cabinets flown in a vertical column
- Marine plywood with PCP finish and metal grills
Technical Specifications:
| Spec | Value |
|---|---|
| Model | KSL-SUB |
| Type | Flyable cardioid subwoofer, 2 way bass reflex |
| Frequency Response | 36 to 105 Hz (standard), 33 to 75 Hz (INFRA mode), -5 dB |
| Max SPL | 139 dB with D40/D80/40D |
| Cabinets per D40/D80/40D | 2 |
| Nominal Impedance | 4 ohms front / 8 ohms rear |
| Power Handling Front | 900 W RMS / 3500 W peak (10 ms) |
| Power Handling Rear | 500 W RMS / 2000 W peak (10 ms) |
| Components | 3 x 15 inch drivers |
| Connections | 1 x NLT4 F |
| Weight | 82 kg (181 lb) |
Why Buy the d&b audiotechnik KSL-SUB from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the KSL-SUB with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik KSL-SUB is a flyable cardioid subwoofer for the KSL System, designed to supplement KSL8 and KSL12 cabinets.
The d&b audiotechnik KSL-SUB covers 36 to 105 Hz in standard mode and 33 to 75 Hz in INFRA mode (-5 dB).
The d&b audiotechnik KSL-SUB has two front facing and one rear facing 15 inch driver in independent bass reflex chambers, driven from separate amplifier channels to reject energy towards the rear.
Up to sixteen d&b audiotechnik KSL-SUB cabinets can be flown in a vertical column, and with the KSL-SUB Adapter frame they can fly in mixed arrays with KSL tops.
The d&b audiotechnik KSL-SUB weighs 82 kg (181 lb) and is built from marine plywood with a PCP finish and rigid metal grills.
