d&b audiotechnik KSL-GSUB: Ground Stack Cardioid Subwoofer with 3 x 15 Inch Drivers for the KSL System
Model
:
KSL-GSUB
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

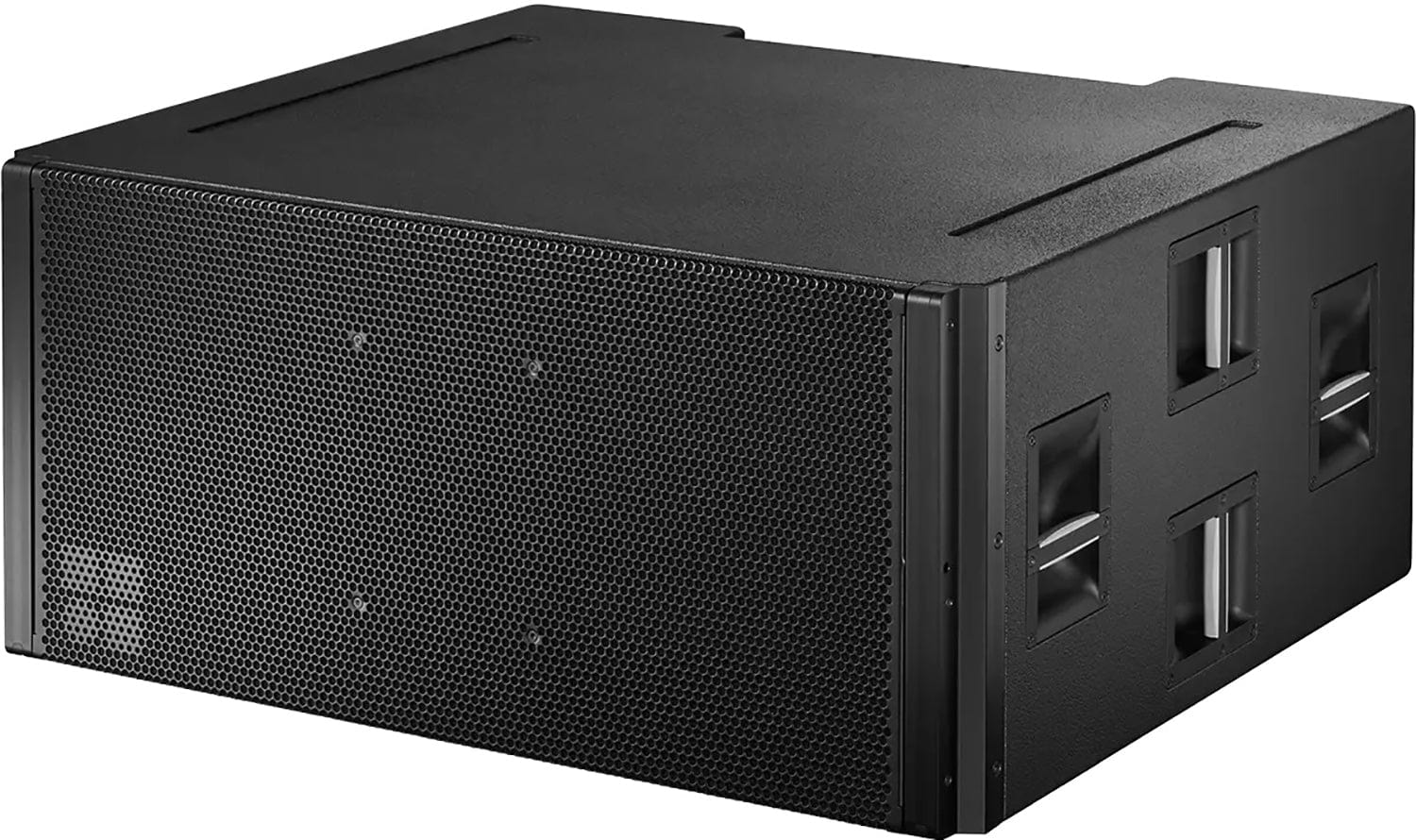

d&b audiotechnik KSL-GSUB Ground Stack Cardioid Subwoofer

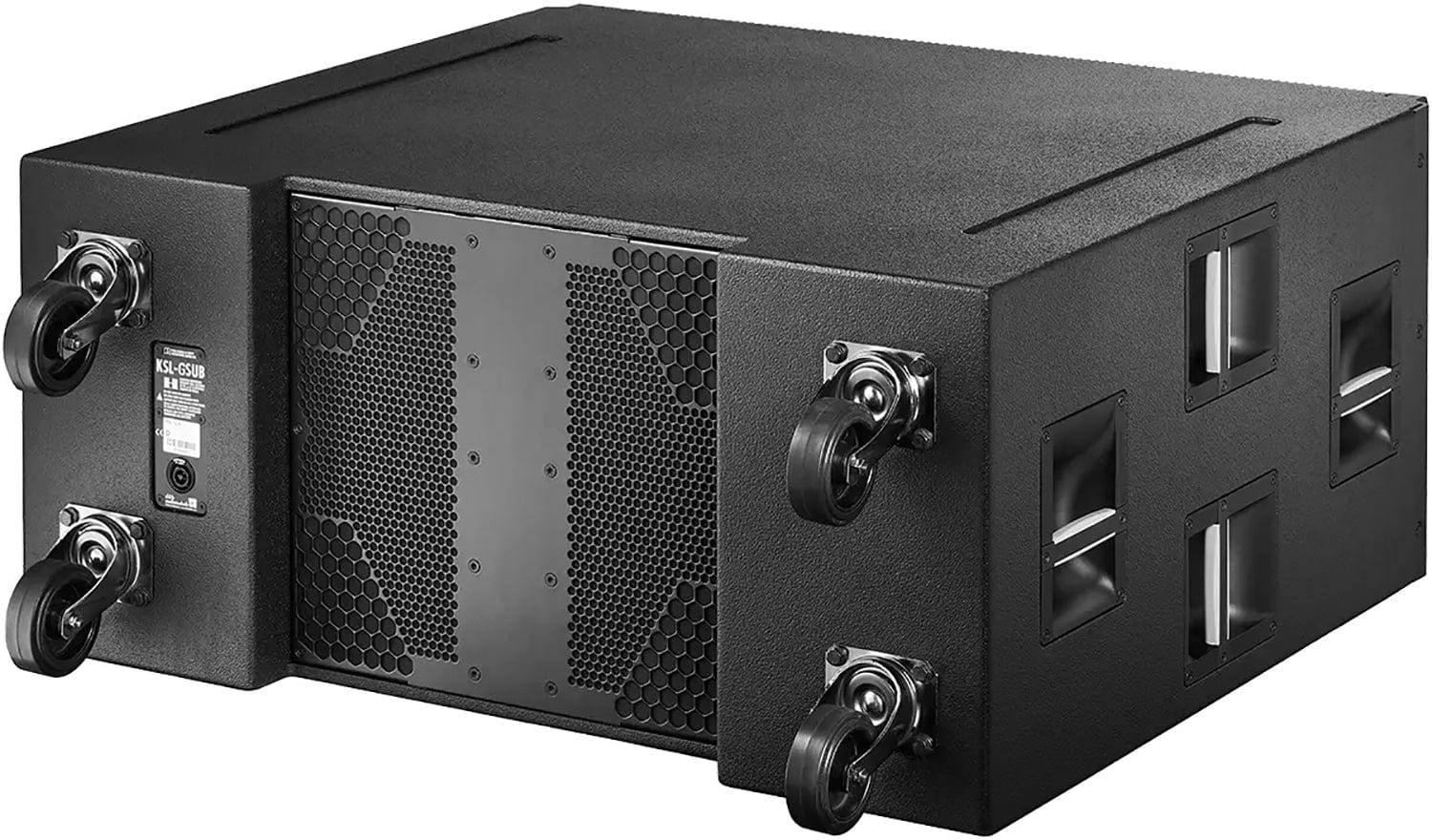

The d&b audiotechnik KSL-GSUB is a cardioid subwoofer for the KSL System that supplements KSL8 and KSL12 cabinets in ground stacked applications. Its actively driven 2 way bass reflex design houses three long excursion neodymium 15 inch drivers, two facing front and one to the rear, in independent chambers driven from separate amplifier channels, so the cardioid pattern reduces energy behind the system. The cabinet has no rigging components; runners on the bottom panel locate into recesses in the top panel to stop movement when subwoofers are stacked. Trianze Tech supplies the KSL-GSUB in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Cardioid pattern rejects energy towards the rear
- 3 x 15 inch neodymium drivers, two front and one rear
- 36 to 105 Hz, INFRA mode 33 to 75 Hz
- Up to 139 dB SPLmax
- Stacking runners and recesses for secure ground stacks
- Marine plywood with PCP finish and metal grills
Technical Specifications:
| Spec | Value |
|---|---|
| Model | KSL-GSUB |
| Type | Ground stack cardioid subwoofer, 2 way bass reflex |
| Frequency Response | 36 to 105 Hz (standard), 33 to 75 Hz (INFRA mode), -5 dB |
| Max SPL | 139 dB with D40/D80/40D |
| Cabinets per D40/D80/40D | 2 |
| Nominal Impedance | 4 ohms front / 8 ohms rear |
| Power Handling Front | 900 W RMS / 3500 W peak (10 ms) |
| Power Handling Rear | 500 W RMS / 2000 W peak (10 ms) |
| Components | 3 x 15 inch drivers |
| Connections | 1 x NLT4 F |
| Weight | 78 kg (172 lb) |
Why Buy the d&b audiotechnik KSL-GSUB from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the KSL-GSUB with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik KSL-GSUB is a ground stack cardioid subwoofer for the KSL System, used to supplement KSL8 and KSL12 cabinets.
No. The d&b audiotechnik KSL-GSUB has no rigging components and is intended for ground stacking. The KSL-SUB is the flown version.
The d&b audiotechnik KSL-GSUB covers 36 to 105 Hz in standard mode and 33 to 75 Hz in INFRA mode (-5 dB).
Two d&b audiotechnik KSL-GSUB cabinets can be driven per D40, D80 or 40D, reaching 139 dB maximum SPL.
The d&b audiotechnik KSL-GSUB weighs 78 kg (172 lb) and is built from marine plywood with a PCP finish and rigid metal grills.
Trianze Tech supplies the d&b audiotechnik KSL-GSUB in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
