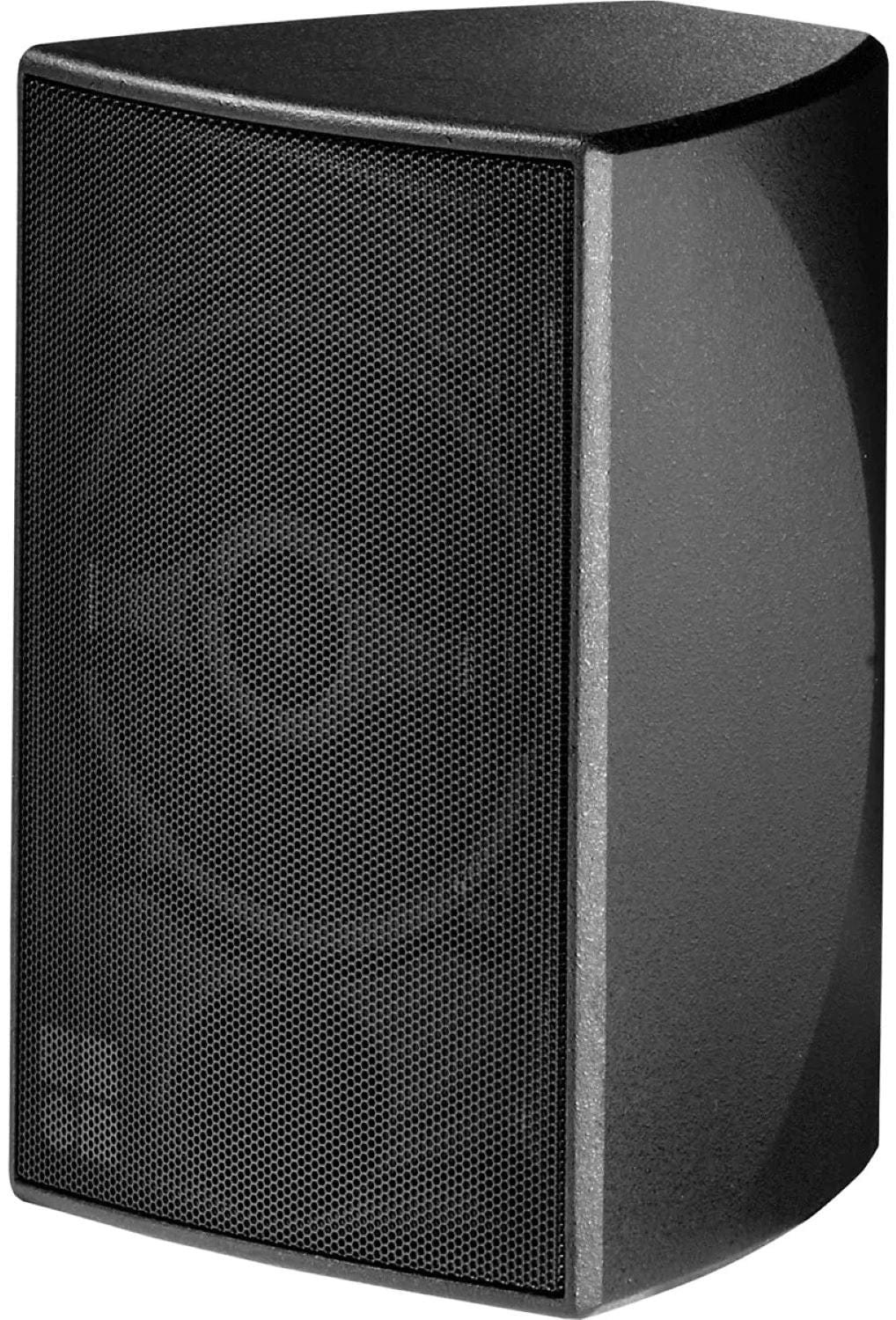

d&b audiotechnik E5: 5 Inch Compact Coaxial Passive Loudspeaker, 100 Degree Conical, Weather Protected
Model
:
E5
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
d&b audiotechnik E5 Compact 2 Way Coaxial Loudspeaker
The d&b audiotechnik E5 is a lightweight 2 way passive loudspeaker with a 5 inch ferrite LF driver and a coaxially mounted 1 inch wide dispersion dome driver, giving a symmetrical 100 degree conical pattern. Its compact bass reflex, injection moulded enclosure is weather protected and suitable for outdoor use as standard, for near field speech and music in theatres, conferences, studios, surround, delay and fill systems. Trianze Tech supplies the E5 in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 5 inch ferrite driver with coaxial 1 inch dome driver
- 100 degree conical dispersion
- Bass reflex enclosure reaching 85 Hz
- Weather protected, suitable for outdoor use as standard
- Up to 117 dB SPLmax with D12
- 2 x NL4 plus push terminal
Technical Specifications:
| Spec | Value |
|---|---|
| Model | E5 |
| Type | 2 way compact coaxial passive loudspeaker |
| Frequency Response | 85 Hz to 20 kHz (standard), 130 Hz to 20 kHz (CUT mode), -5 dB |
| Max SPL | 116 dB with D6, 117 dB with D12 |
| Input Level (100 dB SPL/1 m) | -6 dBu |
| Nominal Impedance | 16 ohms |
| Power Handling | 60 W RMS / 400 W peak (10 ms) |
| Dispersion | 100 degrees conical |
| Connections | 2 x NL4 (1+/1-), 1 x two pole push terminal up to 6 mm2 |
| Weight | 2.7 kg (6.0 lb) |
Why Buy the d&b audiotechnik E5 from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the E5 with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik E5 uses a 5 inch ferrite driver and 1 inch dome in a bass reflex enclosure reaching 85 Hz, while the E4 uses a 4 inch neodymium driver in a sealed enclosure reaching 130 Hz.
Yes. The d&b audiotechnik E5 cabinet is weather protected and suitable for outdoor use as standard.
The d&b audiotechnik E5 reaches 116 dB maximum SPL with a D6 and 117 dB with a D12 (1 m, free field).
The d&b audiotechnik E5 has 2 x NL4 connectors (pins 1+/1-) and a two pole push terminal accepting cable up to 6 mm2 (AWG 10).
The d&b audiotechnik E5 weighs 2.7 kg (6.0 lb).
Trianze Tech supplies the d&b audiotechnik E5 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
