d&b audiotechnik E4: 4 Inch Compact Coaxial Passive Loudspeaker, 100 Degree Conical, Weather Protected
Model
:
E4
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

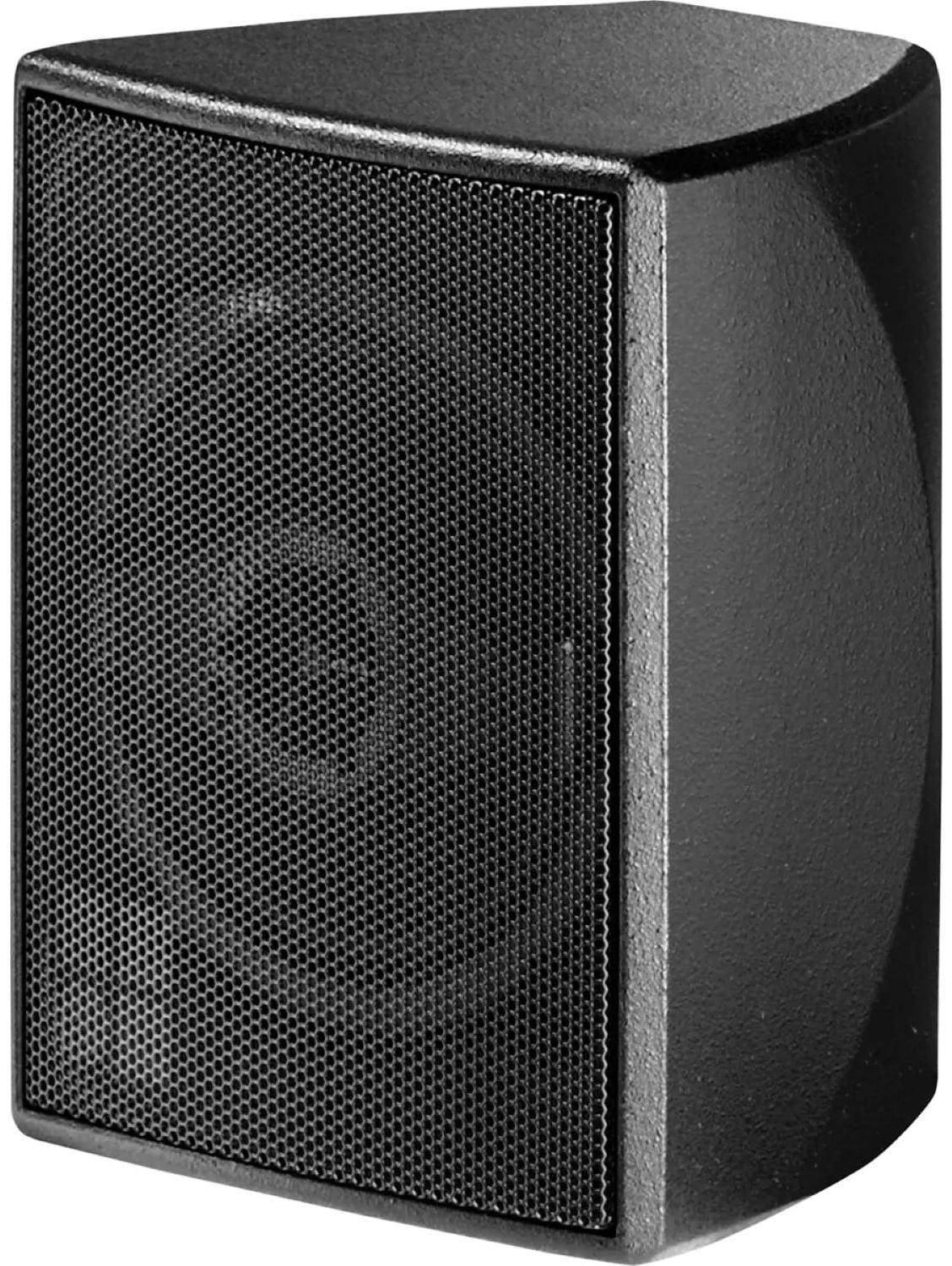

d&b audiotechnik E4 Compact 2 Way Coaxial Loudspeaker
The d&b audiotechnik E4 is a lightweight 2 way passive loudspeaker with a 4 inch neodymium LF driver and a coaxially mounted 0.75 inch wide dispersion dome tweeter, giving a symmetrical 100 degree conical pattern. Its compact sealed, injection moulded enclosure is weather protected and suitable for outdoor use as standard, for near field speech and music in theatres, conferences, studios and fill systems. Trianze Tech supplies the E4 in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 4 inch neodymium driver with coaxial 0.75 inch dome tweeter
- 100 degree conical dispersion
- Weather protected, suitable for outdoor use as standard
- Up to 115 dB SPLmax
- Up to four cabinets per amplifier channel
- Only 1.1 kg, 150 x 120 x 106 mm
Technical Specifications:
| Spec | Value |
|---|---|
| Model | E4 |
| Type | 2 way compact coaxial passive loudspeaker |
| Frequency Response | 130 Hz to 20 kHz (standard), 180 Hz to 20 kHz (CUT mode), -5 dB |
| Max SPL | 114 dB with 10D, 115 dB with D20/5D/30D/D40/D80/40D |
| Cabinets per Amplifier Channel | 4 |
| Nominal Impedance | 16 ohms |
| Power Handling | 60 W RMS / 400 W peak (10 ms) |
| Dispersion | 100 degrees conical |
| Connections | 2 x NL4, two pole push terminal |
| Dimensions (H x W x D) | 150 x 120 x 106 mm |
| Weight | 1.1 kg (2.4 lb) |
Why Buy the d&b audiotechnik E4 from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the E4 with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik E4 measures 150 x 120 x 106 mm (5.9 x 4.72 x 4.2 inches) and weighs 1.1 kg (2.4 lb).
Yes. The d&b audiotechnik E4 cabinet is weather protected and suitable for outdoor use as standard.
Up to four d&b audiotechnik E4 cabinets can be driven per amplifier channel, thanks to their 16 ohm nominal impedance.
The d&b audiotechnik E4 has a symmetrical 100 degree conical dispersion pattern, so it can be mounted in either orientation.
The d&b audiotechnik E4 reaches 114 dB maximum SPL with a 10D and 115 dB with a D20, 5D, 30D, D40, D80 or 40D.
Trianze Tech supplies the d&b audiotechnik E4 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
