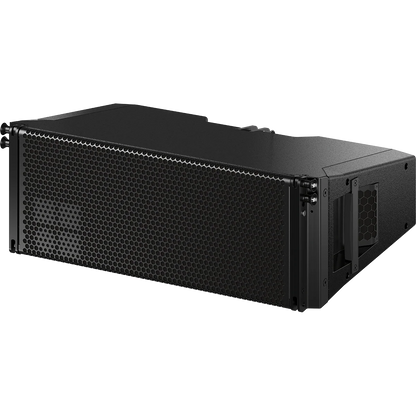

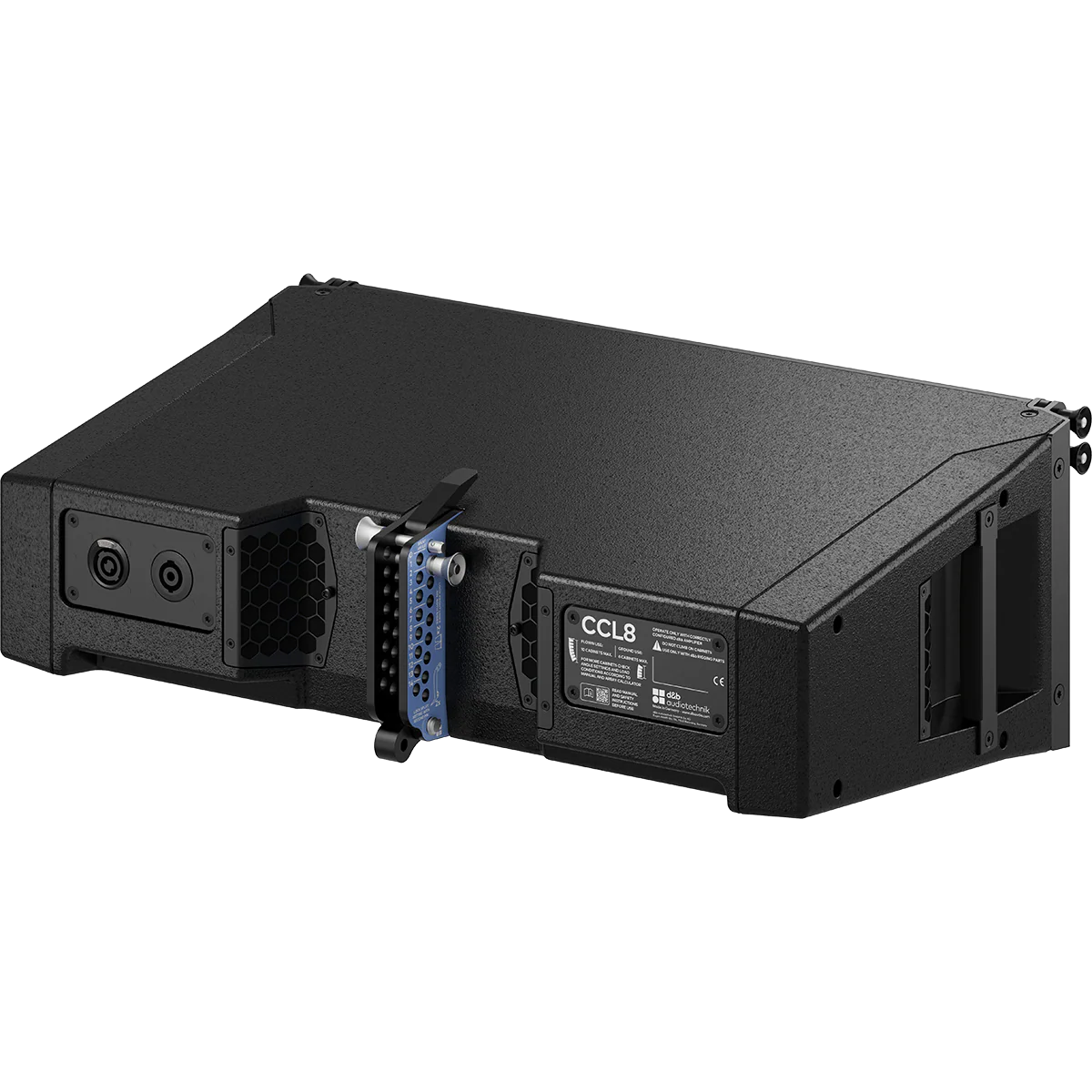

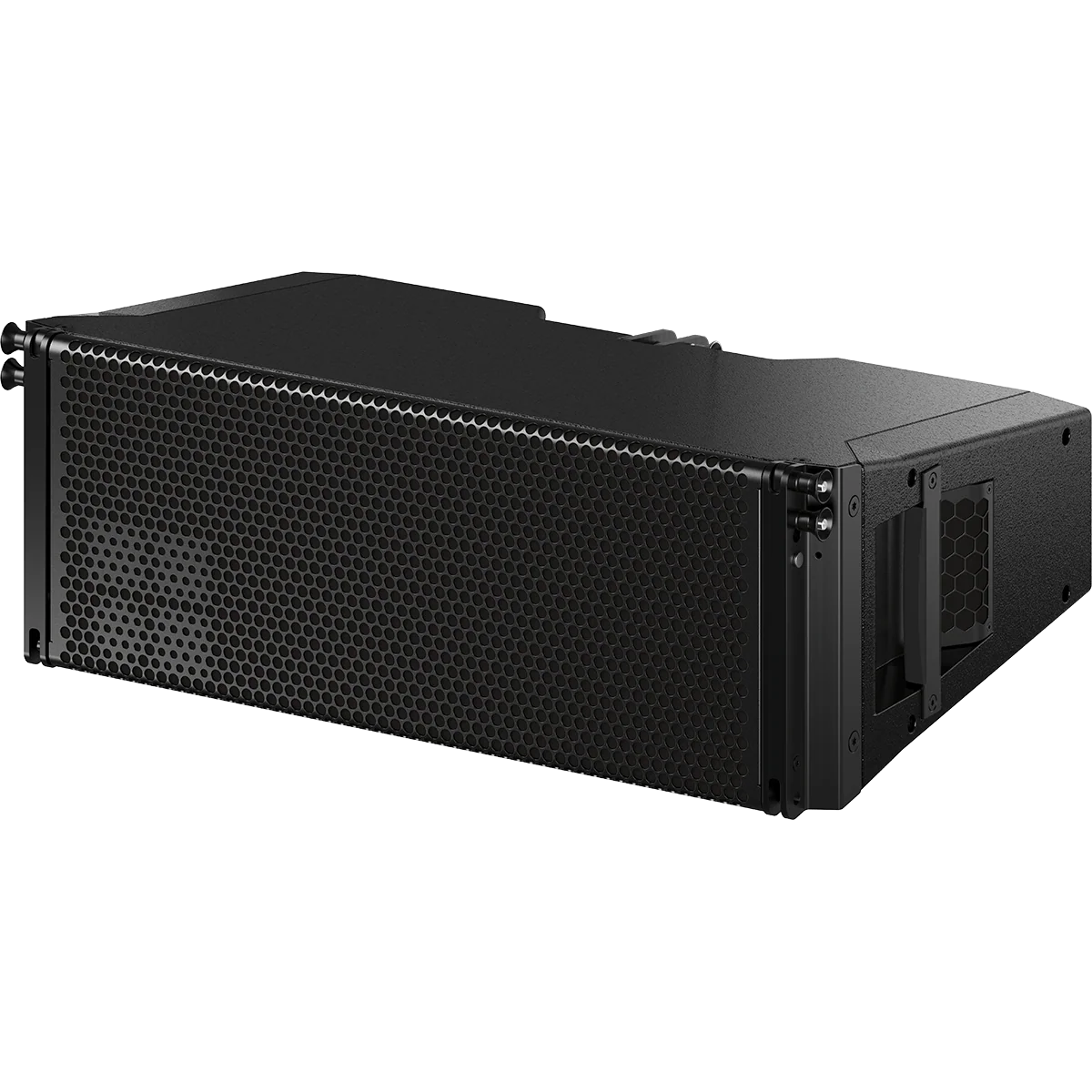

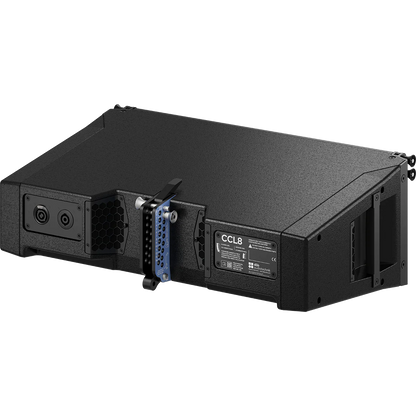

d&b audiotechnik CCL8 Compact Cardioid Line Array Loudspeaker with 80 Degree Horizontal Dispersion
The d&b audiotechnik CCL8 is a mobile specific compact cardioid line array loudspeaker for small to medium scale sound reinforcement. Forward and side firing LF drivers keep directivity under control across the whole operating bandwidth, from 60 Hz to above 18 kHz, with an 80 degree horizontal pattern. Trianze Tech supplies the CCL8 to rental companies, venues and integrators in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 2 x 7 inch neodymium forward LF drivers and 2 x 5 inch neodymium side firing LF drivers
- Two 1.75 inch exit HF compression drivers on a dedicated wave shaping device
- Cardioid directivity maintained across the entire operating bandwidth
- 80 degree constant directivity horizontal dispersion
- Up to 24 cabinets per column with the CCL Flying frame
- Splay angles from 0 to 14 degrees in 1 degree steps
Technical Specifications:
| Spec | Value |
|---|---|
| Model | CCL8 |
| Type | Compact cardioid line array loudspeaker, 2-way passive |
| LF Drivers | 2 x 7 inch forward + 2 x 5 inch side firing, neodymium |
| HF Drivers | 2 x 1.75 inch exit compression drivers |
| Horizontal Dispersion | 80 degrees |
| Frequency Response | 60 Hz to above 18 kHz |
| Max SPL | 137 dB |
| Splay Angles | 0 to 14 degrees, 1 degree steps |
| Max Column Size | 24 cabinets with CCL Flying frame |
| Weight | 17.6 kg (38.8 lb) |
| Recommended Amplifiers | d&b D25, D40, D80, D90, 25D, 40D |
Why Buy the d&b audiotechnik CCL8 from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the CCL8 with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik CCL8 has an 80 degree constant directivity horizontal dispersion. The CCL12 version of the same cabinet offers 120 degrees.
The d&b audiotechnik CCL8 uses 2 x 7 inch neodymium forward LF drivers, 2 x 5 inch neodymium side firing LF drivers and two 1.75 inch exit HF compression drivers on a wave shaping device.
The d&b audiotechnik CCL8 reaches a maximum SPL of 137 dB, with a frequency response from 60 Hz to above 18 kHz.
With the CCL Flying frame, up to 24 d&b CCL8 cabinets can be flown in a vertical column, with splay angles from 0 to 14 degrees in 1 degree steps.
Each d&b audiotechnik CCL8 cabinet weighs 17.6 kg (38.8 lb).
