d&b audiotechnik CCL-SUB: 15 Inch and 10 Inch Flyable Cardioid Subwoofer for the CCL Series
Model
:
CCL-SUB
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

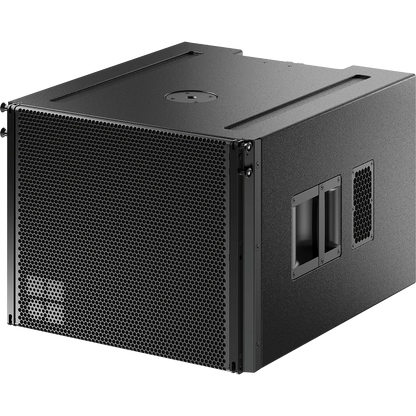

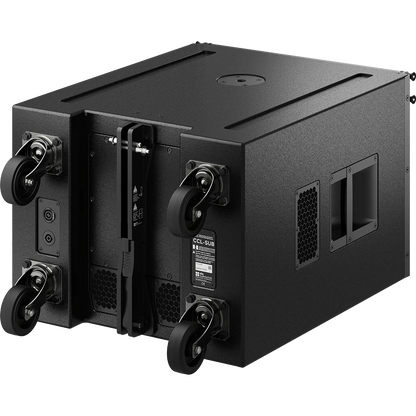

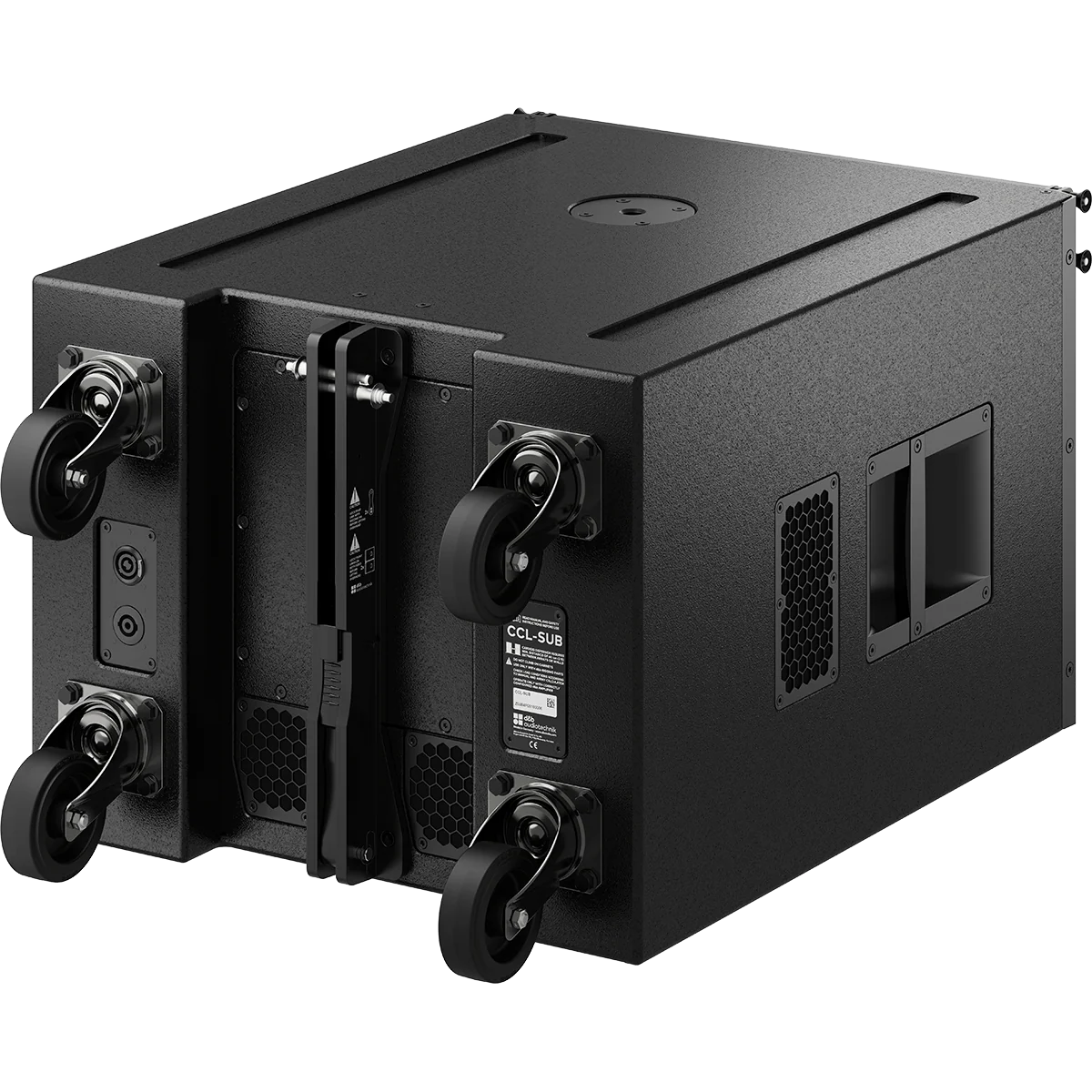

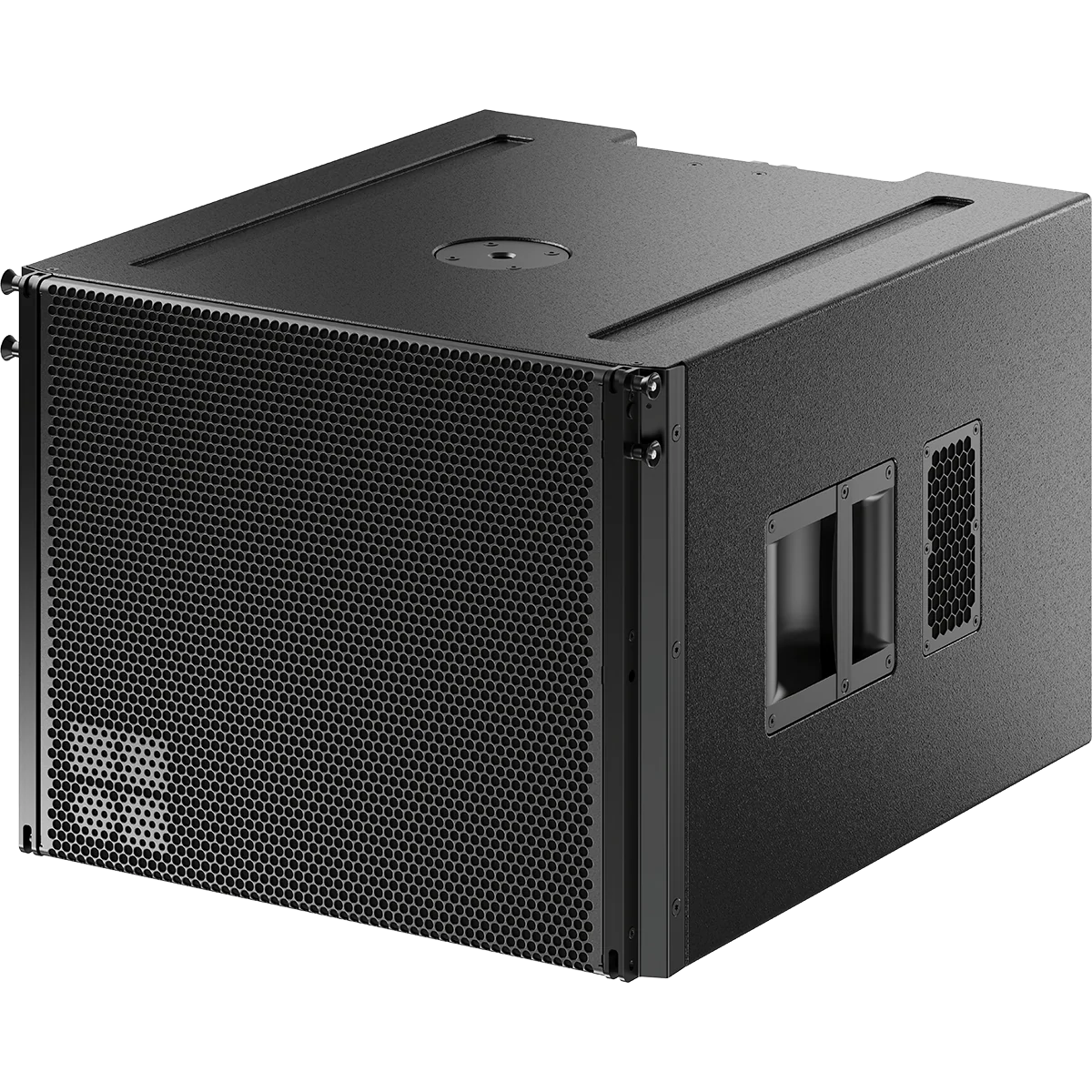

d&b audiotechnik CCL-SUB Flyable Cardioid Subwoofer
The d&b audiotechnik CCL-SUB is a compact high performance cardioid subwoofer for the CCL family, designed for small to medium format mobile systems and able to be flown. A front facing 15 inch bass reflex driver and a rear facing 10 inch two chamber bandpass driver create a cardioid pattern from a single amplifier channel, covering 40 Hz to 150 Hz. Trianze Tech supplies the CCL-SUB for touring and event systems in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Flyable cardioid subwoofer for the CCL Series
- Front 15 inch and rear 10 inch neodymium drivers
- Cardioid pattern from one amplifier channel
- Frequency response from 40 Hz to 150 Hz
- 134 dB maximum SPL
- Small to medium format mobile applications
Technical Specifications:
| Spec | Value |
|---|---|
| Model | CCL-SUB |
| Type | Mobile flyable cardioid subwoofer |
| Components | 1 x 15 inch front driver, 1 x 10 inch rear driver |
| Dispersion | Cardioid |
| Frequency Response | 40 Hz to 150 Hz |
| Max SPL | 134 dB |
| Weight | 44.5 kg (98 lb) |
Why Buy the d&b audiotechnik CCL-SUB from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the CCL-SUB with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik CCL-SUB is a flyable cardioid subwoofer designed as part of the CCL family for small to medium format mobile sound reinforcement.
The d&b audiotechnik CCL-SUB uses a front facing 15 inch bass reflex driver and a rear facing 10 inch bandpass driver, giving a cardioid pattern from a single amplifier channel.
The d&b audiotechnik CCL-SUB covers 40 Hz to 150 Hz.
The d&b audiotechnik CCL-SUB reaches a maximum SPL of 134 dB.
The d&b audiotechnik CCL-SUB weighs 44.5 kg (98 lb).
