d&b audiotechnik Bi10N-SUB: Installation Dual 10 Inch Networked Subwoofer with Milan and PoE++ Power
Model
:
Bi10N-SUB
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

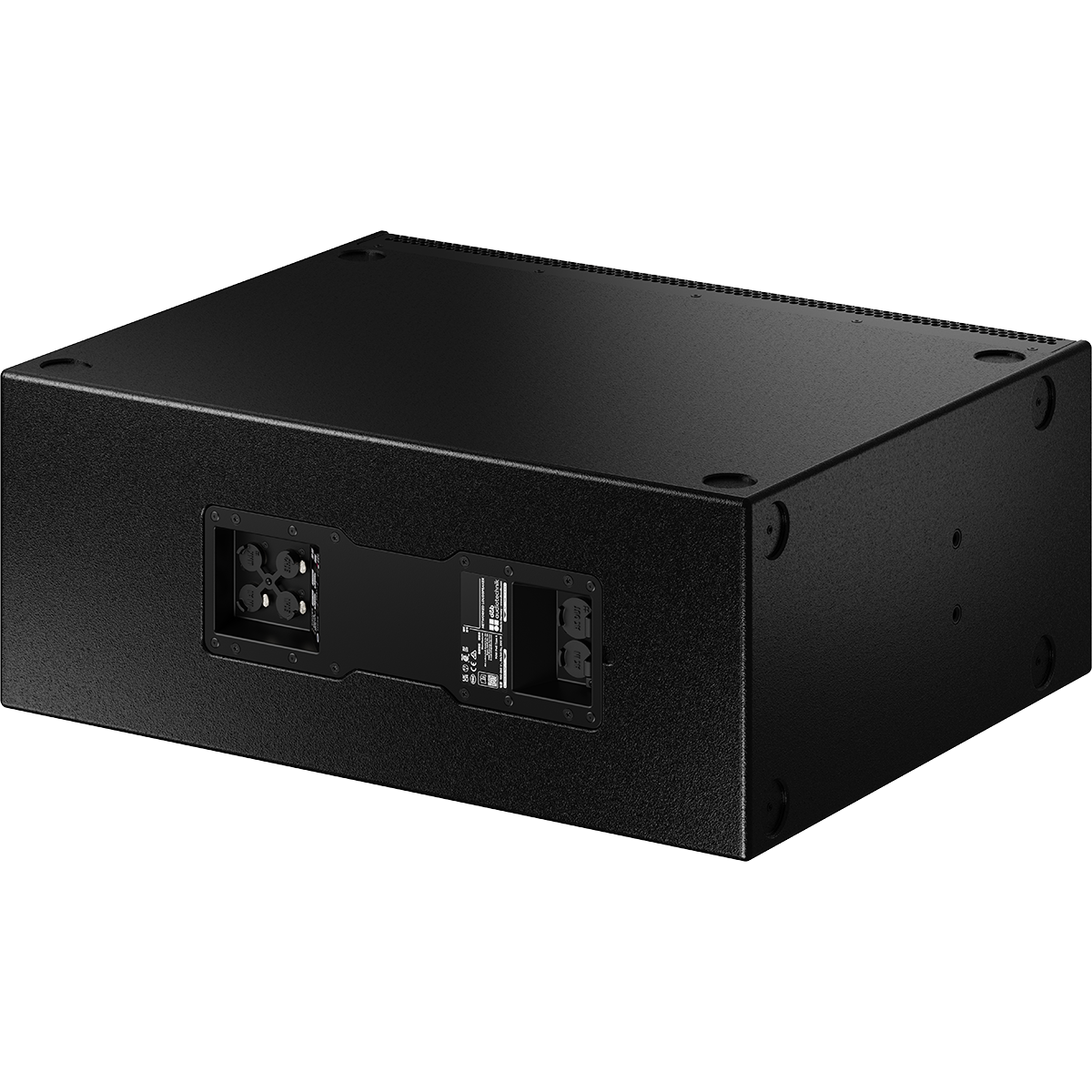

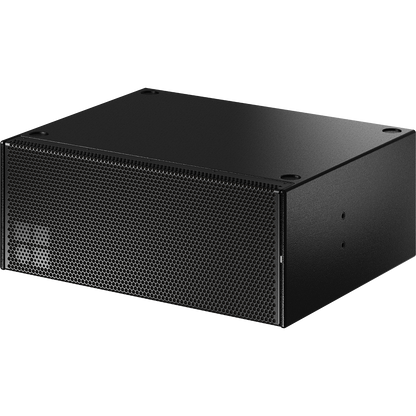

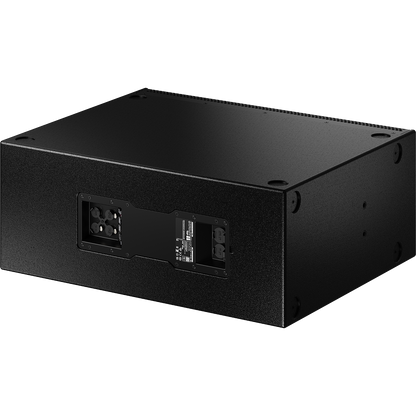

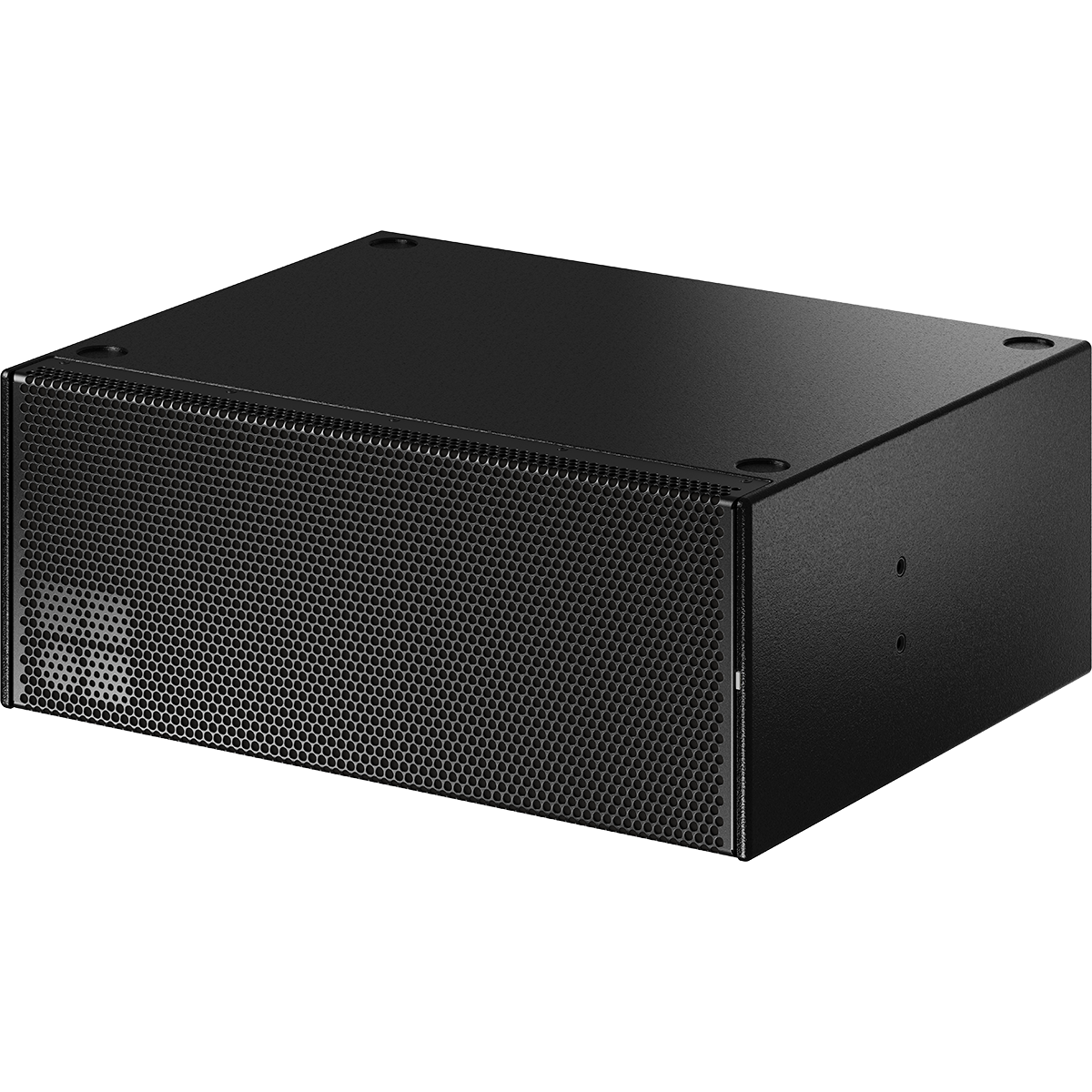

d&b audiotechnik Bi10N-SUB Installation Networked Subwoofer with Milan and PoE++
The d&b audiotechnik Bi10N-SUB is the installation specific compact networked subwoofer, with two 10 inch drivers in a bass reflex cabinet and a hybrid power design that runs on AC, PoE++ or both at once. A single cable carries power, signal, control and monitoring, while a dual cable setup gives redundancy for mission critical installations. Trianze Tech supplies the Bi10N-SUB for networked installations in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Installation specific networked subwoofer
- Two 10 inch drivers in a bass reflex cabinet
- Hybrid power: AC, PoE++ or both at once
- Milan network input, 1 stream up to 8 channels at 48/96 kHz
- Dual cable redundancy with 2 x PoE++ and 2 x Milan
- Integrated 2-port network switch
Technical Specifications:
| Spec | Value |
|---|---|
| Model | Bi10N-SUB |
| Type | Installation compact networked subwoofer |
| Components | 2 x 10 inch drivers |
| Dispersion | Omnidirectional |
| Frequency Response (-5 dB) | 38 to 130 Hz standard, 38 to 100 Hz 100 Hz mode |
| Max SPL | 129 dB (PoE++ or AC) |
| Equalizer | 2 user definable 16-band equalizers |
| Latency | 1.1 ms analog input |
| Inputs | 3-pin XLR analog in and link, Milan network |
| Network | 2 x RJ45 etherCON, integrated 2-port switch |
| Mains | powerCON TRUE1 TOP in and thru, 100 to 240 V |
| Dimensions (H x W x D) | 280 x 706 x 565 mm |
| Weight | 28.5 kg (63 lb) |
Why Buy the d&b audiotechnik Bi10N-SUB from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the Bi10N-SUB with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik Bi10N-SUB is the installation specific version of the networked dual 10 inch subwoofer, while the B10N-SUB is the mobile version. Both run on AC or PoE++ with a Milan input.
Yes. The d&b audiotechnik Bi10N-SUB runs on AC, PoE++ or both at once, and reaches 129 dB maximum SPL on either supply.
The d&b audiotechnik Bi10N-SUB has a 3-pin XLR analog input with a parallel link output, plus a Milan network input for one stream of up to 8 channels at 48 or 96 kHz.
The d&b audiotechnik Bi10N-SUB covers 38 Hz to 130 Hz (-5 dB) in standard mode and 38 Hz to 100 Hz in 100 Hz mode.
The d&b audiotechnik Bi10N-SUB measures 280 x 706 x 565 mm (H x W x D) and weighs 28.5 kg (63 lb).
Trianze Tech supplies the d&b audiotechnik Bi10N-SUB in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
