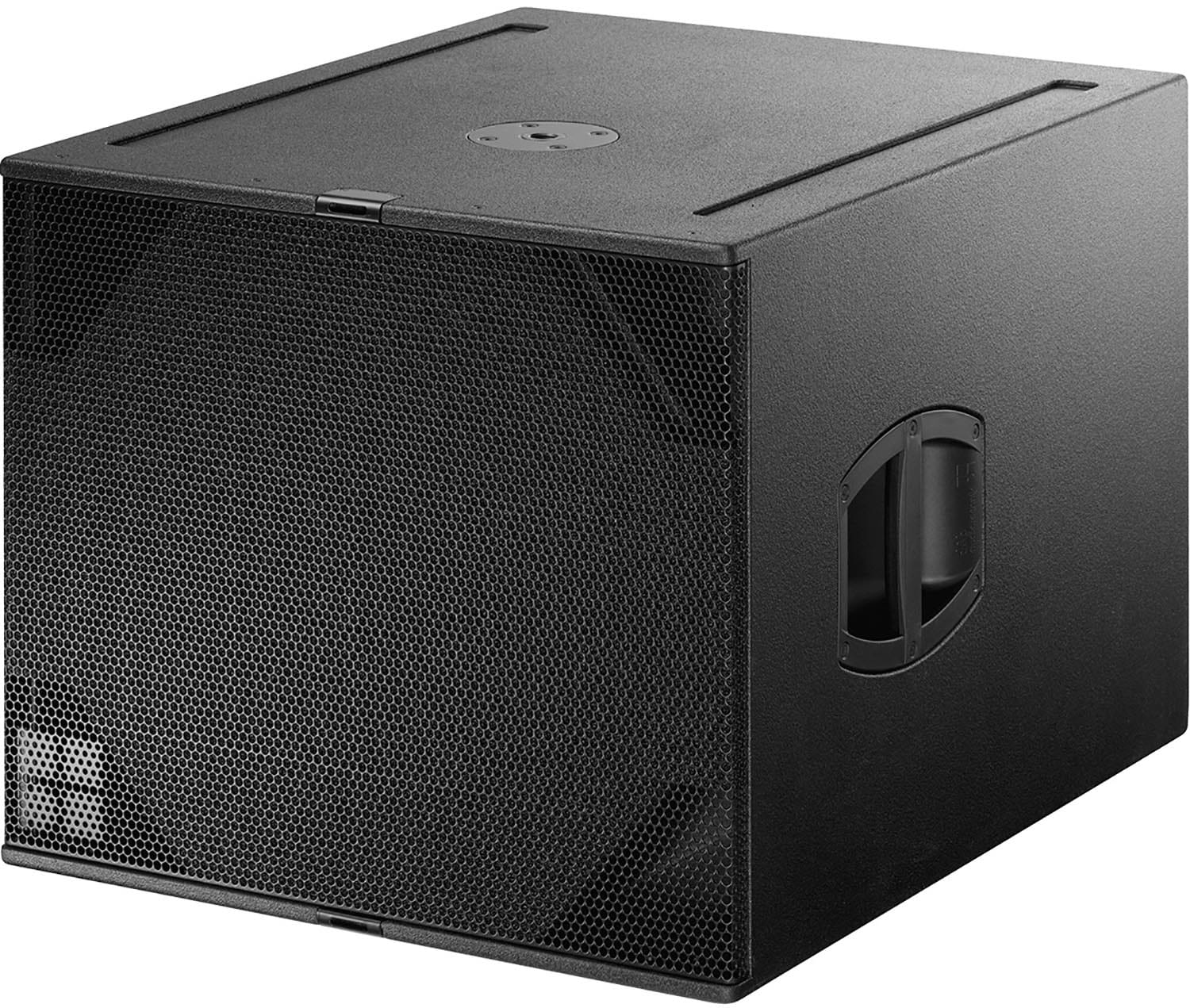

d&b audiotechnik B6-SUB: 18 Inch High Performance Passive Subwoofer with NL4 Connections
Model
:
B6-SUB
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
d&b audiotechnik B6-SUB 18 Inch High Performance Subwoofer with NL4 Connections
The d&b audiotechnik B6-SUB is a high performance subwoofer for ground stacked applications, with a long excursion 18 inch driver in a bass reflex design. Three or any multiple of three cabinets can form a Cardioid Subwoofer Array, with one cabinet facing backwards on an amplifier channel set to CSA mode. Trianze Tech supplies the B6-SUB for live and installed sound in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Long excursion 18 inch driver in a bass reflex design
- Cardioid Subwoofer Array with CSA mode
- INFRA mode extends response down to 35 Hz
- Marine plywood cabinet with PCP finish
- Four rear wheels, handles and stacking runners
- M20 flange accepts the d&b loudspeaker stand winder
Technical Specifications:
| Spec | Value |
|---|---|
| Model | B6-SUB, NL4 version |
| Type | High performance subwoofer, passive |
| Components | 1 x 18 inch driver |
| Frequency Response (-5 dB) | 37 to 140 Hz standard, 37 to 110 Hz 100 Hz mode, 35 to 80 Hz INFRA mode |
| Max SPL | 128 dB (10D), 131 dB (D20/30D), 134 dB (D40/D80/40D) |
| Nominal Impedance | 8 ohms |
| Power Handling (RMS/peak) | 500/2000 W |
| Cabinets per Amplifier Channel | 2 |
| Connections | 2 x NL4 |
| Dimensions (H x W x D) | 490 x 580 x 700 mm (805 mm with wheels) |
| Weight | 41 kg (90 lb) |
Why Buy the d&b audiotechnik B6-SUB from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the B6-SUB with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik B6-SUB covers 37 Hz to 140 Hz in standard mode, 37 Hz to 110 Hz in 100 Hz mode and 35 Hz to 80 Hz in INFRA mode.
The d&b audiotechnik B6-SUB reaches 134 dB maximum SPL with D40, D80 or 40D amplifiers, 131 dB with D20 or 30D and 128 dB with the 10D.
Yes. Three or any multiple of three d&b audiotechnik B6-SUB cabinets can form a Cardioid Subwoofer Array, with one cabinet facing backwards on a channel set to CSA mode.
The d&b audiotechnik B6-SUB can be driven by the D20, D40 and D80 mobile amplifiers and the 40D installation amplifier, with two cabinets per channel.
The d&b audiotechnik B6-SUB weighs 41 kg (90 lb) and measures 490 x 580 x 700 mm (H x W x D), or 805 mm deep with wheels.
Trianze Tech supplies the d&b audiotechnik B6-SUB in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
