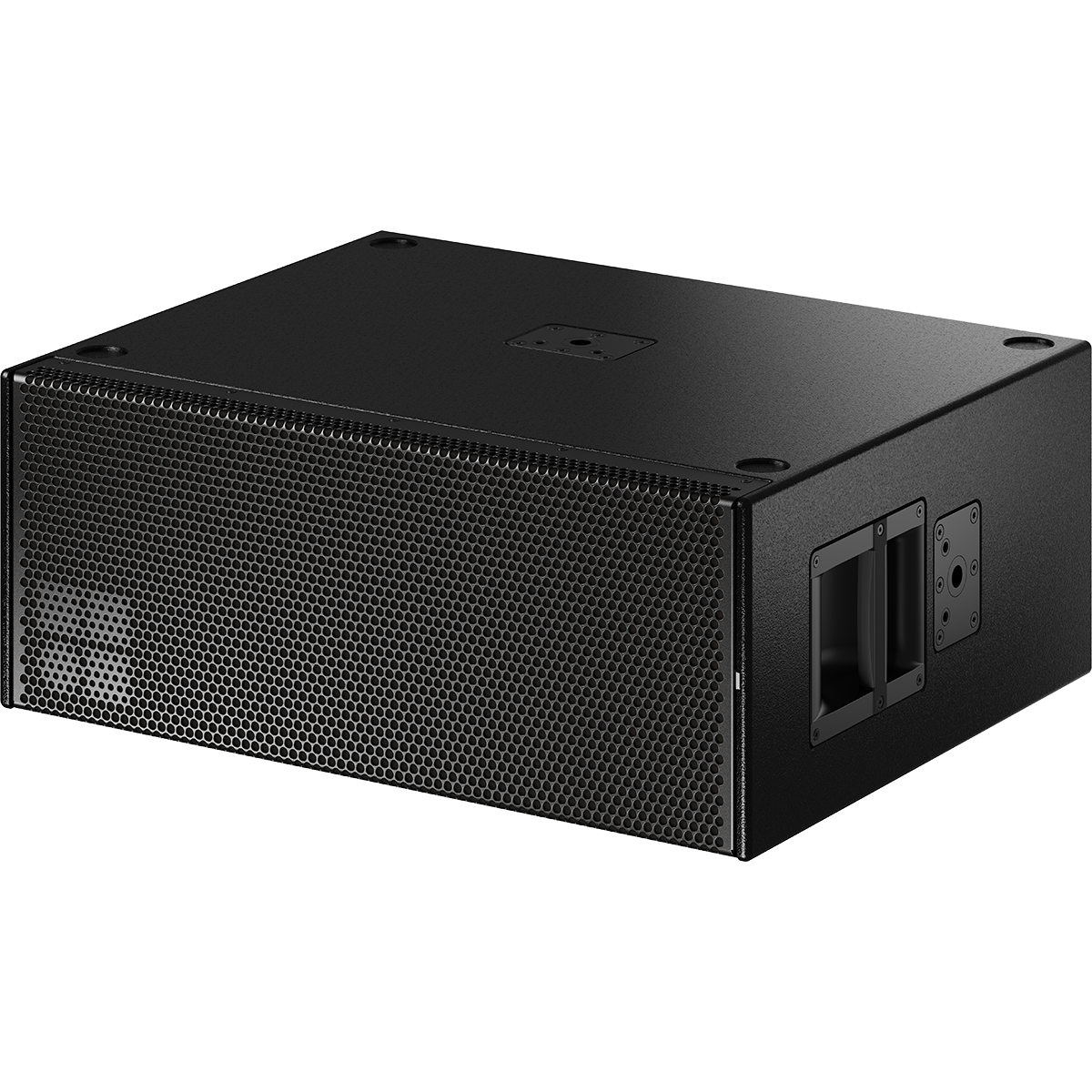

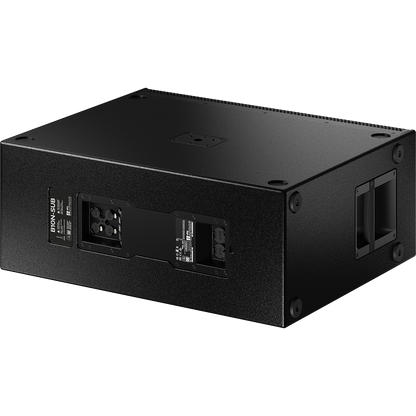

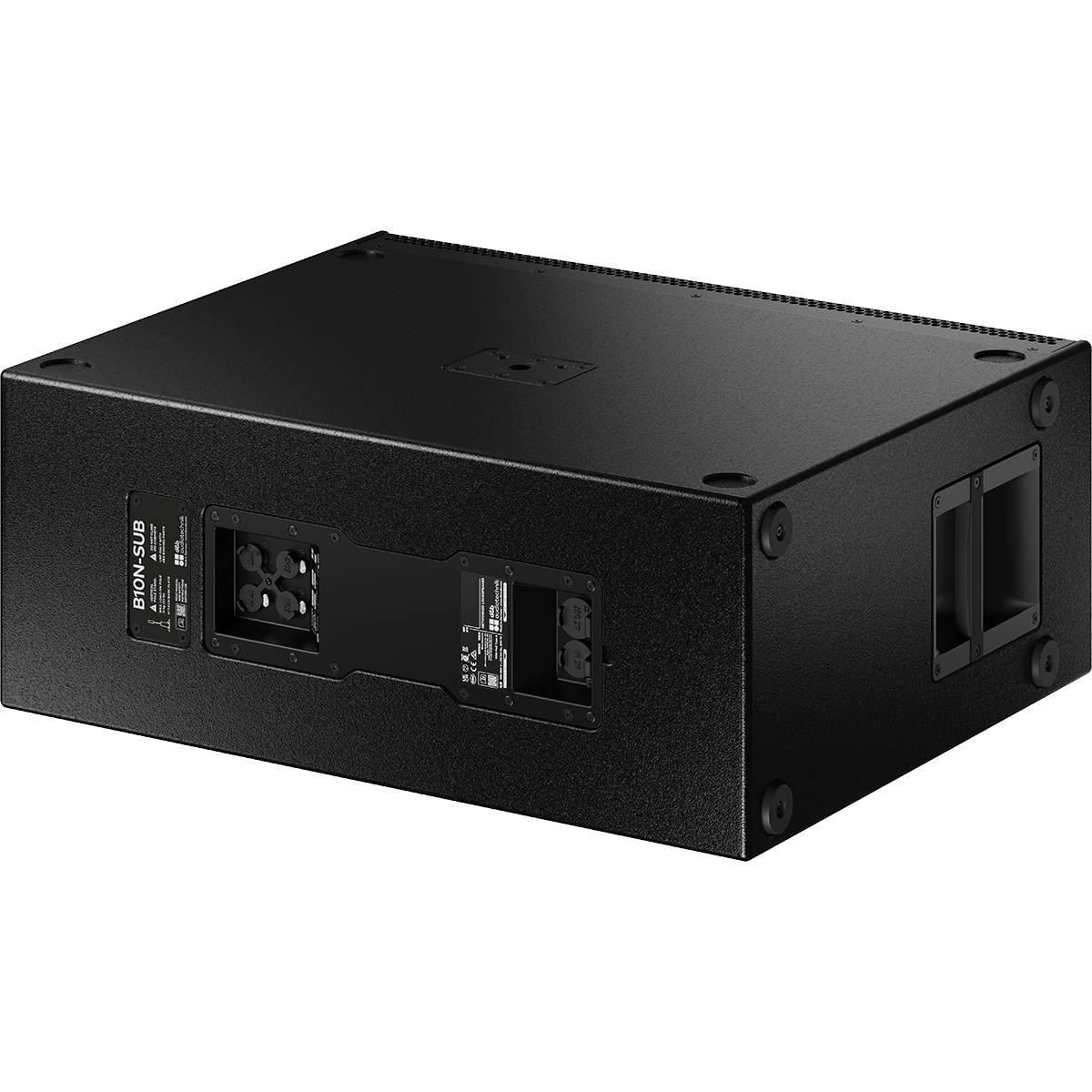

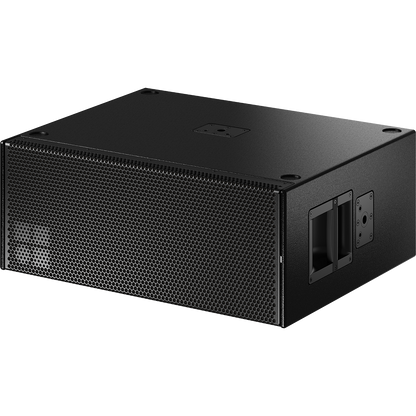

d&b audiotechnik B10N-SUB Compact Networked Subwoofer with Milan and PoE++
The d&b audiotechnik B10N-SUB is a compact networked subwoofer with two 10 inch drivers in a bass reflex cabinet and a hybrid power design that runs on AC, PoE++ or both at once. A single cable can carry power, signal, control and monitoring, and a dual cable setup provides redundancy for critical installations. Trianze Tech supplies the B10N-SUB for networked audio projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Two 10 inch drivers in a bass reflex cabinet
- Hybrid power: AC, PoE++ or both at once
- Milan network input, 1 stream up to 8 channels at 48/96 kHz
- Single cable power, signal, control and monitoring
- Dual cable redundancy with 2 x PoE++ and 2 x Milan
- Integrated 2-port network switch
Technical Specifications:
| Spec | Value |
|---|---|
| Model | B10N-SUB |
| Type | Compact networked subwoofer |
| Components | 2 x 10 inch drivers |
| Dispersion | Omnidirectional |
| Frequency Response (-5 dB) | 38 to 130 Hz standard, 38 to 100 Hz 100 Hz mode |
| Max SPL | 129 dB (PoE++ or AC) |
| Equalizer | 2 user definable 16-band equalizers |
| Latency | 1.1 ms analog input |
| Inputs | 3-pin XLR analog in and link, Milan network |
| Network | 2 x RJ45 etherCON, integrated 2-port switch |
| Mains | powerCON TRUE1 TOP in and thru, 100 to 240 V |
| Dimensions (H x W x D) | 280 x 706 x 565 mm |
| Weight | 28.5 kg (63 lb) |
Why Buy the d&b audiotechnik B10N-SUB from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the B10N-SUB with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Yes. The d&b audiotechnik B10N-SUB has a hybrid power design that runs on AC, PoE++ or both simultaneously, and reaches 129 dB maximum SPL on either.
The d&b audiotechnik B10N-SUB has a Milan network input carrying one stream of up to 8 channels at 48 or 96 kHz, plus an analog XLR input and link.
Yes. The d&b audiotechnik B10N-SUB supports dual cable redundancy with 2 x PoE++ and 2 x Milan for mission critical installations.
The d&b audiotechnik B10N-SUB covers 38 Hz to 130 Hz (-5 dB) in standard mode and 38 Hz to 100 Hz in 100 Hz mode.
The d&b audiotechnik B10N-SUB measures 280 x 706 x 565 mm (H x W x D) and weighs 28.5 kg (63 lb).
