d&b audiotechnik ALi60 Installation Augmented Array Loudspeaker

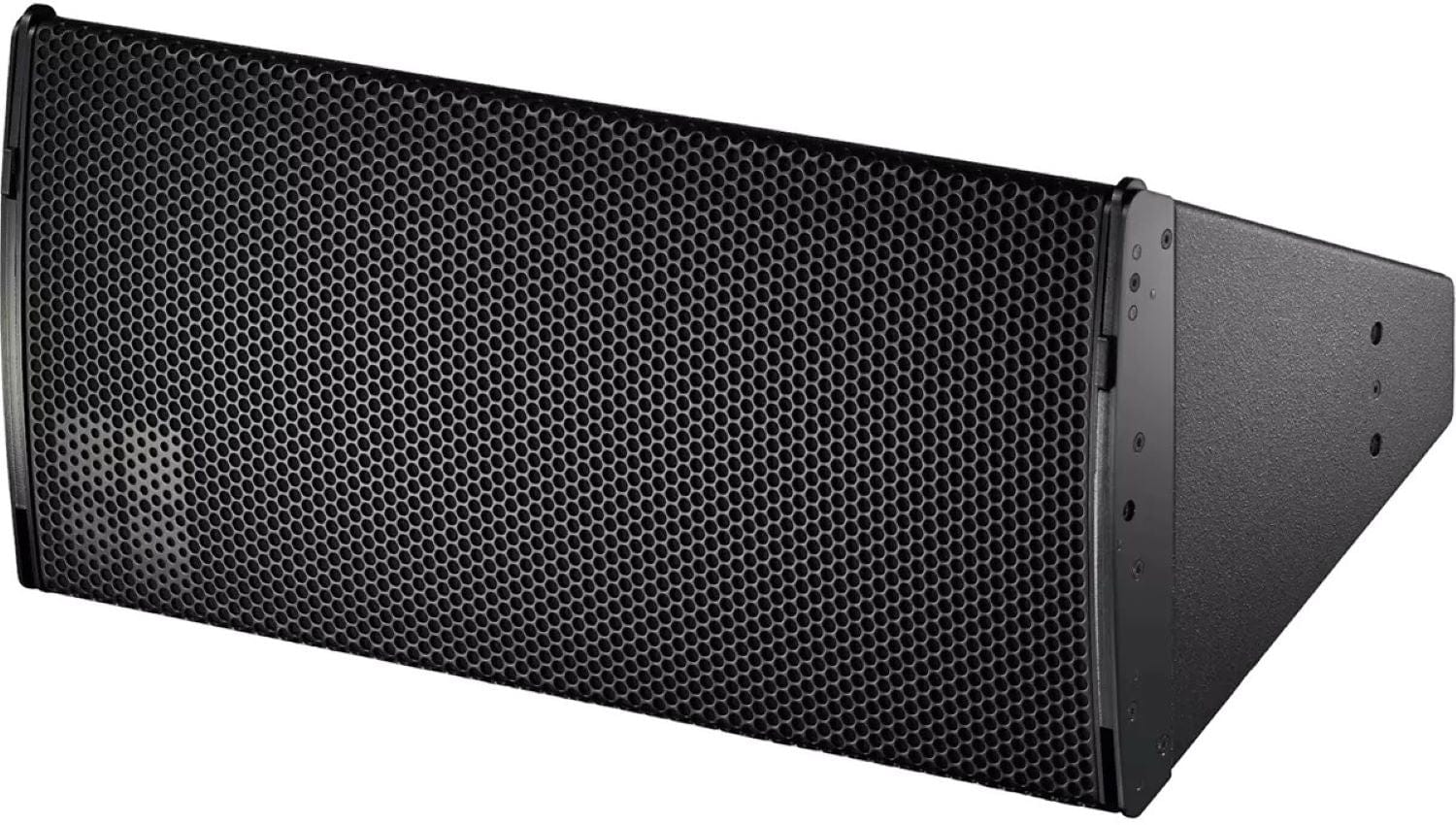

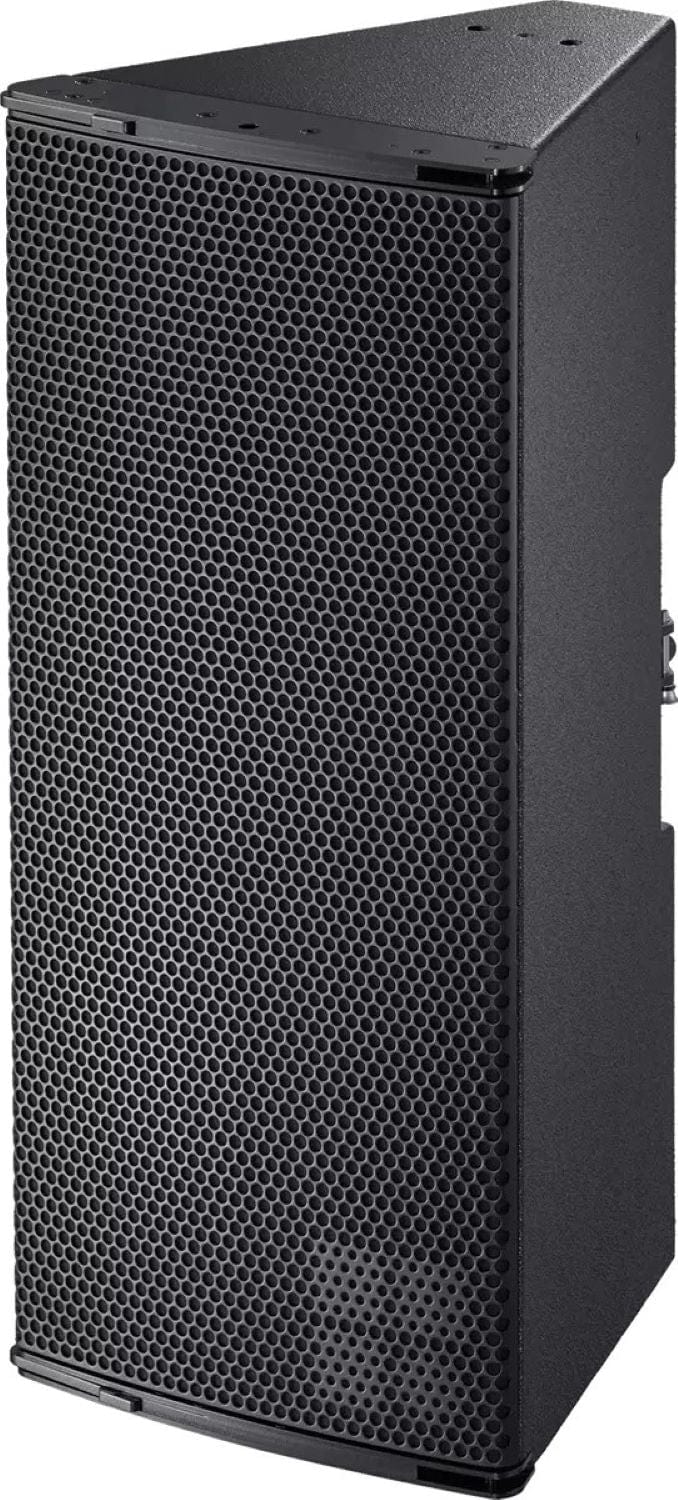

The d&b audiotechnik ALi60 is the installation variant of the AL60 augmented array loudspeaker, with two 10 inch neodymium LF drivers and a 1.4 inch exit compression driver on a wave shaping device. Up to four cabinets can be flown as a vertical column with 60 degree constant horizontal directivity, and three M10 inserts in one side panel accept a dedicated flying adapter. Trianze Tech supplies the ALi60 for permanent installations in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Installation variant of the AL60
- Two 10 inch LF drivers and a 1.4 inch exit compression driver with 3 inch coil
- 60 degree constant directivity in the horizontal plane
- Horizontal pattern control down to about 550 Hz

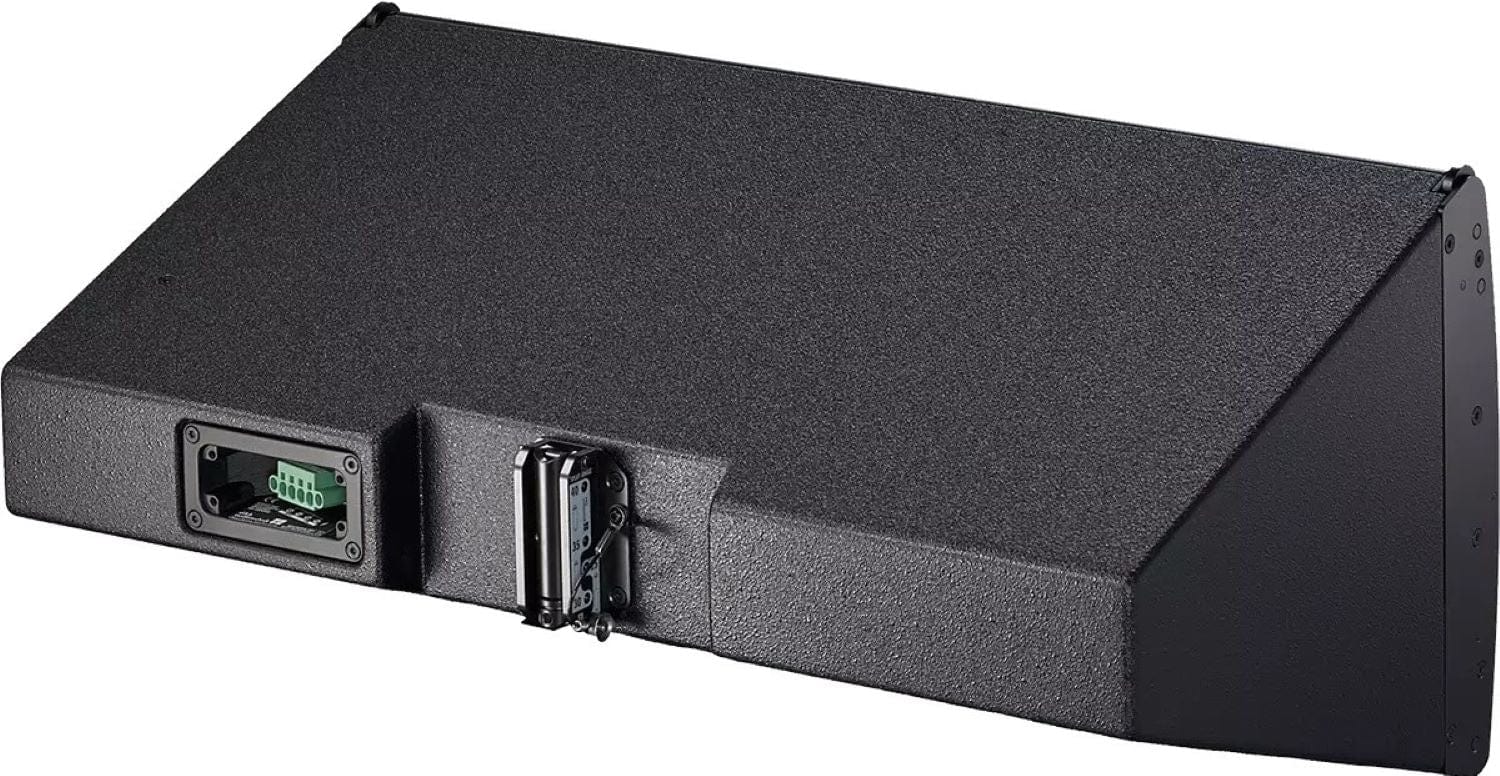

- Three M10 inserts in one side panel for a flying adapter
- Phoenix socket connection
Technical Specifications:
| Spec | Value |
|---|---|
| Model | ALi60 |
| Type | Installation augmented array loudspeaker, 2-way passive |
| Components | 2 x 10 inch LF drivers, 1 x 1.4 inch exit compression driver with 3 inch coil |
| Dispersion (h x v) | 60 x 30 degrees |
| Splay Angle Settings | 20 to 40 degrees in 5 degree steps |
| Frequency Response (-5 dB) | 60 Hz to 18 kHz standard, 95 Hz to 18 kHz 100 Hz mode |
| Max SPL | 138 dB (D20/30D), 139 dB (D40/D80/40D) |
| Nominal Impedance | 8 ohms |
| Power Handling (RMS/peak) | 400/1800 W |
| Cabinets per Amplifier Channel | 2 |
| Connection | Phoenix socket |
| Dimensions (H x W x D) | 322 x 700 x 356 mm |
| Weight | 23 kg (51 lb) |
Why Buy the d&b audiotechnik ALi60 from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the ALi60 with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik ALi60 is the installation variant of the AL60 augmented array loudspeaker, with a Phoenix socket connection and an impact resistant black paint finish.

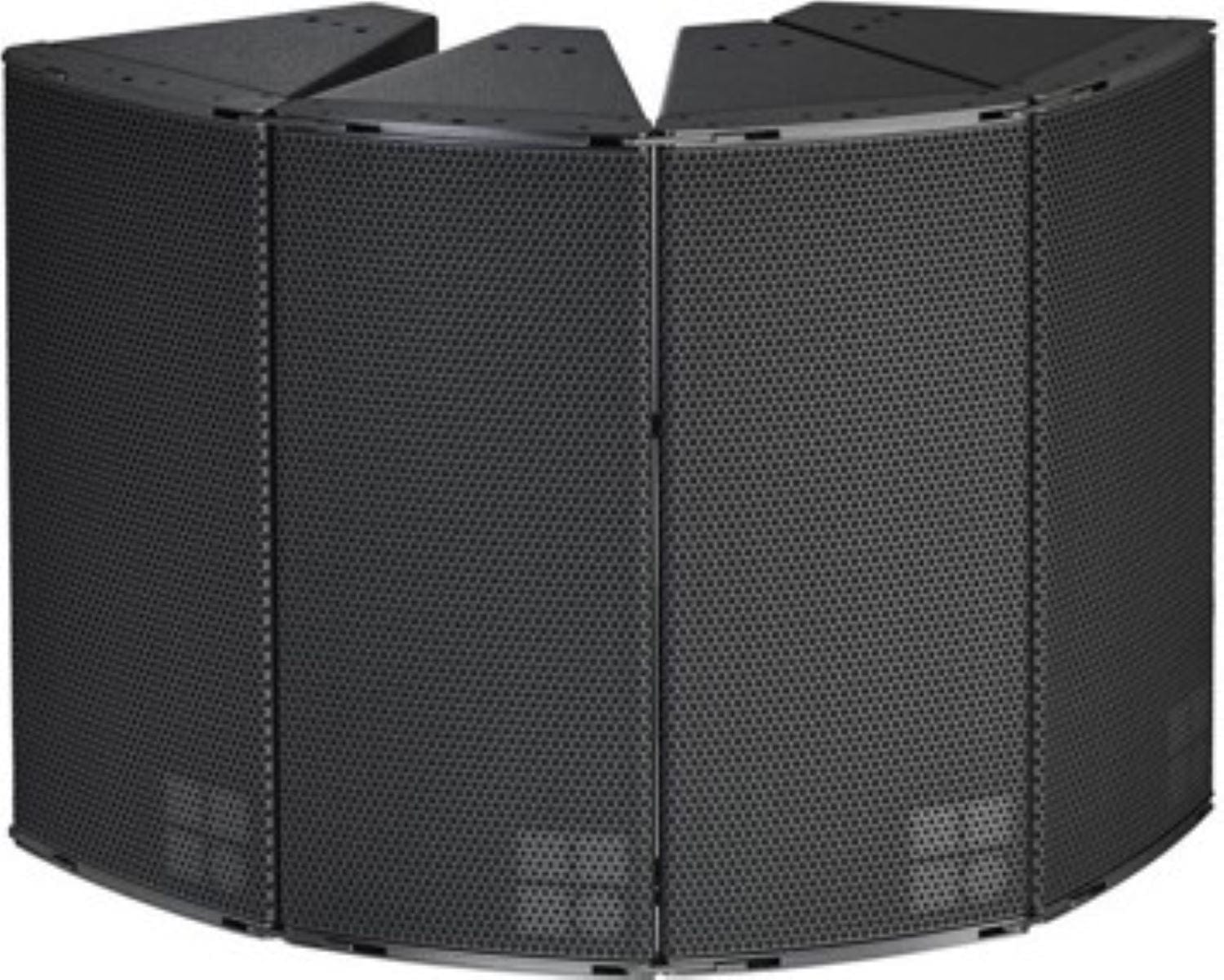

Up to four d&b audiotechnik ALi60 cabinets can be flown in a vertical column, giving 60 degree constant horizontal directivity.
The d&b audiotechnik ALi60 supports splay angles from 20 to 40 degrees in 5 degree steps between adjacent cabinets, up to 150 degrees per array.
The d&b audiotechnik ALi60 reaches 139 dB maximum SPL with D40, D80 or 40D amplifiers, and 138 dB with D20 or 30D.
The d&b audiotechnik ALi60 weighs 23 kg (51 lb) and measures 322 x 700 x 356 mm (H x W x D).
