Bose ControlSpace EX-4ML: Microphone and GPIO Dante Endpoint | 771783-0110
Model
:
771783-0110
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

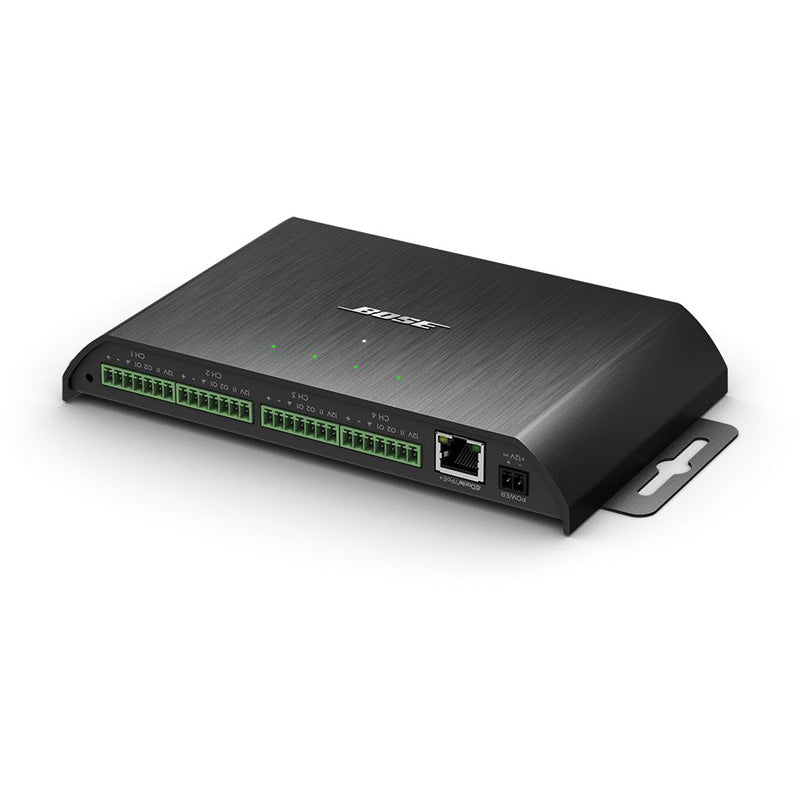

Bose ControlSpace EX-4ML: Microphone and GPIO Dante Endpoint
The Bose ControlSpace EX-4ML is a genuine Bose Professional Dante endpoint that adds 4 microphone or line inputs plus GPIO to a networked audio system over a single Cat 5/6 cable, distributed in Dubai, Abu Dhabi and across the UAE and GCC by Trianze Tech.
Key Features
- 4 high quality microphone/line inputs with plus 48V phantom power per channel
- 4 GPI and 8 GPO for logic control without external programming
- Optimized for use with EX-1280C, EX-12AEC and EX-440C processors
- Autodiscovery and drag and drop programming in ControlSpace Designer
Technical Specifications
| Microphone Inputs | 4, each with +48V phantom power |
| GPIO | 4 GPI, 8 GPO |
| Network | Dante over a single Cat 5/6 cable |
| Power | Power over Ethernet or 12V external supply |
| Mounting | Keyhole tabs for underside of table mounting or rack use |
| Compatible Processors | EX-1280C, EX-12AEC, EX-440C |
| Part Number | 771783-0110 |
Why Buy the Bose ControlSpace EX-4ML from Trianze Tech?
- Genuine Bose Professional Dante endpoint sourced and supported locally in the UAE
- Fast delivery and installation support across Dubai, Abu Dhabi and the GCC
- Dedicated conferencing and DSP integration support from Trianze Tech
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The EX-4ML connects up to 4 conferencing microphones or line sources over a single Cat 5/6 cable to a networked ControlSpace system.
Yes. Each of the 4 microphone/line inputs on the EX-4ML provides plus 48V phantom power for condenser microphones.
It adds 4 GPI and 8 GPO to the networked audio system for triggering logic functions like mute status and LED indicators.
It is optimized for use with the Bose ControlSpace EX-1280C, EX-12AEC and EX-440C processors, and can also be daisy chained with other EX endpoints.
It can be powered by Power over Ethernet or by an optional 12V external power supply.
Trianze Tech stocks the Bose ControlSpace EX-4ML Dante endpoint in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
