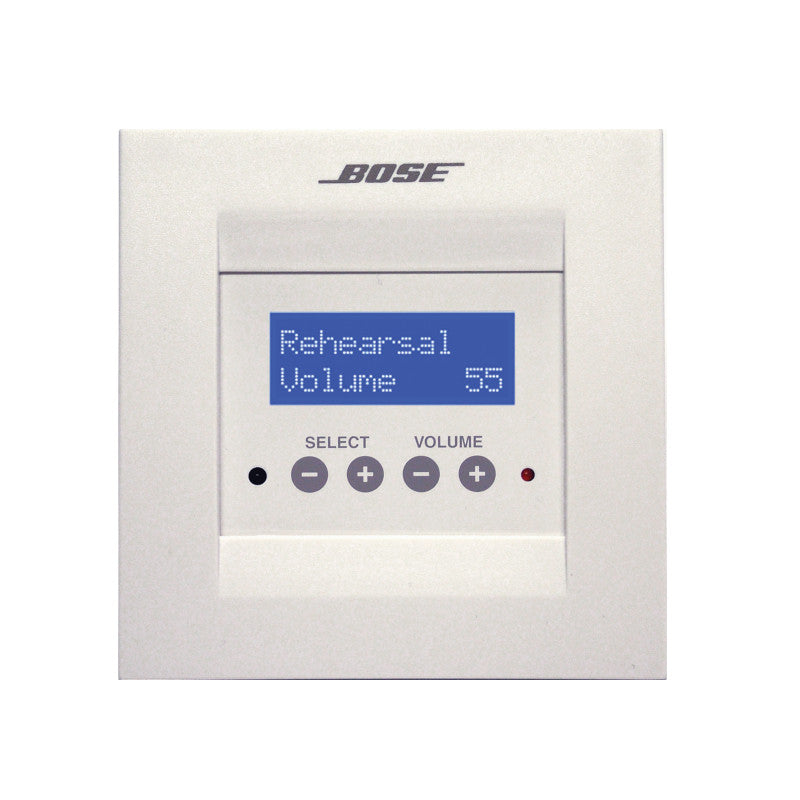

Bose ControlSpace CC-16 Zone Controller, White
The Bose ControlSpace CC-16 is a genuine Bose Professional wall mounted zone controller for end user control of ControlSpace audio systems, distributed in Dubai, Abu Dhabi and across the UAE and GCC by Trianze Tech.
Key Features
- Wall mounted end user zone controller for Bose ControlSpace systems
- Bitmap LCD display with four programmable control buttons
- Custom programming for source switching and scene recall
- RS-485 daisy chain connection up to 2000 feet from the ESP processor
- Up to 15 CC-16 units supported per ControlSpace ESP-88 processor
Technical Specifications
| Part Number | 41761 |
| Color | White |
| Display | Bitmap LCD with 4 control buttons |
| Connection | RS-485, fixed 6 position terminal (power and RS-485 A/B) |
| Max Cable Length | 2000 ft (609 m) twisted pair daisy chain |
| Max Units per ESP-88 | 15 |
| Mounting | Standard single gang US electrical box |
| Compliance | cUL, CE, tested to UL60065 2nd edition and IEC60065 |
Why Buy the Bose ControlSpace CC-16 from Trianze Tech?
- Genuine Bose Professional gear sourced and supported locally in the UAE
- Fast delivery and installation support across Dubai, Abu Dhabi and the GCC
- Dedicated commercial audio system design and support from Trianze Tech
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Up to 15 Bose ControlSpace CC-16 zone controllers (part number 41761) can connect to a single ControlSpace ESP-88 processor over the RS-485 bus, letting you place local wall mounted controls in up to 15 zones from one processor.
The Bose CC-16 supports a maximum RS-485 cable run of 2000 feet (609 meters) using twisted pair daisy chain wiring back to the ControlSpace ESP-88 processor.
The CC-16 features a bitmap LCD screen with four programmable buttons, letting installers configure custom labels, source selections and scene recall options for end users.
The Bose ControlSpace CC-16 mounts in a standard single gang US electrical box and ships with a white decorator style faceplate for a clean finish.
The CC-16 connects specifically to the ControlSpace ESP-88 engineered sound processor via its RS-485 port. Confirm compatibility with other ControlSpace processor models before specifying it in a larger system design.
