Biamp D-ALINP: Decora Style Active Local Input Panel with Line and Mic Inputs
Brand
:Biamp
Model
:
D-ALINP
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

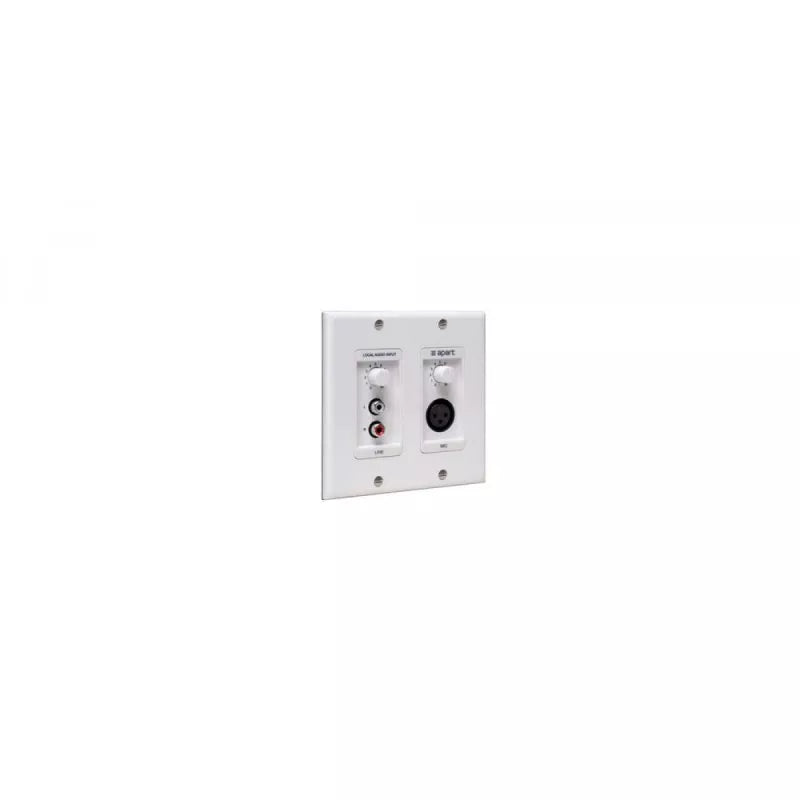

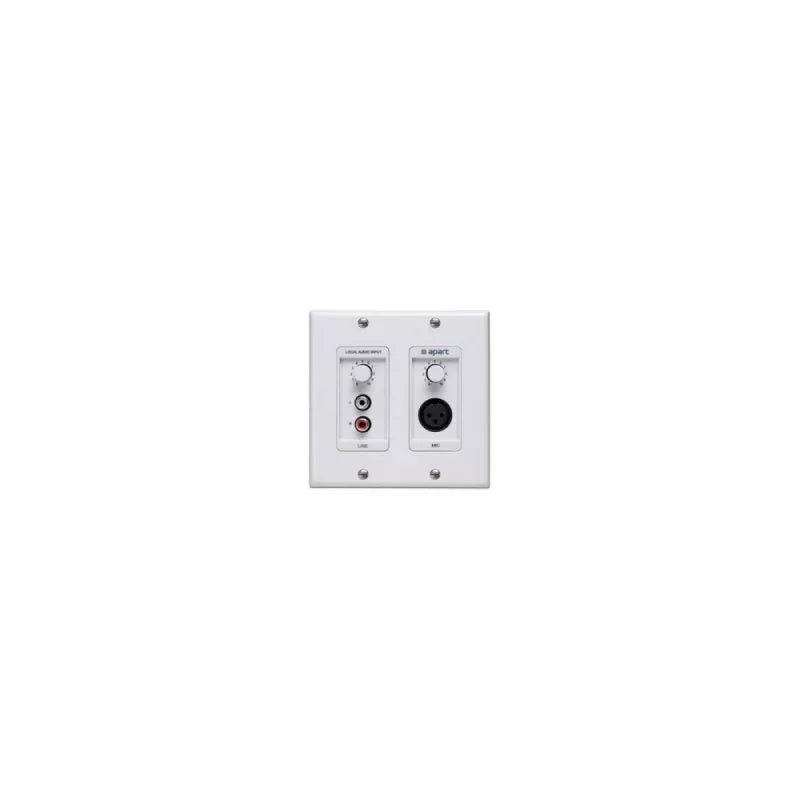

Biamp D-ALINP Decora Style Active Local Input Panel
The Biamp D-ALINP is a Decora style active wall input panel with a stereo line input summed to mono and a balanced XLR input for a dynamic microphone, each with its own volume. Powered by 24 to 48 V phantom power from the amplifier, it lets presenters plug in at the wall, for classrooms and meeting rooms across Dubai, Abu Dhabi and the UAE.
Key Features:
- Stereo line input summed to mono
- Balanced XLR input for a dynamic microphone
- Separate volume controls
- Built-in mic preamp and input transformer
- Powered by 24 to 48 V phantom power
- Cable runs up to 600 m
Technical Specifications:
| Spec | Value |
|---|---|
| Model | D-ALINP |
| Type | Active local input panel |
| Inputs | Stereo line (summed to mono), balanced XLR mic |
| Power | 24 to 48 V phantom from amplifier |
| Cable Run | Up to 600 m |
| Mic Phantom Power | Not supplied to the microphone |
| Style | Decora |
Why Buy the Biamp D-ALINP from Trianze Tech?
- Genuine Biamp product with local UAE support from the Trianze Tech AV team
- System design help matching the D-ALINP with compatible Biamp products
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance on commercial audio and installation design
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Biamp D-ALINP has a stereo line input summed to mono and a balanced XLR input for a dynamic microphone.
Biamp D-ALINP: By 24 to 48 V phantom power from the connected mixing amplifier, matrix or preamplifier.
Biamp D-ALINP: The XLR input does not supply phantom power to the microphone, so use a dynamic microphone.
Biamp D-ALINP: Cable runs up to 600 m.
Biamp D-ALINP: Apart mixing amplifiers, matrices and preamplifiers that supply at least 24 V phantom power.
Trianze Tech supplies the Biamp D-ALINP in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
