Yealink CS10-D: Low-Profile 2-Way Coaxial Dante Ceiling Loudspeaker
Model
:
CS10-D
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Yealink CS10-D: Low-Profile 2-Way Coaxial Dante Ceiling Loudspeaker
Yealink CS10-D delivers sound supreme for professional meeting spaces. This low-profile 2-way coaxial ceiling speaker combines a 5.7 inch woofer with a 1.1 inch tweeter, EQ tuned for human voice clarity, with full Dante protocol support for seamless integration into networked audio systems.
Key Features
- Dante edition ceiling speaker with full Dante protocol support
- Low-profile 120mm depth, 2-way coaxial design
- 5.7 inch woofer plus 1.1 inch tweeter, EQ tuned for speech clarity
- PoE-enabled active speaker with integrated DAC and minimal latency

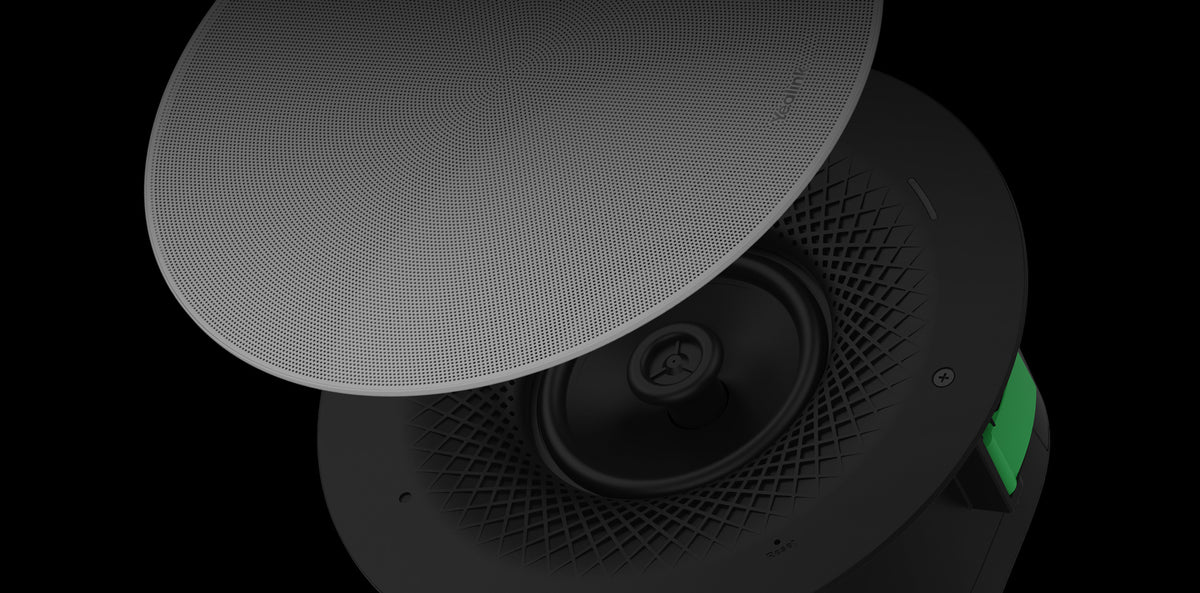

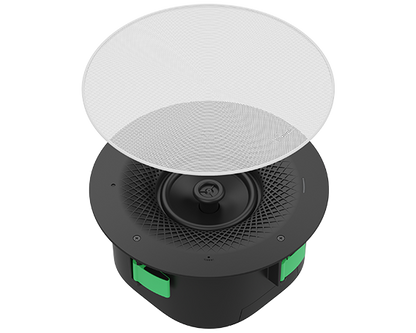

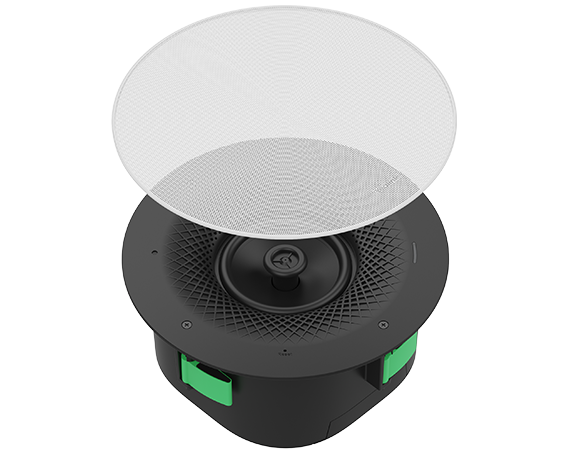

- Removable magnetic mesh cover, compatible with various ceiling types
Technical Specifications
| Spec | Detail |
|---|---|
| Speaker | 5.7 inch (145mm) woofer, 1.1 inch (28mm) tweeter, 2-way coaxial |
| Frequency Response | 100Hz to 20kHz (-6dB) |
| Output | Max SPL 99dB @ 20W (1m), sensitivity 88dB @ 1W (1m) |
| Impedance | 8 ohm nominal, 120 degree coverage angle |
| Connectivity | Dante protocol, PoE powered, integrated DAC |
| Dimensions | 120mm depth, low-profile design |
Why Buy the Yealink CS10-D from Trianze Tech?
- Genuine Yealink Pro-AV audio hardware sourced through Trianze Tech
- Dante-networked ceiling speaker for large boardrooms and Pro-AV rooms
- Professional AV integration and installation support across Dubai, Abu Dhabi, and the GCC
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
CS10-D is the Dante edition, supporting the Dante audio transmission protocol for integration with Dante-networked audio systems, while CS10 is the general edition for standard PoE deployments without Dante support.
It is a PoE-enabled active speaker with an integrated DAC, allowing swift digital signal processing from the network for a hassle-free, single-cable setup with minimal latency.
It features a 5.7 inch low-frequency woofer paired with a 1.1 inch high-frequency tweeter in a 2-way coaxial design, with EQ calibration tuned to emphasize the mid-range frequencies of human voice.
It provides flexible indoor installation solutions compatible with various ceiling types, and can also be deployed with optional accessories such as a pendant mount enclosure for suspended ceiling installations.

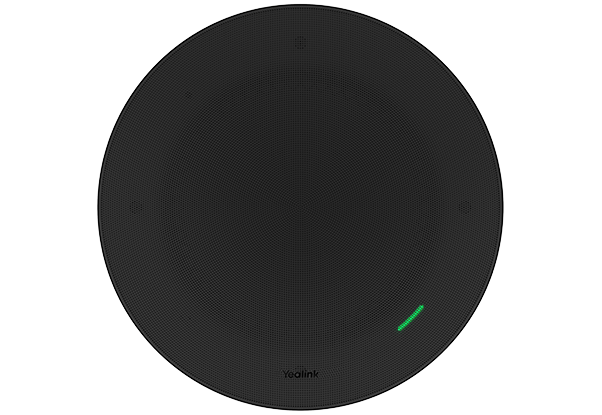

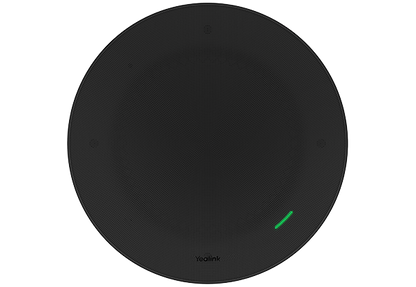

No, the CS10-D ships with a white removable magnetic mesh cover as standard; a detachable black magnetic mesh cover is available separately as the CS-BlackCover accessory.
Trianze Tech stocks the Yealink CS10-D in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
