Shure MXW6W/C-Z10: Cardioid Wireless Boundary Microphone Transmitter for Microflex Wireless, Z10 Band, White
Model
:
MXW6W-C-Z10
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Shure MXW6W/C-Z10: Cardioid Wireless Boundary Microphone Transmitter for Microflex Wireless, Z10 Band, White

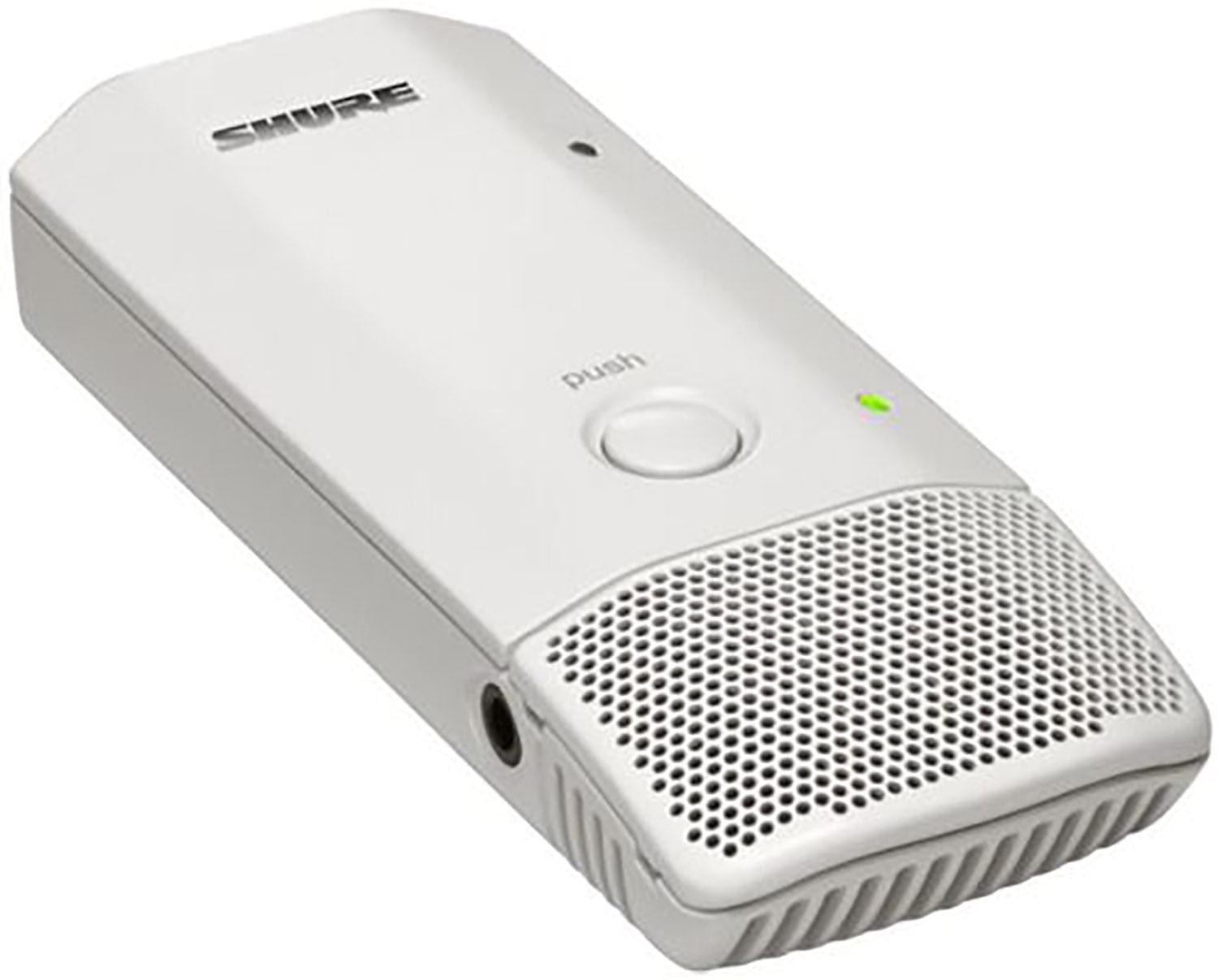

The Shure MXW6W/C is a boundary microphone transmitter for Microflex Wireless systems. Its low-profile design and cardioid pattern allow flexible placement on any surface in front of one or several talkers, with encrypted transmission and rechargeable batteries for conferencing and presentation rooms across Dubai, Abu Dhabi and the UAE. This listing is the Z10 frequency band version, in white.
Key Features
- Cardioid boundary microphone with the R185B Microflex capsule
- AES 256-bit encryption for secure transmission
- Bi-directional wireless with a return channel and 3.5 mm earphone output
- Programmable mute button with push-to-talk, push-to-mute and external control options
- Concealed power switch prevents accidental power-off
- Up to 9 hours on a rechargeable Li-ion battery, standby mode and low-battery LED
Technical Specifications
| Spec | Detail |
|---|---|
| Model / Part Number | MXW6W-C-Z10 |
| Form Factor / Pattern | Boundary / Cardioid, white |
| Microphone Capsule | R185B |
| Gain Adjustment Range | -25 to +15 dB in 1 dB steps |
| Maximum Input Level | -9 dBV (mic gain at -16 dB) |
| Headphone Output | 3.5 mm, dual mono, 17.5 mW peak at 16 ohms |
| Wireless Range | Up to 160 feet (50 meters) |
| Battery | Rechargeable Li-ion, up to 9 hours, USB 3.0 Type A charge connector |
| Dimensions / Weight | 23 x 44 x 114 mm / 108 g with batteries |
Why Buy the Shure MXW6W/C from Trianze Tech?
Trianze Tech is a UAE-based Pro AV distributor with local stock in Dubai, removing the delays of international shipping for conferencing audio.
- Genuine Shure stock sourced through authorized distribution channels
- Microflex system design advice across Dubai, Abu Dhabi and the GCC
- Band and variant checking before you order
- Local UAE warranty backing and after-sales support
- Volume pricing available for integrators and enterprises
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Shure MXW6W/C is a rechargeable wireless boundary microphone transmitter for Microflex Wireless systems, with a cardioid pattern and a white finish. Its low-profile design lets it sit on any surface in front of one or several talkers. This listing is the Z10 frequency band version.
The MXW6W/C uses the R185B Microflex capsule with a cardioid polar pattern, which favours talkers in front of the microphone and rejects sound from behind. Shure also makes an omnidirectional version, the MXW6W/O, for even pickup all around the table.
The internal Li-ion battery provides up to 9 hours of continuous use and charges fully in about 2 hours. A low-battery LED warns when 30 minutes of charge remain, and a standard USB power source allows always-on use through the USB 3.0 Type A charge connector.
The MXW6W/C offers reliable wireless coverage up to 160 feet (50 meters) and sounds a beeping out-of-range alert when the limit is exceeded. Transmission uses AES 256-bit encryption, and the transmitter links to an access point channel by docking it in a networked charging station and pressing Link.
The MXW6W/C measures 23 x 44 x 114 mm (0.9 x 1.75 x 4.5 in) and weighs 108 g with batteries. Gain adjusts from -25 to +15 dB in 1 dB steps, maximum input level is -9 dBV, and a 3.5 mm dual mono earphone output drives stereo phones for return-channel audio.
Trianze Tech stocks the Shure MXW6W/C in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
