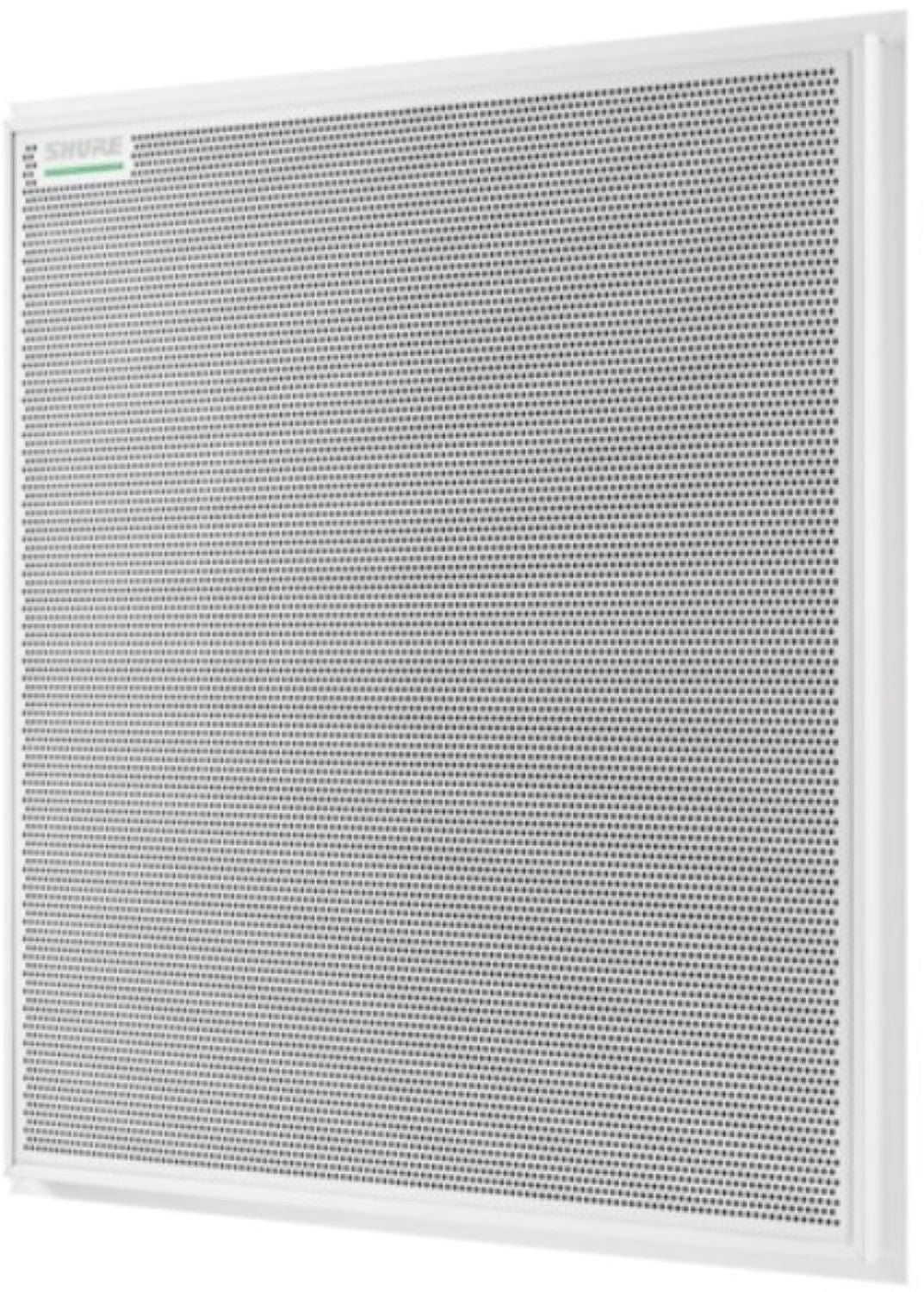

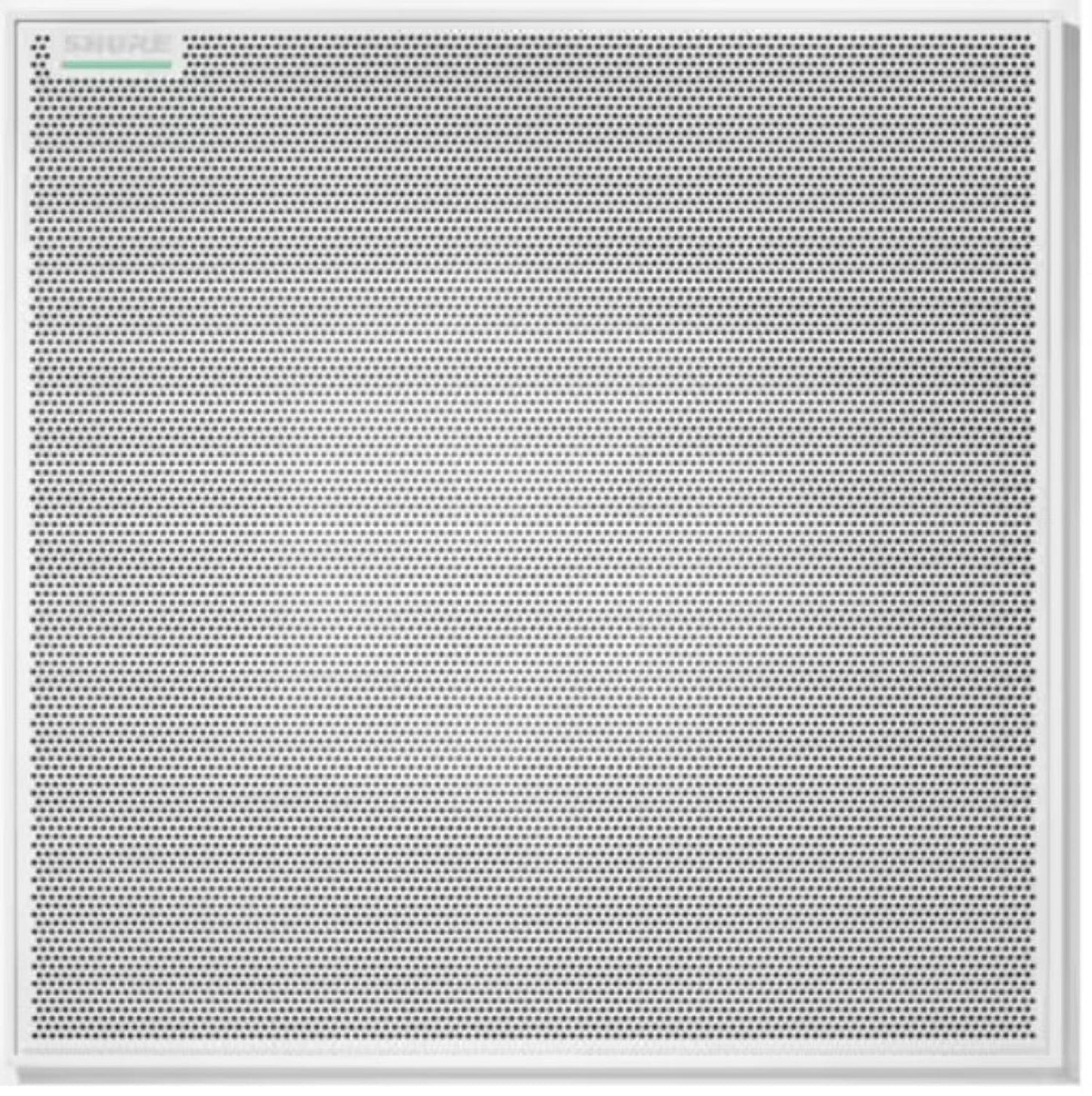

Shure MXA920W-S Square Ceiling Array Microphone
The Shure MXA920W-S is a white, 24 inch square Microflex Advance ceiling array microphone with Automatic Coverage technology. Out of the box it covers up to a 30 by 30 foot seating area with no setup, and its onboard IntelliMix DSP handles automatic mixing, echo cancellation and noise reduction, for boardrooms and meeting spaces across Dubai, Abu Dhabi and the UAE and GCC.
Key Features:
- Automatic Coverage: up to 30 x 30 ft with no setup, or up to 8 adjustable coverage areas
- Steerable Coverage mode with 8 lobes, 8 individual outputs plus automix
- Onboard IntelliMix DSP: automixing, AEC, noise reduction and AGC
- Talker localization for accurate camera tracking
- Dante/AES67 audio, PoE power and control over one cable, Microsoft Teams certified
Technical Specifications:
| Spec | Value |
|---|---|
| Form Factor | 24 inch square ceiling array, white (paintable) |
| Coverage | Up to 30 x 30 ft with no setup; up to 8 coverage areas |
| Outputs | Automix plus up to 8 individual channels (Steerable Coverage mode) |
| DSP | IntelliMix: automatic mixing, echo cancellation, noise reduction, automatic gain control |
| Networking | Dante and AES67 digital audio, single cable |
| Power | Power over Ethernet |
| Security | Shure Audio Encryption |
| Certification | Microsoft Teams certified |
Why Buy the Shure MXA920W-S from Trianze Tech?
- Genuine Shure Microflex Advance product with manufacturer warranty support
- Fast delivery across Dubai, Abu Dhabi and the UAE and GCC
- Room design and Designer software configuration support
- Competitive pricing with dedicated AV support
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Out of the box the Shure MXA920W-S covers up to a 30 by 30 foot seating area with no setup. Larger rooms can use several MXA920 units configured together in Shure Designer software.
Automatic Coverage on the MXA920W-S captures talkers anywhere in its coverage area without aiming lobes. You can also drag and drop up to 8 adjustable coverage areas in the built-in web interface to limit pickup to specific seats.
Yes. Turning Automatic Coverage off switches the MXA920W-S to Steerable Coverage, placing 8 pickup lobes with 8 individual outputs plus an automix, just like an MXA910.
The MXA920W-S includes onboard IntelliMix DSP with automatic mixing, echo cancellation, noise reduction and automatic gain control, so many rooms need no extra processor. It can also pair with an ANIUSB-MATRIX, P300-IMX or IntelliMix Room.
Yes. The MXA920W-S uses a talker localization algorithm that reports each talker's exact position, and command strings let third-party cameras and control systems use that data for accurate tracking.
