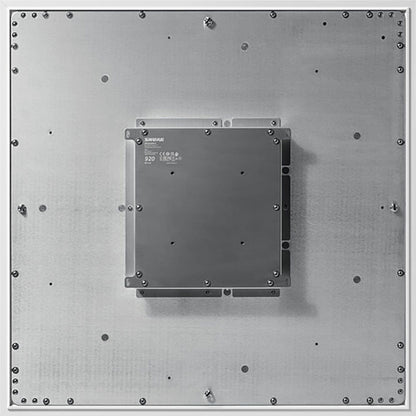

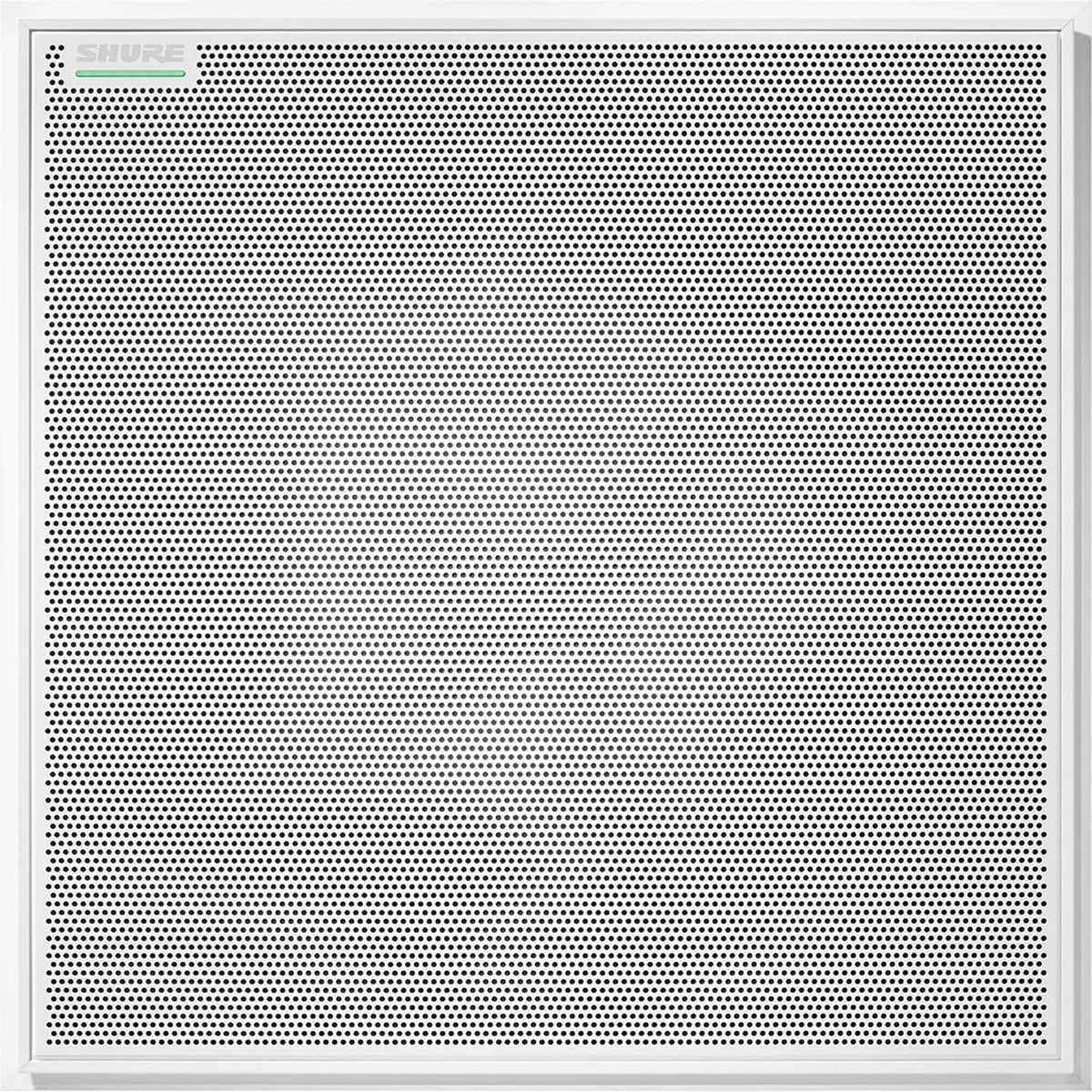

Shure MXA920W-S-60CM: 60 cm Square Ceiling Array Microphone with Automatic Coverage and Dante, White

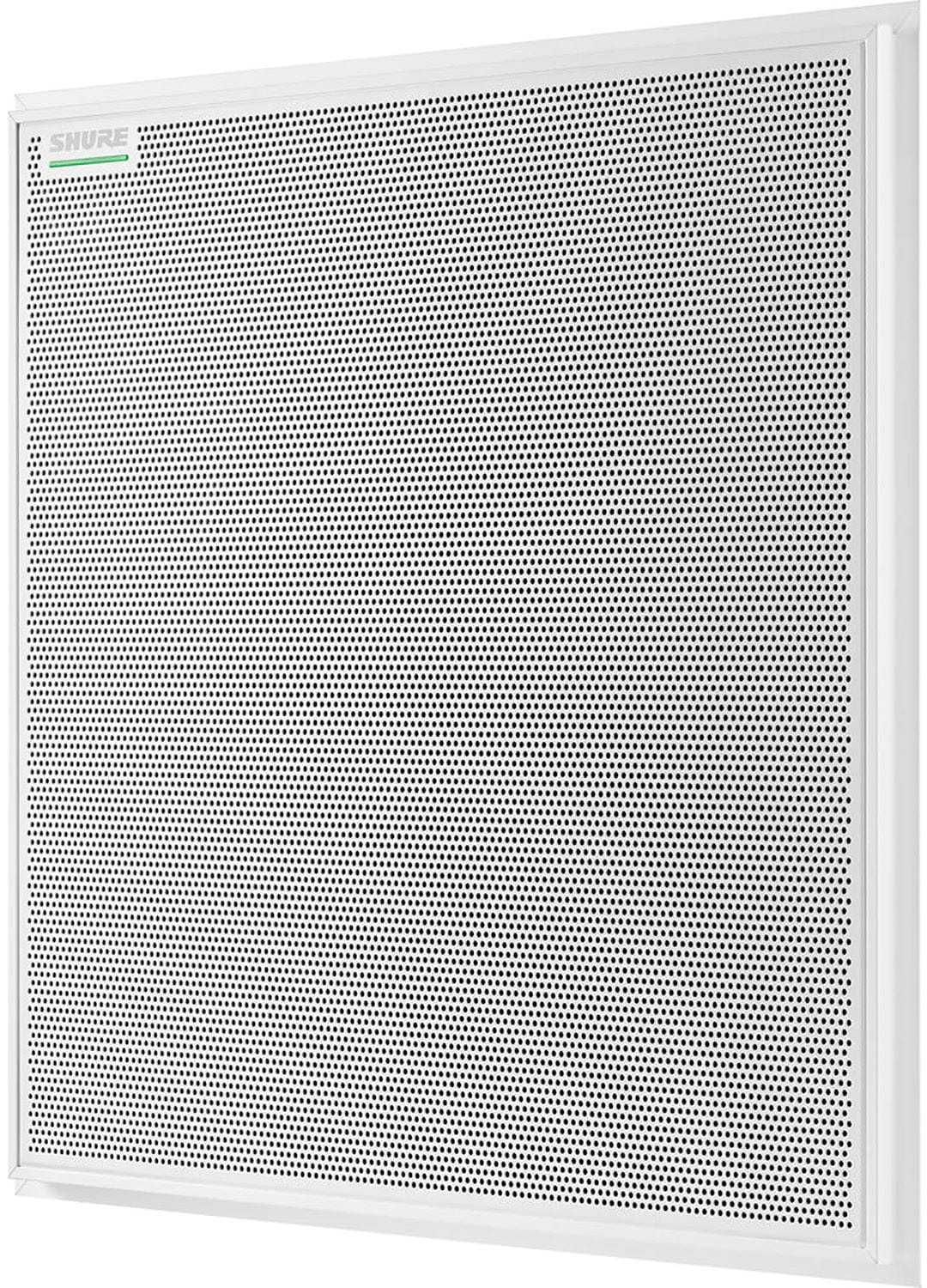

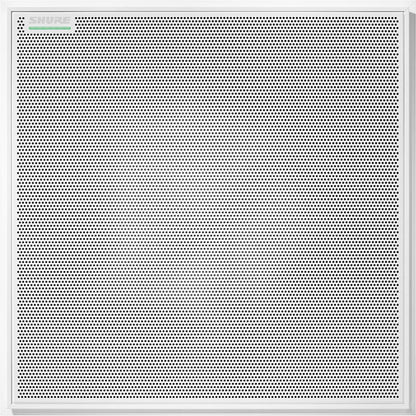

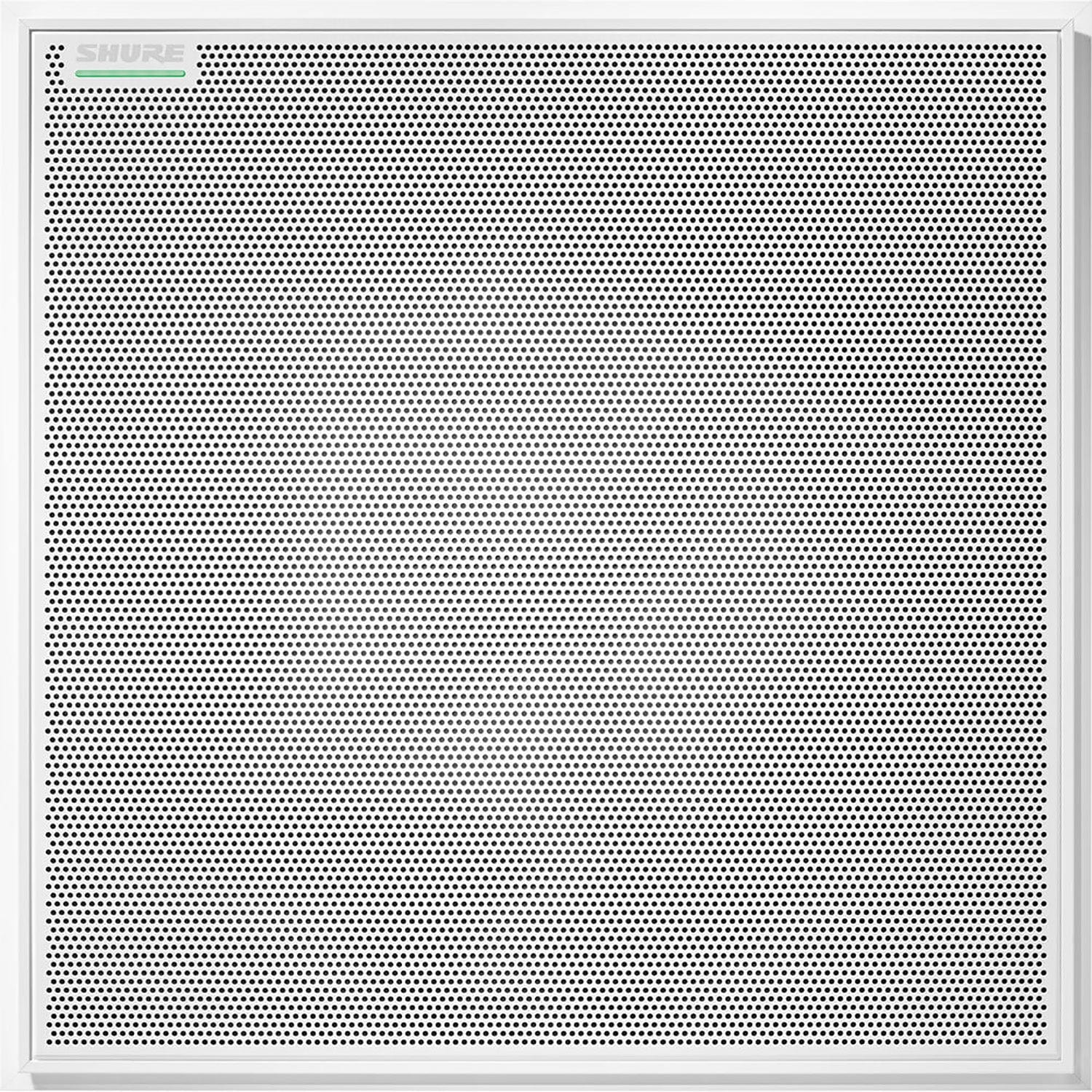

The Shure MXA920W-S-60CM is a 60 cm square, white ceiling array microphone from the Microflex Advance range. Automatic Coverage technology needs no setup yet allows precise control of audio capture when required, and the array design delivers enhanced directional pickup and more natural speech for AV conferencing, camera tracking, voice lift and sound reinforcement in boardrooms and meeting rooms across Dubai, Abu Dhabi and the UAE. It is a microphone only, without a loudspeaker.
Key Features
- Covers a 30 x 30 foot area with Automatic Coverage and no setup
- Automatic and steerable coverage options
- 8 pickup lobes with individual outputs, capturing multiple talkers
- Automatic mixing, gain control, noise reduction and echo cancellation
- Dante or AES67, PoE and audio over a single cable
- Secure audio encryption
- Configured in Shure Designer or a web application
Technical Specifications
| Spec | Detail |
|---|---|
| Model / Part Number | MXA920W-S-60CM |
| Form Factor | 60 cm square, white |
| Microphone Elements | 113 MEMS |
| Frequency Response | 125 Hz to 20,000 Hz |
| Sensitivity | -1.74 dBFS/Pa at 1 kHz |
| Signal-to-Noise Ratio | 75.76 dB A-weighted (94 dB SPL, 1 kHz) |
| Self Noise / Dynamic Range | 18.24 dB SPL-A / 77.5 dB |
| Digital Output | Dante or AES67, 48 kHz, 24 bit; 2 channels with automatic coverage on, 10 channels with it off |
| AEC Tail Length | Up to 250 ms |
| Power | PoE Class 0, 10.1 W maximum |
| Ratings | UL2043 plenum, IP5X dust protected |
| Weight | About 5.4 kg (11.8 lb) per Shure's MXA920-S figure |
Why Buy the Shure MXA920W-S-60CM from Trianze Tech?
Trianze Tech is a UAE-based Pro AV distributor with local stock in Dubai, removing the delays of international shipping for conferencing audio.
- Genuine Shure stock sourced through authorized distribution channels
- Microflex Advance system design advice across Dubai, Abu Dhabi and the GCC
- Ceiling tile size checking before you order
- Local UAE warranty backing and after-sales support
- Volume pricing available for integrators and enterprises
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Shure MXA920W-S-60CM is a 60 cm square, white ceiling array microphone from the Microflex Advance range, made for AV conferencing, camera tracking, voice lift and sound reinforcement. It is a microphone only; the MXA902 is the Shure array with a built-in loudspeaker.
With Automatic Coverage it covers up to 30 x 30 feet with no setup, and steerable coverage is available when precise control is needed. It has 8 pickup lobes with individual outputs and captures multiple talkers.
It has 113 MEMS elements and on-board DSP with automatic mixing, acoustic echo cancellation (tail length up to 250 ms), noise reduction, automatic gain control, compressor, delay and a 4-band parametric EQ. Over Dante or AES67 it provides 2 channels with automatic coverage on, or 10 channels (8 independent, 1 automix, 1 AEC reference) with it off.
Dante or AES67 audio, PoE power and control travel over a single RJ45 cable (Cat 5e or higher, shielded recommended). It uses PoE Class 0 at 10.1 W maximum, is plenum rated to UL2043 for air handling spaces, IP5X dust protected, and is configured in Designer or a web application.
Frequency response is 125 Hz to 20 kHz, sensitivity is -1.74 dBFS/Pa at 1 kHz, signal-to-noise ratio is 75.76 dB A-weighted and self noise is 18.24 dB SPL-A. The 60 cm square unit is about 594 x 594 x 57 mm and weighs about 5.4 kg per Shure's MXA920-S figures.
