Shure MXA710B-2FT: 2 Foot Linear Array Microphone with 4 Steerable Lobes, Autofocus and Dante, Black
Model
:
MXA710B-2FT
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Shure MXA710B-2FT: 2 Foot Linear Array Microphone with 4 Steerable Lobes, Autofocus and Dante, Black

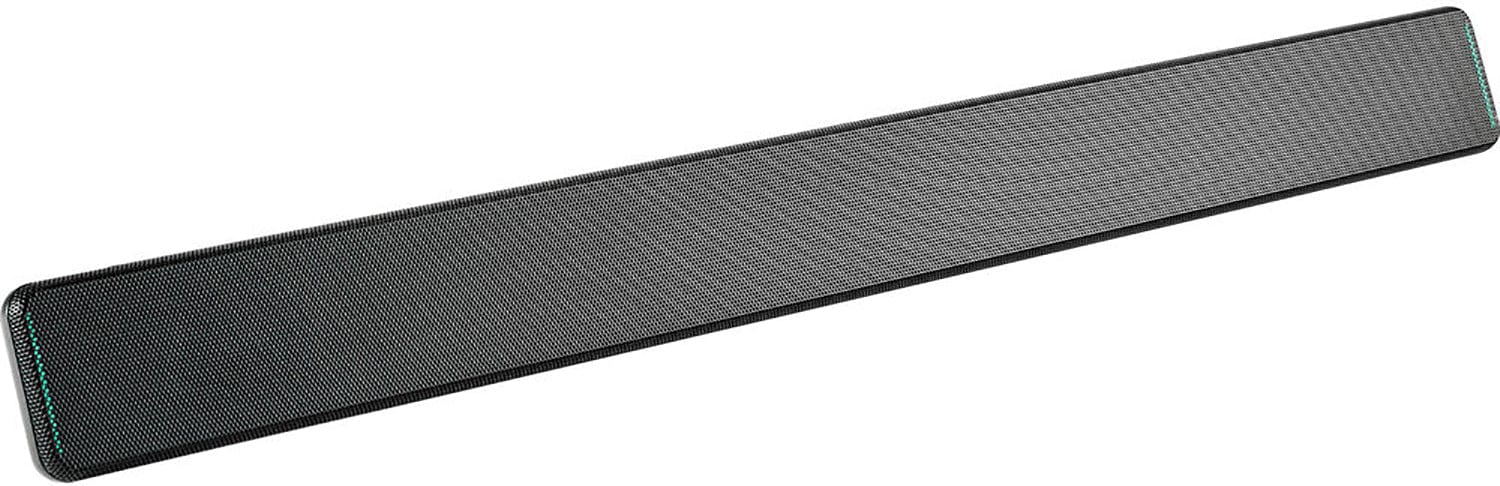

The Shure MXA710B-2FT is a 2 foot linear array microphone from the Microflex Advance range, designed for high-quality audio capture in premium AV conferencing environments. Its sleek linear form allows placement virtually anywhere in a meeting space, including on a wall, around a display, on a ceiling or in a conference table, and proprietary IntelliMix DSP and Autofocus provide the processing needed for echo- and noise-free conference audio across Dubai, Abu Dhabi and the UAE. This listing is the black version.
Key Features
- Steerable Coverage with up to 4 lobes on the 2 foot array
- Autofocus fine-tunes each lobe in real time, even if participants lean back or stand up
- Default room coverage template for quick lobe optimisation on wall, ceiling or table installations
- IntelliMix DSP with automatic mixing, acoustic echo cancellation, noise reduction and automatic gain control
- Shure Designer configuration, SystemOn asset management and PoE power
- LED status bars with configurable colors and brightness
- Dante and AES67 audio networking, network audio encryption compatible
- Multiple mounting accessories for wall, ceiling or table installation
Technical Specifications
| Spec | Detail |
|---|---|
| Model / Part Number | MXA710B-2FT |
| Lobe Width (adjustable) | Narrow 30, medium 40, wide 70 degrees |
| Frequency Response | 100 Hz to 20 kHz |
| Sensitivity | -7.4 dBFS/Pa at 1 kHz |
| Digital Output | Dante or AES67, 48 kHz, 24 bit; 6 channels (4 independent, 1 automix, 1 AEC reference) |
| Power | PoE Class 0, 10 W maximum, RJ45 |
| Ratings | UL2043 plenum, IP5X dust protected |
| Dimensions | 22.09 x 60 x 636 mm (H x W x L) |
| Weight | 0.91 kg (2 lb) |
Why Buy the Shure MXA710B-2FT from Trianze Tech?
Trianze Tech is a UAE-based Pro AV distributor with local stock in Dubai, removing the delays of international shipping for conferencing audio.
- Genuine Shure stock sourced through authorized distribution channels
- Microflex Advance system design advice across Dubai, Abu Dhabi and the GCC
- Mounting accessory guidance for wall, ceiling and table installs
- Local UAE warranty backing and after-sales support
- Volume pricing available for integrators and enterprises
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Shure MXA710B-2FT is a 2 foot, black linear array microphone from the Microflex Advance range, made for high-quality audio capture in premium AV conferencing rooms. Its sleek linear form factor can sit on a wall, around a display, on a ceiling or in a conference table.
The 2 foot MXA710 provides up to 4 lobes with Steerable Coverage, and Autofocus fine-tunes each lobe in real time even when participants lean back or stand up. Lobe width is adjustable at 30 degrees (narrow), 40 degrees (medium) or 70 degrees (wide).
It outputs Dante or AES67 at 48 kHz, 24 bit, with 6 channels (4 independent transmit channels, 1 automix output and 1 AEC reference input). IntelliMix DSP provides automatic mixing, acoustic echo cancellation, noise reduction and automatic gain control.
The MXA710B-2FT measures 22.09 x 60 x 636 mm (0.87 x 2.36 x 25.04 in, H x W x L) and weighs 0.91 kg (2 lb). Sensitivity is -7.4 dBFS/Pa at 1 kHz and frequency response is 100 Hz to 20 kHz.
It is powered over Ethernet (PoE Class 0, 10 W maximum) through an RJ45 connection and is plenum rated to UL2043. It is set up in Shure Designer, managed remotely with SystemOn, has LED status bars with configurable colors and brightness, and is compatible with Shure network audio encryption.
Trianze Tech stocks the Shure MXA710B-2FT in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
