  • Shure MXA710AL 2 foot linear array microphone
1 1

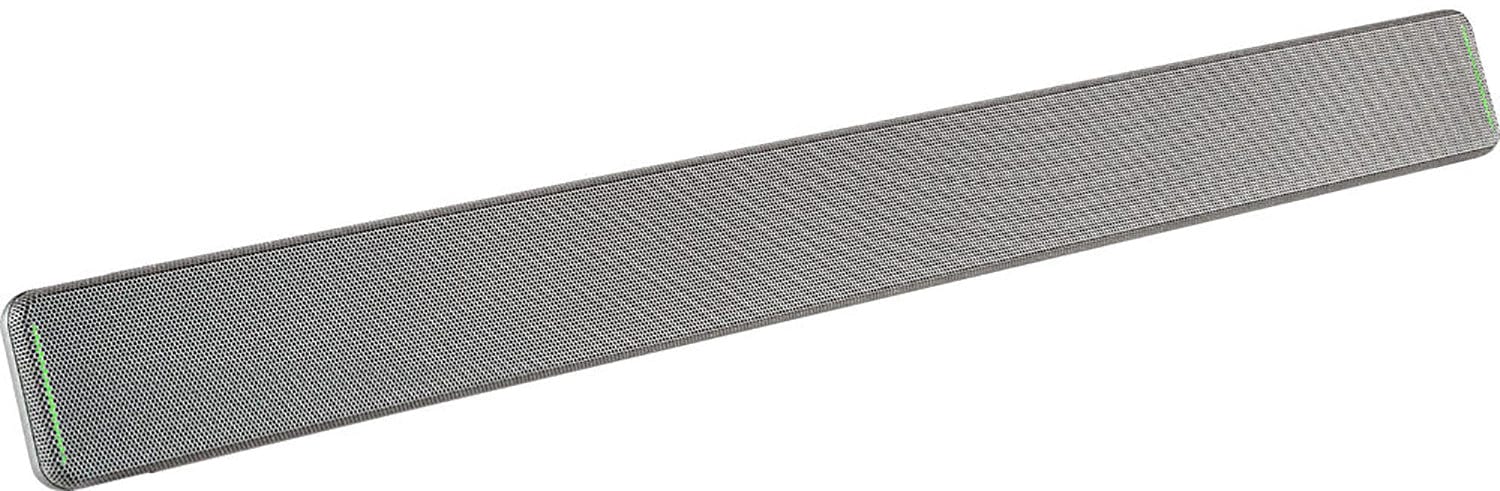

Shure MXA710AL: 2 Foot Linear Array Microphone

  • 2 foot linear array microphone
  • Steerable Coverage with Autofocus
  • IntelliMix DSP with echo cancellation
  • Dante and AES67 networking
Brand :Shure
Model : MXA710AL-2FT

Part of Our Solution Executive Boardrooms & Smart Meeting Spaces
View full details
Genuine Products

Genuine Products

Original Brand Warranty

Original Brand Warranty

Product Training

Product Training

Installation, Maintenance & Support

Installation, Maintenance & Support

Request a Quote

Applications & Use Cases

  • Premium AV Conferencing: echo and noise-free audio for high-end rooms
  • Wall or Display-Mounted Installations: slim form factor fits around a display
  • Ceiling Installations: plenum-rated for air handling spaces
  • Dynamic Meeting Rooms: Autofocus tracks participants as they move
Shure MXA710AL 2 foot linear array microphone
Shure MXA710AL-2FT
  • Specifications
  • Details

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Shure MXA710AL: 2 Foot Linear Array Microphone

The Shure MXA710 Linear Array Microphone represents the next evolution in Shure array microphone technology, designed for high-quality audio capture in premium AV conferencing environments across Dubai and Abu Dhabi. Its sleek, linear form factor allows placement virtually anywhere in a meeting space, including on a wall, around a display, on a ceiling, or into a conference room table. Proprietary Shure IntelliMix DSP and Autofocus technology provide all the processing needed for echo and noise-free conference audio.

Key Features

  • Steerable Coverage technology captures audio anywhere in the room, up to 4 lobes with a 2 foot array or 8 lobes with a 4 foot array
  • Autofocus technology fine-tunes each lobe position in real time, even as meeting participants move
  • Default room coverage template enables quick lobe optimization for wall, ceiling, or table installations
  • IntelliMix DSP includes automatic mixing, acoustic echo cancellation, noise reduction, and automatic gain control
  • Shure Designer System Configuration software for setup, plus SystemOn Audio Asset Management for remote management
  • PoE powered with configurable LED status bars
  • Dante and AES67 audio networking protocols, Shure network audio encryption compatible

Technical Specifications

Spec Detail
Model / Part Number MXA710AL-2FT
Lobe Width (adjustable) Narrow 30 degrees, Medium 40 degrees, Wide 70 degrees
Connector RJ45
Power Power over Ethernet (PoE), Class 0, 10W maximum
Frequency Response 100 Hz to 20 kHz
Digital Output AES67 or Dante, 6 total channels, 48 kHz, 24-bit
Plenum Rating UL2043 (suitable for air handling spaces)
Dust Protection IEC 60529 IP5X
Weight 2 lbs (0.91 kg)
Dimensions 22.09 x 60 x 636 mm (H x W x L)

Why Buy the Shure MXA710 from Trianze Tech?

Trianze Tech is a UAE-based Pro AV distributor with dedicated local stock and engineering support in Dubai, removing the delays and uncertainty of international shipping for premium AV conferencing installations.

  • Genuine Shure stock sourced through authorized distribution channels
  • Verified AES67 and Dante network configuration confirmed against real conferencing system requirements
  • Plenum-rated and dust-protected for flexible ceiling, wall, or table installation
  • Professional installation and system integration support across Dubai, Abu Dhabi, and the wider GCC
  • Local UAE warranty backing and after-sales support, so service issues are resolved regionally rather than through overseas channels
  • Volume and tiered pricing available for multi-room premium conferencing rollouts

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Package Contents

  • 1x Shure MXA710AL-2FT linear array microphone

Warranty

  • Standard Shure manufacturer warranty, honoured in the UAE through Trianze Tech

Sustainability

  • Single PoE cable and networked digital audio reduce cabling and power hardware compared to legacy analog installs

Expandability

  • Multiple mounting accessories available for wall, ceiling, or table installation
  • Shure SystemOn Audio Asset Management enables remote monitoring and troubleshooting across a whole building

Distribution

  • Stocked and distributed in the UAE by Trianze Tech, serving premium AV conferencing integrators across Dubai, Abu Dhabi, and the GCC

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Frequently asked

Questions our clients ask before signing.

If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The MXA710's slim linear form factor allows placement virtually anywhere in a meeting space, including on a wall, around a display, on a ceiling, or into a conference room table.
Autofocus technology fine-tunes each of the MXA710's pickup lobe positions in real time, keeping talkers covered even if they lean back or stand up.
The MXA710 supports up to 4 lobes with a 2 foot array or 8 lobes with a 4 foot array, with adjustable lobe widths of narrow 30 degrees, medium 40 degrees, or wide 70 degrees.
Yes. The MXA710 carries a UL2043 plenum rating suitable for air handling spaces and IEC 60529 IP5X dust protection.
The MXA710 supports both Dante and AES67 audio networking protocols over a single PoE (Power over Ethernet) connection, drawing up to 10W.
Trianze Tech stocks the Shure MXA710 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
