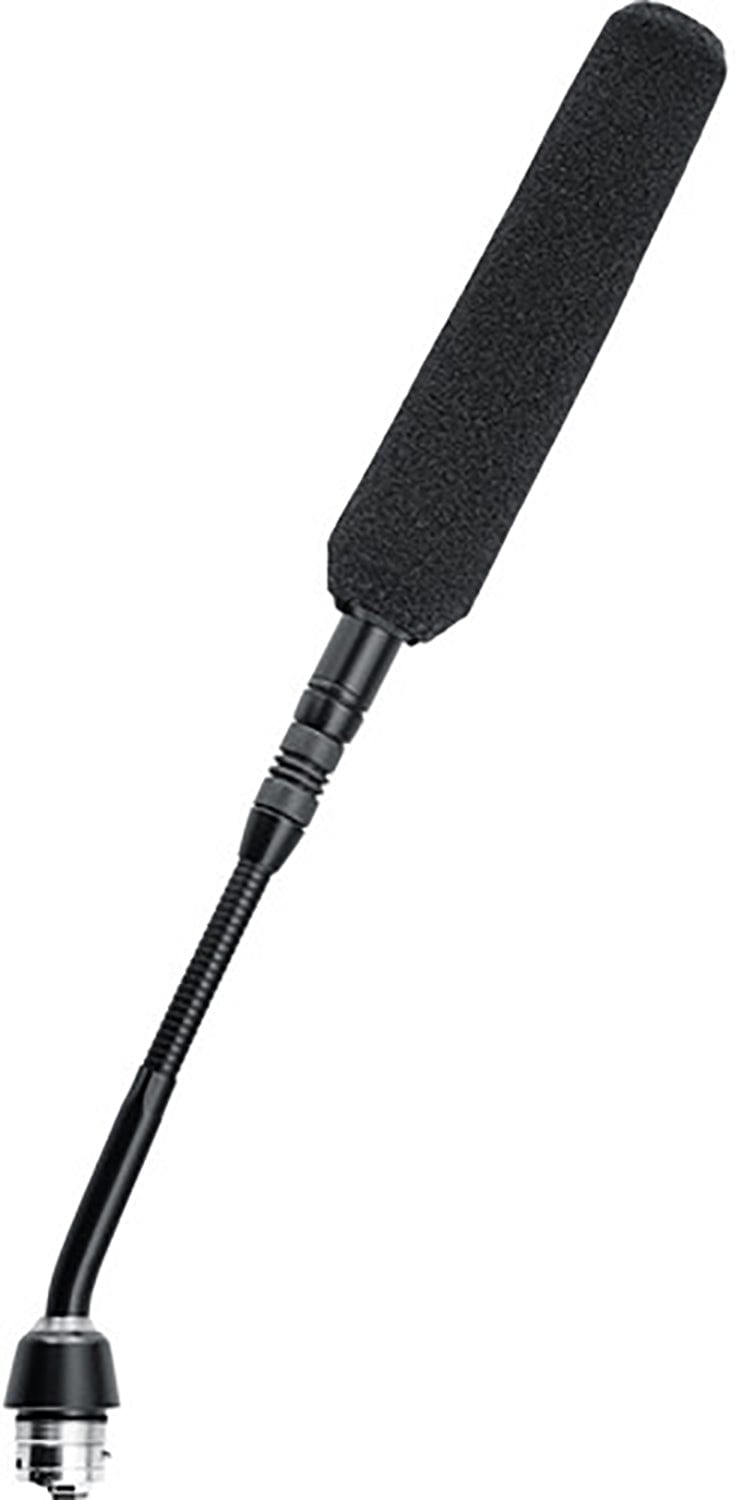

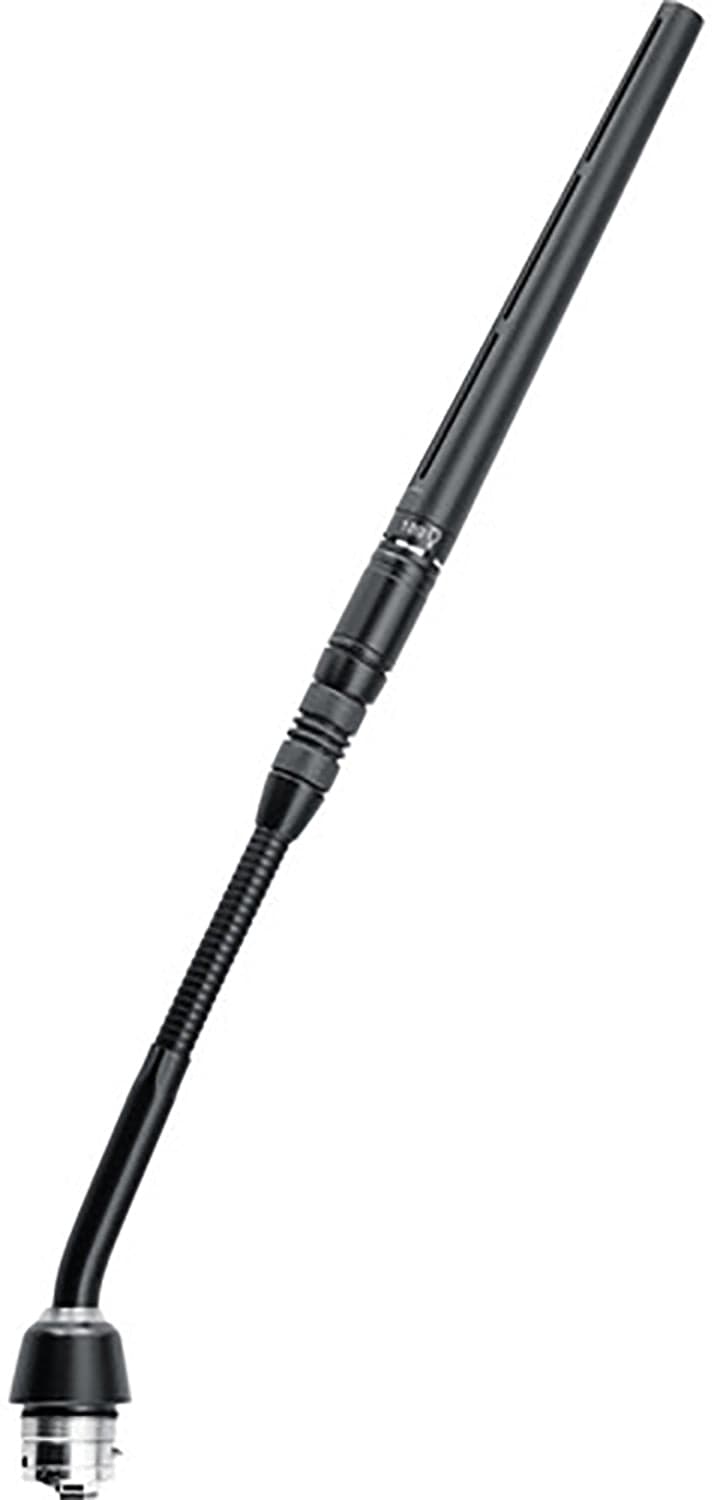

Shure MX405R/MS: 5 Inch Shock-Mount Gooseneck Mini Shotgun Microphone with LED Ring and Preamplifier
Model
:
MX405R-MS
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Shure MX405R/MS: 5 Inch Shock-Mount Gooseneck Mini Shotgun Microphone with LED Ring and Preamplifier
The Shure MX405R/MS is a 5 inch (12.7 cm) shock-mount gooseneck microphone with an LED ring status display and a mini shotgun element, suited to boardrooms and other sites across Dubai, Abu Dhabi and the UAE where aesthetics are important. Its low-profile design combines a wide dynamic range and smooth frequency response with CommShield RF filtering.
Key Features
- 5 inch (12.7 cm) shock-mount gooseneck with mini shotgun element
- Supercardioid pattern
- Low-profile, aesthetic design
- Wide dynamic range and smooth frequency response
- RF filtering with CommShield technology
- LED ring status indicator with logic connections and mute switch attenuation of at least 50 dB
Technical Specifications
| Spec | Detail |
|---|---|
| Model / Part Number | MX405R-MS |
| Type / Pattern | Condenser (electret bias) / Supercardioid |
| Frequency Response | 50 to 17,000 Hz |
| Sensitivity | -34 dBV/Pa (21 mV) at 1 kHz |
| Maximum SPL | 120 dB (1 kHz at 1% THD) |
| Equivalent Noise / SNR | 27 dB SPL A-weighted / 68 dB (94 dB SPL, 1 kHz) |
| Dynamic Range / CMRR | 93 dB / 45 dB minimum |
| Output | Active balanced, 150 ohm rated (170 ohm actual); preamp clipping -8 dBV |
| Power | 48 to 52 Vdc phantom, 8.0 mA |
| Weight | 0.054 kg (0.119 lb) |
| Operating Temperature | -18 to 57 degrees C (0 to 135 degrees F) |
Why Buy the Shure MX405R/MS from Trianze Tech?
Trianze Tech is a UAE-based Pro AV distributor with local stock in Dubai, removing the delays of international shipping for conference microphones.
- Genuine Shure stock sourced through authorized distribution channels
- Conference microphone advice across Dubai, Abu Dhabi and the GCC
- Connector and preamp checking before you order
- Local UAE warranty backing and after-sales support
- Volume pricing available for integrators and government projects
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Shure MX405R/MS is a 5 inch (12.7 cm) shock-mount gooseneck mini shotgun microphone with an LED ring status display and, per the product title, a preamplifier. It is made for boardrooms and other sites where aesthetics matter.
It is an electret-bias condenser with a supercardioid pattern, a 50 to 17,000 Hz response, sensitivity of -34 dBV/Pa, maximum SPL of 120 dB, equivalent noise of 27 dB SPL (A-weighted), signal-to-noise ratio of 68 dB and dynamic range of 93 dB.
Shure lists a bi-color LED at the gooseneck bottom or a red light ring at the top for the MX405 family, and this listing is the LED ring version. Logic connections are LED IN and LOGIC OUT, both active low and TTL compatible, and mute switch attenuation is at least 50 dB.
It needs 48 to 52 Vdc phantom power at 8.0 mA and has an active balanced output with 150 ohm rated (170 ohm actual) impedance, 45 dB minimum common mode rejection and a -8 dBV clipping level. The source describes a 5-pin XLR output polarity, so confirm the connector with Trianze Tech.
The gooseneck is 5 inches (12.7 cm) long and the MX405 weighs 0.054 kg (0.119 lb). It operates from -18 to 57 degrees C (0 to 135 degrees F) in 0 to 95% relative humidity.
Trianze Tech stocks the Shure MX405R/MS in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
