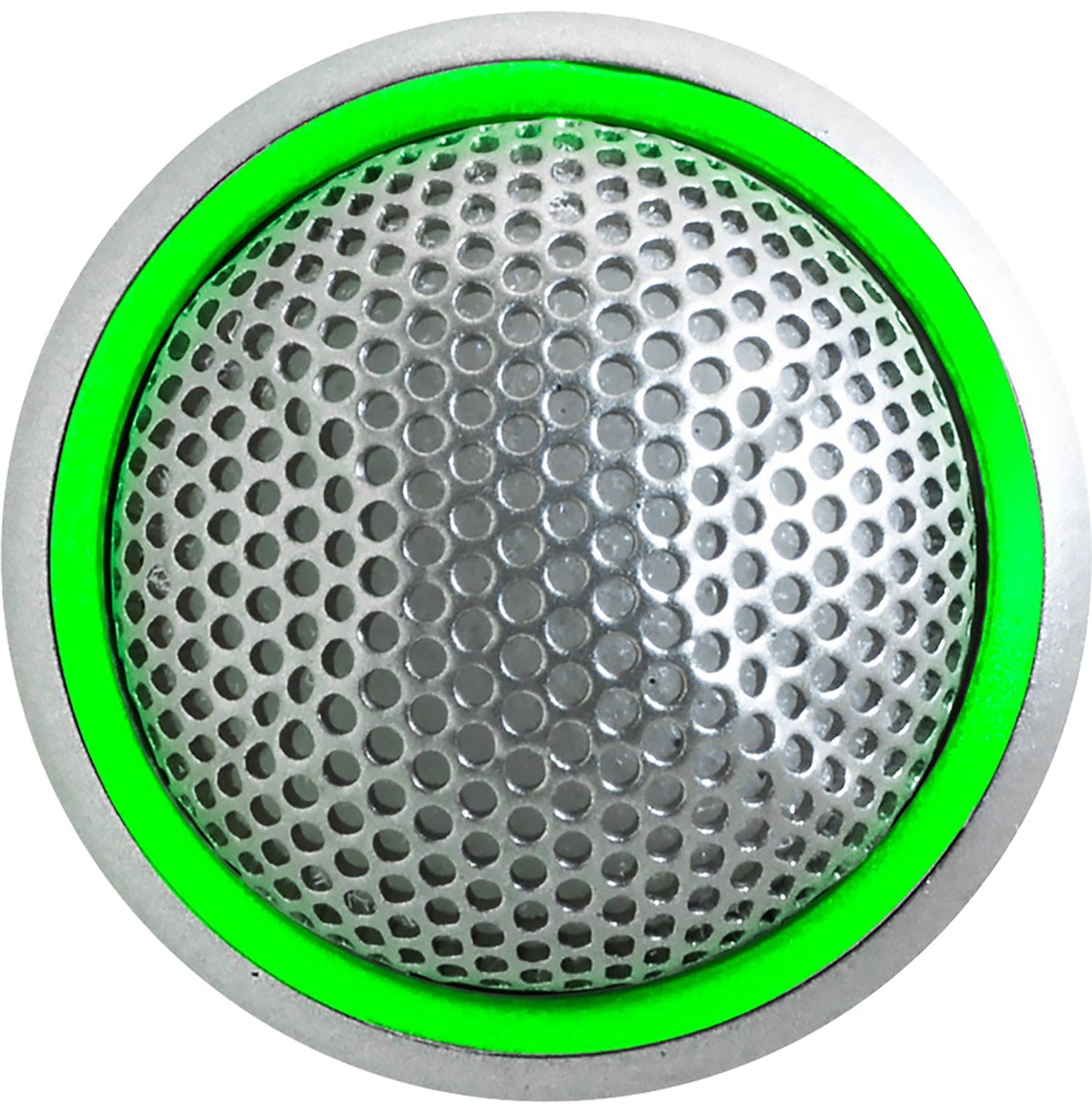

Shure MX395AL/BI-LED: Microflex Low Profile Bidirectional Boundary Microphone with LED, Aluminium
Model
:
MX395AL-BI-LED
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Shure MX395AL/BI-LED Microflex Low Profile Bidirectional Boundary Microphone
The Shure MX395AL/BI-LED is a low-profile bidirectional boundary microphone in a rugged aluminium housing with a remote-controllable status LED, built for boardrooms and conferencing installations across Dubai, Abu Dhabi and the UAE and GCC where two participants sit across the same table microphone.
Key Features:
- Only 1.25 inch (3.8 cm) in diameter, low-profile aluminium housing
- Bidirectional (figure-8) polar pattern for two facing speakers
- Bi-color status LED with logic input for remote mute/live control
- Wide dynamic range and smooth, flat frequency response
- Balanced output on a 5-pin XLR connector
Technical Specifications:
| Spec | Value |
|---|---|
| Polar Pattern | Bidirectional |
| Frequency Response | 50 to 17,000 Hz |
| Sensitivity | -37 dBV/Pa (14 mV) |
| Maximum SPL | 123 dB (1 kHz, 1% THD, 1 kilohm load) |
| Dynamic Range | 94 dB |
| Connector | 5-pin XLR (active balanced) |
| Power Requirements | 48 to 52 Vdc phantom, 8.0 mA |
| Net Weight | 0.136 kg (0.30 lb) |
Why Buy the Shure MX395AL/BI-LED from Trianze Tech?
- Genuine Shure Microflex boundary microphones backed by manufacturer warranty support
- Fast delivery across Dubai, Abu Dhabi and the UAE and GCC
- Expert guidance on matching polar pattern and LED control wiring to your conferencing system
- Competitive pricing with dedicated AV support
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Shure MX395AL/BI-LED uses a bidirectional (figure-8) polar pattern, picking up sound equally from the front and back while rejecting sound from the sides. This makes it well suited to two people seated across a table from each other on the same boundary microphone.
The MX395AL/BI-LED requires 48 to 52 Vdc phantom power at 8.0 mA, supplied through its 5-pin XLR connector. This is a narrower, higher voltage range than the standard 11 to 52 V used by non-LED Microflex boundary mics, because the extra current also drives the remote LED status indicator.
The MX395AL/BI-LED has a bi-color status LED controlled through a logic input on the 5-pin XLR connector (active low, TTL compatible). An external mute or paging controller can drive this logic input to switch the LED color, giving a visual mute/live indication to meeting participants.
The Shure MX395AL/BI-LED is only 1.25 inches (3.8 cm) in diameter, in a low-profile aluminium housing that sits flush on a boardroom table. It weighs 0.136 kg (0.30 lb) net, 0.374 kg (0.825 lb) packaged.
The Shure MX395AL/BI-LED handles up to 123 dB SPL (measured at 1 kHz, 1% THD, 1 kilohm load) before distortion, with a sensitivity of -37 dBV/Pa and a 94 dB dynamic range, which is comfortable headroom for raised voices in a meeting room.
