Key Features

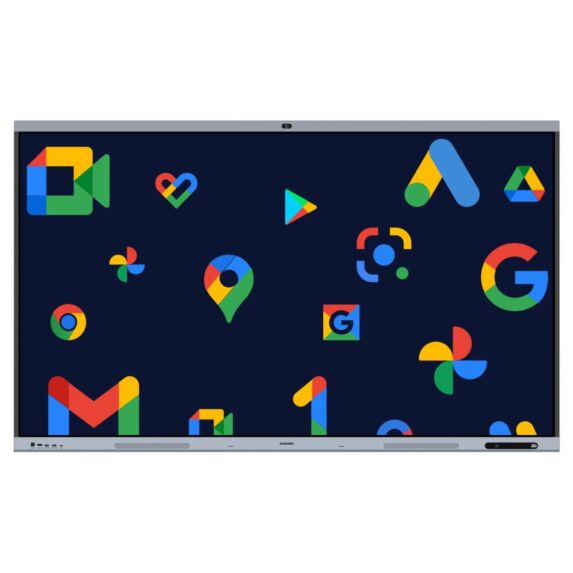

The Samsung WAC Series transforms standard presenter environments into dynamic, highly interactive workspaces. By moving away from rigid proprietary interfaces, this 86-inch multi-touch display provides a highly familiar, customizable Android software layout out of the box. Collaborative workforces can access personalized cloud storage accounts, run native corporate presentation apps, and draw over active digital video streams with zero latency. The intelligent multi-window mode lets users run distinct software windows side-by-side to cross-reference data seamlessly. Additionally, a built-in multi-functional front connectivity hub puts essential high-speed data, peripheral, and charging ports right at the user's fingertips, removing the need to search behind the chassis during critical client presentations.

Technical Specifications & Performance Detail

• Global Inventory and Asset Identifiers: Classified officially under production model identifier codes WA86C and WA86FX-P, tracking primary global manufacturing part codes including LH86WACMGCXUE and LH86WACMGCXXS.

• Visual Panel and Backlight Architecture: Features an industrial 86-inch Direct-Lit LED display panel delivering a true native 4K Ultra HD resolution of 3840 x 2160 pixels at a smooth 60Hz refresh rate.

• Luminance and Surface Glass Properties: Delivers a continuous commercial brightness output of 400 nits, protected behind an advanced anti-glare, shatterproof glass pane featuring an optimized 7H hardness rating to resist continuous physical scratches.

• Interactive Touch Performance Latency: Utilizes high-precision Infrared Touch detection technology yielding a rapid response speed of less than 8 milliseconds and a precise 1.5-millimeter writing touch fidelity limit.

• On-Board Computing Core Infrastructure: Outfitted with a high-performance quad-core system-on-chip framework running Android OS firmware, backed by 4 gigabytes of high-speed system RAM and 32 gigabytes of integrated storage space.

• Physical Audio System Infrastructure: Outfitted with an integrated dual-channel stereo speaker system outputting 20W per channel to provide loud, crystal-clear room audio without needing standalone external amplifiers.

• Signal and Management Interface Ports: Configured with three physical HDMI 2.0 inputs, one downstream HDMI output, a front and rear multi-functional USB-C slot (with 65W power delivery), four USB 3.0 ports, dedicated optical audio outputs, and industrial RJ-45 Gigabit Ethernet ports.

• Wireless Modules and Local Transceivers: Outfitted with dual-band Wi-Fi networking cards and integrated Bluetooth device-pairing modules for flexible offline, local, or cloud infrastructure routing.

Enterprise Software & Interactive Ecosystem Compatibility

• Unified Workspace Ready: Fully validated for native cross-platform interaction with Microsoft Teams, Zoom, and Google Meet video conferencing hardware setups.

• Cloud Storage Sync Protocols: Direct out-of-the-box software linking with Microsoft OneDrive, Google Drive, and enterprise network directories for fast file management.

• Samsung DMS Centralized Management: Built-in Device Management Solution (DMS) allowing institutional IT managers to monitor operations, push firmware updates, and deploy remote warning messages across multiple locations simultaneously.

Regional Regulatory & Electrical Compliance

• UAE Market Standardization: Fully certified with the UAE Ministry of Industry and Advanced Technology (MoIAT) safety and telecom standards.

• Local Power Optimization: Outfitted with a native UK standard 3-pin Type G electrical power supply configured for the UAE national grid (220V - 240V at 50/60Hz).

• International Facilities Sign-Off: Holds official international CB Scheme, CE, and RoHS safety certifications for immediate deployment across premium office fit-outs and educational projects.

Logistics, Packaging & Spatial Handling Parameters

• Net Unpacked Hardware Dimensions: Measures an integrated structural chassis width of 1957.1 millimeters, a total frame height of 1159.9 millimeters, and an absolute physical depth thickness of 85.7 millimeters.

• Gross Protective Shipping Dimensions: Encased in heavy-duty commercial freight boxes tracking an outer shipping layout width of 2110 millimeters, an overall box height of 1291 millimeters, and a package depth thickness of 225 millimeters.

• Net Hardware Mass Displacement: Tracks an unmounted, standalone interactive panel weight of exactly 58.4 kilograms to enable precise structural planning for wall anchoring and custom heavy-duty mobile carts.

• Gross Freight Transit Weight Infrastructure: Computes an aggregated total package mass scale of 75.9 kilograms per single crated cargo asset box to ensure seamless logistics planning through regional freight routes.
