Q-SYS QSP-11: Microsoft Teams Scheduling Panel With Wall Mount
Model
:
QSP-11
Buying guides for this product
All AV buying guides ›
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Q-SYS QSP-11 at a Glance
- Brand
- Q-SYS
- Model
- QSP-11
- Category
- Interactive Kiosks
- Solution
- Video Conferencing
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Q-SYS QSP-11 Overview

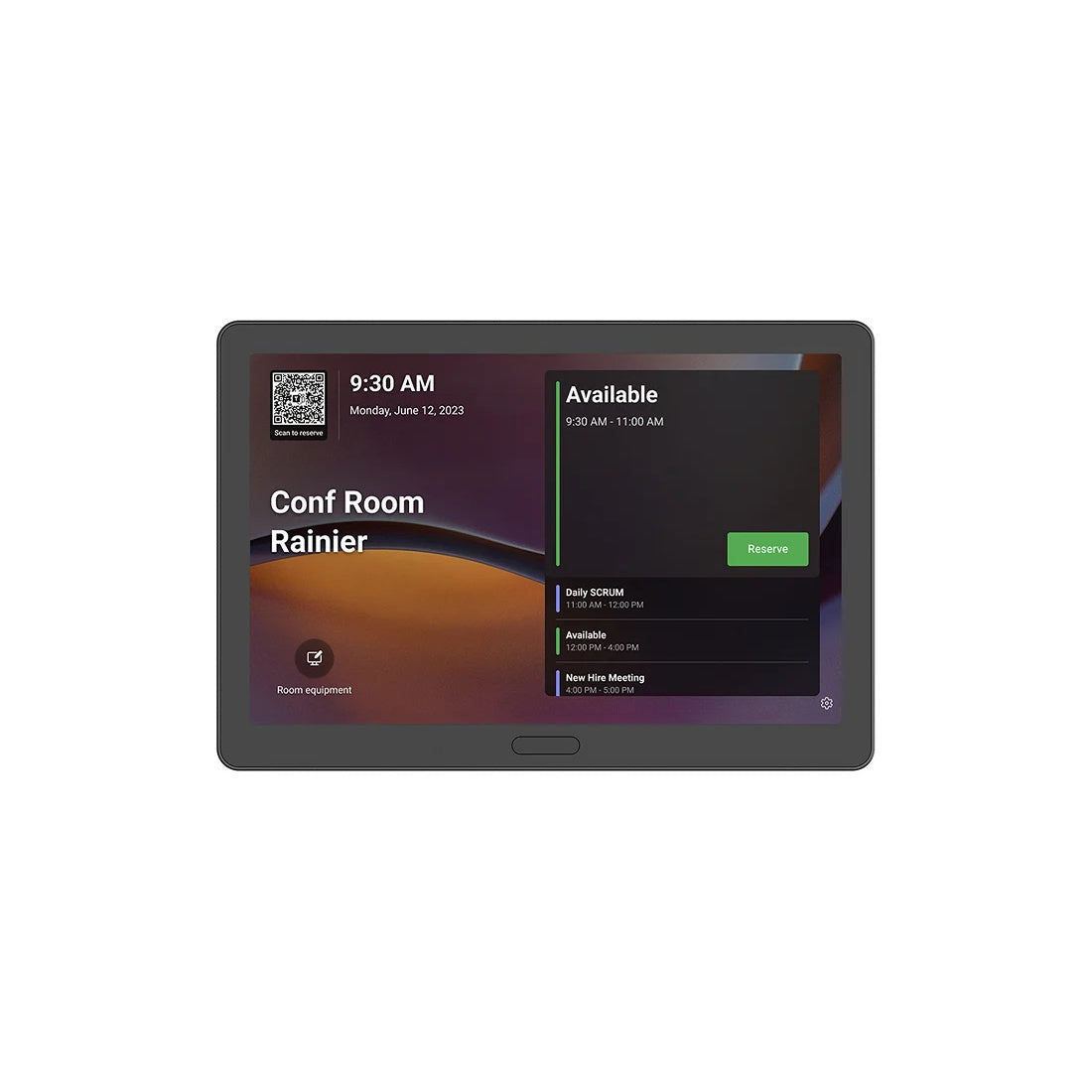

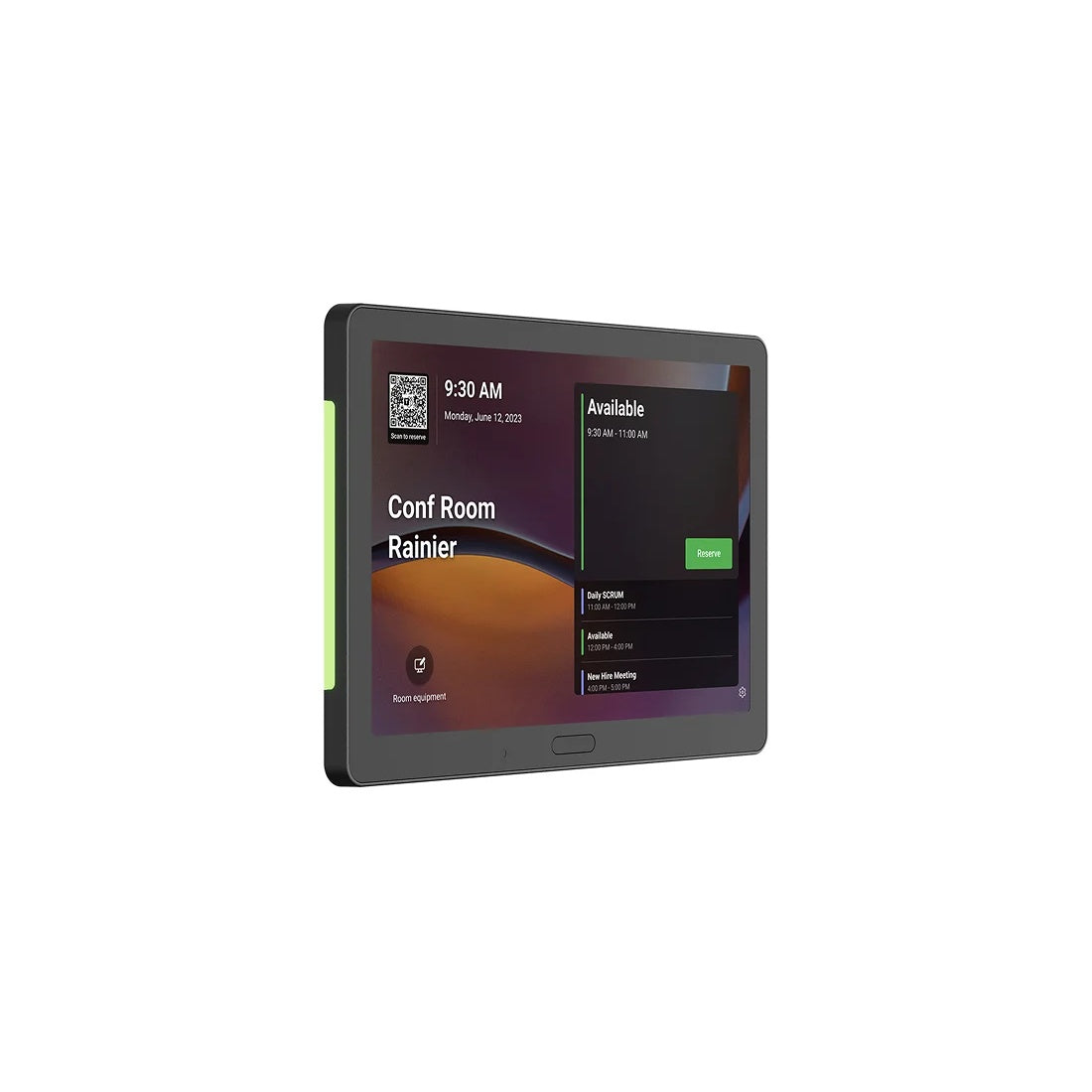

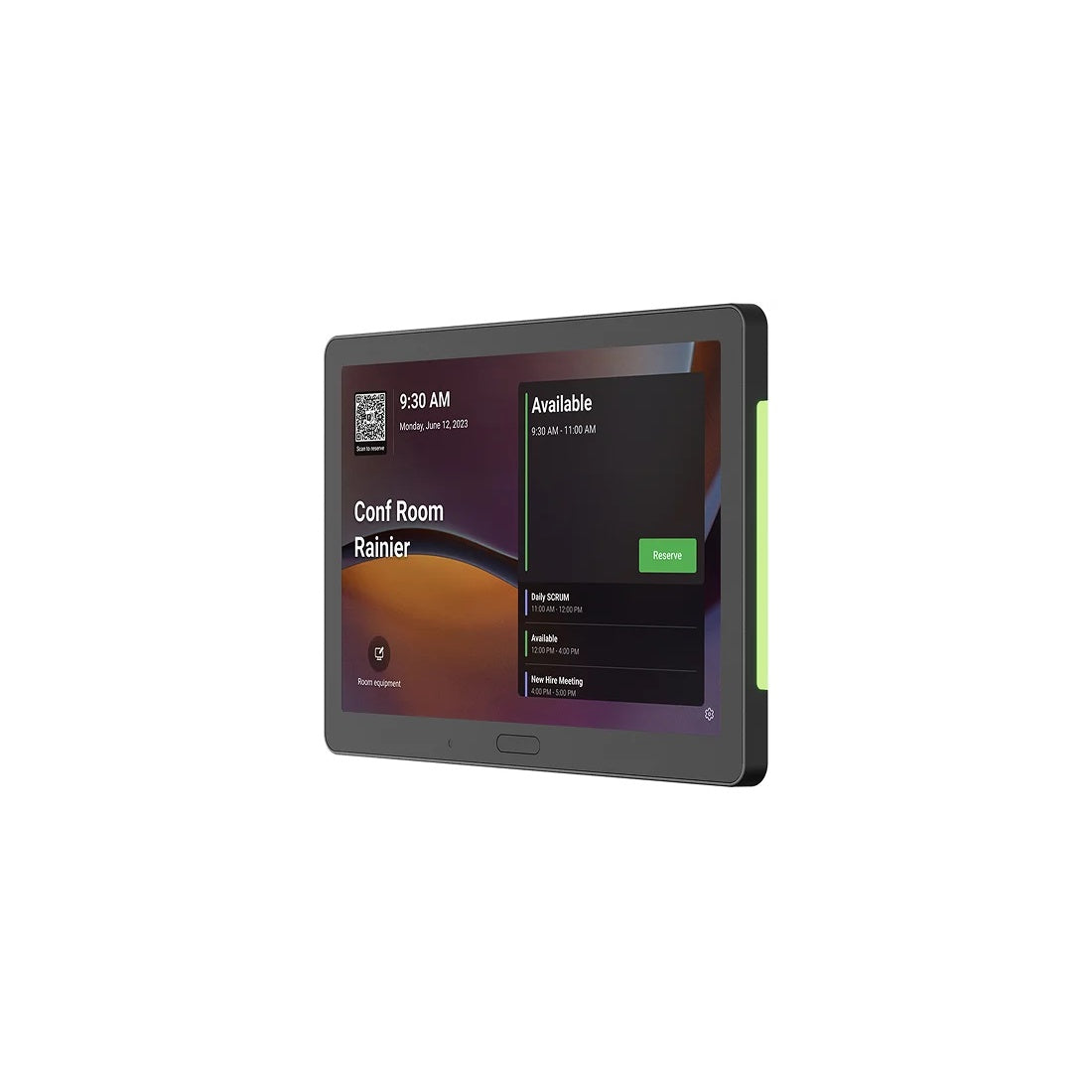

The Q-SYS Scheduling Panel is built on the Microsoft Device Ecosystem Platform (MDEP), as a Microsoft Teams Panel. Displaying meeting details, availability, and allowing users to reserve meeting spaces on the spot. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Displaying meeting details, availability, and allowing users to reserve meeting spaces on the spot.
- Operating System: Android 15 (MDEP-compliant for Teams Panel)
- Screen size: 10.95 in (278 mm)
- Resolution: 1920 x 1200, 16:10, to 206 dpi
- Brightness: 350 nits (typical)
- Microsoft Teams Panel Capabilities: Room Status: At-a-glance free/busy RGB lightbars Actions: Reserve now, check-in, view schedule, extend, release
Technical Specifications:
| Spec | Value |
|---|---|
| Model | QSP-11 |
| Brand | Q-SYS |
| Operating System | Android 15 (MDEP-compliant for Teams Panel) |
| Screen size | 10.95 in (278 mm) |
| Resolution | 1920 x 1200, 16:10, to 206 dpi |
| Brightness | 350 nits (typical) |
| Microsoft Teams Panel Capabilities | Room Status: At-a-glance free/busy RGB lightbars Actions: Reserve now, check-in, view schedule, extend, release Management: Teams Admin Center for enrollment, configuration and updates |
| Touch & sensors: Touch type | Projected capacitive multi-touch |
| Touch & sensors: Surface | Anti-glare, oleophobic |
| Touch & sensors: Motion sensor | Human presence/proximity (auto wake-up) |
| Touch & sensors: Status indicators | Dual RGB side lightbars, front-visible, side-visible, rear-visible through glass |

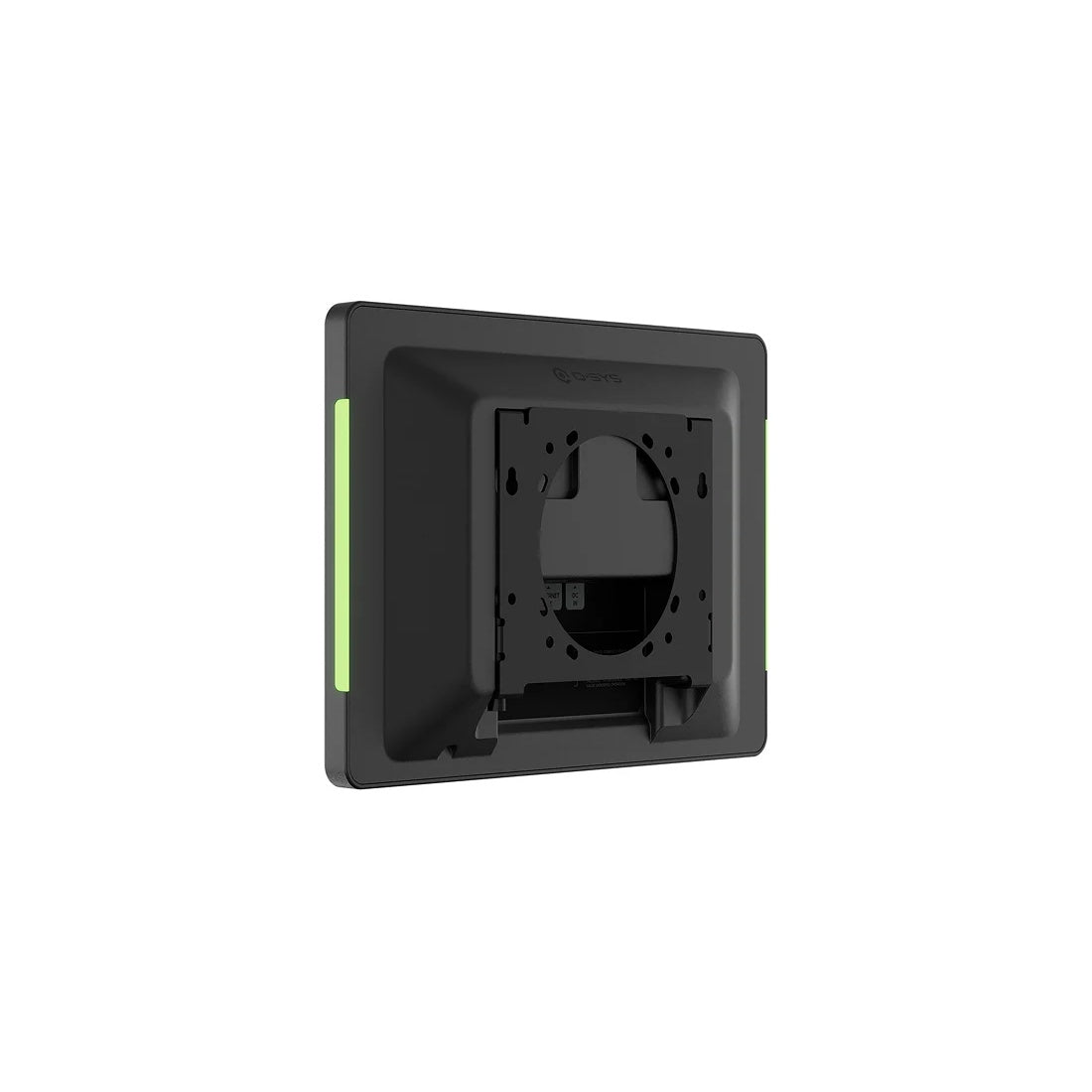

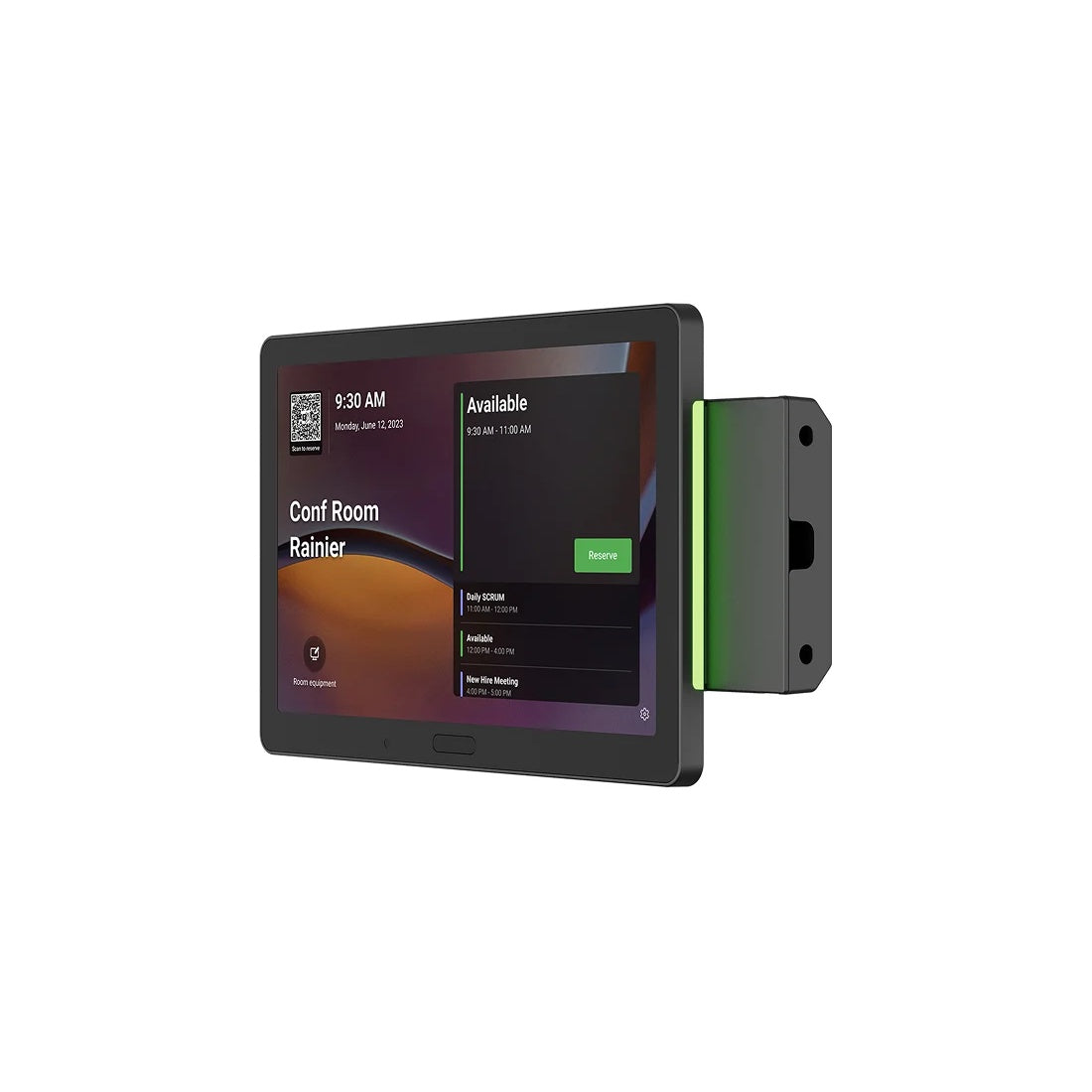

| Mounting: Wall mount | Included |
| Mounting: Glass/mullion mounting kit | Optional (sold separately) |
| Mounting: Orientation | Portrait or Landscape |

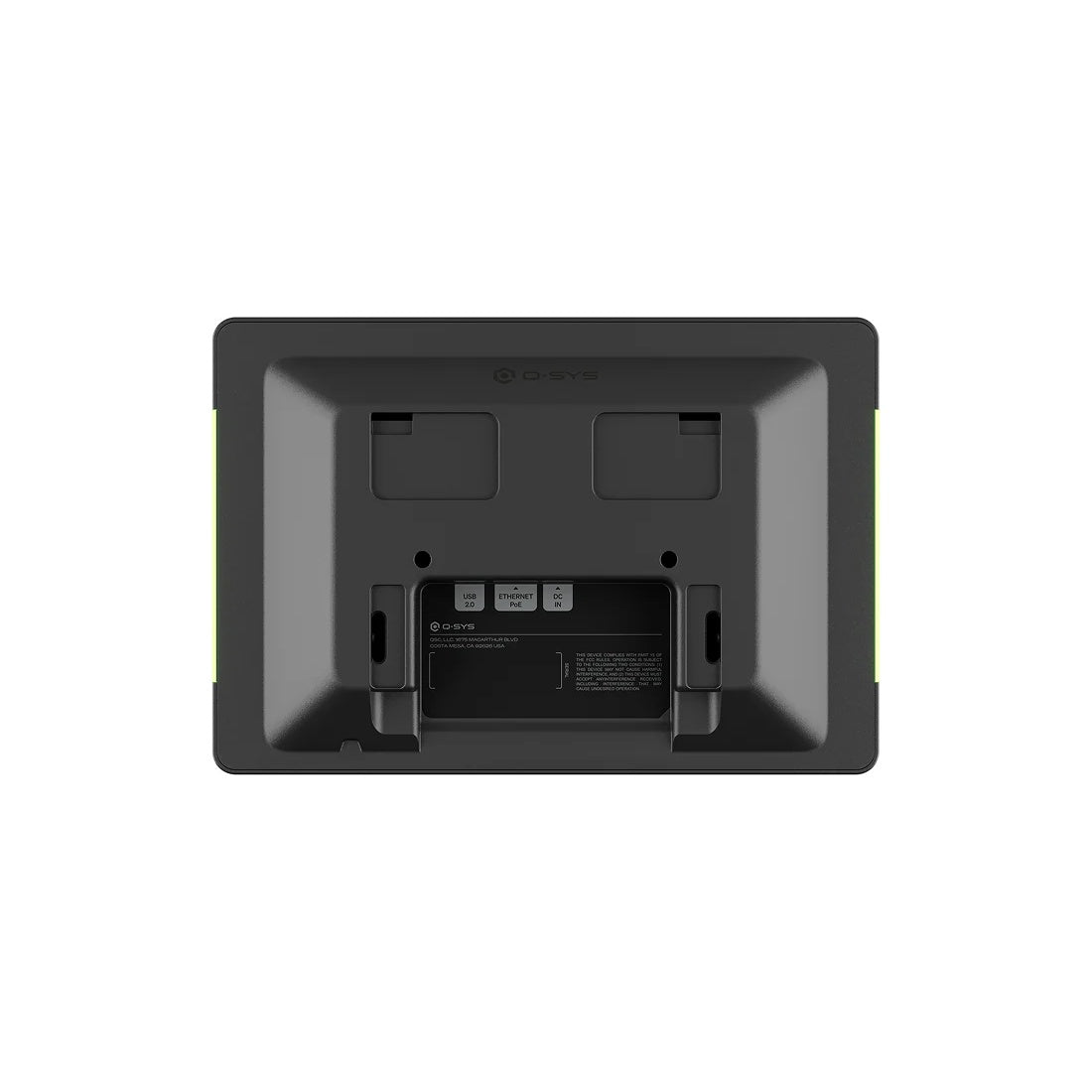

| Power and connectivity: RJ-45 (PoE) | 1 Gbps Ethernet, 802.3af PoE PD |
| Power and connectivity: Wi-fi | 802.11 a/b/g/n/ac; 2.4/5 GHz; disabled by policy if required |
| Power and connectivity: Bluetooth | Bluetooth 5.0 (BR/EDR + LE); peripheral pairing as allowed by Microsoft Teams/MDEP |
| Power and connectivity: DC input | Optional (12 V DC power supply accessory with regional plug (QSP-DC-PSU) sold separately) |
| Power and connectivity: USB-C | USB-C service/debug port; up to 5 V / 1 A device power support during service |
| Physical: Product dimensions (L x W x H) | 10.4 x 7.1 x 1.2 in (264 x 180.9 x 30.0 mm) |
| Physical: Product Weight | 1.6 lbs (0.7 kg) |
| Environmental & safety: Storage temperature range | -4 degrees to 158 F (-20 degrees to 70 C) |
| Environmental & safety: Operating temperature range | 50 degrees to 95 F (10 degrees to 35 C) |
| Environmental & safety: Operating & storage humidity range | 5% to 85% RH, non-condensing |
Why Buy the Q-SYS QSP-11 from Trianze Tech?
- Genuine Q-SYS product supplied by Trianze Tech with local UAE support
- Pre-sales help designing the Q-SYS system around the QSP-11
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Q-SYS QSP-11: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
The Q-SYS Scheduling Panel is built on the Microsoft Device Ecosystem Platform (MDEP), as a Microsoft Teams Panel. Displaying meeting details, availability, and allowing users to reserve meeting spaces on the spot.
For the Q-SYS QSP-11, Q-SYS lists the following. Power and connectivity: DC input: Optional (12 V DC power supply accessory with regional plug (QSP-DC-PSU) sold separately); Power and connectivity: USB-C: USB-C service/debug port; up to 5 V / 1 A device power support during service.
For the Q-SYS QSP-11, Q-SYS lists the following. Resolution: 1920 x 1200, 16:10, to 206 dpi; Touch & sensors: Touch type: Projected capacitive multi-touch; Touch & sensors: Surface: Anti-glare, oleophobic; Touch & sensors: Motion sensor: Human presence/proximity (auto wake-up); Touch & sensors: Status indicators: Dual RGB side lightbars, front-visible, side-visible, rear-visible through glass.
For the Q-SYS QSP-11, Q-SYS lists the following. Power and connectivity: RJ-45 (PoE): 1 Gbps Ethernet, 802.3af PoE PD; Power and connectivity: Wi-fi: 802.11 a/b/g/n/ac; 2.4/5 GHz; disabled by policy if required; Power and connectivity: Bluetooth: Bluetooth 5.0 (BR/EDR + LE); peripheral pairing as allowed by Microsoft Teams/MDEP.
For the Q-SYS QSP-11, Q-SYS lists the following. Screen size: 10.95 in (278 mm); Physical: Product dimensions (L x W x H): 10.4 x 7.1 x 1.2 in (264 x 180.9 x 30.0 mm); Physical: Product Weight: 1.6 lbs (0.7 kg); Environmental & safety: Storage temperature range: -4 degrees to 158 F (-20 degrees to 70 C).
Trianze Tech stocks the Q-SYS QSP-11 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
