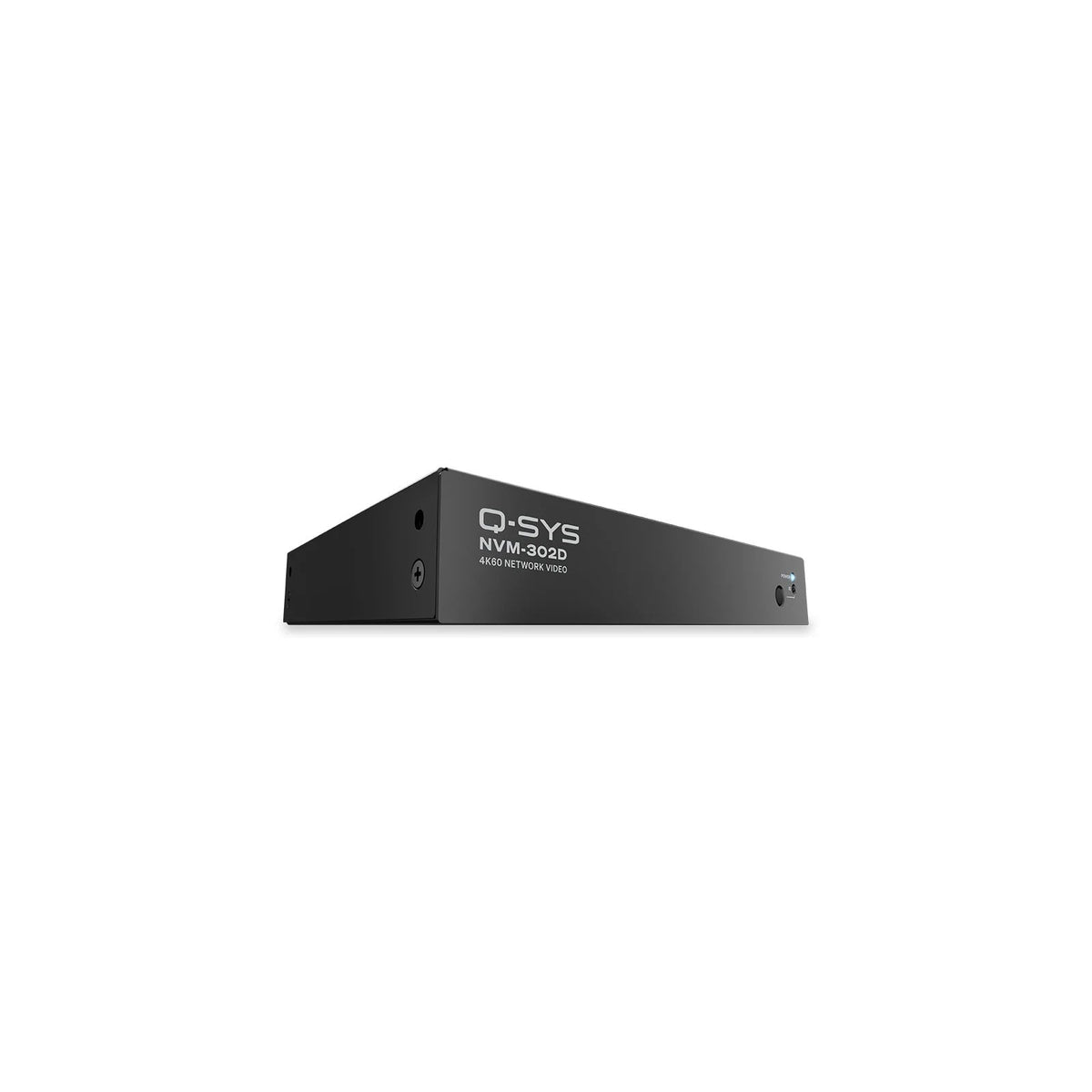

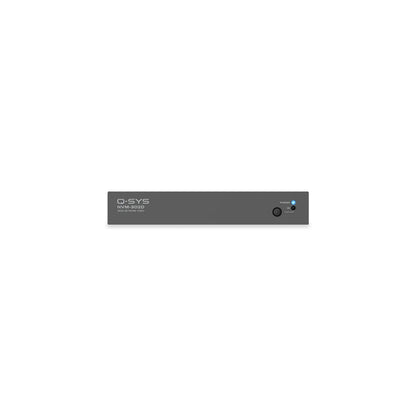

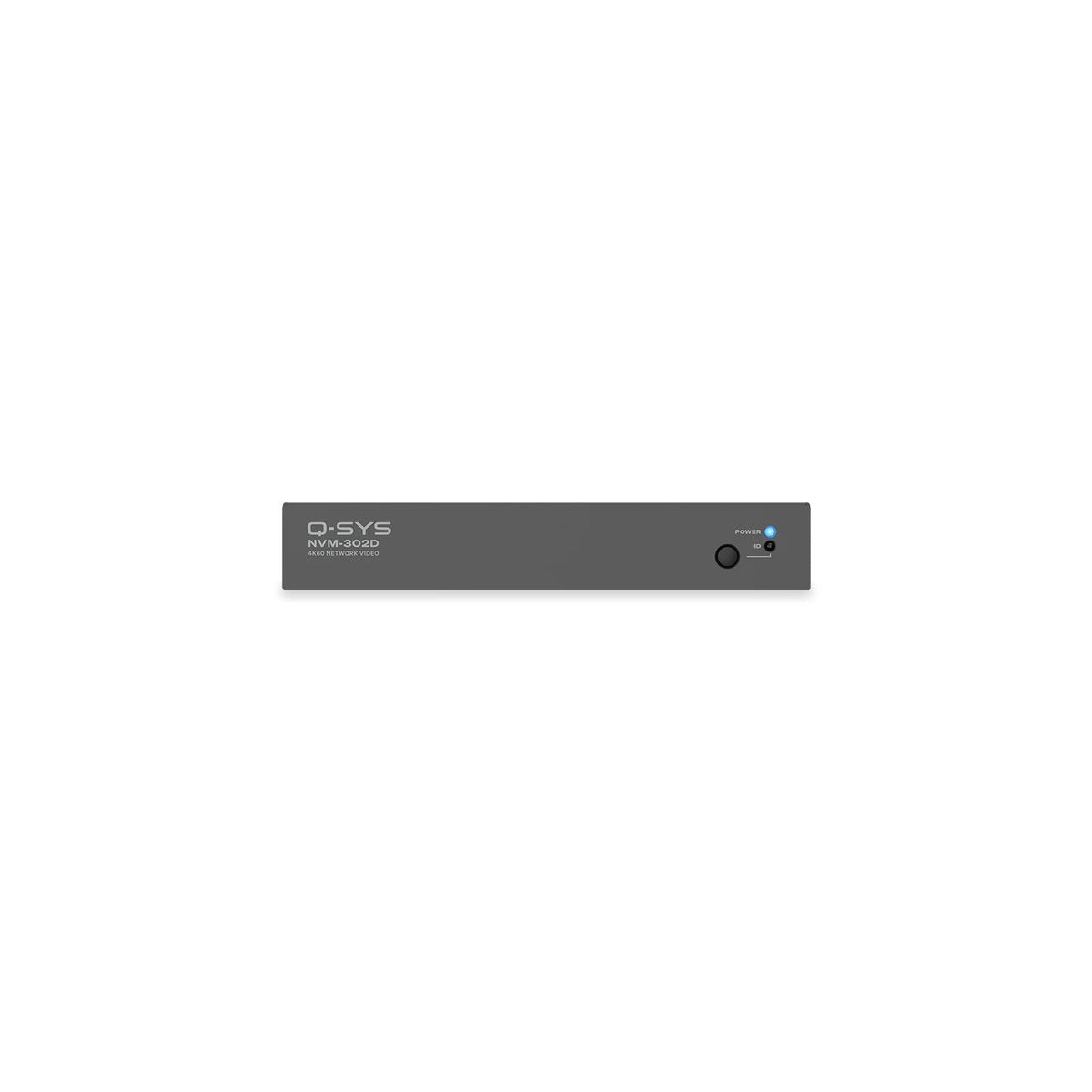

Q-SYS NVM-302D: Network HDMI Decoder for Large-Scale AV
Model
:
NVM-302D
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Q-SYS NVM-302D at a Glance
- Brand
- Q-SYS
- Model
- NVM-302D
- Category
- Video Transmitters
- Solution
- Boardroom AV
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Q-SYS NVM-302D Overview
Q-SYS NVM Series network video endpoints deliver high-quality, low-bandwidth network video at scale to a broad range of spaces for hospitality, entertainment, collaboration, government and more. The Q-SYS NVM-302D is a network HDMI decoder that comes pre-installed with a single-channel decode video app. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- The Q-SYS NVM-302D is a network HDMI decoder that comes pre-installed with a single-channel decode video app.
- Video I/O: HDMI 2.0 Output: 1x HDMI 2.0 output capable of transmitting output video formats up to 4K60 4:4:4 when using NVM-D1 application HDCP 2.3
- Video I/O: USB-C Input/Output: 1x USB-C 3.1 Gen 2 (enabled for bridging in future firmware release)
- Audio I/O: HDMI Input: 8-channel PCM audio, Q-SYS routable
- General: Dimensions: 7.3 x 5.2 x 1.2 in (185 x 131.5 x 30.5 mm)
- General: Weight: 1.75 lbs. (794 g)
Technical Specifications:
| Spec | Value |
|---|---|
| Model | NVM-302D |
| Brand | Q-SYS |

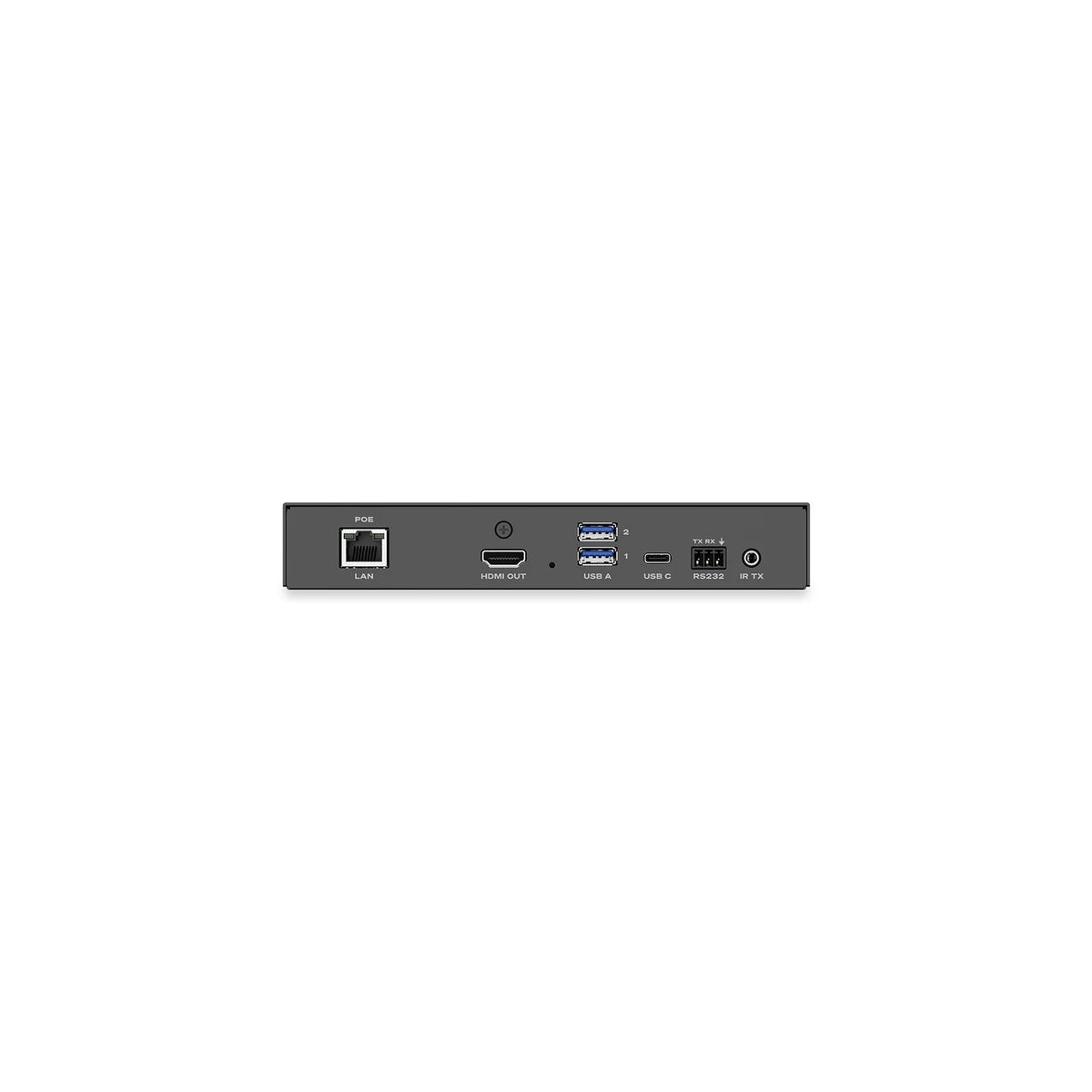

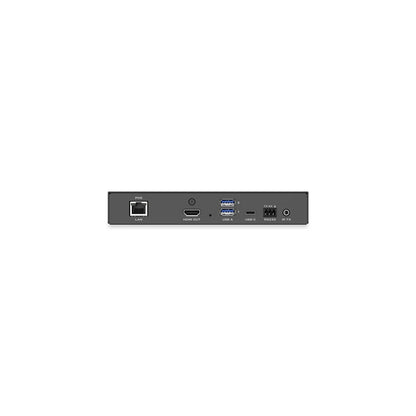

| Video I/O: HDMI 2.0 Output | 1x HDMI 2.0 output capable of transmitting output video formats up to 4K60 4:4:4 when using NVM-D1 application HDCP 2.3 and 1.4 supported |
| Video I/O: USB-C Input/Output | 1x USB-C 3.1 Gen 2 (enabled for bridging in future firmware release) |
| Audio I/O: HDMI Input | 8-channel PCM audio, Q-SYS routable |
| General: Dimensions | 7.3 x 5.2 x 1.2 in (185 x 131.5 x 30.5 mm) |
| General: Weight | 1.75 lbs. (794 g) |
| General: Mounting Options | Surface mounting hardware included; compatible with NV-RK accessory for rack mounting |
| Other: RS-232 | 1x RS-232 (3.5mm pitch euro-block) |
| Other: IR Transmit | 1x IR Transmit (3.5mm mini jack) |
| Other: USB Type C | USB 3.2 Gen 1 Type-C Device Port, Device Mode and Host mode supported, AV Bridging supported in future firmware release, HID routing supported |
| Other: USB Type A | 2x USB 3.2 Gen 1 to 5V, 900 mA (shared across USB-A and USB-C ports), HID routing supported |
| Other: LAN | 1000BASE-T, 2.5GBASE-T compliant |
| Other: Power Over Ethernet | PoE+, 802.3at Type 2, Class 4 (25.5W at PD, 30W at PSE) |
| Environmental: Ambient operating temperature range | 32 degrees to 104 F (0 degrees to 40 C) |
| Environmental: Humidity | 5 to 90 RH % non-condensing |
| Environmental: Storage temperature | -4 degrees to 158 F (-20 degrees to +70 C) |
| Environmental: What's in the box? | NVM-302D video endpoint Euro-terminal connectors for RS-232 Surface mounting accessories Safety and warranty statements |
| Peripheral Limits: Audio Channels | Each routing group consumes 1x audio channel, The NVM-302D consumes 1x audio channel when breakout audio is enabled., Limitations of audio channels is based on the Core used in the design. |
Why Buy the Q-SYS NVM-302D from Trianze Tech?
- Genuine Q-SYS product supplied by Trianze Tech with local UAE support
- Pre-sales help designing the Q-SYS system around the NVM-302D
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Q-SYS NVM-302D: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
Q-SYS NVM Series network video endpoints deliver high-quality, low-bandwidth network video at scale to a broad range of spaces for hospitality, entertainment, collaboration, government and more. The Q-SYS NVM-302D is a network HDMI decoder that comes pre-installed with a single-channel decode video app.
For the Q-SYS NVM-302D, Q-SYS lists the following. Video I/O: HDMI 2.0 Output: 1x HDMI 2.0 output capable of transmitting output video formats up to 4K60 4:4:4 when using NVM-D1 application HDCP 2.3 and 1.4 supported; Video I/O: USB-C Input/Output: 1x USB-C 3.1 Gen 2 (enabled for bridging in future firmware release); Audio I/O: HDMI Input: 8-channel PCM audio, Q-SYS routable; Other: USB Type C: USB 3.2 Gen 1 Type-C Device Port, Device Mode and Host mode supported, AV Bridging supported in future firmware release, HID routing supported; Other: USB Type A: 2x USB 3.2 Gen 1 to 5V, 900 mA (shared across USB-A and USB-C ports), HID routing supported; Other: LAN: 1000BASE-T, 2.5GBASE-T compliant.
For the Q-SYS NVM-302D, Q-SYS lists the following. Peripheral Limits: Audio Channels: Each routing group consumes 1x audio channel, The NVM-302D consumes 1x audio channel when breakout audio is enabled., Limitations of.
For the Q-SYS NVM-302D, Q-SYS lists the following. Other: Power Over Ethernet: PoE+, 802.3at Type 2, Class 4 (25.5W at PD, 30W at PSE).
For the Q-SYS NVM-302D, Q-SYS lists the following. General: Dimensions: 7.3 x 5.2 x 1.2 in (185 x 131.5 x 30.5 mm); General: Weight: 1.75 lbs. (794 g); Environmental: Ambient operating temperature range: 32 degrees to 104 F (0 degrees to 40 C); Environmental: Humidity: 5 to 90 RH % non-condensing.
Trianze Tech stocks the Q-SYS NVM-302D in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
More from Q-SYS
View all 210 products →-
Q-SYS NL-P4-BK: PoE Pendant Loudspeaker, Color: Black
-

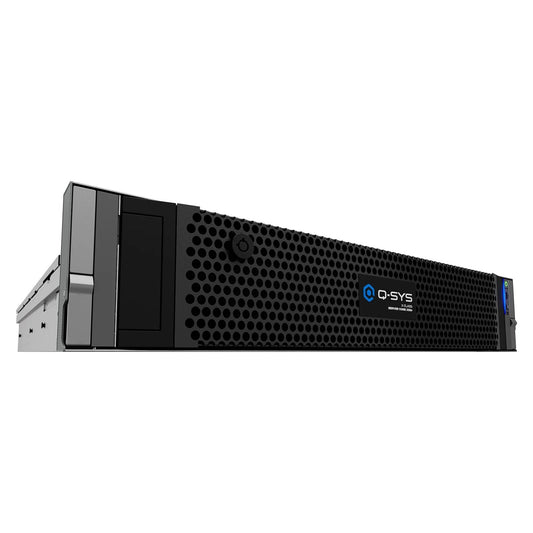

Q-SYS SERVER CORE X50r: X Class Server Core For Large Systems
-

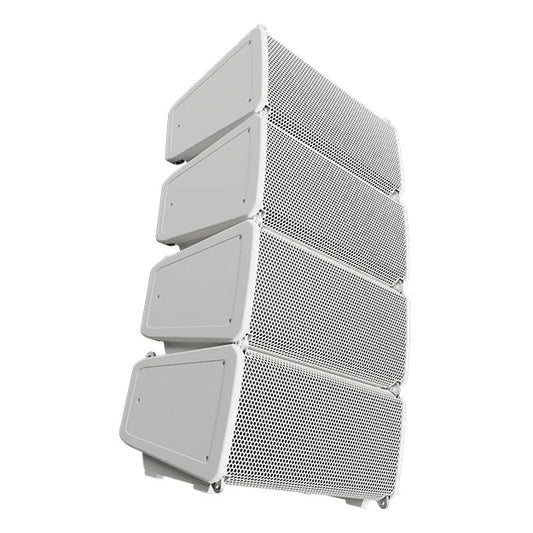

Q-SYS PL-LA8-WH: 8 inch Two-Way Passive Installation Line Array Speaker, White
-

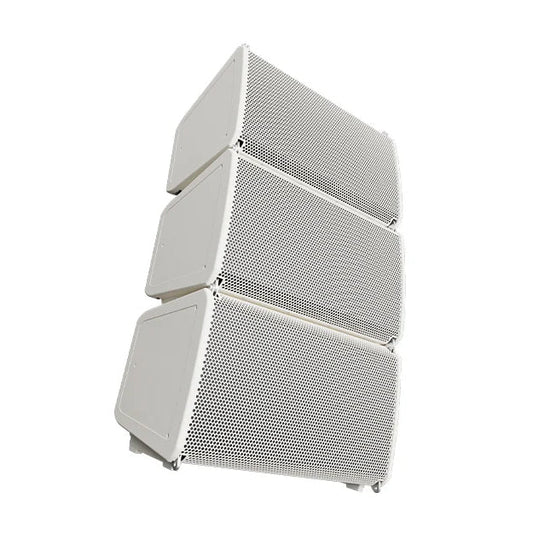

Q-SYS PL-LA12-WH: 12 inch Two-Way Passive Installation Line Array Speaker, White
