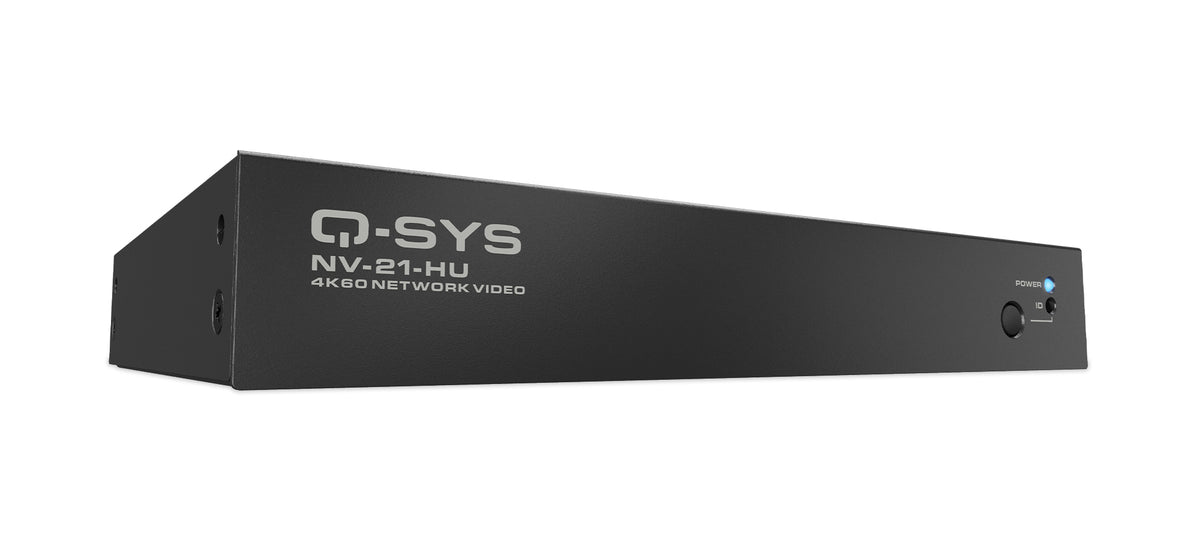

Q-SYS NV-21-HU: 4K60 4:4:4 Network Video Endpoint for Q-SYS Ecosystem
Model
:
NV-21-HU
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Q-SYS NV-21-HU at a Glance
- Brand
- Q-SYS
- Model
- NV-21-HU
- Category
- Video Transmitters
- Solution
- Boardroom AV
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Q-SYS NV-21-HU Overview
The Q-SYS NV Series NV-21-HU is the next evolution for native video distribution on the Q-SYS Platform. The NV-21-HU is a software configurable endpoint offering a comprehensive single-cable solution for audio and video distribution, AV bridging and device charging via USB-C. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:

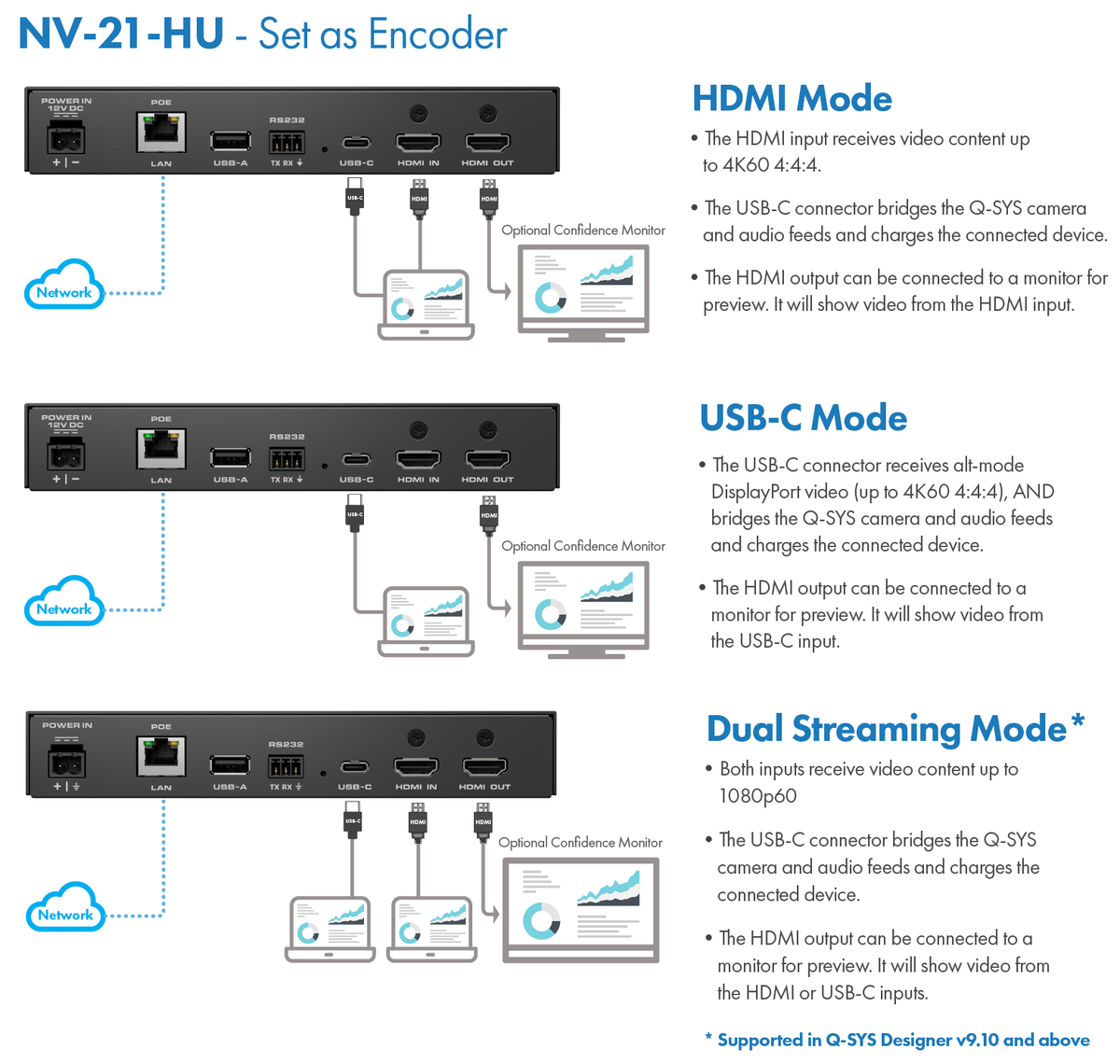

- The NV-21-HU is a software configurable endpoint offering a comprehensive single-cable solution for audio and video distribution, AV bridging and device charging via USB-C.
- Video I/O: HDMI 2.0 inputs: 1x HDMI 2.0, capable of receiving input video formats up to 4K60 4:4:4
- Video I/O: USB-C Input: 1x USB 3.2 Gen 1x1 (5Gbps) Type-C Device Port, Supporting DisplayPort Alt-Mode (DP 1.4 Sink), capable of receiving
- Video I/O: HDMI 2.0 Output: 1x HDMI capable of scaling and outputting video formats up to 4K60 4:4:4
- Video I/O: Scaler: HDMI output features a robust 4K60 4:4:4 scaler that can accomodate the most challenging resolution and frame rate
- Video I/O: Supported video codecs: Q-SYS Shift: Up to 4K60 4:4:4 Mediacast: Up to 1080p30 4:2:0
Technical Specifications:
| Spec | Value |
|---|---|
| Model | NV-21-HU |
| Brand | Q-SYS |
| Video I/O: HDMI 2.0 inputs | 1x HDMI 2.0, capable of receiving input video formats up to 4K60 4:4:4 |
| Video I/O: USB-C Input | 1x USB 3.2 Gen 1x1 (5Gbps) Type-C Device Port, Supporting DisplayPort Alt-Mode (DP 1.4 Sink), capable of receiving input video formats up to 4K60 4:4:4 |
| Video I/O: HDMI 2.0 Output | 1x HDMI capable of scaling and outputting video formats up to 4K60 4:4:4 |
| Video I/O: Scaler | HDMI output features a robust 4K60 4:4:4 scaler that can accomodate the most challenging resolution and frame rate conversions. |
| Video I/O: Supported video codecs | Q-SYS Shift: Up to 4K60 4:4:4 Mediacast: Up to 1080p30 4:2:0 |
| Audio I/O: HDMI inputs | 8-channel PCM audio 1, Q-SYS routable |
| Audio I/O: USB Type C input | 8-channel PCM audio 1, 1x1 speakerphone 1, 2x2 soundcard 1, Q-SYS routable |
| Audio I/O: HDMI outputs | 8-channel PCM audio 1, Q-SYS routable |
| General: Dimensions | 7.3 x 5.2 x 1.2 in (185 x 131.5 x 30.5 mm) |
| General: Weight | 1.75 lbs (794 g) |
| General: Mounting options | Flexible surface mounting hardware included |
| Others: USB Type C input | USB 3.2 Gen 1x1 (5Gbps) Type-C Device Port, Supports AV bridging with video resolutions up to 1920x1080p30 YUY2, Supports DisplayPort Alt-Mode (DP 1.4 Sink), USB Power Delivery up to 65W 3 |
| Others: USB Type A input | USB HID Routing to 5 V DC 900 mA |
| Others: LAN | 1000BASE-T, 2.5GBASE-T compliant |
| Others: Power Over Ethernet | PoE Type 3, Class 5 (40W at PD, 45W at PSE) 2 |
| Others: Auxiliary power supply accessory | 12 VDC 10 A Power Supply (NV-21-PSU) sold separately. 3 90 W PoE injector (POE-90W-PSU) sold separately. 2 |
| Environmental: Ambient operating temperature range | 0 degrees to 40 C |
| Environmental: Humidity | 5 to 90 RH % non-condensing |
| Environmental: Storage temperature | -20 degrees to 70 C |
| Environmental: Expected Product lifecycle | 10 years |
Why Buy the Q-SYS NV-21-HU from Trianze Tech?
- Genuine Q-SYS product supplied by Trianze Tech with local UAE support
- Pre-sales help designing the Q-SYS system around the NV-21-HU
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Q-SYS NV-21-HU: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
The Q-SYS NV Series NV-21-HU is the next evolution for native video distribution on the Q-SYS Platform. The NV-21-HU is a software configurable endpoint offering a comprehensive single-cable solution for audio and video distribution, AV bridging and device charging via USB-C.
For the Q-SYS NV-21-HU, Q-SYS lists the following. Video I/O: HDMI 2.0 inputs: 1x HDMI 2.0, capable of receiving input video formats up to 4K60 4:4:4; Video I/O: USB-C Input: 1x USB 3.2 Gen 1x1 (5Gbps) Type-C Device Port, Supporting DisplayPort Alt-Mode (DP 1.4 Sink), capable of receiving input video formats up to 4K60; Video I/O: HDMI 2.0 Output: 1x HDMI capable of scaling and outputting video formats up to 4K60 4:4:4; Video I/O: Supported video codecs: Q-SYS Shift: Up to 4K60 4:4:4 Mediacast: Up to 1080p30 4:2:0; Audio I/O: HDMI inputs: 8-channel PCM audio 1, Q-SYS routable; Audio I/O: USB Type C input: 8-channel PCM audio 1, 1x1 speakerphone 1, 2x2 soundcard 1, Q-SYS routable.
For the Q-SYS NV-21-HU, Q-SYS lists the following. Video I/O: HDMI 2.0 inputs: 1x HDMI 2.0, capable of receiving input video formats up to 4K60 4:4:4; Video I/O: USB-C Input: 1x USB 3.2 Gen 1x1 (5Gbps) Type-C Device Port, Supporting DisplayPort Alt-Mode (DP 1.4 Sink), capable of receiving input video formats up to 4K60; Video I/O: HDMI 2.0 Output: 1x HDMI capable of scaling and outputting video formats up to 4K60 4:4:4; Video I/O: Scaler: HDMI output features a robust 4K60 4:4:4 scaler that can accomodate the most challenging resolution and frame rate conversions..
For the Q-SYS NV-21-HU, Q-SYS lists the following. Others: Power Over Ethernet: PoE Type 3, Class 5 (40W at PD, 45W at PSE) 2; Others: Auxiliary power supply accessory: 12 VDC 10 A Power Supply (NV-21-PSU) sold separately. 3 90 W PoE injector (POE-90W-PSU) sold separately. 2.
For the Q-SYS NV-21-HU, Q-SYS lists the following. General: Dimensions: 7.3 x 5.2 x 1.2 in (185 x 131.5 x 30.5 mm); General: Weight: 1.75 lbs (794 g); Environmental: Ambient operating temperature range: 0 degrees to 40 C; Environmental: Humidity: 5 to 90 RH % non-condensing.
Trianze Tech stocks the Q-SYS NV-21-HU in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
