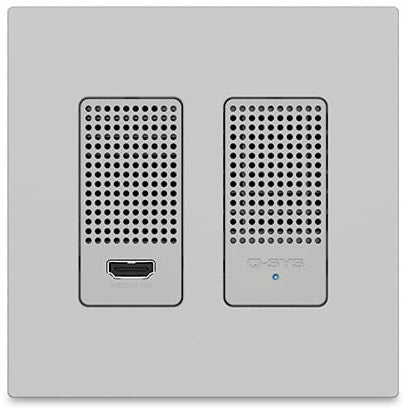

Q-SYS NV-1-H-WE: HDMI Wallplate Encoder
Model
:
NV-1-H-WE
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Q-SYS NV-1-H-WE at a Glance
- Brand
- Q-SYS
- Model
- NV-1-H-WE
- Category
- Video Transmitters
- Solution
- Boardroom AV
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Q-SYS NV-1-H-WE Overview
The Q-SYS NV Series NV-1-H-WE is a single-channel HDMI wallplate encoder optimized for spaces where traditional rack-mount enclosures are not ideal, including flexible and divisible spaces or spaces with reconfigurable furniture. As a native Q-SYS peripheral, the NV-1-H-WE seamlessly integrates into your Q-SYS system, enabling no-code deployments and intelligent automation. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- As a native Q-SYS peripheral, the NV-1-H-WE seamlessly integrates into your Q-SYS system, enabling no-code deployments and intelligent automation.
- Video I/O: HDMI 2.0 input: 1x HDMI 2.0, capable of receiving input video formats up to 4K60 4:4:4 Support for HDCP 2.3 and HDCP 1.4
- Audio I/O: HDMI input: 8-channel PCM audio, Q-SYS routable
- Other Connectors: LAN: 1000BASE-T, 2.5GBASE-T compliant
- Other Connectors: Power over Ethernet: 802.3at Type 2 Class 4 (30W from PSE, 25.5W at NV-1-H-WE)
- General: Dimensions: 4.06 x 3.43 x 2.64 in (103 x 87 x 67 mm)
Technical Specifications:
| Spec | Value |
|---|---|
| Model | NV-1-H-WE |
| Brand | Q-SYS |
| Video I/O: HDMI 2.0 input | 1x HDMI 2.0, capable of receiving input video formats up to 4K60 4:4:4 Support for HDCP 2.3 and HDCP 1.4 |
| Audio I/O: HDMI input | 8-channel PCM audio, Q-SYS routable |
| Other Connectors: LAN | 1000BASE-T, 2.5GBASE-T compliant |
| Other Connectors: Power over Ethernet | 802.3at Type 2 Class 4 (30W from PSE, 25.5W at NV-1-H-WE) |
| General: Dimensions | 4.06 x 3.43 x 2.64 in (103 x 87 x 67 mm) |
| General: Weight | 0.84 lbs / 0.38 kg |
| General: Optional accessories | Black insert kit (NV-1-INSERT KIT), not included |
Why Buy the Q-SYS NV-1-H-WE from Trianze Tech?
- Genuine Q-SYS product supplied by Trianze Tech with local UAE support
- Pre-sales help designing the Q-SYS system around the NV-1-H-WE
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Q-SYS NV-1-H-WE: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
The Q-SYS NV Series NV-1-H-WE is a single-channel HDMI wallplate encoder optimized for spaces where traditional rack-mount enclosures are not ideal, including flexible and divisible spaces or spaces with reconfigurable furniture. As a native Q-SYS peripheral, the NV-1-H-WE seamlessly integrates into your Q-SYS system, enabling no-code deployments and intelligent automation.
For the Q-SYS NV-1-H-WE, Q-SYS lists the following. Video I/O: HDMI 2.0 input: 1x HDMI 2.0, capable of receiving input video formats up to 4K60 4:4:4 Support for HDCP 2.3 and HDCP 1.4; Audio I/O: HDMI input: 8-channel PCM audio, Q-SYS routable; Other Connectors: LAN: 1000BASE-T, 2.5GBASE-T compliant; Other Connectors: Power over Ethernet: 802.3at Type 2 Class 4 (30W from PSE, 25.5W at NV-1-H-WE).
For the Q-SYS NV-1-H-WE, Q-SYS lists the following. Video I/O: HDMI 2.0 input: 1x HDMI 2.0, capable of receiving input video formats up to 4K60 4:4:4 Support for HDCP 2.3 and HDCP 1.4; Audio I/O: HDMI input: 8-channel PCM audio, Q-SYS routable; Other Connectors: LAN: 1000BASE-T, 2.5GBASE-T compliant; Other Connectors: Power over Ethernet: 802.3at Type 2 Class 4 (30W from PSE, 25.5W at NV-1-H-WE).
For the Q-SYS NV-1-H-WE, Q-SYS lists the following. Other Connectors: Power over Ethernet: 802.3at Type 2 Class 4 (30W from PSE, 25.5W at NV-1-H-WE).
For the Q-SYS NV-1-H-WE, Q-SYS lists the following. General: Dimensions: 4.06 x 3.43 x 2.64 in (103 x 87 x 67 mm); General: Weight: 0.84 lbs / 0.38 kg.
Trianze Tech stocks the Q-SYS NV-1-H-WE in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
