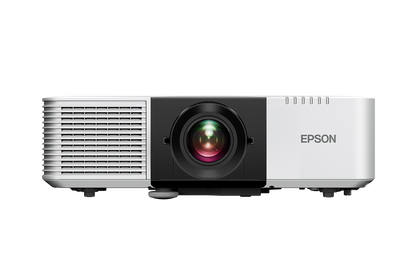

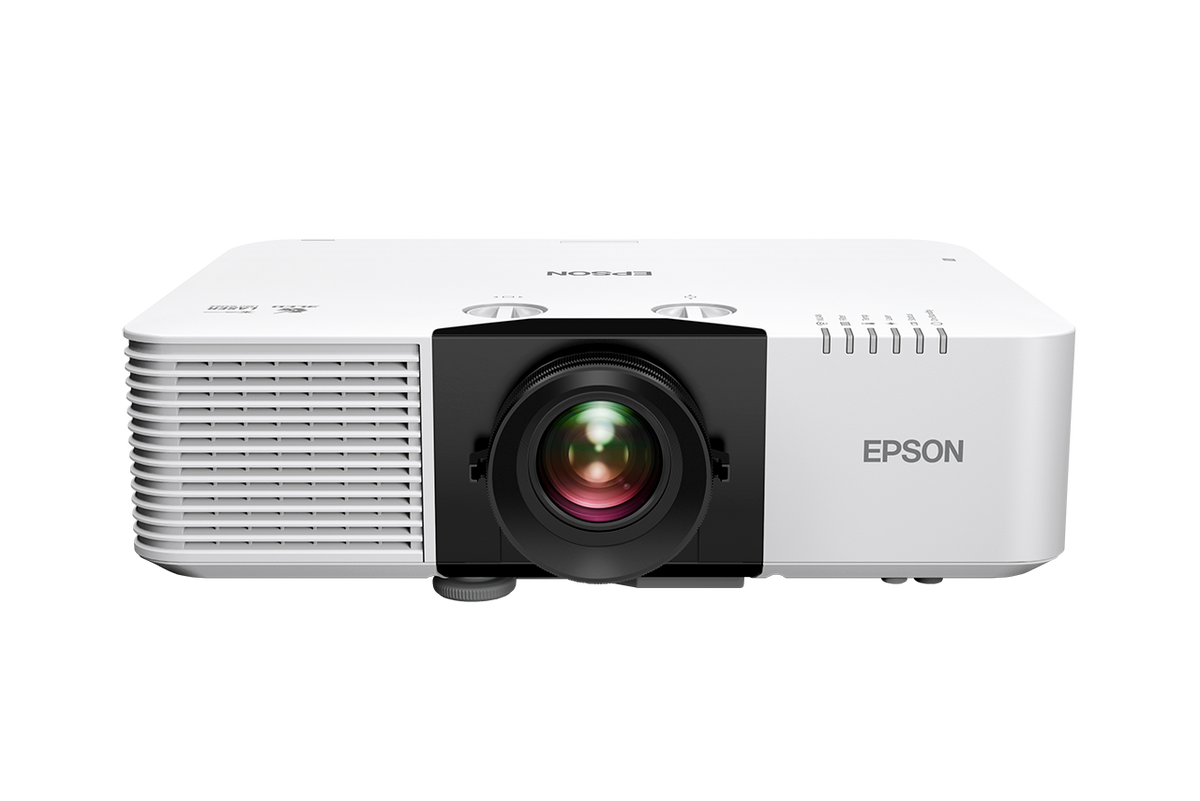

Epson EB-L690U 6,500 Lumens WUXGA Projector

For Corporate or Bulk Enquiries, reach us at avsupport@trianzetech.ae | Call +971 58 161 3661 | WhatsApp +971 58 161 3661

Epson EB-L690U at a Glance

Brand: Epson
Model: EB-L690U
Part Number: V11HB29080DA
Category: Projectors
Solution: Boardroom AV
Supply: Dubai, Abu Dhabi and across the UAE
Pricing: Quoted per project

Applications & Use Cases

Boardrooms and meeting rooms
Classrooms and training rooms
Huddle spaces and portable presentations
Corporate and education installations

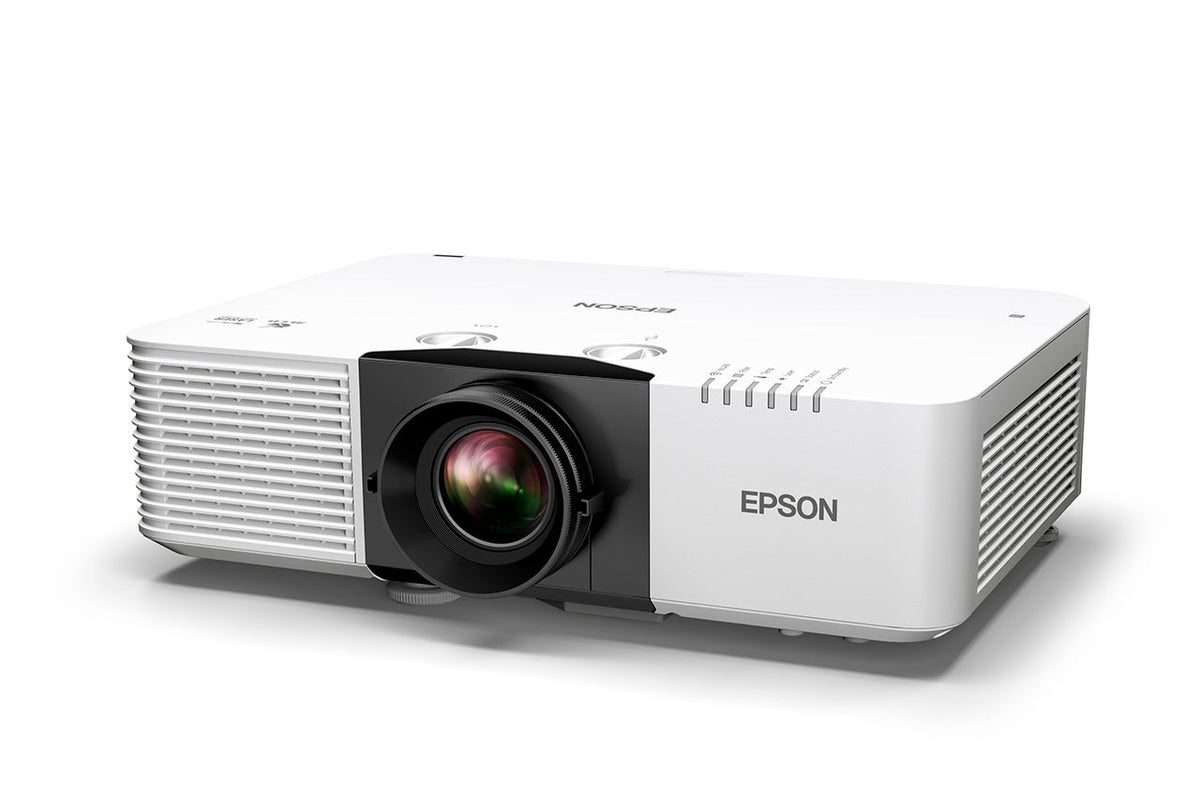

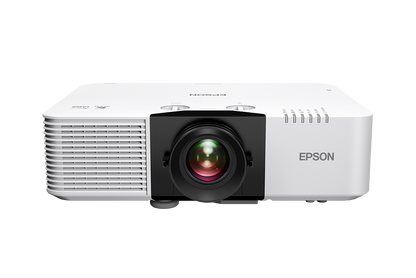

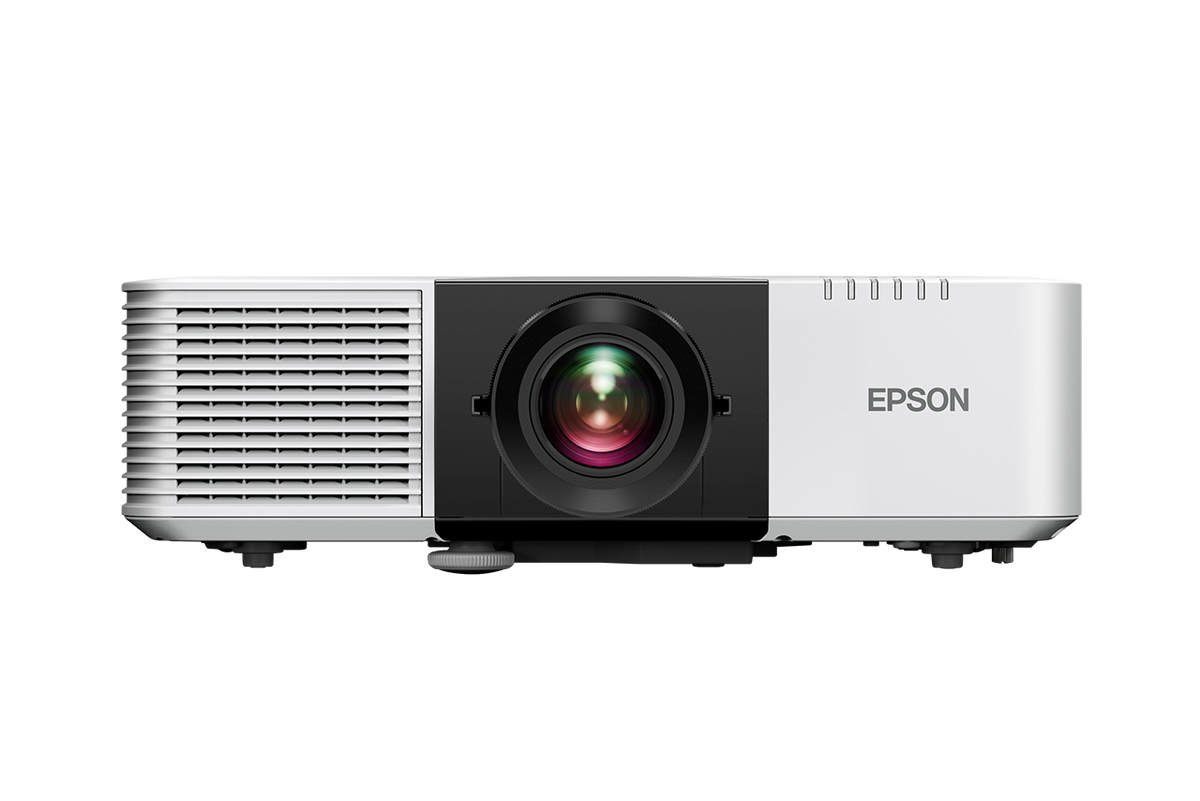

Epson EB-L690U Overview

The Epson EB-L690U is an Epson business and education projector with 6,500 lumens of colour brightness, WUXGA resolution and a laser light source. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.

Key Features:

Resolution: WUXGA
Colour Light Output, Lumens: 6500 Lumens
Colour Light Output, Luman (economy) in accodance with: 4550 Lumens
Colour Light Output Testing Standard: In accordance with ISO 21118:2012
Contrast Ratio, Ratio:1: 5000000
Contrast Ratio, Absolute black: Absolute black
Light Source (Visual product): Laser

Technical Specifications:

Spec	Value
Model	EB-L690U
Epson part number	V11HB29080DA
Brand	Epson
Projector Colour	White
Loudspeaker	10 W
Noise Level -Operation (Roll):	32
Noise Level -Operating (Sheet):	25
Noise Level -Normal	32 dB (A)
Noise Level -Economy	25 dB (A)
Options	Suspension adapter

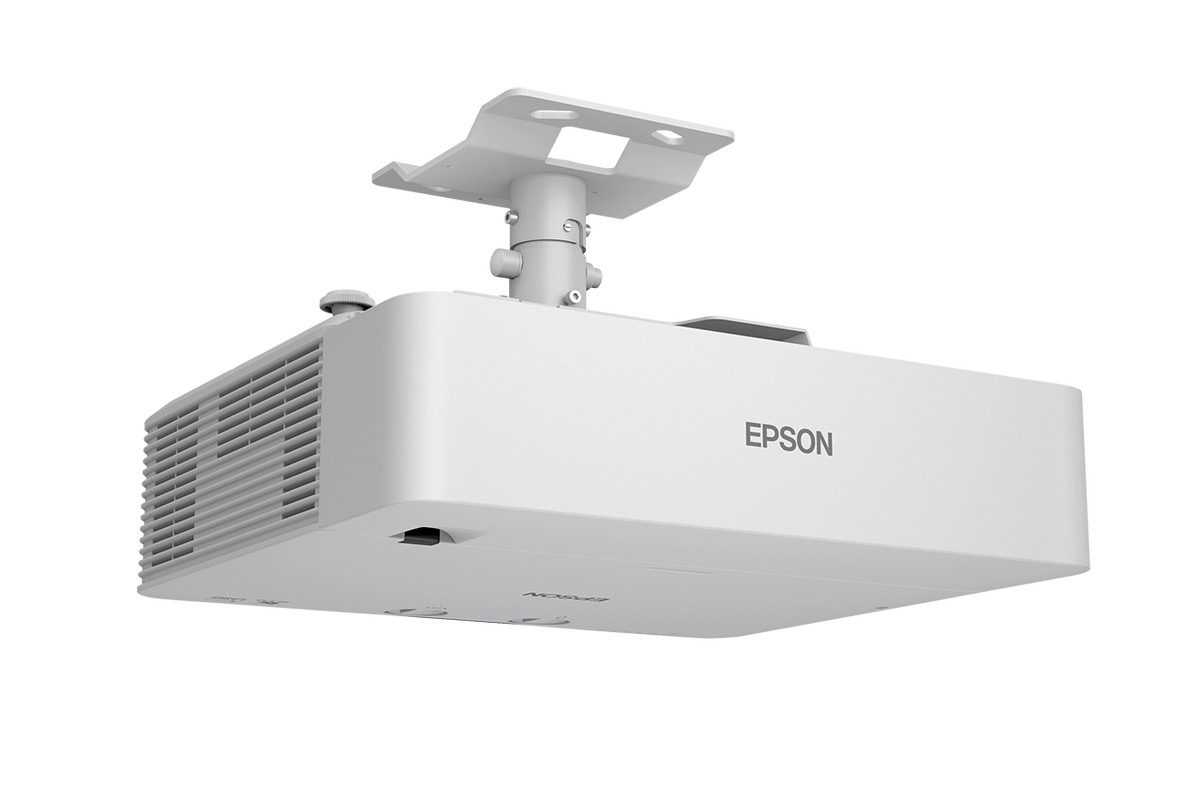

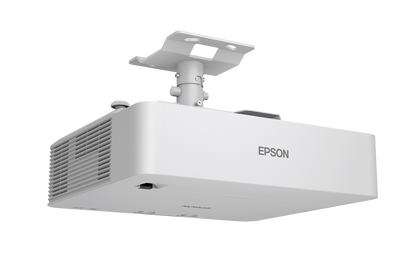

Positioning	Ceiling Mounted, Desktop
Power consumption -(Normal On-Mode)	336 W
Power consumption- (Eco On-Mode)	233 W
Power consumption, (Energy saving standby)	0.4 W
Product Dimensions	440 x 340 x 138 mm (Width x Depth x Height)
Product Range	E9
Room Type / Application	Boardroom, Large Meeting Room / Auditorium, Meeting room / Classroom, Projection Mapping, Signage / Retail, Visitor Attraction
Single Unit	ZN
Supply Voltage	100 V to 240 V, 50 Hz to 60 Hz
Supported Humidity, Operation (from)	20 %
Supported Humidity, Operation (to)	80 %
Supported Humidity, Storage (from)	10 %
Supported Humidity, Storage (to)	90 %
Supported Temperature, Storage (from)	-10 C
Supported Temperature, Storage (to)	60 C
LCD Panel (Type)	0.67 inches with
LCD Panel	C2 Fine
Projection System	3LCD Technology, RGB liquid crystal shutter
Resolution	WUXGA
Epson iProjection App	Ad-Hoc / Infrastructure
Network Protocol	SNMP, HTTPS, PJLink, ESC/VP.net
Network Protocol (Projector)	SNMP, HTTPS, PJLink, ESC/VP.net
Warranty (Months)	36 Months Carry-in
2D Colour Modes	Dynamic, Presentation, Cinema, Natural, DICOM SIM
Projector control	Extron XTP, AMX Device Discovery, Crestron Integrated Partner
Security (Visual product)	Padlock, Security cable hole, Kensington lock, Wireless LAN unit lock, Password protection, Control panel lock
Video Colour Modes	Dynamic, Presentation, Cinema, BT709, Natural, DICOM SIM, Multi Projection
Colour Light Output, Lumens	6500 Lumens
Colour Light Output, Luman (economy) in accodance with	4550 Lumens
Colour Light Output Testing Standard	In accordance with ISO 21118:2012
Colour Reproduction (Projector)	Upto 1.07 billion colours
Colour Video Processing	10 Bits Color
Contrast Ratio, Ratio:1	5000000
Contrast Ratio, Absolute black	Absolute black
Keystone Correction Type (Horizontal)	manual
Keystone Correction Angle (Horizontal)	30
Keystone Correction Type (Vertical)	manual
Keystone Correction Angle (Vertical)	30
Laser Lightsource -Durability High	20000 hr
Laser Lightsource -Durability Eco	30000 hr
Light Source (Visual product)	Laser
White Light Output, Lumens	4550 Lumens
White Light Output, Lumens (economy) in accodance with	4550 Lumens
White Light Output Testing Standard	In accordance with ISO 21118:2020
Lens	Optical
Lens Shift	manual
Lens Shift (Vertical +/-)	50
Lens Shift (Horizontal +/-)	20
Projection Distance from	2.4 m
Projection Distance to	23.8
Projection Distance Wide from	1.4 m
Projection Distance Wide to	14.8
Projection Distance Wide Tele from	1.44 m

Why Buy the Epson EB-L690U from Trianze Tech?

Genuine Epson projector from Trianze Tech, sourced through authorized channels with local UAE support
Pre-sales help matching the EB-L690U to your room size, screen and seating distance
Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
Projector screen and ceiling mount advice from our installation team

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

What's Included and Support

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Package Contents

Epson EB-L690U projector (UAE part number V11HB29080DA)
Full package contents, cables and remote are confirmed by Trianze Tech at order

Warranty

Epson lists a 36 Months Carry-in warranty for the EB-L690U
Trianze Tech supports UAE installations and can advise on claims

Sustainability

Power consumption: 336 W
Noise level: 32 dB (A)

Expandability

Works with Epson lenses, mounts and accessories listed for the model
Trianze Tech can confirm accessory compatibility before you order

Distribution

Supplied by Trianze Tech in Dubai and Abu Dhabi
Delivery across the UAE and to other GCC countries on request

Suggested Mounting Accessories

Projector ceiling mount: VSYS VPM-2G Universal Projector Ceiling Mount. Confirm the projector weight and the mount load rating before ordering.
Motorized projection screen: VSYS VSPS120-M electric motorized projection screen, 120 inch, 16:9. VSYS motorized screens come in 100, 120 and 135 inch, all 16:9. Match the size to the throw distance.
Fixed frame projection screen: VSYS PEGA120 fixed frame projection screen, 120 inch, 16:9. VSYS fixed frame screens come in 120, 135 and 150 inch, all 16:9.

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Frequently asked

Epson EB-L690U: Frequently Asked Questions

If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.

Still have questions?

Talk to a consultant. Most queries are answered in a 15-minute call.

The Epson EB-L690U is an Epson business and education projector with 6,500 lumens of colour brightness, WUXGA resolution and a laser light source. Trianze Tech supplies it in the UAE with project advice.

For the Epson EB-L690U, Epson lists the following. Resolution: WUXGA; Colour Light Output, Lumens: 6500 Lumens; Colour Light Output, Luman (economy) in accodance with: 4550 Lumens; Colour Light Output Testing Standard: In accordance with ISO 21118:2012; Contrast Ratio, Ratio:1: 5000000; Contrast Ratio, Absolute black: Absolute black.

For the Epson EB-L690U, Epson lists the following. Throw Ratio from: 1.35; Throw Ratio to: 2.2; Screen Size from: 50 in; Screen Size to: 500 in; Lens: Optical.

For the Epson EB-L690U, Epson lists the following. Network Protocol: SNMP, HTTPS, PJLink, ESC/VP.net; Network Protocol (Projector): SNMP, HTTPS, PJLink, ESC/VP.net.

For the Epson EB-L690U, Epson lists the following. Product Dimensions: 440 x 340 x 138 mm (Width x Depth x Height); Power consumption -(Normal On-Mode): 336 W; Power consumption- (Eco On-Mode): 233 W; Power consumption, (Energy saving standby): 0.4 W; Supply Voltage: 100 V to 240 V, 50 Hz to 60 Hz.

Trianze Tech stocks the Epson EB-L690U in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
