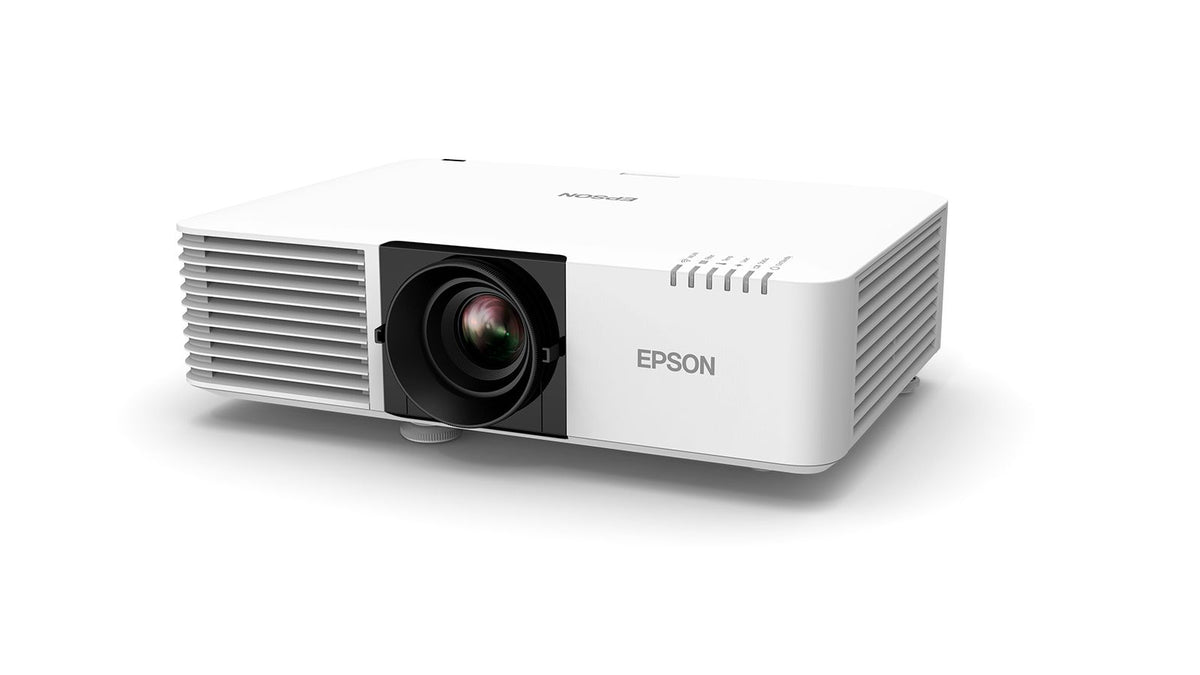

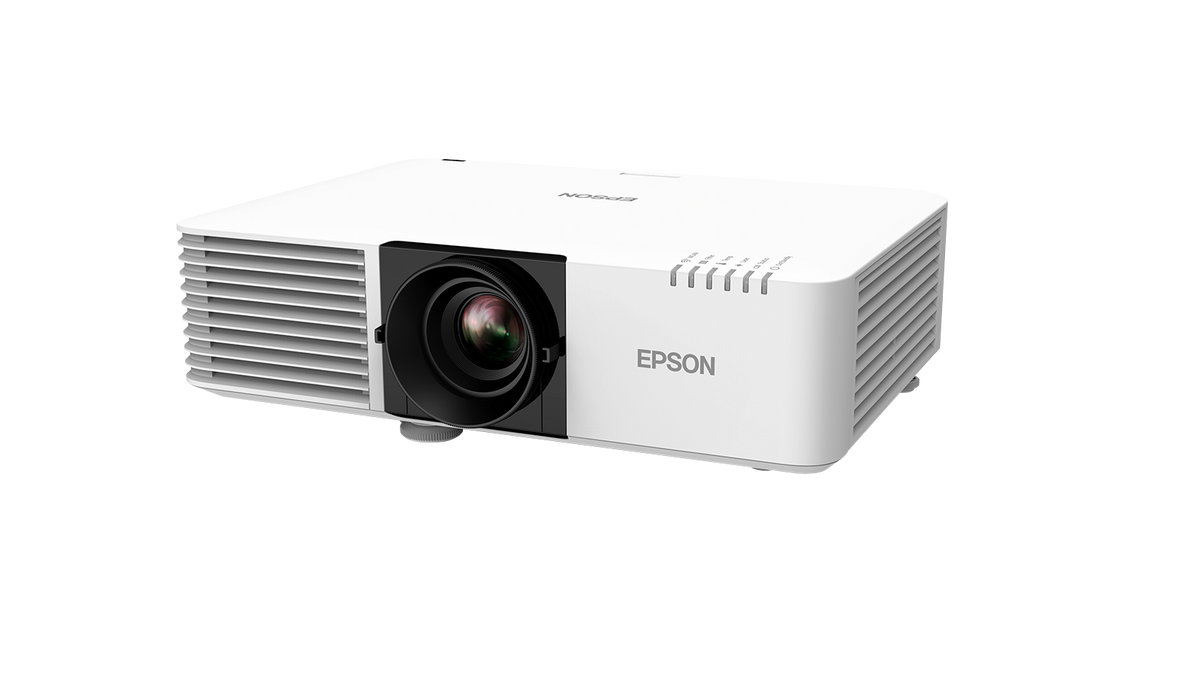

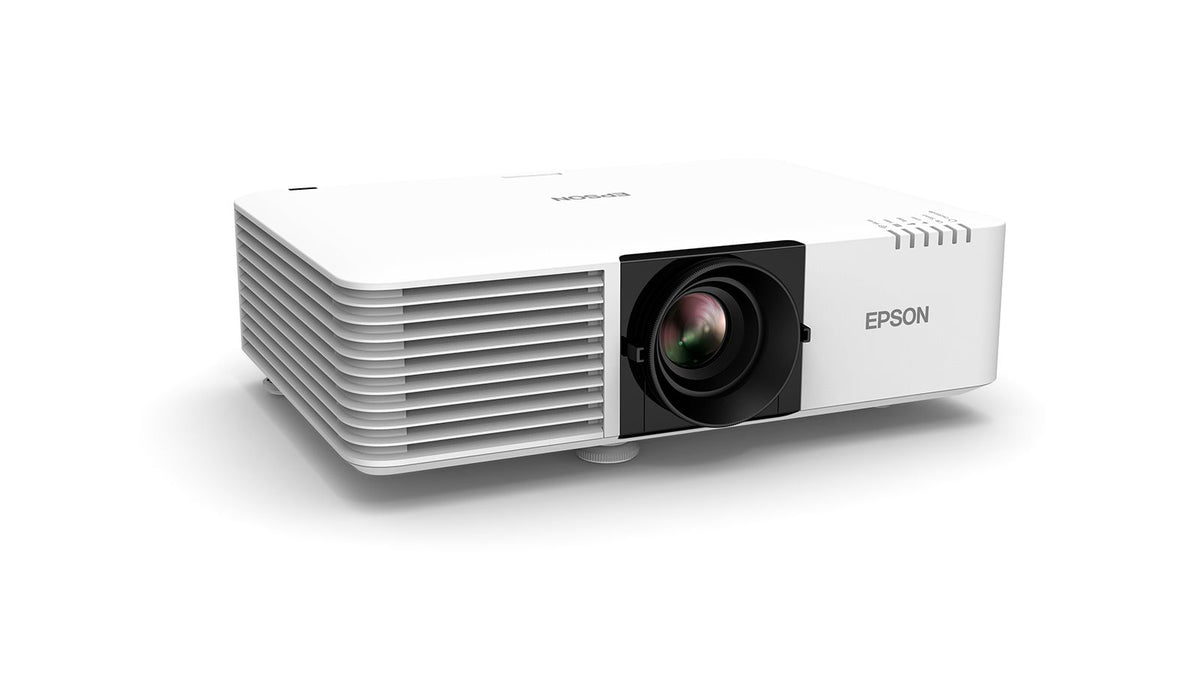

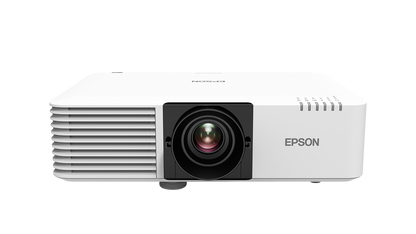

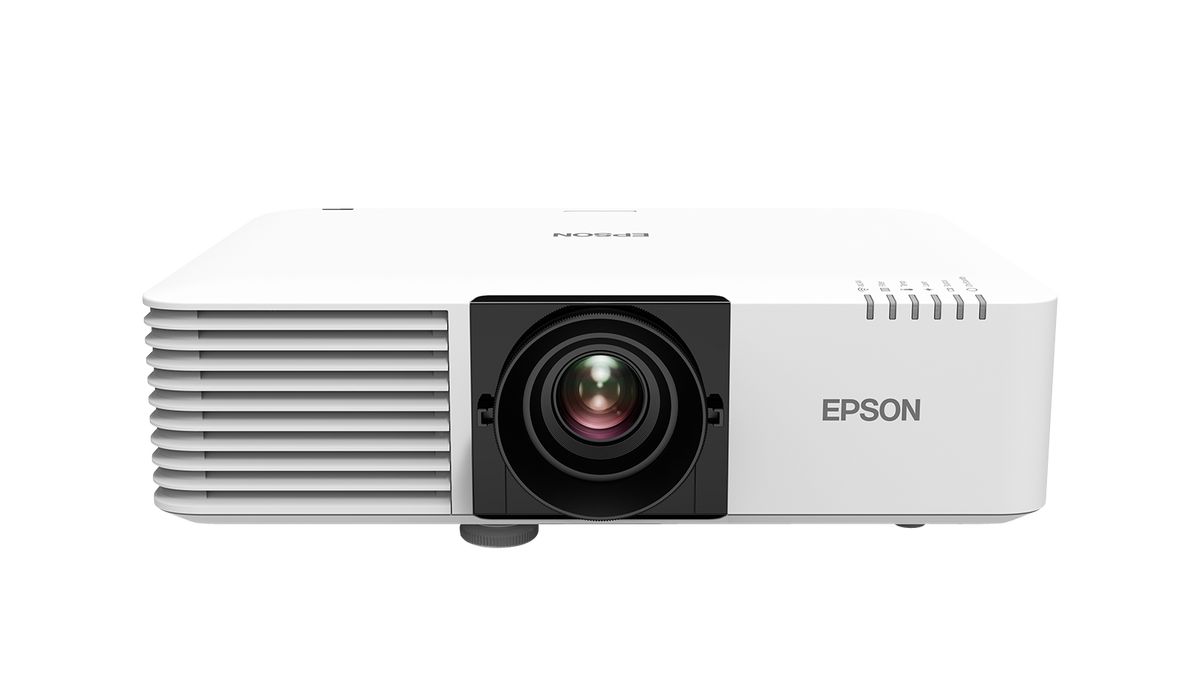

Epson EB-L520U: 5,200 Lumens WUXGA 3LCD Laser Projector for Meeting Rooms and Classrooms
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Epson EB-L520U at a Glance
- Brand
- Epson
- Model
- EB-L520U
- Part Number
- V11HA30040DA
- Category
- Projectors
- Solution
- Boardroom AV
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Epson EB-L520U Overview
The Epson EB-L520U is an Epson business and education projector with 5,200 lumens of colour brightness, WUXGA resolution and a laser light source. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Resolution: WUXGA
- Colour Light Output, Lumens: 5200 Lumens
- Colour Light Output, Luman (economy) in accodance with: 3640 Lumens
- Colour Light Output Testing Standard: In accordance with ISO 21118:2012
- Contrast Ratio, Ratio:1: 5000000
- Light Source (Visual product): Laser
- White Light Output, Lumens: 3640 Lumens
Technical Specifications:
| Spec | Value |
|---|---|
| Model | EB-L520U |
| Epson part number | V11HA30040DA |
| Brand | Epson |
| Projector Colour | White |
| Loudspeaker | 10 W |
| Noise Level -Normal | 31 dB (A) |
| Noise Level -Economy | 23 dB (A) |
| Options | Wireless transmitter, ELPWT01 |
| Positioning | Desktop, Ceiling Mounted, Floor, Wall Mounted |
| Power consumption -(Normal On-Mode) | 234 W |
| Power consumption- (Eco On-Mode) | 164 W |
| Power consumption, (Energy saving standby) | 0.3 W |
| Product Dimensions | 440 x 122 x 304 mm (Width x Depth x Height) |
| Product Range | E9 |
| Room Type / Application | Boardroom, Home Cinema, Home Office, Large Meeting Room / Auditorium, Meeting room / Classroom, Visitor Attraction, Signage / Retail |
| Single Unit | ZN |
| Supply Voltage | 100 V to 240 V, 50 Hz to 60 Hz |
| Supported Humidity, Operation (from) | 20 % |
| Supported Humidity, Operation (to) | 80 % |
| Supported Humidity, Storage (from) | 10 % |
| Supported Humidity, Storage (to) | 90 % |
| Supported Temperature, Operation (to) | 45 |
| Supported Temperature, Storage (from) | -10 C |
| Supported Temperature, Storage (to) | 60 C |
| TCO Certified | Yes |
| LCD Panel (Type) | 0.67 inches with |
| LCD Panel | C2 Fine |
| Projection System | 3LCD Technology, RGB liquid crystal shutter |
| Resolution | WUXGA |
| Epson iProjection App | Ad-Hoc / Infrastructure |
| Included Software | EasyMP Multi PC Projection |
| Warranty (Months) | 36 Months Carry-in |
| 2D Colour Modes | Dynamic, Presentation, sRGB, DICOM SIM, Cinema |
| Projector control | Crestron, AMX, Control4, AMX Device Discovery, Control4 Simple Device Discovery Protocol, Extron IP Link, Extron XTP, Crestron Integrated Partner |
| Security (Visual product) | Kensington lock, Wireless LAN unit lock, Security cable hole, Padlock |
| Video Colour Modes | Cinema, Dynamic, DICOM SIM, sRGB, Presentation |
| Colour Light Output, Lumens | 5200 Lumens |
| Colour Light Output, Luman (economy) in accodance with | 3640 Lumens |
| Colour Light Output Testing Standard | In accordance with ISO 21118:2012 |
| Colour Reproduction (Projector) | Upto 1.07 billion colours |
| Colour Video Processing | 10 Bits Color |
| Contrast Ratio, Ratio:1 | 5000000 |
| High Definition | Full HD |
| Keystone Correction Type (Horizontal) | manual |
| Keystone Correction Angle (Horizontal) | 30 |
| Keystone Correction Type (Vertical) | manual |
| Keystone Correction Angle (Vertical) | 30 |
| Laser Lightsource -Durability High | 20000 hr |
| Laser Lightsource -Durability Eco | 30000 hr |
| Light Source (Visual product) | Laser |
| Pixel Numbers | 2304000 |
| White Light Output, Lumens | 3640 Lumens |
| White Light Output, Lumens (economy) in accodance with | 3640 Lumens |
| White Light Output Testing Standard | In accordance with ISO 21118:2020 |
| Lens | Optical |
| Offset | 27 |
| Projection Lens F Number from | 1.5 |
| Projection Lens F Number to | 1.7 |
| Projection Lens Focal Length (From) | 20 |
| Projection Lens Focal Length (To) | 31.8 mm |
| Projection Lens Focus | Manual |
| Projection Lens Zoom Ratio from | 1.35 |
| Projection Lens Zoom Ratio to | 2.2 |
Why Buy the Epson EB-L520U from Trianze Tech?
- Genuine Epson projector from Trianze Tech, sourced through authorized channels with local UAE support
- Pre-sales help matching the EB-L520U to your room size, screen and seating distance
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Projector screen and ceiling mount advice from our installation team
What's Included and Support
Frequently asked
Epson EB-L520U: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
The Epson EB-L520U is an Epson business and education projector with 5,200 lumens of colour brightness, WUXGA resolution and a laser light source. Trianze Tech supplies it in the UAE with project advice.
For the Epson EB-L520U, Epson lists the following. Resolution: WUXGA; Colour Light Output, Lumens: 5200 Lumens; Colour Light Output, Luman (economy) in accodance with: 3640 Lumens; Colour Light Output Testing Standard: In accordance with ISO 21118:2012; Contrast Ratio, Ratio:1: 5000000; Light Source (Visual product): Laser.
For the Epson EB-L520U, Epson lists the following. Throw Ratio from: 1.35; Throw Ratio to: 2.2; Screen Size from: 50 in; Screen Size to: 500 in; Lens: Optical.
For the Epson EB-L520U, Epson lists the following. Product Dimensions: 440 x 122 x 304 mm (Width x Depth x Height); Power consumption -(Normal On-Mode): 234 W; Power consumption- (Eco On-Mode): 164 W; Power consumption, (Energy saving standby): 0.3 W; Supply Voltage: 100 V to 240 V, 50 Hz to 60 Hz.
The Epson UAE SKU is V11HA30040DA. Quote this code when you call or message Trianze Tech so we match the exact Epson product and bundle.
Trianze Tech stocks the Epson EB-L520U in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
