Epson EB-805F at a Glance

Brand: Epson
Model: EB-805F
Part Number: V11H923640DA
Category: Projectors
Solution: Boardroom AV
Supply: Dubai, Abu Dhabi and across the UAE
Pricing: Quoted per project

Applications & Use Cases

Boardrooms and meeting rooms
Classrooms and training rooms
Huddle spaces and portable presentations
Corporate and education installations

Epson EB-805F Overview

The Epson EB-805F is an Epson business and education projector with 5,000 lumens of colour brightness, 1080p resolution and a laser light source. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.

Key Features:

Resolution: 1080p
Colour Light Output, Lumens: 5000 Lumens
Colour Light Output, Luman (economy) in accodance with: 3500 Lumens
Colour Light Output Testing Standard: In accordance with ISO 21118:2012
Contrast Ratio, Ratio:1: 5000000
Contrast Ratio, Absolute black: Absolute black
Light Source (Visual product): Laser

Technical Specifications:

Spec	Value
Model	EB-805F
Epson part number	V11H923640DA
Brand	Epson
Projector Colour	Black
Heat Dissipation	1244 BTUperhour
Loudspeaker	8 W
Loudspeaker Type	Stereo
Noise Level -Normal	36 dB (A)
Noise Level -Economy	27 dB (A)
Options	Wireless LAN unit
Positioning	Ceiling Mounted, Desktop, Wall Mounted
Power consumption -(Normal On-Mode)	293 W
Power consumption- (Eco On-Mode)	194 W
Power consumption, (Energy saving standby)	0.5 W
Product Dimensions	458 x 375 x 209.5 mm (Width x Depth x Height)
Product Range	E9

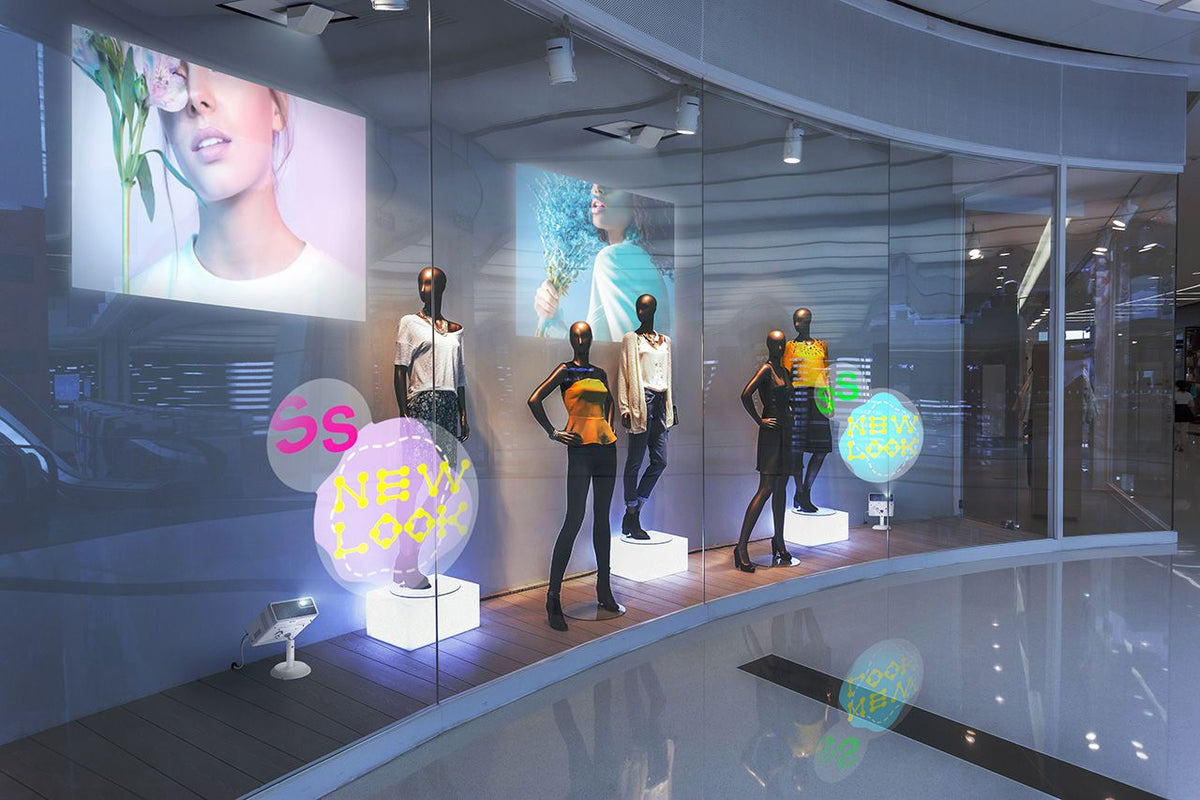

Room Type / Application	Signage / Retail, Visitor Attraction
Single Unit	ZN
Supply Voltage	220 V to 240 V, 50 Hz to 60 Hz
Supported Humidity, Operation (from)	20 %
Supported Humidity, Operation (to)	80 %
Supported Humidity, Storage (from)	10 %
Supported Humidity, Storage (to)	90 %
Supported Temperature, Operation (to)	45
Supported Temperature, Storage (from)	-10 C
Supported Temperature, Storage (to)	60 C
LCD Panel (Type)	0.62 inches with
LCD Panel	C2 Fine
Projection System	3LCD Technology
Resolution	1080p
Epson iProjection App	Ad-Hoc / Infrastructure
Included Software	Epson Creative Projection, EasyMP Multi PC Projection, Epson Projector Management, Epson Projector Content Manager
Network Protocol	HTTPS, IPv6, SNMP, PJLink, ESC/VP.net
Network Protocol (Projector)	HTTPS, IPv6, SNMP, PJLink, ESC/VP.net
USB Display Function	2 in 1: Image/ Sound
Warranty (Months)	60 Months Carry-in
Warranty (Hours)	12000 hr
Projector control	Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol, Crestron Integrated Partner, Crestron RoomView
Security (Visual product)	Kensington lock, Security cable hole, Password lock, Password protection, Padlock
Video Colour Modes	Cinema, Dynamic, Presentation, sRGB, Blackboard, DICOM SIM, Multi Projection
Colour Light Output, Lumens	5000 Lumens
Colour Light Output, Luman (economy) in accodance with	3500 Lumens
Colour Light Output Testing Standard	In accordance with ISO 21118:2012
Colour Reproduction (Projector)	Upto 1.07 billion colours
Colour Video Processing	10 Bits Color
Contrast Ratio, Ratio:1	5000000
Contrast Ratio, Absolute black	Absolute black
Keystone Correction Type (Horizontal)	manual
Keystone Correction Angle (Horizontal)	3
Keystone Correction Type (Vertical)	manual
Keystone Correction Angle (Vertical)	3
Laser Lightsource -Durability High	20000 hr
Laser Lightsource -Durability Eco	30000 hr
Light Source (Visual product)	Laser
White Light Output, Lumens	3500 Lumens
White Light Output, Lumens (economy) in accodance with	3500 Lumens
White Light Output Testing Standard	In accordance with ISO 21118:2020
Lens	Optical
Offset	9
Projection Distance from	0.8 m
Projection Distance screen size	130 inch screen
Projection Distance Wide from	0.4 m
Projection Distance Wide screen size	65 inch screen

Why Buy the Epson EB-805F from Trianze Tech?

Genuine Epson projector from Trianze Tech, sourced through authorized channels with local UAE support
Pre-sales help matching the EB-805F to your room size, screen and seating distance
Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
Projector screen and ceiling mount advice from our installation team

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

What's Included and Support

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Package Contents

Epson EB-805F projector (UAE part number V11H923640DA)
Full package contents, cables and remote are confirmed by Trianze Tech at order

Warranty

Epson lists a 60 Months Carry-in warranty for the EB-805F
Trianze Tech supports UAE installations and can advise on claims

Sustainability

Power consumption: 293 W
Noise level: 36 dB (A)

Expandability

Works with Epson lenses, mounts and accessories listed for the model
Trianze Tech can confirm accessory compatibility before you order

Distribution

Supplied by Trianze Tech in Dubai and Abu Dhabi
Delivery across the UAE and to other GCC countries on request

Suggested Mounting Accessories

Projector ceiling mount: VSYS VPM-2G Universal Projector Ceiling Mount. Confirm the projector weight and the mount load rating before ordering.
Fixed frame projection screen: VSYS PEGA120 fixed frame projection screen, 120 inch, 16:9. VSYS fixed frame screens come in 120, 135 and 150 inch, all 16:9; ultra short throw projectors need a rigid, flat fixed frame screen.

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Frequently asked

Epson EB-805F: Frequently Asked Questions

If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.

Still have questions?

Talk to a consultant. Most queries are answered in a 15-minute call.

The Epson EB-805F is an Epson business and education projector with 5,000 lumens of colour brightness, 1080p resolution and a laser light source. Trianze Tech supplies it in the UAE with project advice.

For the Epson EB-805F, Epson lists the following. Resolution: 1080p; Colour Light Output, Lumens: 5000 Lumens; Colour Light Output, Luman (economy) in accodance with: 3500 Lumens; Colour Light Output Testing Standard: In accordance with ISO 21118:2012; Contrast Ratio, Ratio:1: 5000000; Contrast Ratio, Absolute black: Absolute black.

For the Epson EB-805F, Epson lists the following. Throw Ratio from: 0.27; Throw Ratio to: 0.37; Screen Size from: 65 in; Screen Size to: 130 in; Lens: Optical.

For the Epson EB-805F, Epson lists the following. USB Display Function: 2 in 1: Image/ Sound; Network Protocol: HTTPS, IPv6, SNMP, PJLink, ESC/VP.net; Network Protocol (Projector): HTTPS, IPv6, SNMP, PJLink, ESC/VP.net.

For the Epson EB-805F, Epson lists the following. Product Dimensions: 458 x 375 x 209.5 mm (Width x Depth x Height); Power consumption -(Normal On-Mode): 293 W; Power consumption- (Eco On-Mode): 194 W; Power consumption, (Energy saving standby): 0.5 W; Supply Voltage: 220 V to 240 V, 50 Hz to 60 Hz.

Trianze Tech stocks the Epson EB-805F in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
