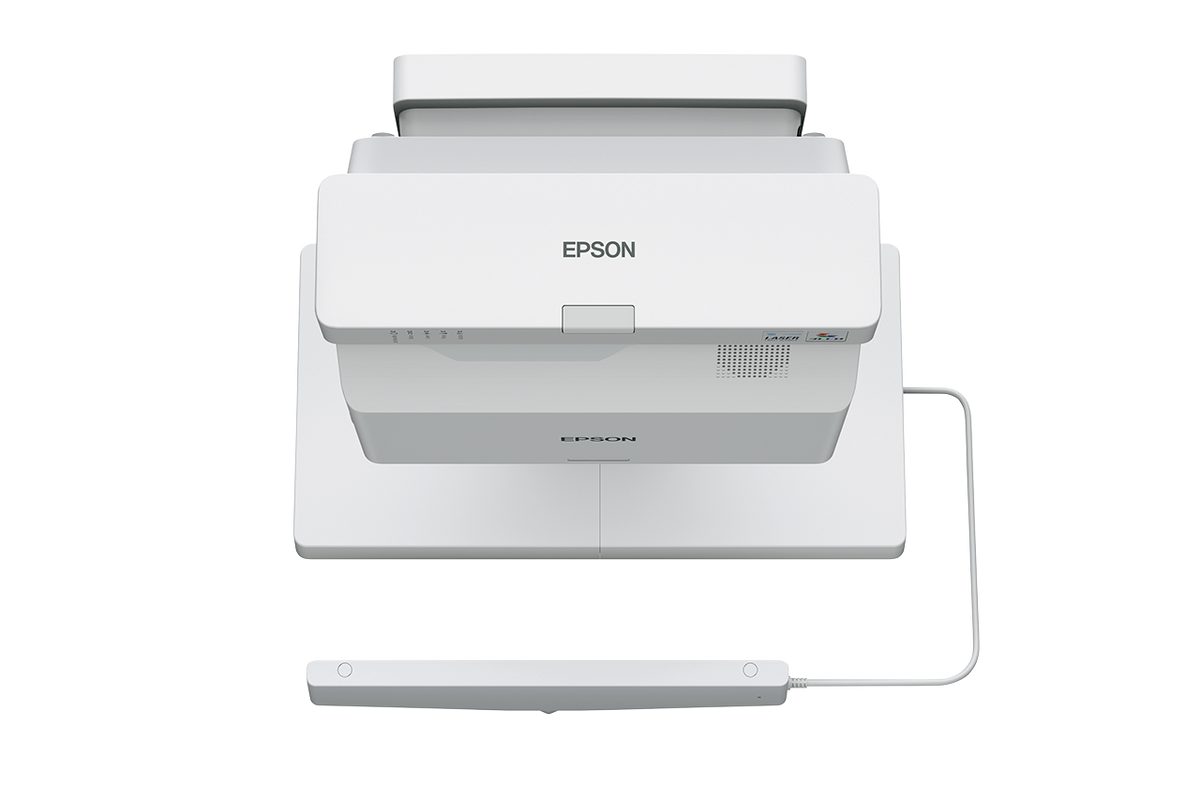

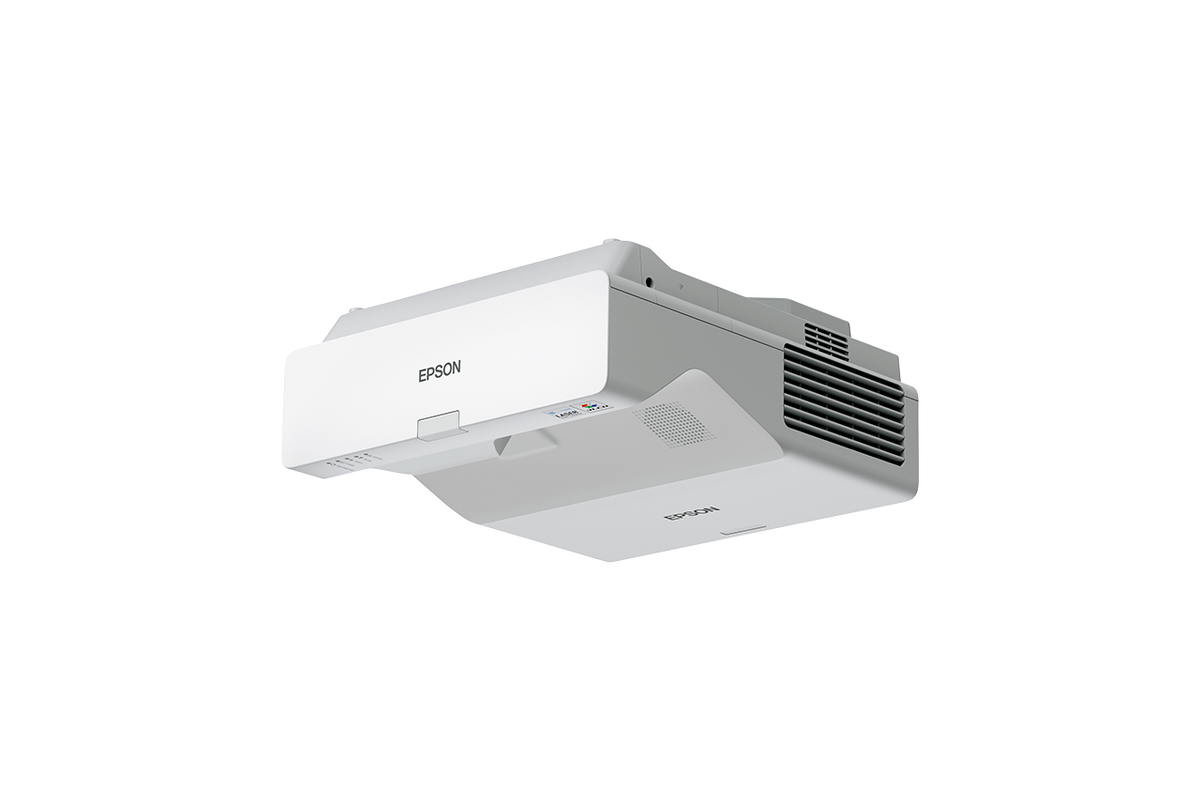

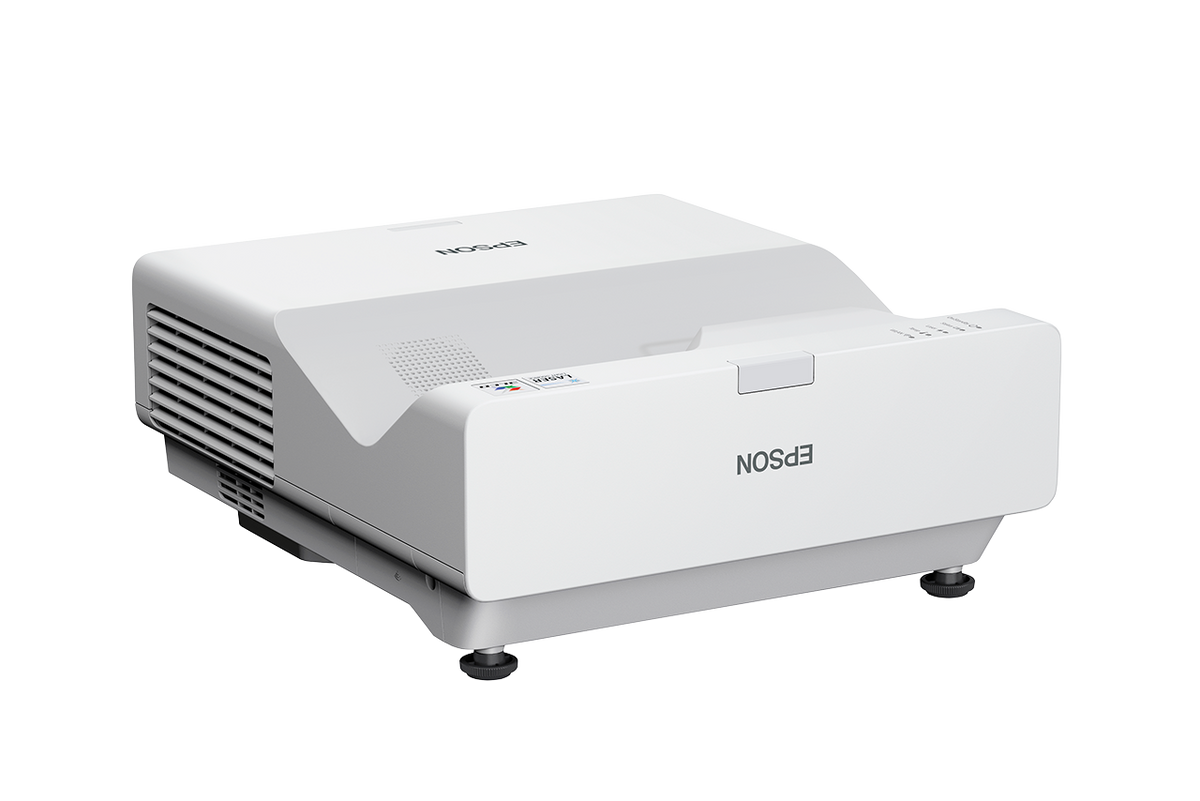

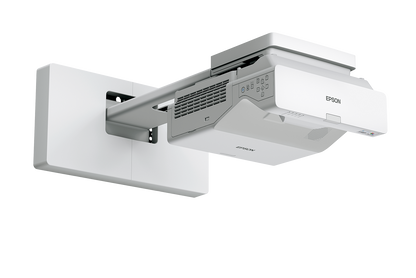

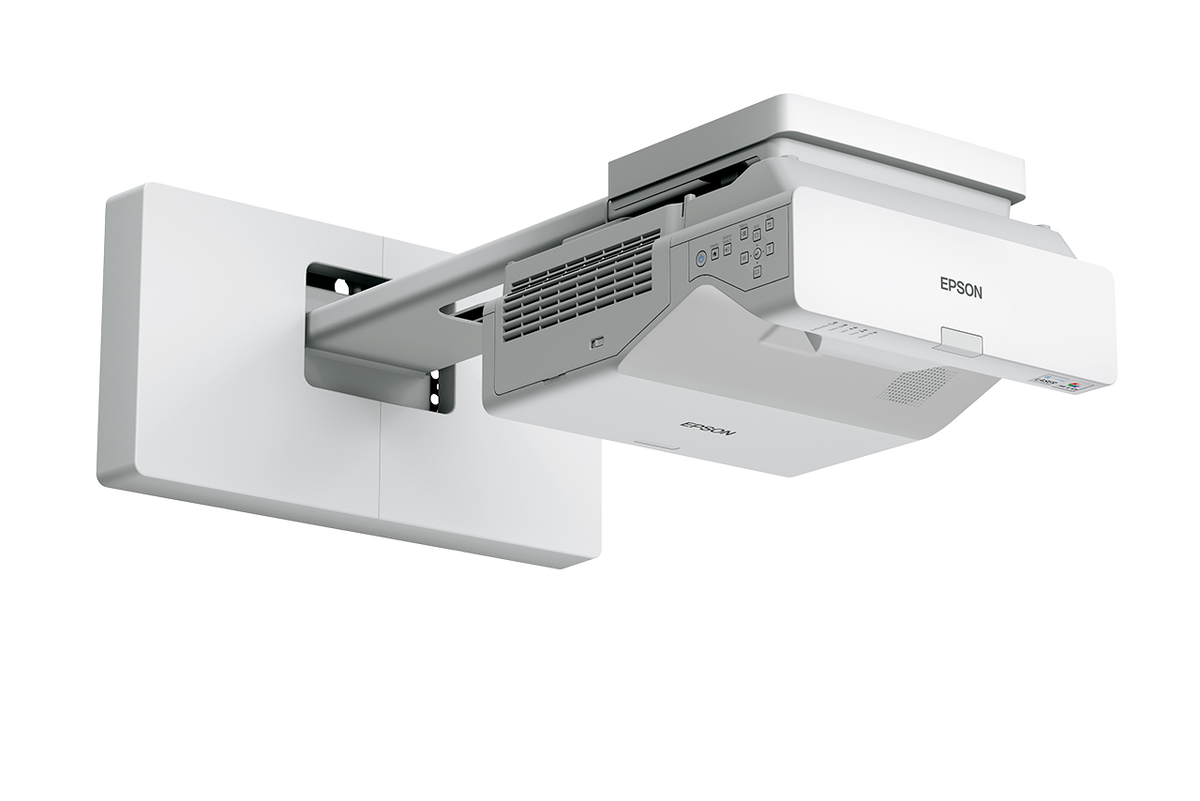

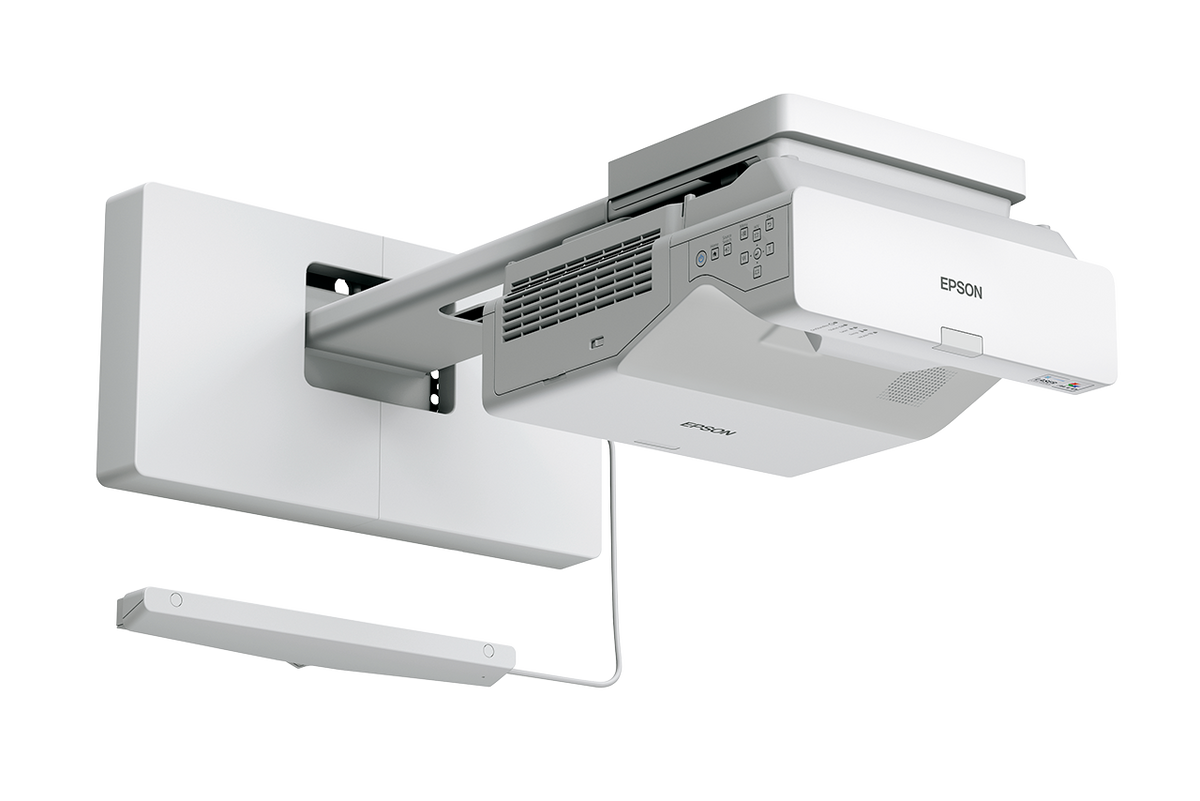

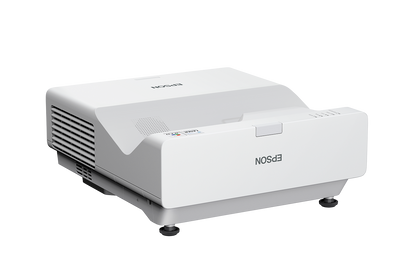

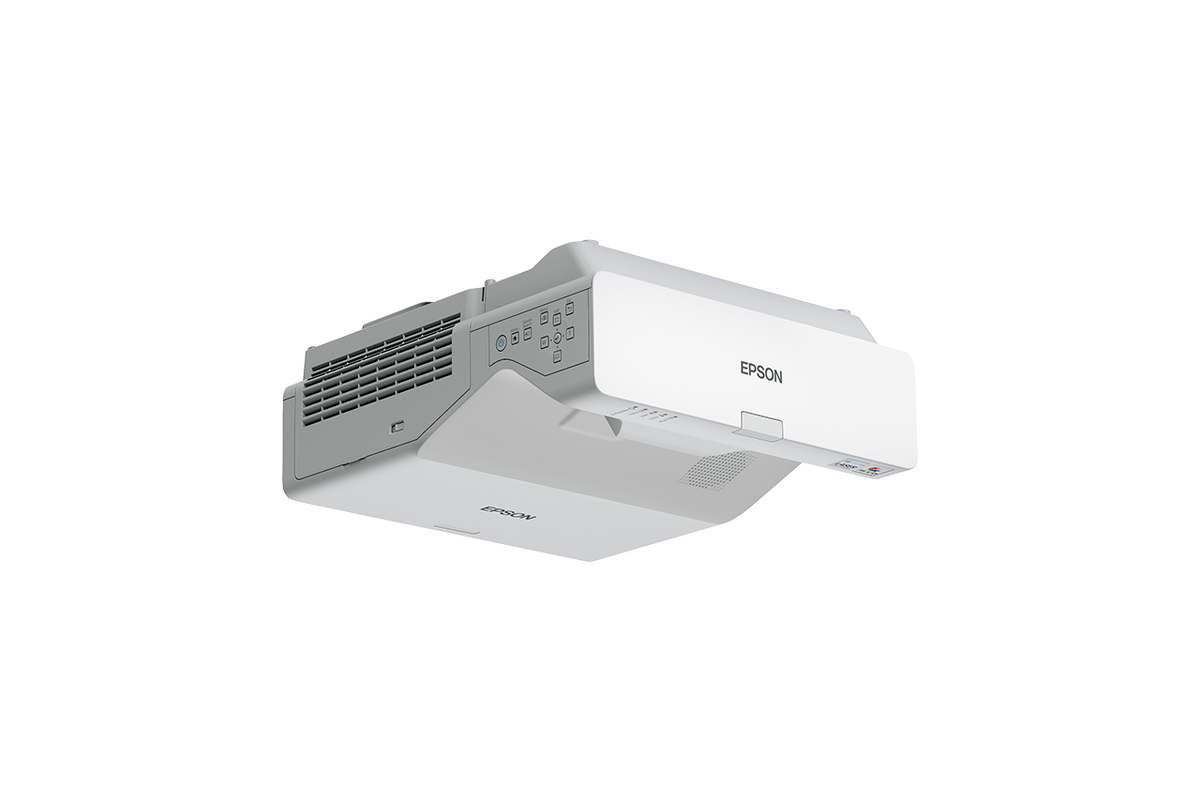

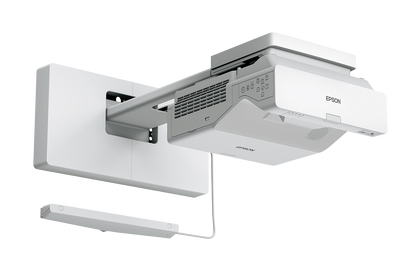

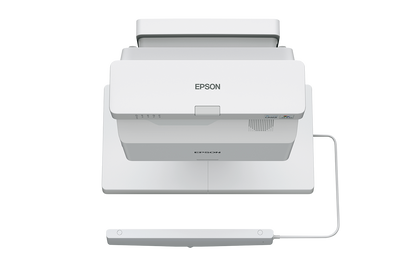

Epson EB-770FI: 4,100 Lumens 1080p 3LCD Laser Projector for Meeting Rooms and Classrooms
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Epson EB-770FI at a Glance
- Brand
- Epson
- Model
- EB-770FI
- Part Number
- V11HA78080DA
- Category
- Projectors
- Solution
- Boardroom AV
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Epson EB-770FI Overview
The Epson EB-770FI is an Epson business and education projector with 4,100 lumens of colour brightness, 1080p resolution and a laser light source. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Resolution: 1080p
- Colour Light Output, Lumens: 4100 Lumens
- Colour Light Output, Luman (economy) in accodance with: 2800 Lumens
- Colour Light Output Testing Standard: In accordance with ISO 21118:2012
- Contrast Ratio, Ratio:1: 5000000
- Contrast Ratio, Absolute black: Absolute black
- Light Source (Visual product): Laser
Technical Specifications:
| Spec | Value |
|---|---|
| Model | EB-770FI |
| Epson part number | V11HA78080DA |
| Brand | Epson |
| Projector Colour | White |
| Heat Dissipation | 895 BTUperhour |
| Loudspeaker | 16 W |
| Noise Level -Normal | 37 dB (A) |
| Noise Level -Economy | 27 dB (A) |
| Options | Safety wire set |
| Positioning | Ceiling Mounted, Desktop, Wall Mounted |
| Power consumption -(Normal On-Mode) | 199 W |
| Power consumption- (Eco On-Mode) | 141 W |
| Power consumption, (Energy saving standby) | 0.5 W |
| Product Dimensions | 356 x 395 x 133 mm (Width x Depth x Height) |
| Product Range | E9 |
| Room Type / Application | Meeting room / Classroom |
| Single Unit | ZN |
| Supply Voltage | 100 V to 240 V, 50 Hz to 60 Hz |
| Supported Humidity, Operation (from) | 20 % |
| Supported Humidity, Operation (to) | 80 % |
| Supported Humidity, Storage (from) | 10 % |
| Supported Humidity, Storage (to) | 90 % |
| Supported Temperature, Operation (to) | 40 |
| Supported Temperature, Storage (from) | -10 C |
| Supported Temperature, Storage (to) | 60 C |
| TCO Certified | Yes |
| LCD Panel (Type) | 0.62 inches with |
| LCD Panel | C2 Fine |
| Projection System | 3LCD Technology, RGB liquid crystal shutter |
| Resolution | 1080p |
| Included Software | EasyMP Multi PC Projection, Easy Interactive Tools, Epson Projector Management |
| Network Protocol | HTTPS, IPv4, SNMP, IPv6, ESC/VP.net, PJLink |
| Network Protocol (Projector) | HTTPS, IPv4, SNMP, IPv6, ESC/VP.net, PJLink |
| Warranty (Months) | 60 Months Carry-in |
| Warranty (Hours) | 12000 hr |
| Interactivity | Yes, pen and finger-touch |
| Projector control | Crestron Integrated Partner, Crestron RoomView, Extron IP Link, AMX Device Discovery, Control4 Simple Device Discovery Protocol |
| Security (Visual product) | Kensington lock, Control panel lock, Security cable hole, Padlock, Wireless LAN security, Wireless LAN unit lock, Password protection, Password lock |
| Video Colour Modes | Blackboard, Cinema, Dynamic, Presentation, sRGB, DICOM SIM |
| Colour Light Output, Lumens | 4100 Lumens |
| Colour Light Output, Luman (economy) in accodance with | 2800 Lumens |
| Colour Light Output Testing Standard | In accordance with ISO 21118:2012 |
| Colour Reproduction (Projector) | Upto 1.07 billion colours |
| Colour Video Processing | 10 Bits Color |
| Contrast Ratio, Ratio:1 | 5000000 |
| Contrast Ratio, Absolute black | Absolute black |
| High Definition | Full HD |
| Keystone Correction Type (Horizontal) | manual |
| Keystone Correction Angle (Horizontal) | 3 |
| Keystone Correction Type (Vertical) | manual |
| Keystone Correction Angle (Vertical) | 3 |
| Laser Lightsource -Durability High | 20000 hr |
| Laser Lightsource -Durability Eco | 30000 hr |
| Light Source (Visual product) | Laser |
| White Light Output, Lumens | 2800 Lumens |
| White Light Output, Lumens (economy) in accodance with | 2800 Lumens |
| White Light Output Testing Standard | In accordance with ISO 21118:2020 |
| Lens | Optical |
| Offset | 5 |
| Projection Lens F Number to | 1.6 |
| Projection Lens Focal Length (To) | 3.7 mm |
| Projection Lens Focus | Manual |
| Screen Size from | 60 in |
Why Buy the Epson EB-770FI from Trianze Tech?
- Genuine Epson projector from Trianze Tech, sourced through authorized channels with local UAE support
- Pre-sales help matching the EB-770FI to your room size, screen and seating distance
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Projector screen and ceiling mount advice from our installation team
What's Included and Support
Frequently asked
Epson EB-770FI: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
The Epson EB-770FI is an Epson business and education projector with 4,100 lumens of colour brightness, 1080p resolution and a laser light source. Trianze Tech supplies it in the UAE with project advice.
For the Epson EB-770FI, Epson lists the following. Resolution: 1080p; Colour Light Output, Lumens: 4100 Lumens; Colour Light Output, Luman (economy) in accodance with: 2800 Lumens; Colour Light Output Testing Standard: In accordance with ISO 21118:2012; Contrast Ratio, Ratio:1: 5000000; Contrast Ratio, Absolute black: Absolute black.
For the Epson EB-770FI, Epson lists the following. Throw Ratio from: 0.25; Throw Ratio to: 0.35; Screen Size from: 60 in; Screen Size to: 100 in; Lens: Optical.
For the Epson EB-770FI, Epson lists the following. Network Protocol: HTTPS, IPv4, SNMP, IPv6, ESC/VP.net, PJLink; Network Protocol (Projector): HTTPS, IPv4, SNMP, IPv6, ESC/VP.net, PJLink.
For the Epson EB-770FI, Epson lists the following. Product Dimensions: 356 x 395 x 133 mm (Width x Depth x Height); Power consumption -(Normal On-Mode): 199 W; Power consumption- (Eco On-Mode): 141 W; Power consumption, (Energy saving standby): 0.5 W; Supply Voltage: 100 V to 240 V, 50 Hz to 60 Hz.
Trianze Tech stocks the Epson EB-770FI in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
