d&b audiotechnik Z5446.000: Mounting Adapter for Stand, Truss or Flown Use of d&b 16C and 24C Column Loudspeakers, Black
Model
:
Z5446.000 Mounting Adapter Column Black
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

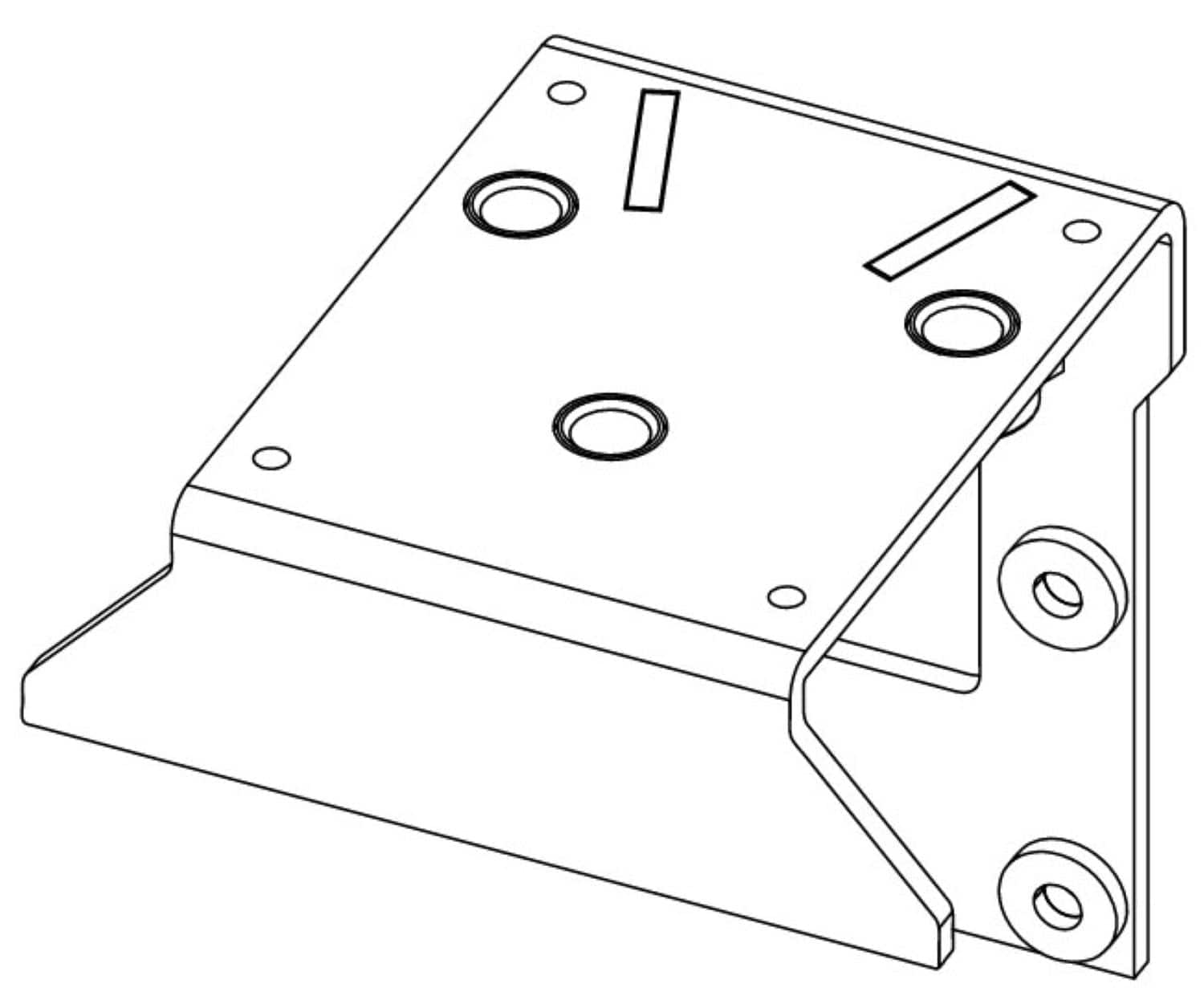

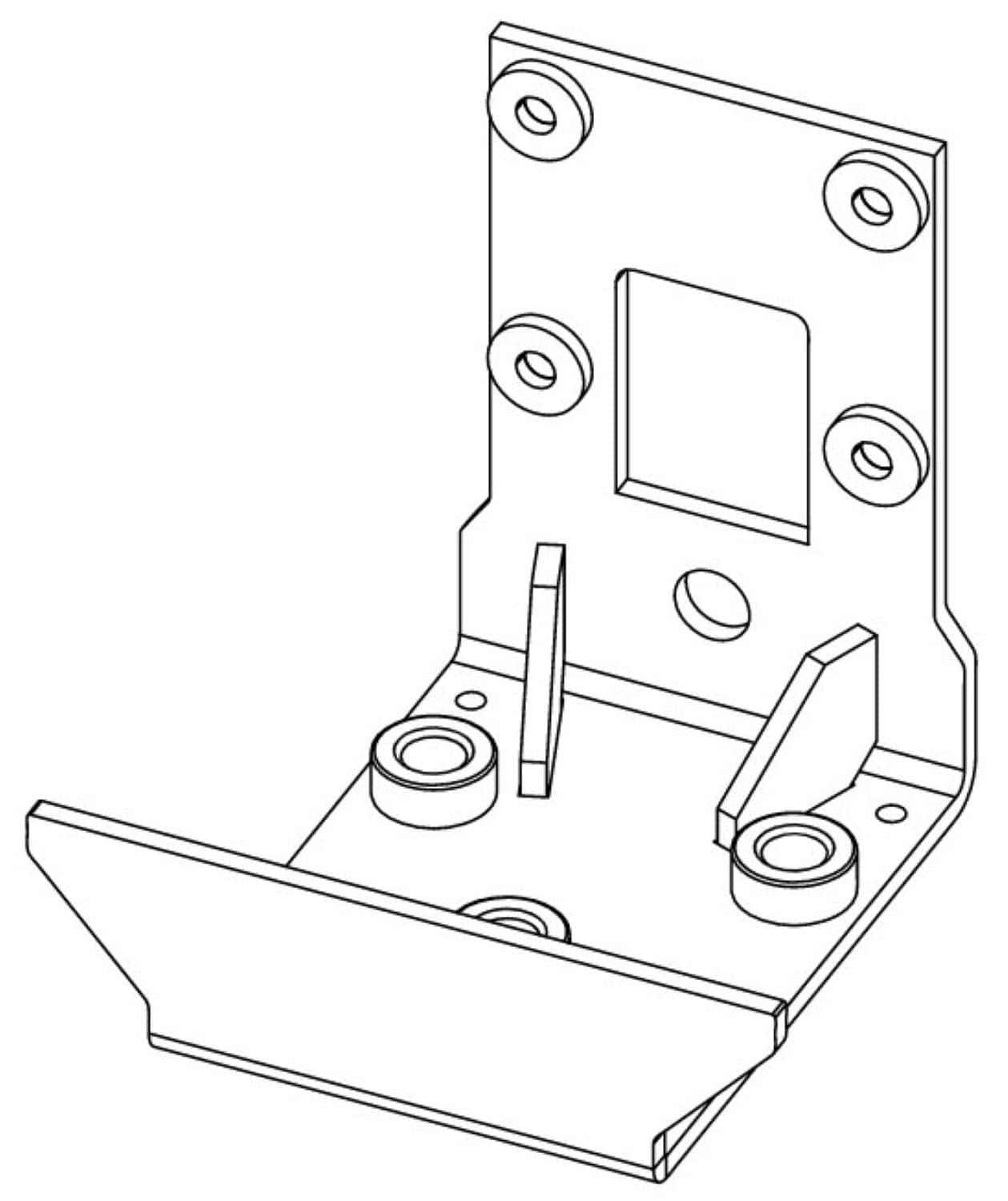

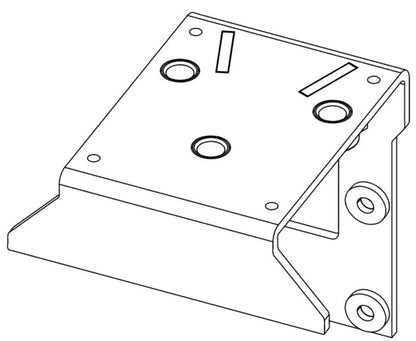

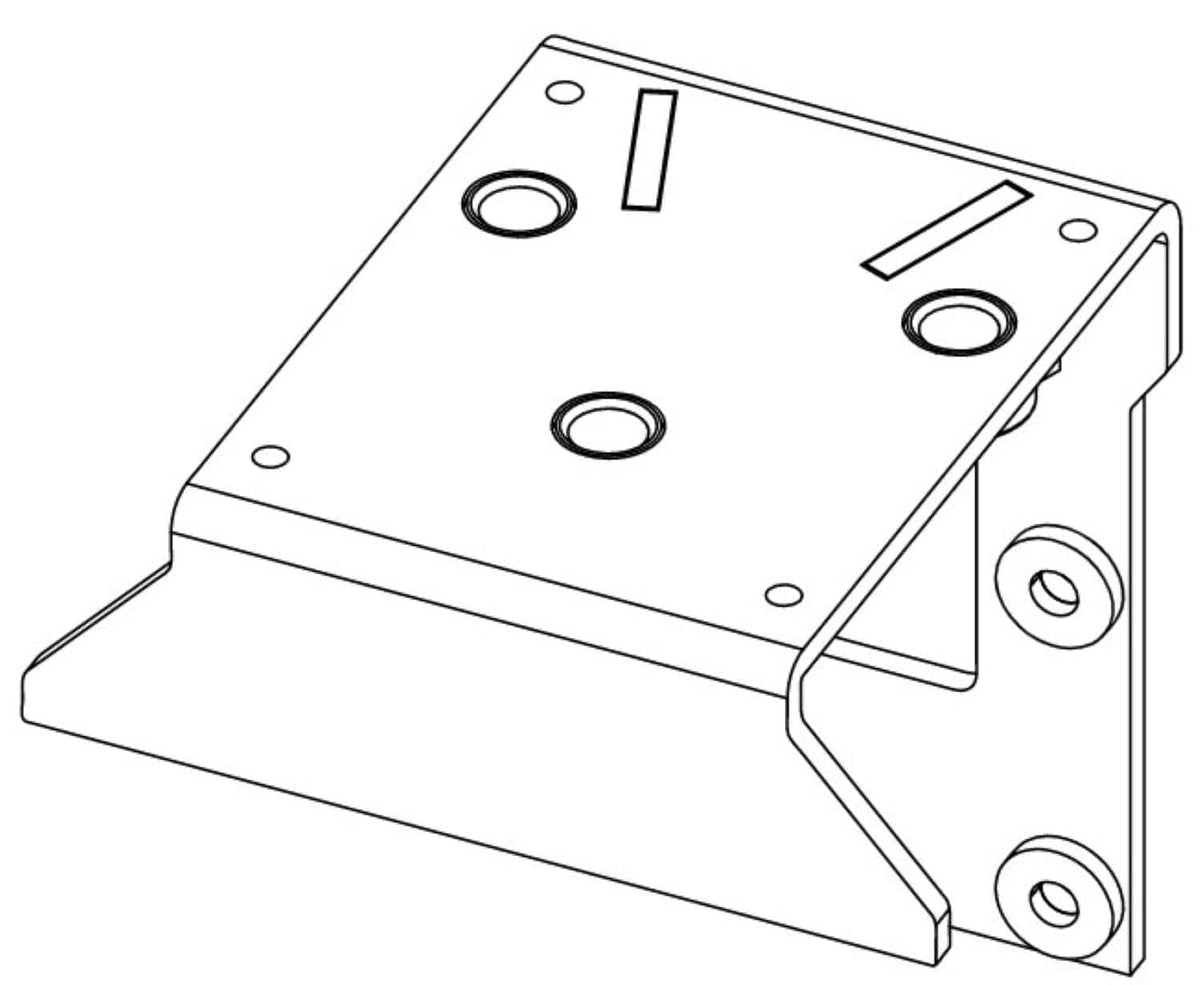

d&b audiotechnik Z5446.000 Mounting Adapter Column, Black
The d&b audiotechnik Z5446.000 Mounting Adapter Column must only be used with applicable d&b column loudspeakers. It combines with the Z5034 High stand adapter M10 for 16C columns, the Z5029 TV spigot M10 for 24C columns on lighting stands or with the Z5012 Pipe clamp on truss, and the Z5354 Flying adapter with a Z5015 TV spigot and Z5012 Pipe clamp, or an E6507 1 t shackle on steel wire ropes, for adjustable vertical aiming. It also takes a half coupler, so two adapters can attach a column vertically to bars or truss. Trianze Tech supplies the Z5446.000 in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Mounting adapter for d&b column loudspeakers
- Stand mounting with Z5034 (16C) or Z5029 (24C)
- Truss mounting with Z5029 and Z5012
- Adjustable flying with Z5354
- Takes a half coupler
- Black finish
Technical Specifications:
| Spec | Value |
|---|---|
| Model | Z5446.000 |
| Type | Column mounting adapter |
| Designed For | Applicable d&b column loudspeakers (16C, 24C named) |
| Stand Options | Z5034 (16C), Z5029 (24C) |
| Truss Options | Z5029 with Z5012, Z5354 with Z5015 and Z5012 |
| Wire Rope | Z5354 with E6507 1 t shackle |
| Color | Black |
Why Buy the d&b audiotechnik Z5446.000 Mounting Adapter Column Black from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the Z5446.000 Mounting Adapter Column Black with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik Z5446.000 must only be used with applicable d&b column loudspeakers. The mounting instructions name the 16C (with the Z5034) and the 24C (with the Z5029).
Yes. Use the Z5034 High stand adapter M10 for a 16C column, or the Z5029 TV spigot M10 to deploy a 24C column on a lighting stand.
With the Z5029 TV spigot M10 and Z5012 Pipe clamp the cabinet hangs aligned vertically. With the Z5354 Flying adapter, Z5015 TV spigot and Z5012 Pipe clamp the vertical aiming can be adjusted.
Yes. Combined with the Z5354 Flying adapter and an E6507 1 t shackle, the column can hang from steel wire ropes with adjustable vertical aiming.
The adapter accepts a half coupler. Using two adapters with half couplers, one at the top and one at the bottom, attaches the column vertically to bars or truss.
Trianze Tech supplies the d&b audiotechnik Z5446.000 Mounting Adapter Column Black in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
