d&b audiotechnik Z5410.000: Horizontal Bracket for d&b xS-Series 18S and 27S-SUB Subwoofers
Model
:
Z5410.000 18S/27S-SUB Horizontal Bracket
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

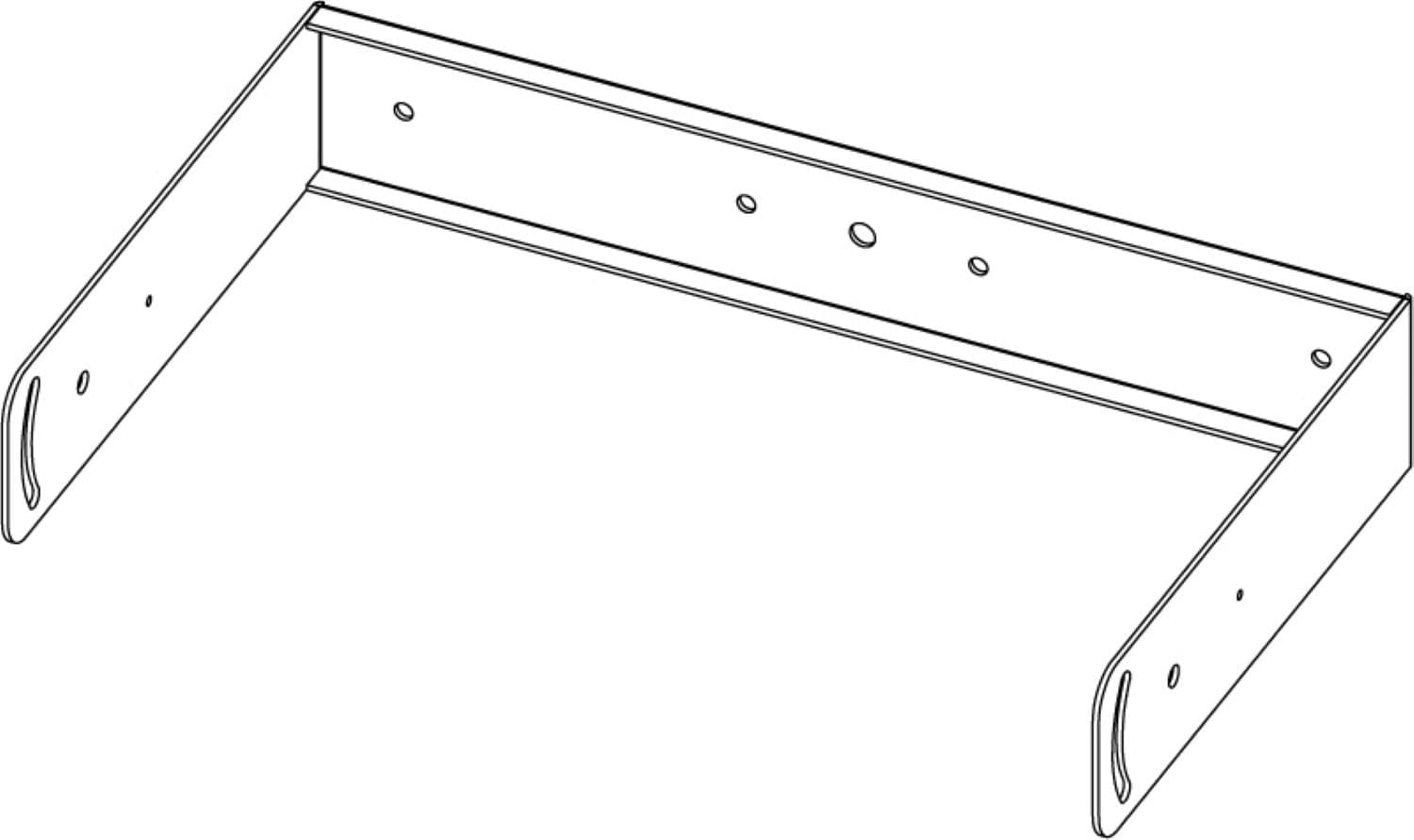

d&b audiotechnik Z5410.000 18S/27S-SUB Horizontal Bracket

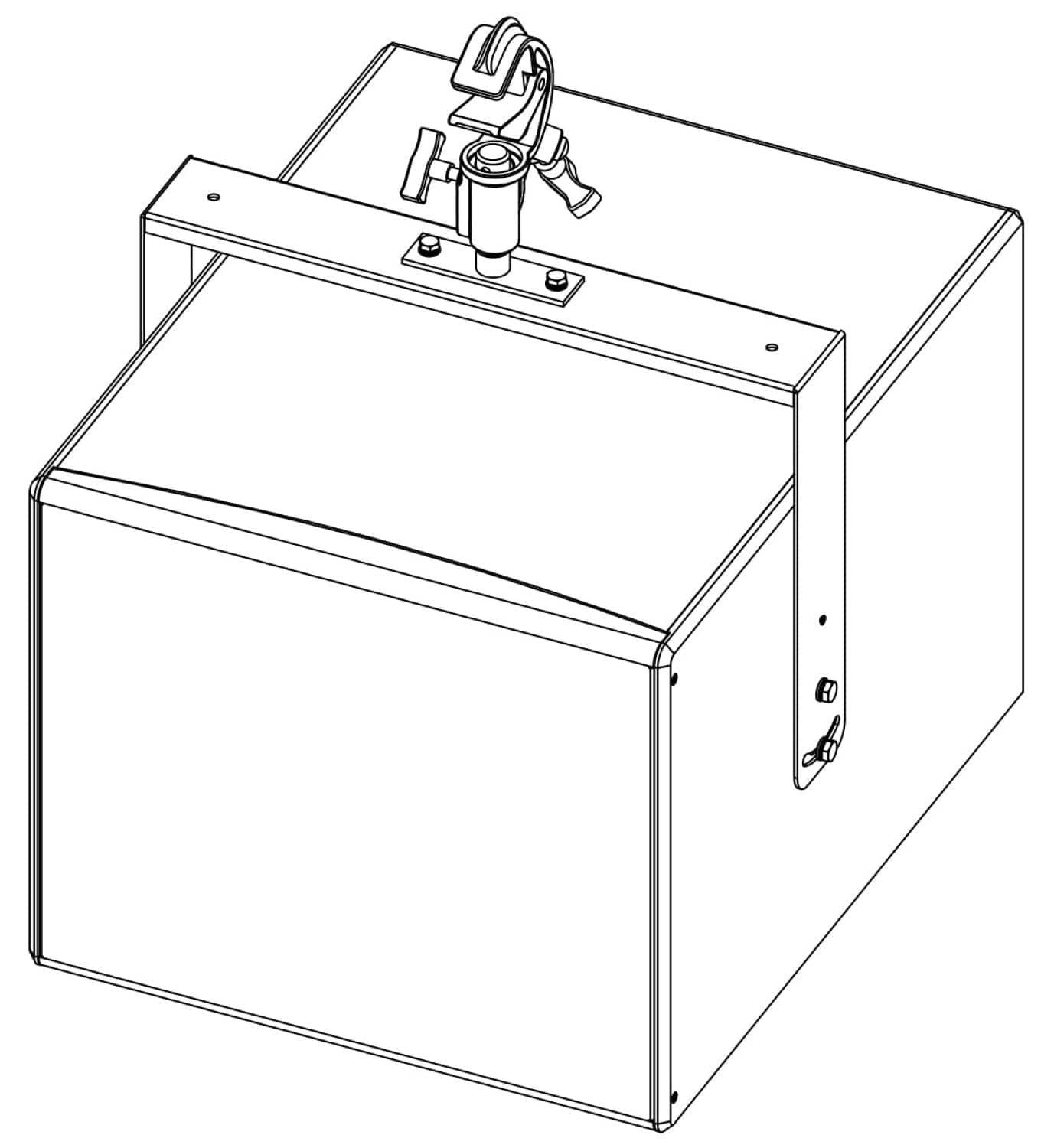

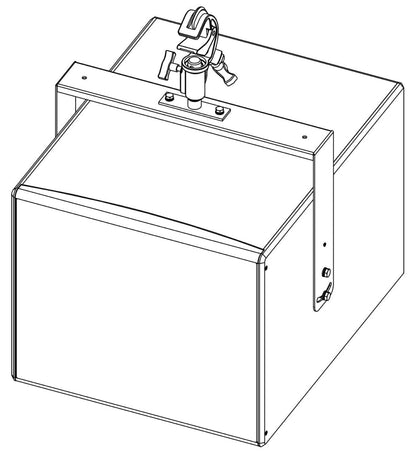

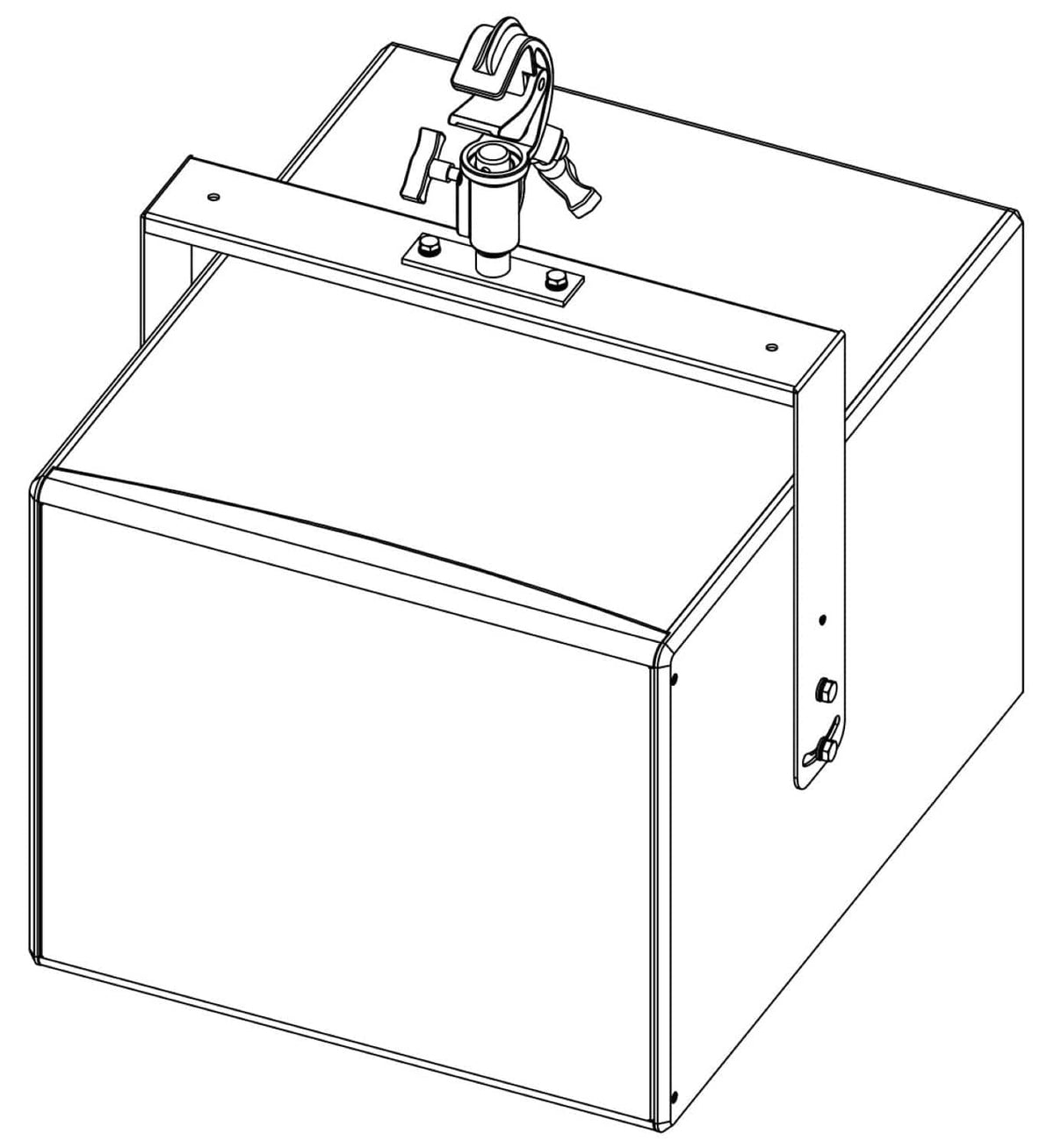

The d&b audiotechnik Z5410.000 Horizontal Bracket must only be used with the d&b xS-Series 18S and 27S-SUB subwoofers. It can be mounted directly to ceilings or flown horizontally, and mounted to bars and truss with a tube diameter of up to 70 mm (2.75 in) using the Z5010 TV spigot with fixing plate and the Z5012 pipe clamp. Trianze Tech supplies the Z5410.000 in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- For d&b 18S and 27S-SUB subwoofers only
- Direct ceiling mounting
- Horizontal flying option
- Bar and truss mounting up to 70 mm tube
- Uses Z5010 TV spigot and Z5012 pipe clamp
Technical Specifications:
| Spec | Value |
|---|---|
| Model | Z5410.000 |
| Type | Horizontal bracket |
| Designed For | d&b 18S and 27S-SUB |
| Mounting | Ceiling, horizontal flying, bar or truss |
| Tube Diameter | Up to 70 mm (2.75 in) with Z5010 and Z5012 |
| Brand | d&b audiotechnik |
Why Buy the d&b audiotechnik Z5410.000 18S/27S-SUB Horizontal Bracket from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the Z5410.000 18S/27S-SUB Horizontal Bracket with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik Z5410.000 Horizontal Bracket must only be used with the d&b xS-Series 18S and 27S-SUB subwoofers.
Yes. The d&b audiotechnik Z5410.000 can be mounted directly to ceilings or flown horizontally.
Using the Z5010 TV spigot with fixing plate and the Z5012 pipe clamp, the d&b audiotechnik Z5410.000 mounts to bars and truss with a tube diameter of up to 70 mm (2.75 in).
No. The d&b Z5010 TV spigot and Z5012 pipe clamp are separate parts used with the Z5410.000 for bar and truss mounting.
Yes. Z5410.000 is the d&b audiotechnik part number for the 18S/27S-SUB Horizontal Bracket.
