d&b audiotechnik Z5404.000: Flying Bracket for d&b xS-Series 8S Loudspeakers
Model
:
Z5404.000 8S Flying Bracket
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

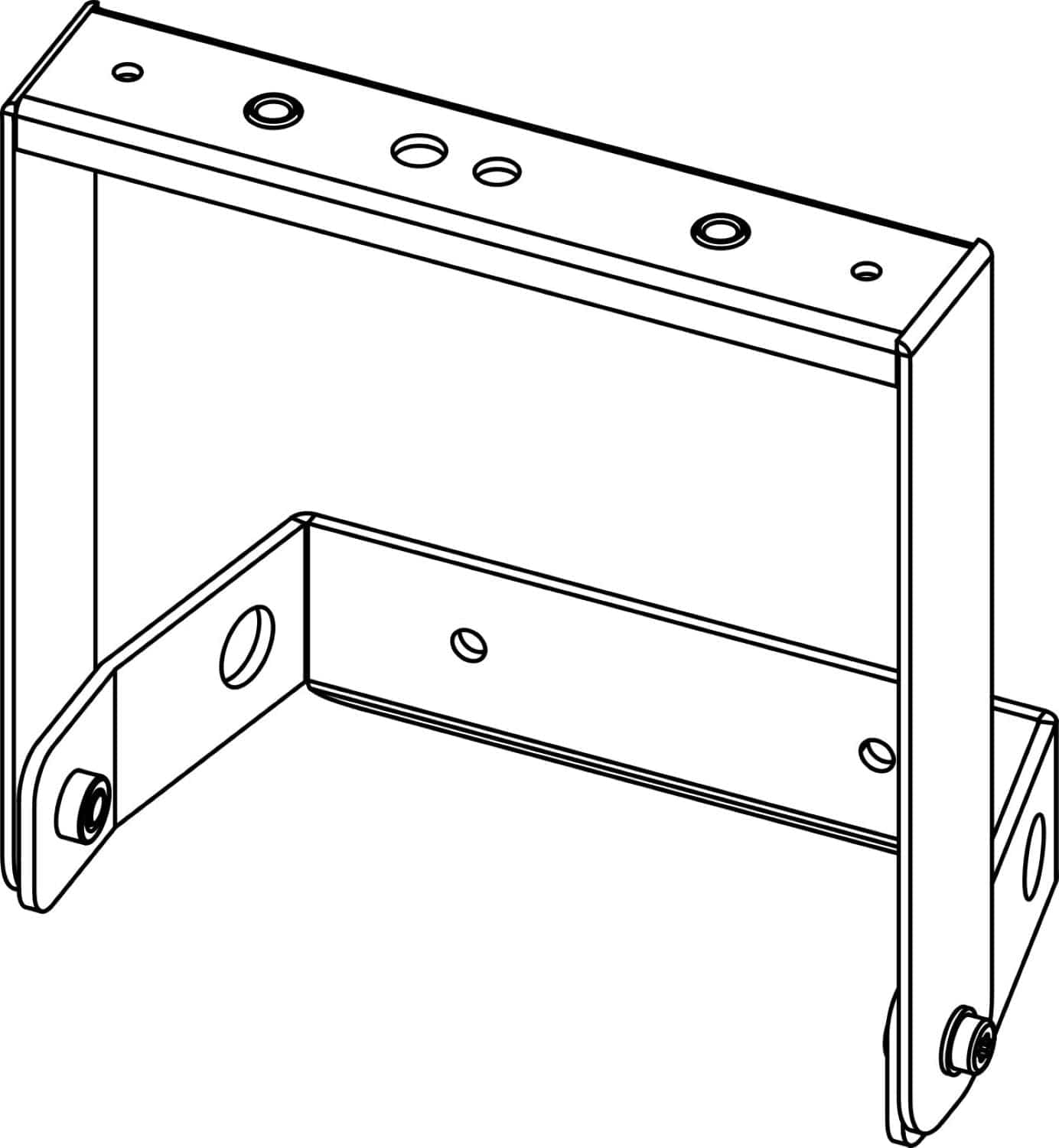

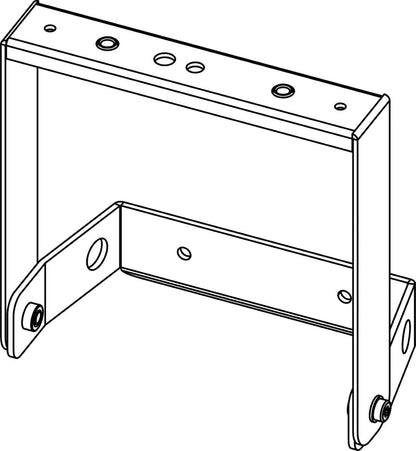

d&b audiotechnik Z5404.000 8S Flying Bracket

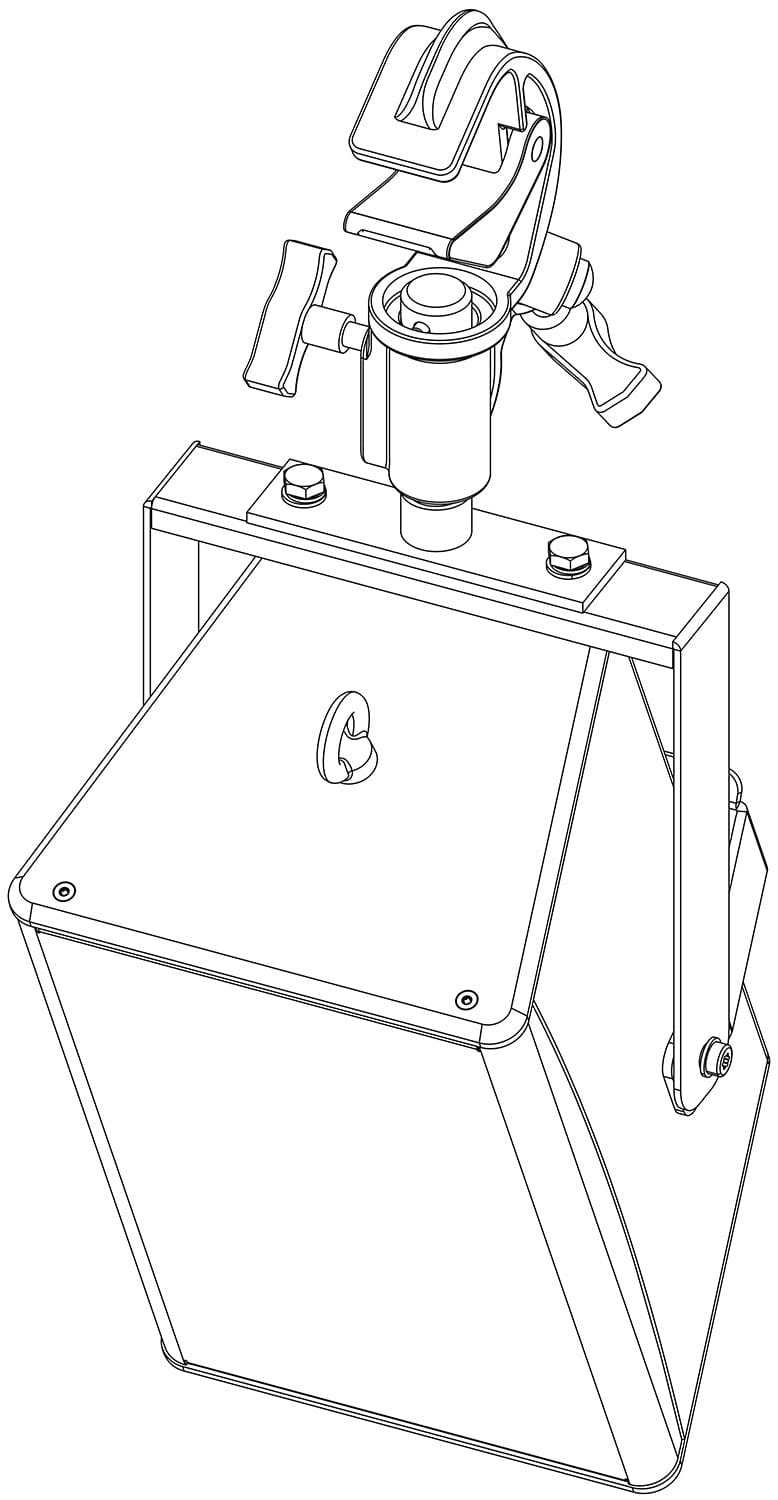

The d&b audiotechnik Z5404.000 is the 8S flying bracket from the d&b Z5404/05/06 range of flying brackets for the xS-Series 8S, 10S and 12S loudspeakers. It can be mounted directly to ceilings or flown vertically, and mounted to bars and truss with a tube diameter of up to 70 mm (2.75 in) using the Z5010 TV spigot and the Z5012 pipe clamp. Trianze Tech supplies the Z5404.000 in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Flying bracket for the d&b 8S
- Direct ceiling mounting
- Vertical flying option
- Bar and truss mounting up to 70 mm tube
- Uses Z5010 TV spigot and Z5012 pipe clamp
Technical Specifications:
| Spec | Value |
|---|---|
| Model | Z5404.000 |
| Type | Flying bracket |
| Designed For | d&b 8S |
| Mounting | Ceiling, vertical flying, bar or truss |
| Tube Diameter | Up to 70 mm (2.75 in) with Z5010 and Z5012 |
| Brand | d&b audiotechnik |
Why Buy the d&b audiotechnik Z5404.000 8S Flying Bracket from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the Z5404.000 8S Flying Bracket with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik Z5404.000 is the flying bracket for the d&b xS-Series 8S. Its sister brackets Z5405 and Z5406 serve the 10S and 12S.
Yes. The d&b audiotechnik Z5404.000 can be mounted directly to ceilings or flown vertically.
Using the Z5010 TV spigot and Z5012 pipe clamp, the d&b audiotechnik Z5404.000 mounts to bars and truss with a tube diameter of up to 70 mm (2.75 in).
No. The d&b Z5010 TV spigot and Z5012 pipe clamp are separate parts used for bar and truss mounting.
Yes. Z5404.000 is the d&b audiotechnik part number for the 8S Flying Bracket.
Trianze Tech supplies the d&b audiotechnik Z5404.000 8S Flying Bracket in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
