d&b audiotechnik Z5397.001: Swivel Bracket for Stand or Truss Mounting of d&b YP Loudspeakers
Model
:
Z5397.001 YP Swivel Bracket
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

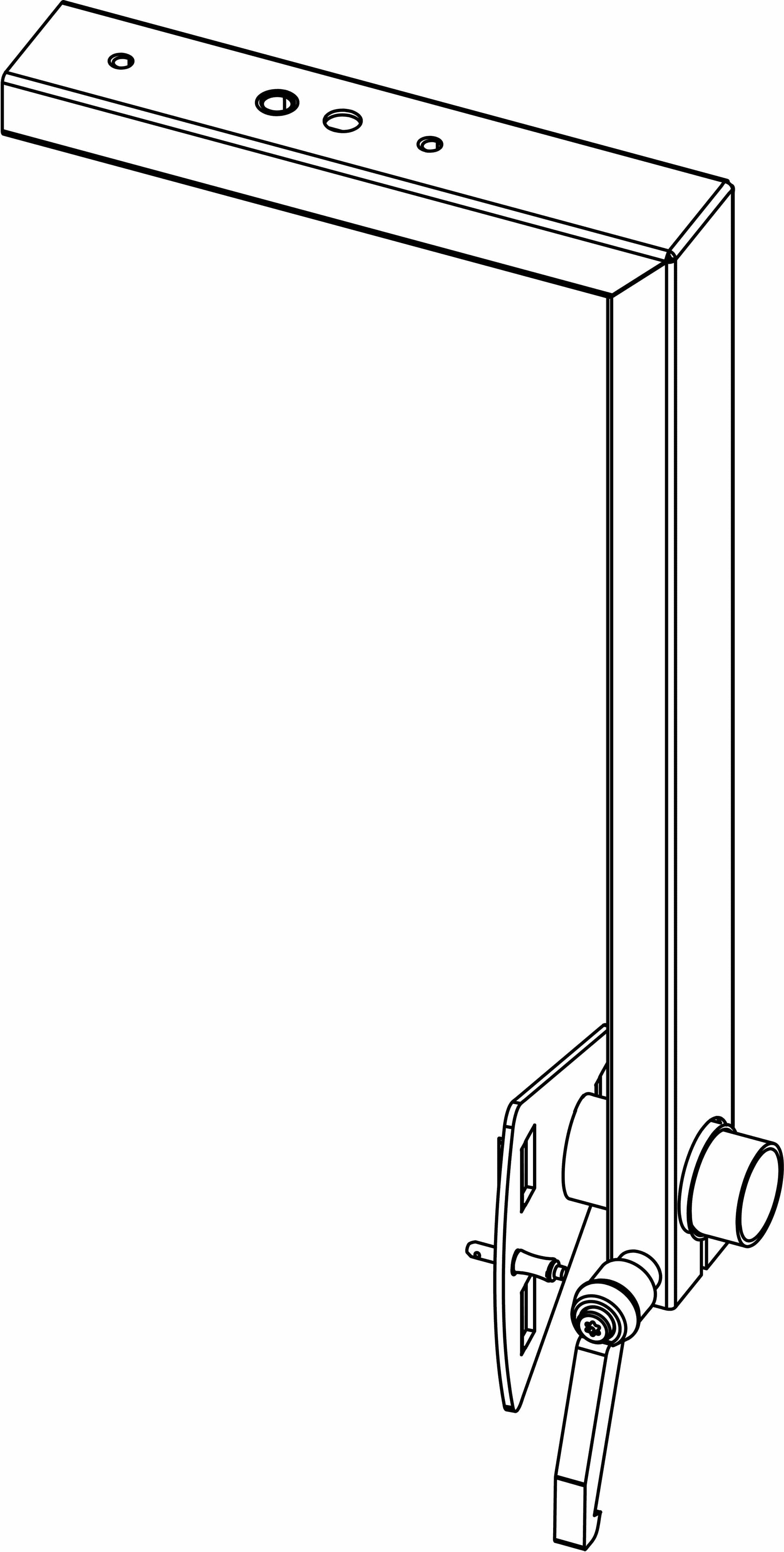

d&b audiotechnik Z5397.001 YP Swivel Bracket
The d&b audiotechnik Z5397.001 YP Swivel Bracket mounts YP cabinets with continuously adjustable horizontal and vertical aiming. With the Z5024 Loudspeaker stand adapter it fits stands with a 35 mm (1.4 in) tube, and with the Z5010 TV spigot and Z5012 Pipe clamp it flies YP cabinets vertically from bars or truss of 40 mm to 70 mm tube diameter. Trianze Tech supplies the Z5397.001 in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Swivel bracket for d&b YP loudspeakers
- Continuous horizontal and vertical aiming
- Stand mounting with Z5024
- Truss flying with Z5010 and Z5012
- Original d&b audiotechnik accessory
Technical Specifications:
| Spec | Value |
|---|---|
| Model | Z5397.001 |
| Type | Swivel bracket |
| Designed For | d&b YP cabinets |
| Aiming | Continuous horizontal and vertical |
| Stand Tube | 35 mm with Z5024 |
| Truss Tube | 40 to 70 mm with Z5010 and Z5012 |
Why Buy the d&b audiotechnik Z5397.001 YP Swivel Bracket from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the Z5397.001 YP Swivel Bracket with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik Z5397.001 Swivel Bracket is for d&b YP cabinets.
Both horizontal and vertical aiming can be set continuously on the d&b Z5397.001.
Yes. Using the Z5024 Loudspeaker stand adapter, YP cabinets mount on stands with a 35 mm (1.4 in) tube diameter.
Yes. With the Z5010 TV spigot and Z5012 Pipe clamp, YP cabinets fly vertically from bars or truss with a tube diameter between 40 mm and 70 mm.
Yes. Z5397.001 is the d&b audiotechnik part number for the YP Swivel Bracket.
Trianze Tech supplies the d&b audiotechnik Z5397.001 YP Swivel Bracket in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
