d&b audiotechnik R90: 7 Inch Touchscreen Remote Control for d&b Amplifier Systems
Model
:
R90
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

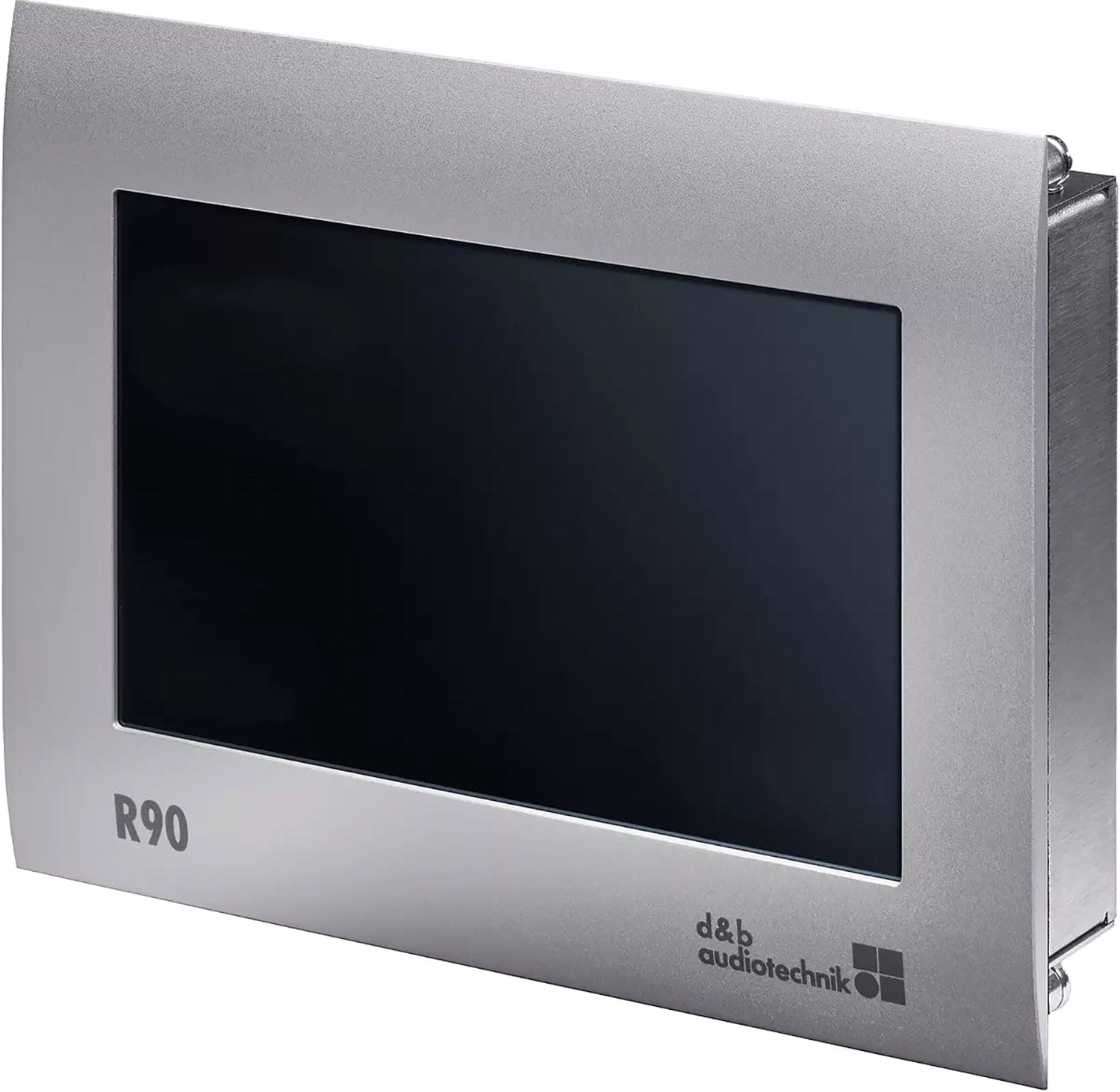

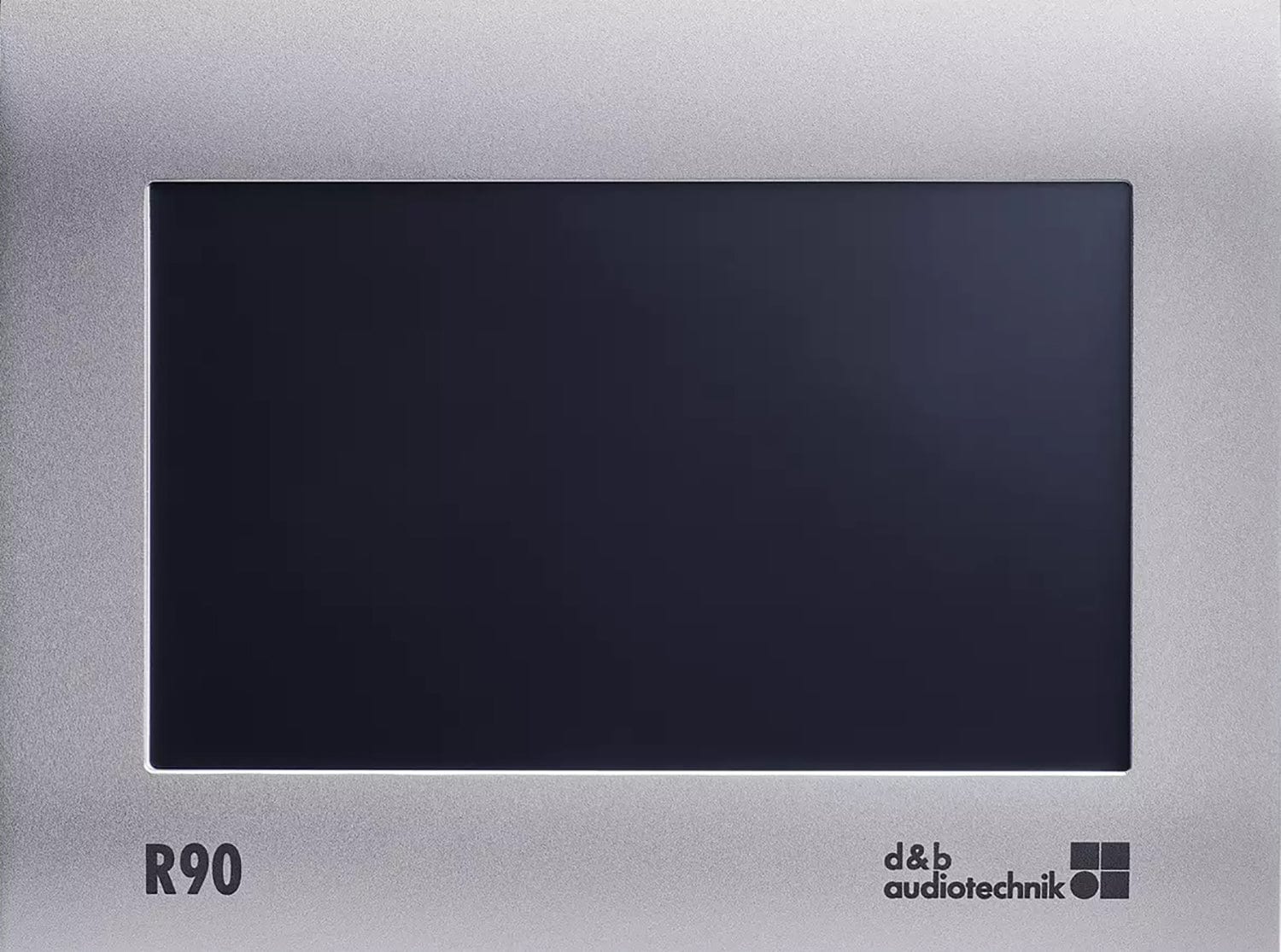

d&b audiotechnik R90 Touchscreen Remote Control
The d&b audiotechnik R90 is a 7 inch touchscreen remote control that simplifies everyday operation of a d&b system. It gives any user one touch control of predefined functions: power, mute, level, grouping and recall of up to nine AmpPresets. All R90 control functions work independently of R1, so system settings cannot be altered by accident. It integrates into any d&b system of up to 15 amplifiers without extra control programming, and a remote application can run on smartphones or tablets on the same network. Trianze Tech supplies the R90 in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 7 inch touchscreen panel PC
- One touch power, mute, level, grouping and AmpPreset recall
- Recall of up to nine AmpPresets
- Controls up to 15 d&b amplifiers
- Works independently of R1
- Beckhoff PC with 1 GHz ARM Cortex-A8 processor
Technical Specifications:
| Spec | Value |
|---|---|
| Model | R90 |
| Type | Touchscreen remote control |
| Display | 7 inch touchscreen panel PC |
| Processor | 1 GHz ARM Cortex-A8 (Beckhoff PC) |
| System Size | Up to 15 amplifiers |
| Interfaces | 1 x 10/100BASE-T Ethernet (RJ45), 2 x USB 2.0 |
| Protection Class | IP54 front, IP20 rear |
| Operating Temperature | 0 to +55 C |
| Supply Voltage | 24 VDC, 12 W max |
| Dimensions (H x W x D) | 150 x 200 x 40 mm |
| Built-in Dimensions | 141 x 191 mm |
| Weight | 0.9 kg (1.98 lb) |
Why Buy the d&b audiotechnik R90 from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the R90 with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik R90 gives one touch control of power, mute, level, grouping and recall of up to nine AmpPresets on a d&b system.
The d&b audiotechnik R90 integrates into any d&b system of up to 15 amplifiers without programming additional control protocols.
No. All control functions in the d&b audiotechnik R90 work independently of R1, which removes the possibility of accidentally altering system settings.
Yes. A remote application for the d&b audiotechnik R90 can be used on smartphones or tablets connected to the same network.
The d&b audiotechnik R90 runs on 24 VDC with 12 W maximum consumption, measures 150 x 200 x 40 mm, needs a 141 x 191 mm built-in cutout and is IP54 at the front.
Trianze Tech supplies the d&b audiotechnik R90 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
