d&b audiotechnik Z5024.000.00: Loudspeaker Stand Adapter for Standard 35 mm Stands, Fits d&b E1, E3 and Brackets
Model
:
Z5024.000.00 Loudspeaker Stand Adapter
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

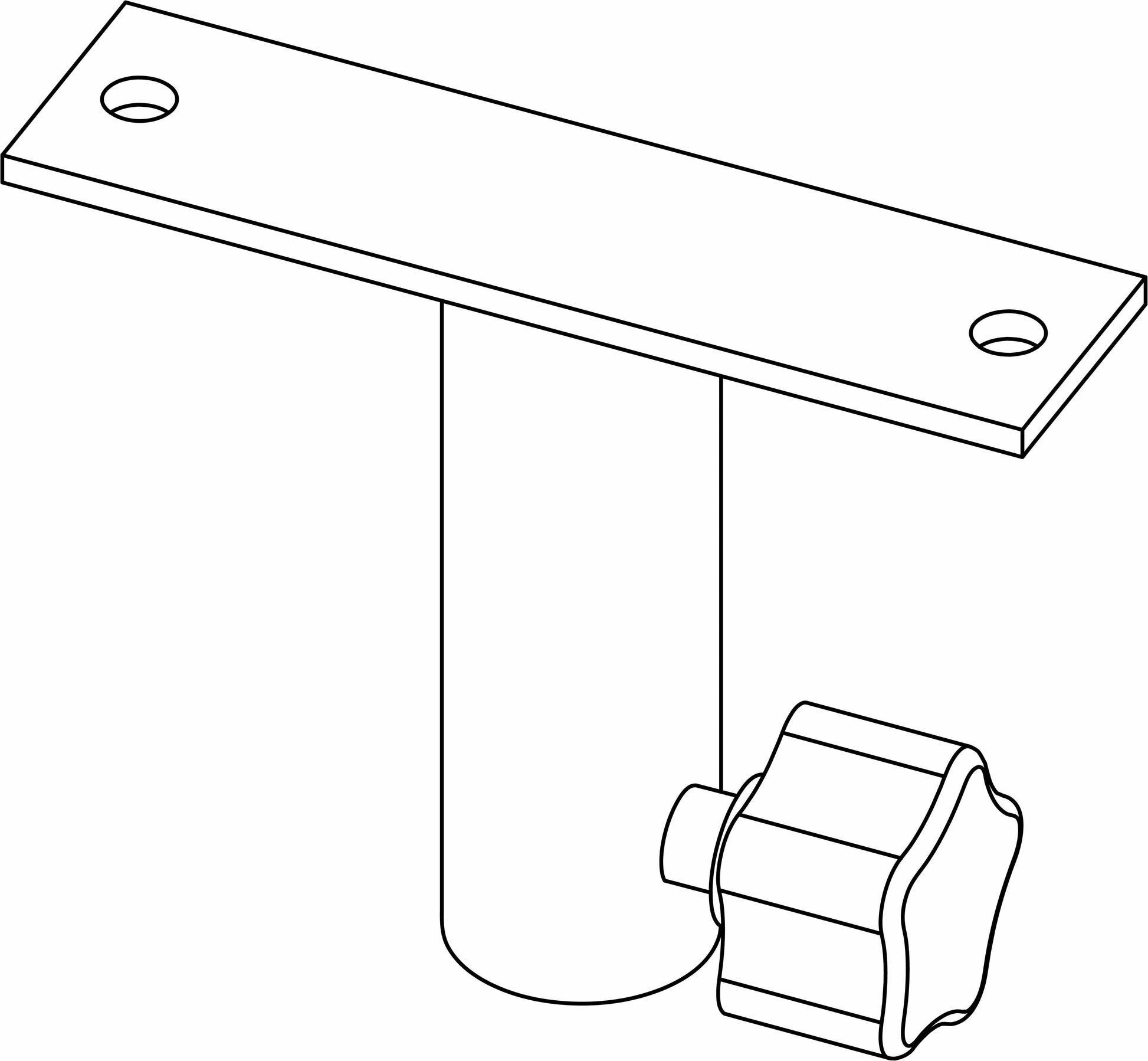

d&b audiotechnik Z5024.000.00 Loudspeaker Stand Adapter
The d&b audiotechnik Z5024.000.00 Loudspeaker Stand Adapter mounts loudspeakers onto the standard 35 mm diameter column used for loudspeaker stands. It fits directly to E1 or E3 loudspeakers, to 2 x E3 using the Z5031 E3 standard bracket, and to brackets including the Z5023 02 flying bracket, Z0124 and Z0126 E1 brackets, Z5032 E3 swivel bracket, Z5028 E3/Ci80 horizontal bracket, Z5030 E3 x 2 angle bracket, Z5052 Ci6/Ci9 flying bracket and Z5150 Q swivel bracket. Trianze Tech supplies the Z5024.000.00 in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Fits standard 35 mm stand columns
- Direct assembly to E1 or E3 loudspeakers
- Works with a range of d&b brackets
- Horizontal angle set via the fixing bolt
- 0.6 kg (1.3 lb)
Technical Specifications:
| Spec | Value |
|---|---|
| Model | Z5024.000.00 |
| Type | Loudspeaker stand adapter |
| Stand Column | 35 mm diameter |
| Direct Fit | E1, E3 |
| Bracket Fit | Z5031, Z5023, Z0124, Z0126, Z5032, Z5028, Z5030, Z5052, Z5150 |
| Weight | 0.6 kg (1.3 lb) |
Why Buy the d&b audiotechnik Z5024.000.00 Loudspeaker Stand Adapter from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the Z5024.000.00 Loudspeaker Stand Adapter with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik Z5024.000.00 mounts loudspeakers onto the standard 35 mm diameter column used for loudspeaker stands.
The d&b audiotechnik Z5024.000.00 assembles directly to E1 or E3 loudspeakers, and to 2 x E3 using the Z5031 E3 standard bracket.
The d&b audiotechnik Z5024.000.00 comes with 3 x M8x16 fixing bolts, 2 x M8x18 hex head screws, 2 x spring washers and 2 x plain washers.
No. d&b states that fixing screws longer than those supplied must not be used, as they can punch into the E1 or E3 threaded inserts and breach the cabinet seal.
The horizontal angle of the d&b audiotechnik Z5024.000.00 is set by slackening the fixing bolt, aligning, and retightening it.
Trianze Tech supplies the d&b audiotechnik Z5024.000.00 Loudspeaker Stand Adapter in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
