d&b audiotechnik DS20: Milan to AES3 Audio Network Bridge with 5 Port AVB Switch, 1 RU
Model
:
DS20
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

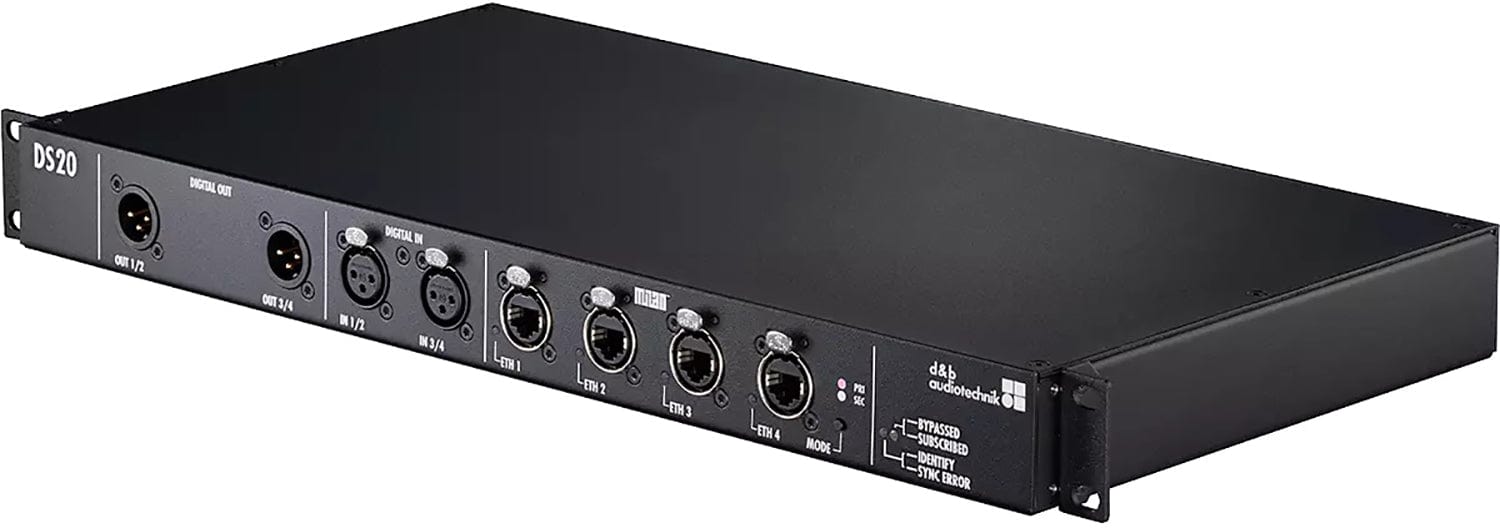

d&b audiotechnik DS20 Milan to AES3 Audio Network Bridge
The d&b audiotechnik DS20 Audio Network Bridge interfaces between Milan networks and AES3 digital audio, while also distributing Ethernet control data in front of the amplifiers. It sends Milan channel labels and cabling metadata through the AES3 stream to d&b four channel amplifiers, and its fully AVB enabled 5 port switch offers a primary and redundant Milan network. Trianze Tech supplies the DS20 for Milan networked d&b systems in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Interface between Milan via Ethernet and the AES3 inputs of d&b amplifiers
- Integrated fully AVB enabled 5 port Ethernet switch
- Primary and redundant Milan network
- Four AES3 input channels for a front of house break in
- Bypass mode acts as AES3 distribution

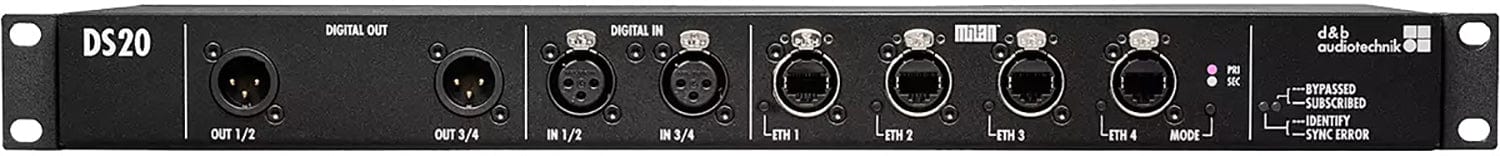

- Front panel matches d&b Touring rack I/O panels
Technical Specifications:
| Spec | Value |
|---|---|
| Model | DS20 |
| Type | Milan to AES3 audio network bridge |

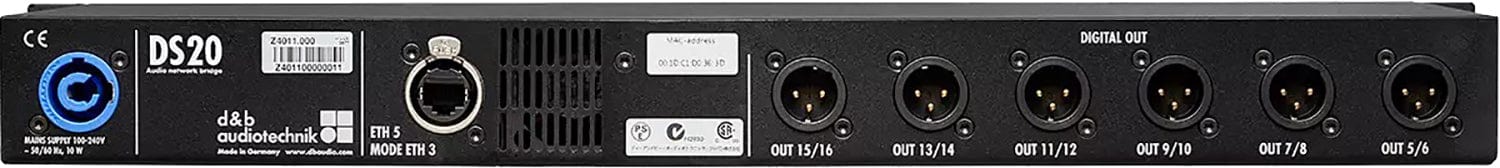

| Digital Outputs | 16 channels (8 x AES3), 3-pin XLR male, 48/96 kHz |
| Digital Inputs | 4 channels (2 x AES3), 3-pin XLR female, 32 to 192 kHz with SRC |
| Synchronization | Milan network |
| Network | etherCON, built in 5 port AVB switch, 100/1000 Mbit |
| Operating Temperature | 0 to 40 C |
| Mains | powerCON, 100 to 240 V, 50 to 60 Hz, overvoltage protection up to 400 V AC |
| Dimensions | 1 RU x 19 inch x 232 mm |
| Weight | 3.8 kg (8.37 lb) |
Why Buy the d&b audiotechnik DS20 from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the DS20 with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik DS20 bridges Milan network audio to the AES3 inputs of d&b amplifiers and distributes Ethernet control data, with sixteen AES3 output channels.
The d&b audiotechnik DS20 interfaces with Milan AVB networks, while the DS10 interfaces with Dante networks. Both convert network audio to AES3 for d&b amplifiers.
Yes. The fully AVB enabled 5 port switch in the d&b audiotechnik DS20 offers a primary and a redundant network for the Milan protocol.
The d&b audiotechnik DS20 has four AES3 input channels (2 x AES3) on 3-pin XLR, accepting 32 to 192 kHz through a sample rate converter, for example for a front of house break in.
The d&b audiotechnik DS20 is a 1 RU, 19 inch unit 232 mm deep and weighs 3.8 kg (8.37 lb).
