d&b audiotechnik DS100M: Milan Signal Engine with 64 x 64 Matrix and MADI Input for d&b Soundscape
Model
:
DS100M
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

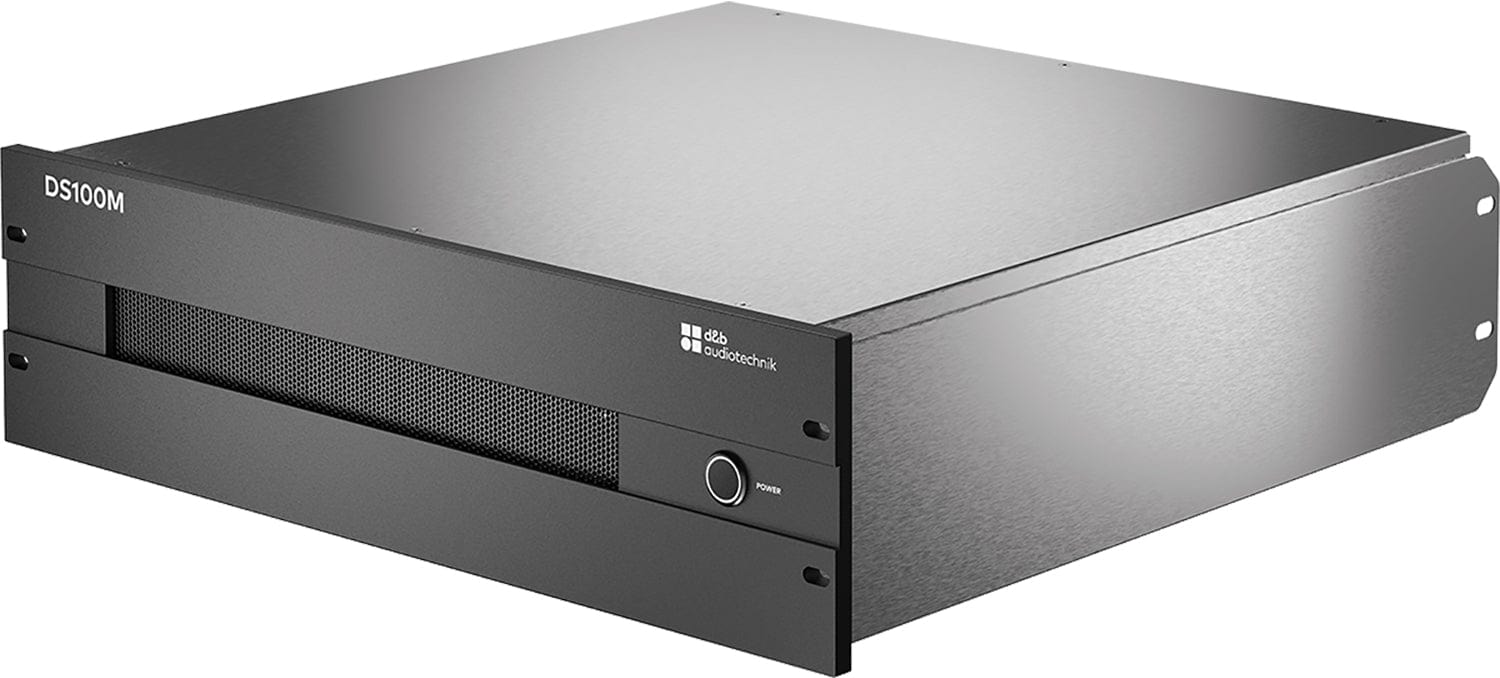

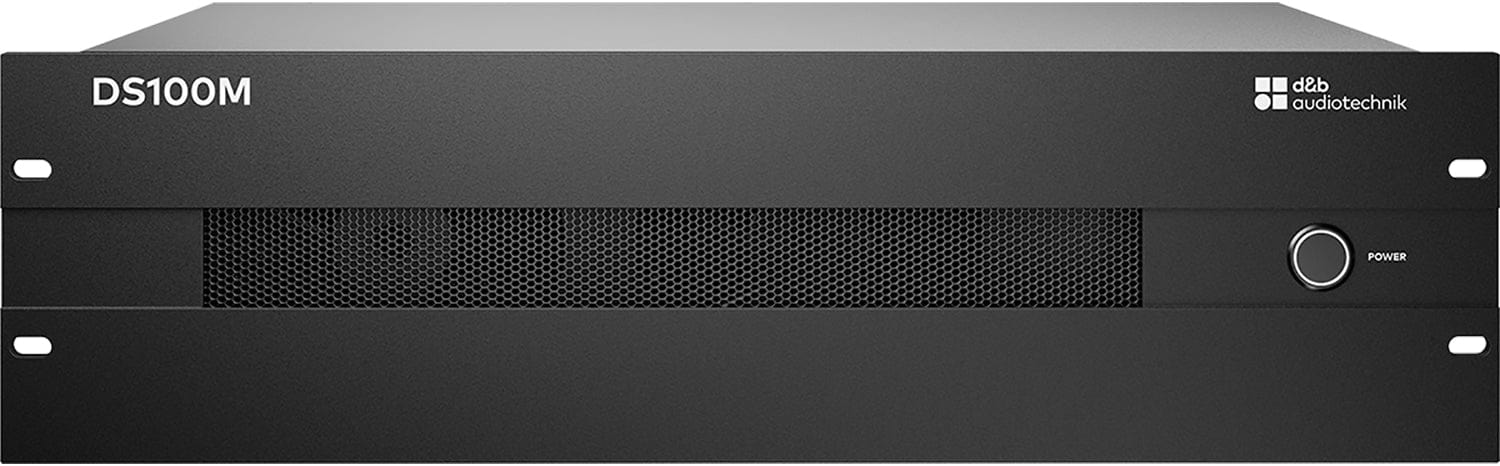

d&b audiotechnik DS100M Milan Signal Engine with 64 x 64 Matrix
The d&b audiotechnik DS100M is the Milan version of the d&b Signal Engine, with a 64 x 64 matrix offering delay and level control at every crosspoint and processing on all inputs and outputs at 48 or 96 kHz. It adds MADI and word clock integration, and is controlled from R1, ArrayCalc or OSC as the processing platform for d&b Soundscape. Trianze Tech supplies the DS100M for Milan networked systems in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 64 x 64 matrix with crosspoint level and delay
- Milan audio network inputs and outputs
- MADI input and word clock integration
- Input 8-band and output 16-band PEQ
- Control via R1, OCA/AES70 and OSC
- 3 RU, 11 kg
Technical Specifications:
| Spec | Value |
|---|---|
| Model | DS100M |
| Type | Milan signal engine and matrix |
| Matrix | 64 x 64 with crosspoint level -120 to +10 dB and delay up to 500 ms |
| Sample Rate | 48/96 kHz |
| Digital Inputs | Milan, MADI |
| Digital Outputs | Milan |
| Input Processing | 64 channels, 8-band PEQ, gain -120 to +24 dB, delay up to 500 ms |
| Output Processing | 64 channels, 16-band PEQ, gain -120 to +10 dB, delay up to 500 ms |

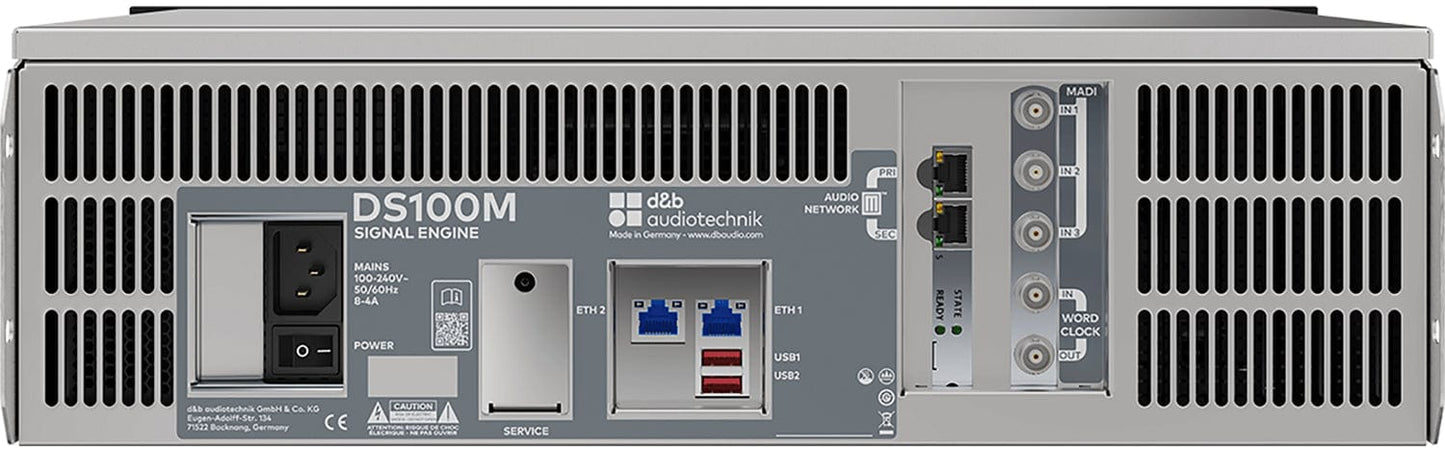

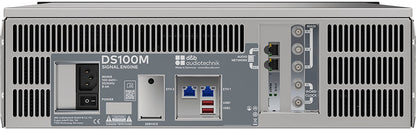

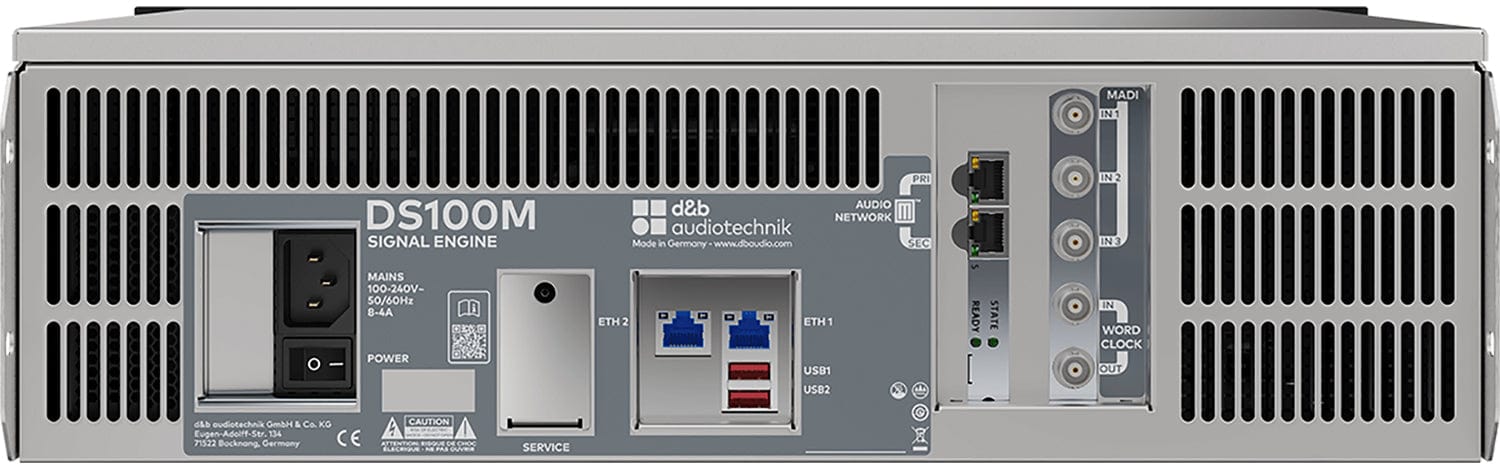

| Network | 2 x RJ45 Milan primary/secondary, 1 x RJ45 control, 2 x USB |
| Mains | IEC, 100 to 240 V |
| Dimensions | 3 RU x 483 mm x 481 mm |
| Weight | 11 kg (24.25 lb) |
Why Buy the d&b audiotechnik DS100M from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the DS100M with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik DS100M is the Milan version of the Signal Engine with MADI and word clock integration, while the DS100 uses a Dante and AES67 audio network.
The d&b audiotechnik DS100M has a 64 x 64 matrix with crosspoint level from -120 to +10 dB and crosspoint delay up to 500 ms.
The d&b audiotechnik DS100M accepts Milan and MADI digital inputs at 48 or 96 kHz, and outputs on Milan.
The d&b audiotechnik DS100M is integrated into the d&b R1 Remote control software and ArrayCalc, and can also be controlled via OCA/AES70 and OSC.
The d&b audiotechnik DS100M is a 3 RU, 19 inch unit 481 mm deep and weighs 11 kg (24.25 lb).
Trianze Tech supplies the d&b audiotechnik DS100M in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
