d&b audiotechnik DS100: Signal Engine with 64 x 64 Dante Matrix for d&b Soundscape
Model
:
DS100
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

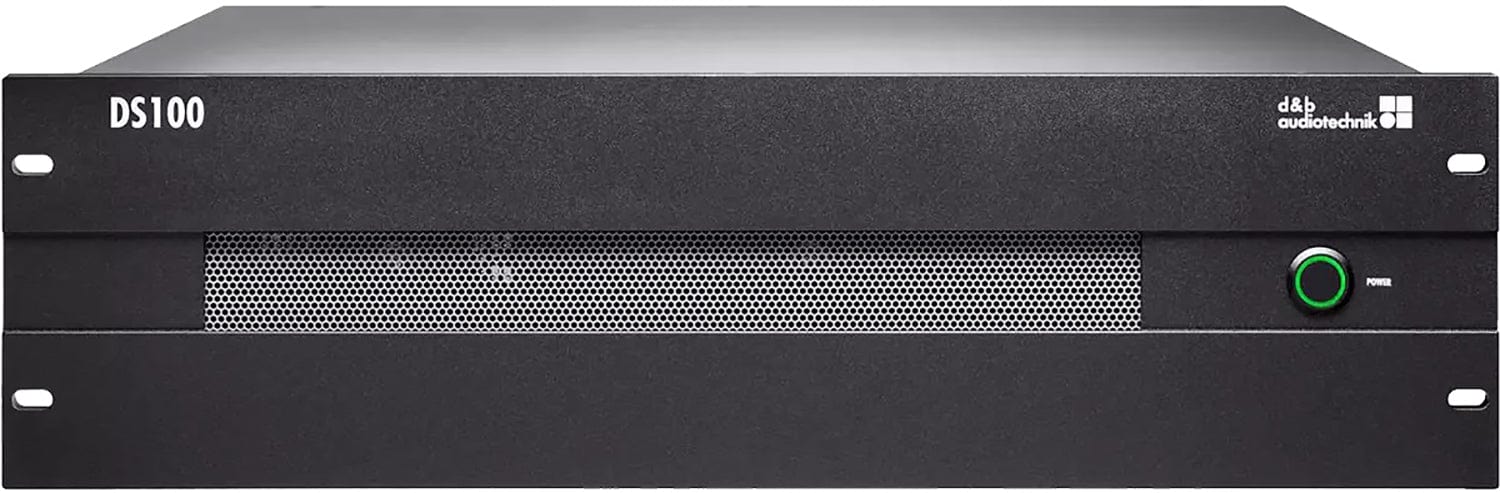

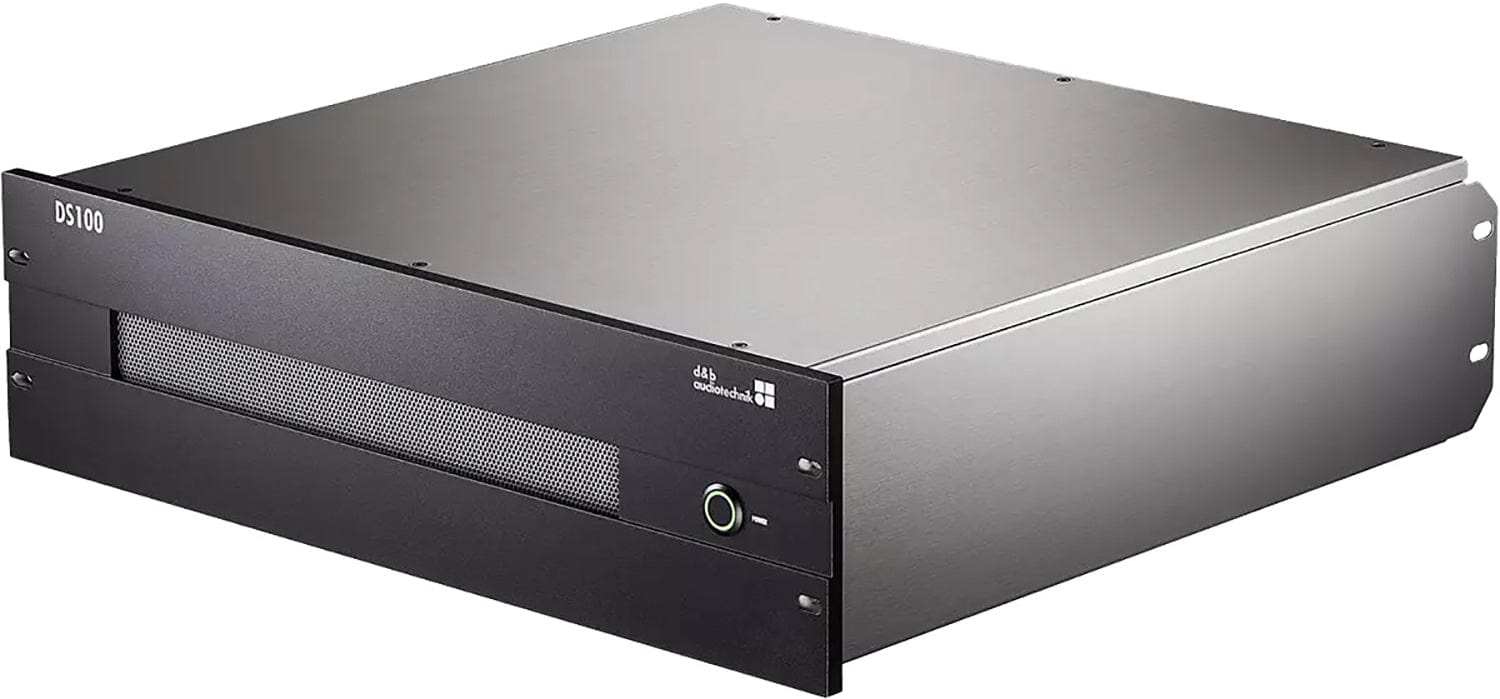

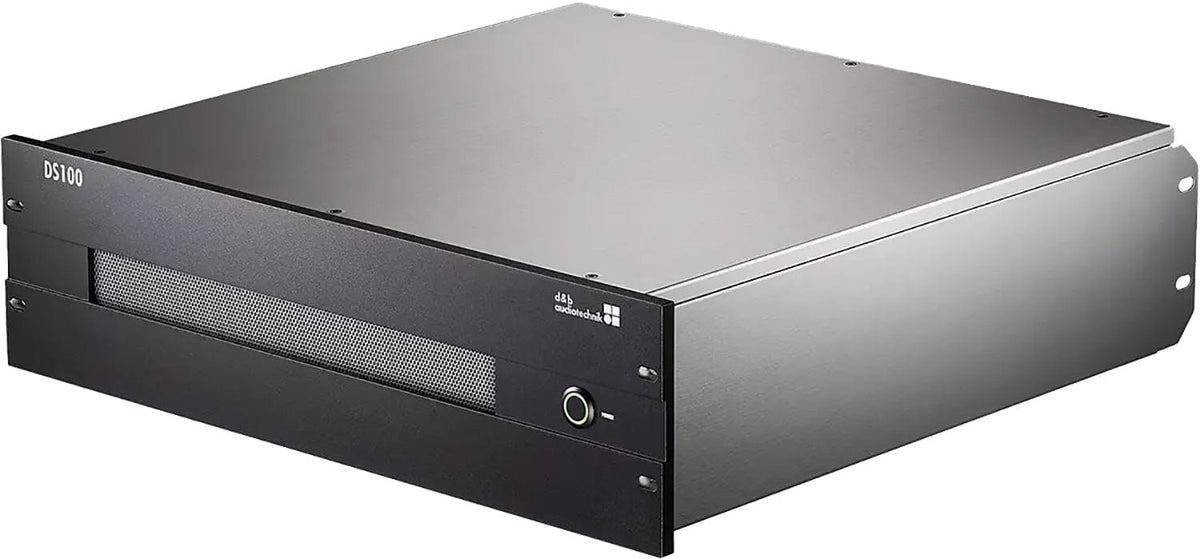

d&b audiotechnik DS100 Signal Engine, 64 x 64 Dante Matrix
The d&b audiotechnik DS100 Signal Engine is a network controlled, Dante enabled DSP platform with a 64 x 64 matrix, delay and level control on every crosspoint and processing on all inputs and outputs at 48 or 96 kHz. It is the hardware for d&b Soundscape, with En-Scene object positioning and En-Space convolution, controlled from R1, ArrayCalc or OSC. Trianze Tech supplies the DS100 for immersive and networked audio projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 64 x 64 matrix with crosspoint level and delay
- Dante and AES67 audio network, primary and secondary
- En-Scene positioning for up to 64 sources
- En-Space with up to 144 convolvers
- Control via R1, OCA/AES70, OSC and SNMP
- 3 RU with 400 W universal power supply
Technical Specifications:
| Spec | Value |
|---|---|
| Model | DS100 |
| Type | Dante enabled signal engine and matrix |
| Inputs/Outputs | 64 / 64 |
| Sample Rate | 48/96 kHz |
| Latency | Under 1.4 ms at 48 kHz, under 1.6 ms at 96 kHz, plus Dante latency |
| Input Processing | Gain -120 to +24 dB, polarity, 8-band PEQ, delay up to 500 ms |
| Output Processing | Gain -120 to +10 dB, polarity, 16-band PEQ, delay up to 500 ms |
| En-Space | Up to 144 convolvers, up to 10 s impulse responses |

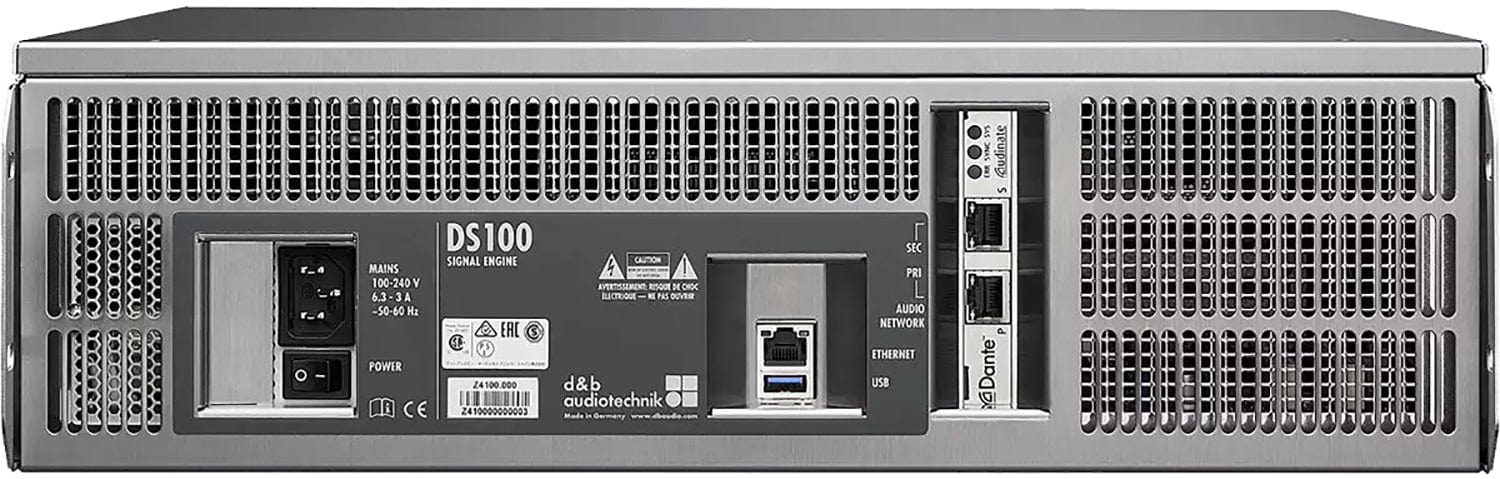

| Network | 2 x RJ45 Dante primary/secondary, 1 x RJ45 control |
| Power | 100 to 240 V, 400 W nominal |
| Dimensions | 3 RU x 19 inch x 481 mm |
| Weight | 11.2 kg (24.7 lb) |
Why Buy the d&b audiotechnik DS100 from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the DS100 with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The d&b audiotechnik DS100 is a network controlled, Dante enabled DSP platform with a 64 x 64 matrix, and it is the hardware at the heart of d&b Soundscape.
The d&b audiotechnik DS100 handles 64 inputs and 64 outputs at 48 or 96 kHz, with level and delay control at every matrix crosspoint.
En-Scene positions up to 64 sources statically or dynamically, and En-Space provides room emulation with up to 144 convolvers and impulse responses up to 10 seconds.
The d&b audiotechnik DS100 is controlled from the d&b R1 Remote control software and ArrayCalc, and all matrix functions can also be automated via OSC.
The d&b audiotechnik DS100 has a Dante in to out latency under 1.4 ms at 48 kHz and under 1.6 ms at 96 kHz, plus Dante network latency.
Trianze Tech supplies the d&b audiotechnik DS100 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
