d&b audiotechnik DS10: Audio Network Bridge with Dante, AES3 and Redundant Network Switch
Model
:
DS10
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
d&b audiotechnik DS10 Audio Network Bridge with Redundant Dante Network

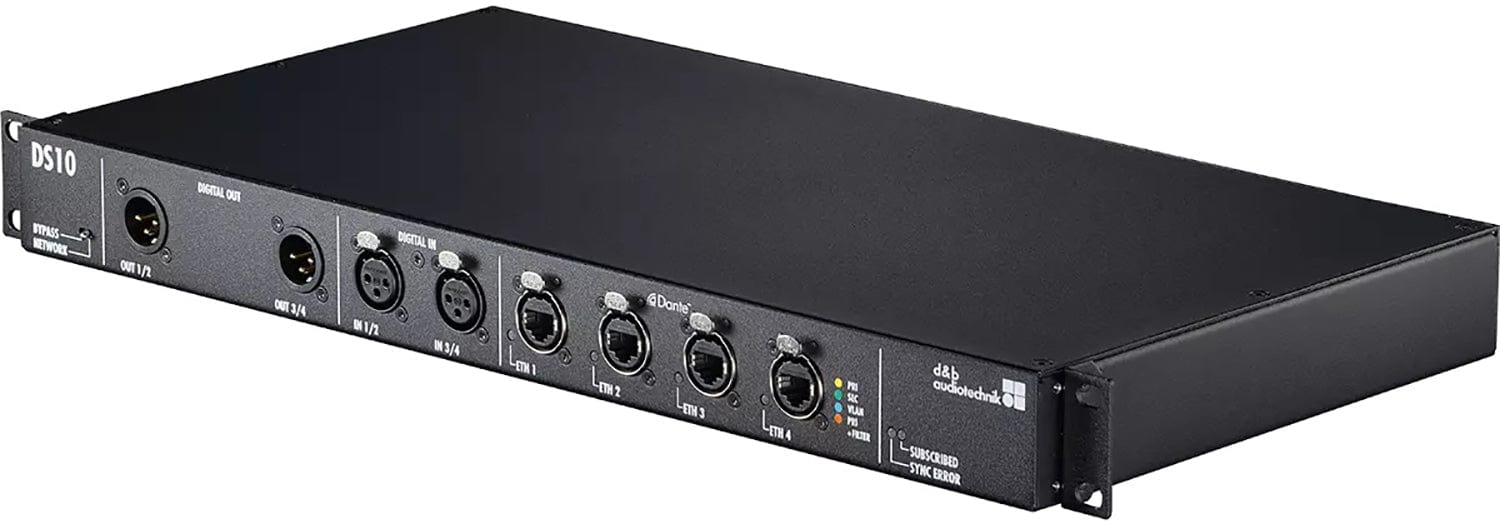

The d&b audiotechnik DS10 is the d&b audio network bridge between Dante and the AES3 inputs of d&b amplifiers, with an integrated 5 port switch offering primary and redundant Dante networks, multicast filtering and VLAN modes. Audio and R1 remote control data via OCA/AES70 can share a single Ethernet cable, and its front panel matches the D80 Touring rack I/O panel. Trianze Tech supplies the DS10 for touring and installed d&b systems in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Dante to AES3 interface for d&b amplifiers
- Primary and redundant Dante networks
- Multicast filtering and VLAN modes
- Audio and OCA/AES70 control on one cable

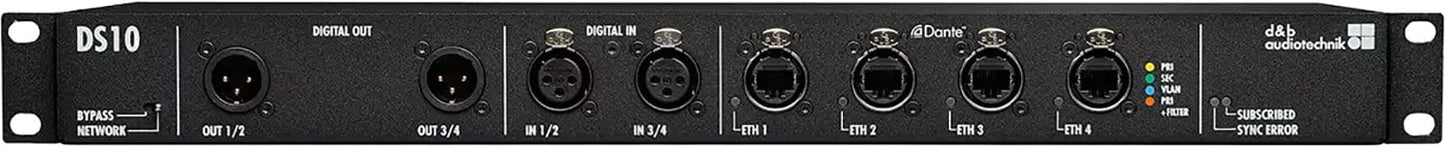

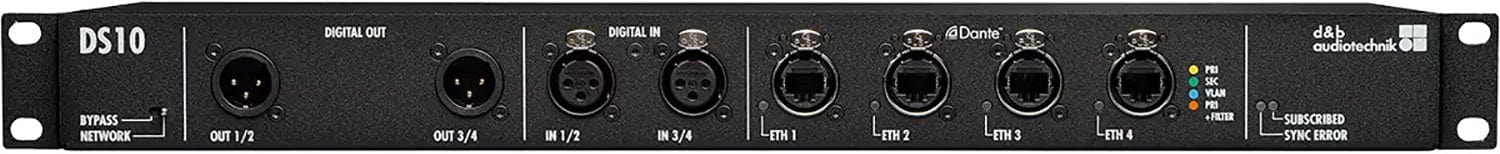

- Front panel matches the D80 Touring rack
- Bypass mode acts as AES3 distribution
Technical Specifications:
| Spec | Value |
|---|---|
| Model | DS10 |
| Type | Audio network bridge |

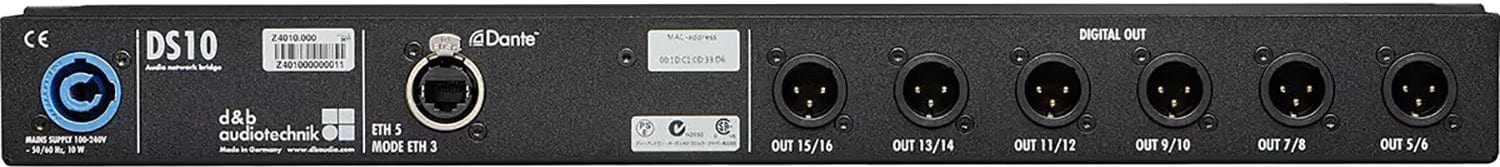

| Digital Outputs | 16 channels (8 x AES3), 48/96 kHz |
| Digital Inputs | 4 channels (2 x AES3), 32 to 192 kHz with SRC |
| Network | Built in 5 port switch, etherCON, 100/1000 Mbit |
| Switch Functions | Redundancy, VLAN, multicast filtering |
| Control | OCA/AES70 via R1 Remote control software |
| Mains | powerCON, 100 to 240 V, overvoltage protection up to 400 V |
| Dimensions | 1 RU x 19 inch x 232 mm |
| Weight | 3.75 kg (8.26 lb) |
Why Buy the d&b audiotechnik DS10 from Trianze Tech?
- Genuine d&b audiotechnik equipment with local UAE support from the Trianze Tech audio team
- System design help matching the DS10 with compatible d&b loudspeakers, amplifiers and rigging
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Pre-sales guidance for touring, live event and installed sound projects
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The integrated 5 port switch of the d&b audiotechnik DS10 offers primary and redundant Dante networks, plus multicast filtering and VLAN modes.
Yes. The d&b audiotechnik DS10 combines Dante audio and OCA/AES70 remote control data for the R1 software on a single Ethernet cable.
In bypass mode the d&b audiotechnik DS10 acts as an AES3 distribution device.
Yes. The front panel of the d&b audiotechnik DS10 is designed to match the I/O panel of the D80 Touring rack assembly.
The d&b audiotechnik DS10 delivers 16 Dante channels on 8 AES3 outputs and accepts 4 channels on 2 AES3 inputs.
Trianze Tech supplies the d&b audiotechnik DS10 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
