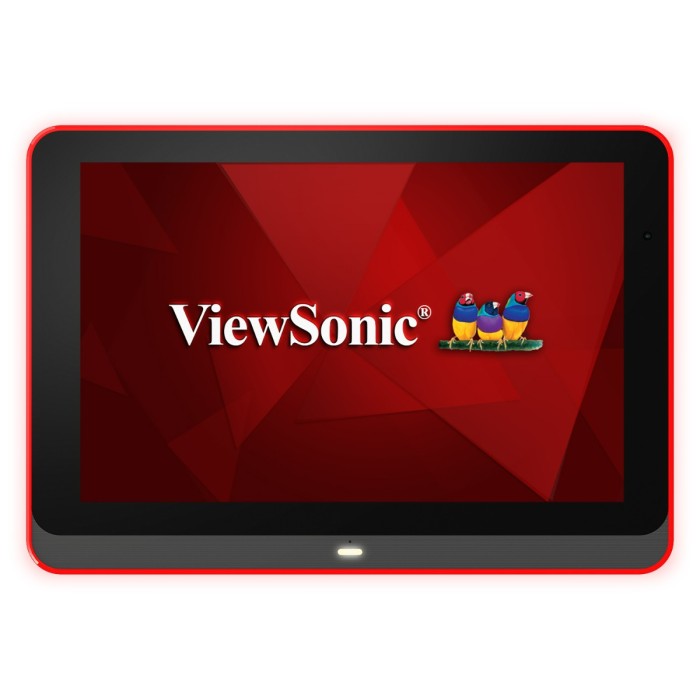

ViewSonic EP1052T-L: 10.1 Inch Room Scheduling Panel with NFC and RFID Badge Reader
Model
:
EP1052T-L
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
ViewSonic EP1052T-L: 10.1 Inch Room Scheduling Panel with NFC and RFID Badge Reader
The ViewSonic EP1052T-L is the base model 10.1 inch meeting room scheduling panel, built for straightforward door mounted room booking with NFC and RFID badge tap support.
Key Features
- 10.1 inch IPS touch panel with 350 cd/m2 brightness
- Single cable PoE Plus installation with 802.11ac Wi-Fi backup
- NFC and RFID badge reader for tap to book room access
- USB 2.0, Micro-USB and microSD ports for setup and maintenance
Technical Specifications
| Screen Size | 10.1 inch |
| Resolution | 1280 x 800 |
| Panel Type | IPS, anti-glare 3H hard coat |
| Brightness | 350 cd/m2 |
| Contrast Ratio | 1,000:1 |
| Viewing Angle | 160 degrees |
| Touch | 10 point capacitive touch |
| Embedded System | Android 9.0, 16GB eMMC storage |
| Connectivity | 802.11ac Wi-Fi, PoE and PoE Plus single cable install, NFC and RFID 13.56MHz reader, USB 2.0 x2, Micro-USB, microSD, 3.5mm audio in/out |
| Dimensions | 261 x 181 x 29mm |
| Weight | 0.92kg |
| Mounting | Flush wall bracket or glass mount, not a VESA display mount |
| Power | 16W typical, 20W max |
| Warranty | 1 year limited, parts and labor |
Why Buy the EP1052T-L from Trianze Tech?
- Genuine ViewSonic scheduling panel sourced and supported locally in the UAE
- Professional installation across Dubai, Abu Dhabi and the GCC
- Backed by ViewSonic's 1 year limited warranty with local support
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The ViewSonic EP1052T-L is a 10.1 inch touch panel mounted outside a meeting room, used to display room availability and let staff book the room by tapping an NFC or RFID badge on the panel.
The EP1052T-L is the base model with NFC and RFID badge reading only. The EP1052T-A adds Wiegand access control, RS485, GPIO and a built in camera, while the EP1052T-H adds HID branded card reader support and an enterprise security stack including SCEP and IEEE 802.1x.
The EP1052T-L is designed for single cable Power over Ethernet Plus installation, with 802.11ac Wi-Fi as a wireless option, and mounts via a flush wall bracket or glass mount rather than a standard VESA pattern.
The EP1052T-L includes 2x USB 2.0 ports, a Micro-USB port, a microSD card slot and 3.5mm audio in and out, alongside its PoE Plus network connection and 802.11ac Wi-Fi.
The EP1052T-L has a 10.1 inch IPS panel with 1280 x 800 resolution, 350 cd/m2 brightness, a 1,000:1 contrast ratio and 10 point capacitive touch.
Trianze Tech stocks the ViewSonic EP1052T-L in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
