Bose Sub1 Powered Bass Module: Portable Powered Subwoofer for L1 Pro Systems
Model
:
Sub1 (840918-4100)
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Bose Sub1 Powered Bass Module: Portable Powered Subwoofer for L1 Pro Systems
The Bose Sub1 is a powered, portable bass module that pairs with the Bose L1 Pro32 line array system and other portable PA setups, distributed in Dubai, Abu Dhabi and across the UAE and GCC by Trianze Tech. Its 7 inch by 13 inch high excursion RaceTrack driver delivers low end performance down to 40 Hz from an ultra slim enclosure, freeing up vehicle and stage space compared to a traditional round driver subwoofer.
Key Features
- 7 inch x 13 inch high excursion RaceTrack driver in an ultra slim enclosure
- Class D 480 W amplifier delivers low end performance down to 40 Hz
- Single cable SubMatch connectivity to the Bose L1 Pro32 system
- Stackable with additional Sub1 units for more low end or Cardioid Mode directional bass

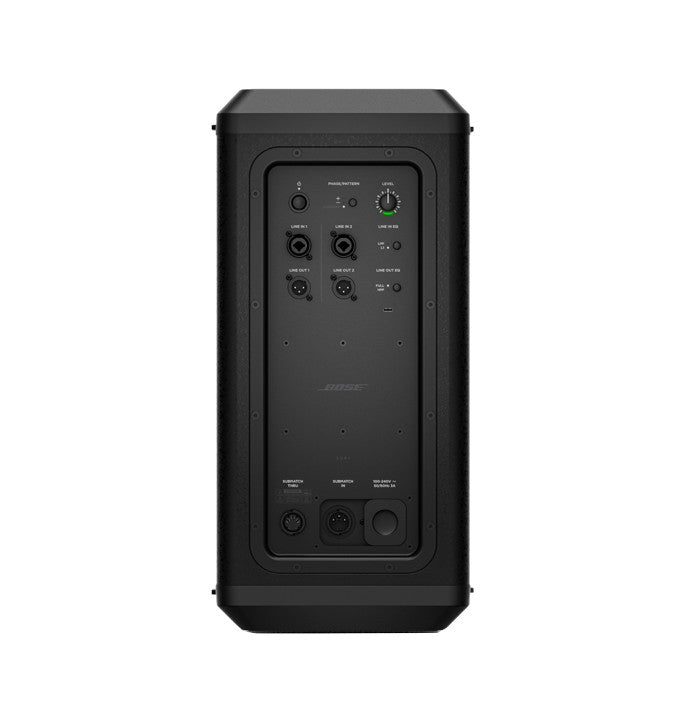

- Combination XLR/TRS line input plus SubMatch in, with 2x XLR and SubMatch thru outputs
Technical Specifications
| Driver | 7 inch x 13 inch high excursion RaceTrack driver |
| Low Frequency Extension | Down to 40 Hz |
| Amplifier | Class D, 480 W |
| Power Input | 110 to 240 VAC, 50/60 Hz |
| Inputs | Combination XLR/TRS (line), SubMatch in |
| Outputs | 2x XLR (full frequency bandwidth), SubMatch thru |
| Dimensions (H x W x D) | 533 x 260 x 529 mm (21.0 x 10.2 x 20.8 in) |
| Weight | 15.5 kg (34.1 lb) |
| Compatible System | Bose L1 Pro32 portable line array system |
| Part Number | 840918-4100 |
Why Buy the Bose Sub1 Powered Bass Module from Trianze Tech?
- Genuine Bose Professional portable PA equipment sourced and supported locally in the UAE
- Fast delivery across Dubai, Abu Dhabi and the GCC for events and venues
- Dedicated portable PA and live sound support from Trianze Tech
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Sub1 delivers low end performance down to 40 Hz, driven by a 7 inch x 13 inch high excursion RaceTrack driver in an ultra slim, portable enclosure.
The Sub1 is designed to pair with the Bose L1 Pro32 portable line array system via a single cable SubMatch connection, and can also be used with other portable PA setups via its XLR inputs and outputs.
Yes. Multiple Sub1 subwoofers can be stacked for additional low end output, or configured in Cardioid Mode to focus bass forward and reduce stage bleed.
The Sub1 uses a Class D amplifier rated at 480 W, powered from a 110 to 240 VAC, 50/60 Hz universal power input.
The Bose Sub1 weighs 15.5 kg (34.1 lb) and measures 533 x 260 x 529 mm (21.0 x 10.2 x 20.8 in), designed for easy transport in a vehicle or on stage.
Trianze Tech stocks the Bose Sub1 Powered Bass Module in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
