VSYS VS03P-610T Heavy Duty Extend Out Tilting TV Wall Mount
Model
:
VS03P-610T
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 or Chat on WhatsApp
VSYS VS03P-610T Heavy Duty Extend Out Tilting TV Wall Mount
An industrial-strength extend-out wall mount built for massive displays needing full rear-port access across Dubai, Abu Dhabi, and the UAE.
Key Features:
- 80kg weight capacity supports curved and flat screens up to 105 inches
- Extend-out mechanism pulls to a 172mm profile for cable access, retracts to a slim 53mm

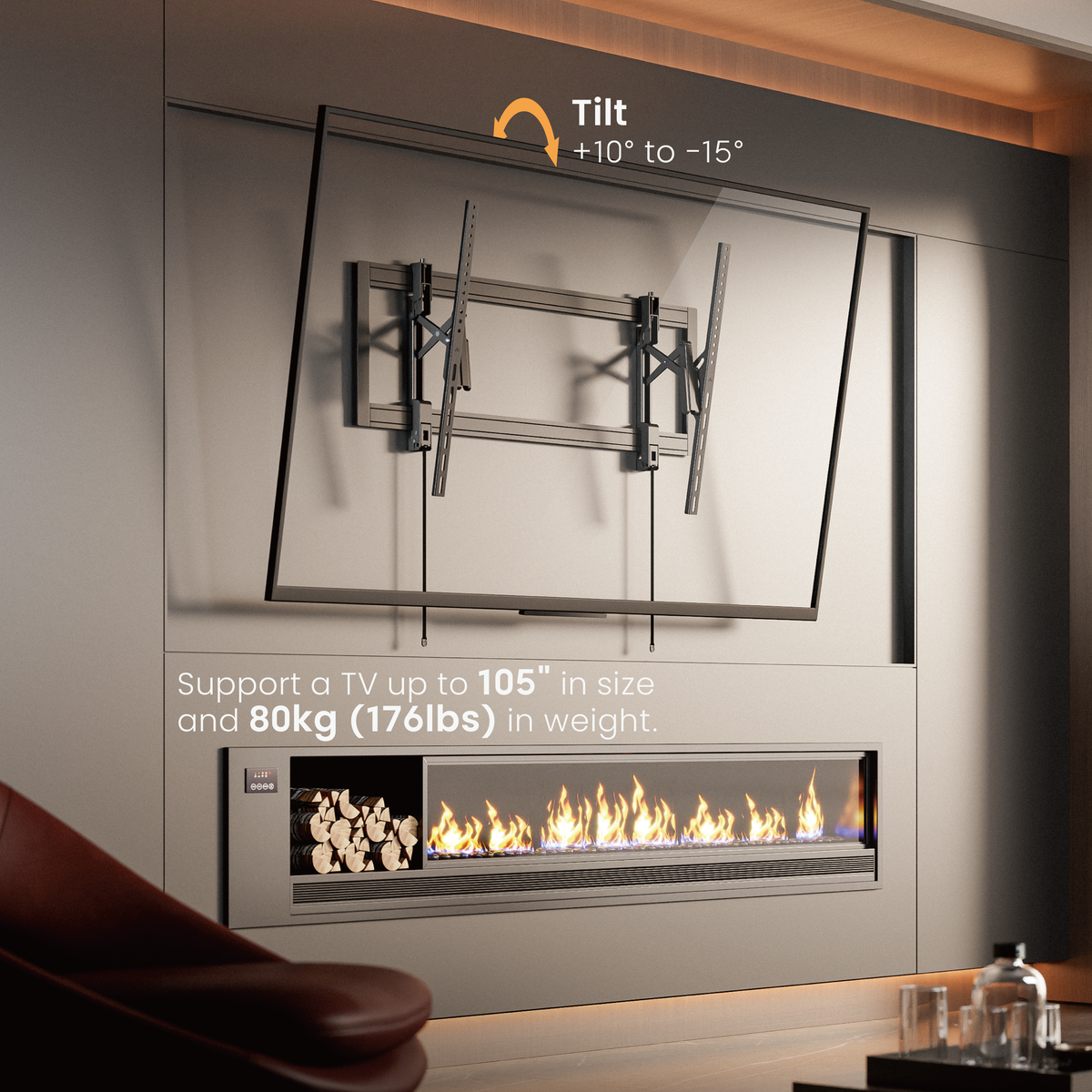

- Wide tilt range of +10 to -15 degrees ideal for high-wall installations
- Anti-theft locking hole adds security for public and commercial spaces
- Lateral shift wall plate centers the TV even with off-center studs
Technical Specifications:
| Technical Parameter | Specification |
| Brand & Model | VSYS VS03P-610T |
| Screen Size Compatibility | Up to 105 Inch |
| Weight Capacity | 80 kg |
| Extend-Out Profile | 172mm Extended, 53mm Retracted |
| Tilt Range | +10 Degrees / -15 Degrees |
| Security | Anti-Theft Locking Hole (Padlock Required) |
| Wall Plate | Lateral Shift Adjustable |
| VESA Compatibility | Up to 1000mm x 602mm |
| Certification | UL Certified, Strength Tested 4 Times Approved |
Why Buy the VSYS VS03P-610T from Trianze Tech?
- Genuine VSYS stock with manufacturer warranty support
- Fast delivery and installation across Dubai, Abu Dhabi, and the wider GCC
- Dedicated AV integration support for home cinema and public space projects
- Competitive pricing with flexible corporate and government quotes
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
Weight capacity varies by model in this range, supporting displays from 40kg up to 130kg depending on screen size and mount type.
Yes, it is strength tested and multiple times approved, with some models also carrying UL certification, to confirm it safely supports the rated display weight.
VESA compatibility varies by model, covering patterns up to 900x600mm or 1000x600mm depending on the specific mount.
Installation is straightforward thanks to features such as quick-release spring locks, direction indicators, or built-in bubble levels included on most models.
Yes, depending on the model it offers tilt, swivel, pull-out, or micro-adjustment features to fine-tune the viewing angle or position after mounting.
