VSYS VPM-20H Heavy Duty Universal Projector Ceiling Mount
Model
:
VPM-20H
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 or Chat on WhatsApp
VSYS VPM-20H Heavy Duty Universal Projector Ceiling Mount
A heavy duty universal projector mount built for large boardrooms, lecture halls, and home cinemas across Dubai, Abu Dhabi, and the UAE.
Key Features:
- 35kg weight capacity built from high-tensile steel for heavy-duty commercial projectors
- Precision tilt of +20 to -20 degrees, swivel of +8 to -8 degrees, plus 360 degree rotation

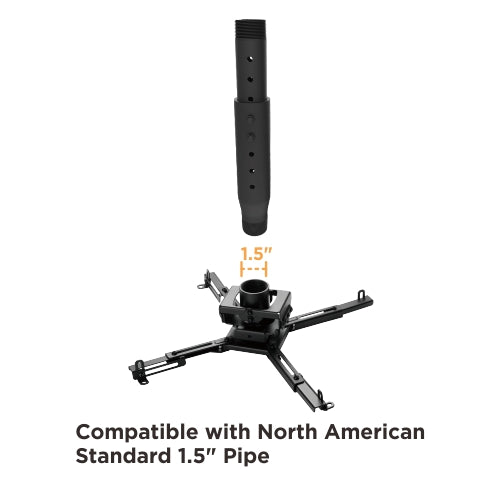

- Compatible with North American standard 1.5 inch NPT pipe for extension poles and ceiling plates

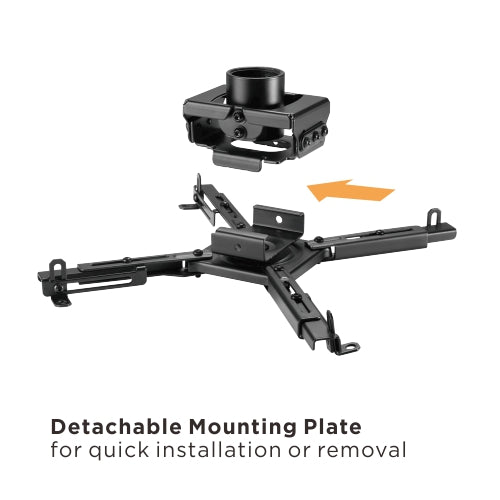

- Detachable head section simplifies installation
- Mounting range of 130mm to 470mm adapts to different ceiling heights
Technical Specifications:
| Technical Parameter | Specification |
| Brand & Model | VSYS VPM-20H |
| Weight Capacity | 35 kg |
| Mounting Range | 130mm to 470mm |
| Tilt Range | +20 Degrees / -20 Degrees |
| Swivel Range | +8 Degrees / -8 Degrees |
| Rotation | 360 Degrees |
| Pipe Compatibility | 1.5 Inch NPT (North American Standard) |
| Cable Management | Integrated |
| Construction | High-Tensile Steel |
Why Buy the VSYS VPM-20H from Trianze Tech?
- Genuine VSYS stock with manufacturer warranty support
- Fast delivery and installation across Dubai, Abu Dhabi, and the wider GCC
- Dedicated AV integration support for boardroom and lecture hall projects
- Competitive pricing with flexible corporate and government quotes
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
It supports up to 35kg, built from high-tensile steel for heavy-duty commercial projectors.
Precision tilt of +20 to -20 degrees, swivel of +8 to -8 degrees, and 360 degree rotation allow the image to be perfectly squared to the screen every time.
Yes, it uses a North American standard 1.5 inch NPT pipe size, compatible with various extension poles and ceiling plates.
The mounting range spans 130mm to 470mm, adaptable to different ceiling heights and installation requirements.
Yes, integrated cable management keeps wiring organized and hidden for a clean installation.
