Key Features

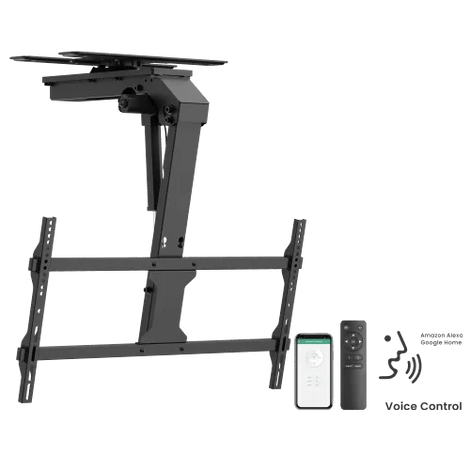

The VSYS VCM-M0748DS represents the pinnacle of automated architectural AV integration, designed specifically to solve the challenge of mounting massive 86-inch displays in premium UAE venues where wall space is unavailable or absolute aesthetic minimalism is mandated. This motorized flip-down ceiling mount keeps high-end presentation panels completely hidden horizontally against the ceiling when not in use. Upon command, its ultra-quiet, high-torque electric motor lowers the screen up to 75 degrees while simultaneously offering a full 180-degree automated swivel. Outfitted with an active collision avoidance system and heavy-duty 1.5mm cold-rolled steel bracing, the VCM-M0748DS provides a cinematic, highly sophisticated level of automated deployment perfectly suited for luxury hospitality suites, DIFC executive boardrooms, and high-end VIP briefing centers.

Technical Specifications & Performance Detail

• Global Inventory and Asset Identifiers: The core VCM-M0748DS motorized mount is fully stocked and immediately available from our central Dubai warehousing facility, trackable via its regional Middle East MPN (VS-VCM-M0748DS-ME) and international stock variants (VS-VCM-M0748DS-INT), guaranteeing that enterprise procurement teams bypass all unpredictable international freight delays.

• Supported Panel Types & Resolution: Natively engineered to suspend and automate heavy commercial panel technologies, safely carrying high-density 4K UHD, OLED, and direct-view LED professional monitors ranging from 43 inches up to a massive 86 inches.

• Payload Capacity & Motorized Torque: Built with the immense structural rigidity required to safely automate commercial monitors weighing up to 45 kilograms (99lbs), utilizing a premium low-decibel electric motor that ensures perfectly smooth transit without micro-vibrations.

• Articulating Range & Glare Reduction: Delivers a sweeping 0° to -75° automated downward tilt, paired with a massive +90° to -90° motorized swivel, effortlessly neutralizing harsh overhead lighting in bright corporate lobbies or accommodating complex pitched-roof structures.

• I/O Ports, Computing/OS Chips & Certifications: The open-architecture VESA plate ensures AV technicians maintain complete, unobstructed physical access to rear HDMI/LAN ports and integrated System-on-Chip (SoC) boards without impeding the motorized folding sequence.

• Universal VESA Standards: Highly adaptable to global IT hardware standards, natively supporting commercial VESA mounting hole patterns from 200x100mm up to an expansive 800x400mm configuration.

Enterprise Software & UC Platform Ecosystem Compatibility

• Microsoft Teams Rooms & Zoom Rooms: Provides the perfect automated structural backbone for hidden secondary "confidence monitors" or primary presentation screens in expansive Microsoft Teams Rooms and Zoom Rooms where acoustic glass prevents standard wall mounting.

• Cisco Webex & Crestron Connected: The included Tuya App integration and RF remote protocols can be bridged into broader Crestron Connected ecosystems, allowing the mount's deployment to trigger simultaneously with Cisco Webex room activations.

• Extron & AMX Routing Integration: The wide ceiling mounting base easily accommodates the concealed integration of Extron or AMX signal receivers and HDBaseT transmitters, keeping the boardroom ceiling architecture entirely wire-free and aesthetically immaculate.

Regional Regulatory & Electrical Compliance

• MoIAT Safety Standards: The hardware structure, collision avoidance mechanism, and high-yield steel manufacturing processes strictly comply with the United Arab Emirates Ministry of Industry and Advanced Technology (MoIAT) guidelines for automated overhead safety in public zones.

• Electrical Routing Safety: Equipped with an AC 100~240V power supply stepping down to a safe DC 29V output. The generous 3-meter cord securely routes native UK-standard 3-pin Type G electrical power to ceiling mains, entirely preventing severe cable pinch points during motorized folding.

• International Certifications: Manufactured under rigorous industrial quality controls bearing comprehensive strength-testing markers (certified to 4 times its approved weight capacity), as well as CE, FCC, ErP, and RoHS compliance to guarantee environmental and electrical safety for premium indoor corporate deployments.

Logistics, Packaging & Spatial Handling Parameters

• Net Unpacked Dimensions: When fully folded flush against the ceiling, the hardware maintains a discreet 177 millimeter profile depth. The overall ceiling footprint measures exactly 872 millimeters in length and 864 millimeters in width when fully deployed.

• Gross Shipping Box Dimensions: The enterprise-grade packaging is highly optimized for local courier dispatch, utilizing a condensed volumetric footprint measuring 920 millimeters in length, 340 millimeters in width, and 210 millimeters in depth to protect internal motor drives during transit.

• Net Hardware Weight: Forged from premium 1.5-millimeter cold-rolled steel, the complete motorized assembly yields a highly robust net product weight of exactly 10.8 kilograms.

• Gross Freight Shipping Weights: Fully boxed alongside all heavy-duty masonry anchors, ceiling lag bolts, RF remotes, and installation hardware kits, the gross shipping weight totals exactly 12.6 kilograms, perfectly calibrated for secure bulk palletization across GCC supply chains.
